丹佛斯?jié)h森快速接頭 Danfoss Hansen quick disconnect couplings
信德邁科技（北京）有限公司產品代理 丹佛斯動力系統簽約中國經銷商

自 1915 年弗雷德·漢森發明快速接頭以來，漢森的名字已成為在流體輸送領域設定新行業標準的代名詞，在性能、彈性和可靠性方面贏得了全球聲譽。丹佛斯?jié)h森快速接頭的創新設計可實現更高的流速和優化的流路，從而減少壓降并提高整體系統效率。這反過來又降低了應用能耗，減少了系統空間和重量，并減少了組件磨損，最終降低了燃料消耗和擁有成本。作為標準配置，丹佛斯?jié)h森快速斷開接頭配備 Dura-Kote鍍層，可提供出色的防腐蝕保護，可防止紅銹長達 1000 小時，從而延長使用壽命并減少維護需求。我們更新的丹佛斯?jié)h森產品線為客戶提供了豐富的選擇。憑借廣泛的材料和尺寸可供選擇，再加上優化的密封解決方案，我們的聯軸器可根據特定應用的性能和成本要求進行高度定制。 特定應用程序的性能和成本要求。

快速斷開接頭

zui大化系統正常運行時間

丹佛斯?jié)h森快速斷開接頭采用zui新的設計創新，可zui大限度地提高關鍵液壓、氣動和熱管理應用中的易用性和系統正常運行時間。丹佛斯?jié)h森快速斷開接頭采用碳、不銹鋼和黃銅材質，符合或超過行業標準，并提供行業領先的保修。

- 優點 - 快速連接和斷開
- 節省時間 - 無需特殊工具
- 高性能 - 超過 ISO 16028 工作壓力
- 快速接頭提供了一種快速連接和斷開管路的方法，而不會損失流體或空氣進入系統。

Danfoss Hansen quick disconnect couplings
丹佛斯?jié)h森快速接頭

如果設備需要快速組裝或需要日常保養或維修，那么快速接頭是流體連接的更好選擇。當采用快速斷開快速接頭時，還可以防止昂貴和危險的液體和其他流體的溢出。這有助于更清潔的環境，為更安全的工作條件鋪平道路。

FD83系列快速接頭

丹佛斯?jié)h森 FD83 接頭專為流體輸送和電子冷卻應用而設計，在這些應用中，全流量、流體兼容性和安全性至關重要。FD83系列快速斷開快速接頭采用全流量設計，現在有2英寸尺寸和流行的1英寸尺寸的附加配置，以其性能和可靠性而聞名于世。其匝轉連接功能允許在沒有軟管扭轉風險或需要額外適配器的情況下進行連接，這也可以防止由于不正確的組裝而導致泄漏。

閱讀更多

核心 4 液壓快速斷開裝置
丹佛斯有數百種尺寸和樣式可供選擇，為您的下一個項目提供合適的快速斷開快速接頭。我們的“Core 4”產品代表了四種zui常見、廣泛銷售的液壓和氣動快速斷開方式，這些樣式易于訂購，始終有庫存并隨時發貨。

平面/MLFF系列平面快速接頭
平面/MLFF系列
FF系列超大流量通過降低油耗來節省成本。

特征：

標準套鎖可防止意外斷開。
行業領先的流量和工作壓力性能。
Guardian Seal 三價鋅鍍層提供高達 1，000 的耐腐蝕性。
顏色編碼環便于識別線路，防止交叉連接。
在壓力插頭下連接，zui高可達 350 bar。

HK系列快速接頭

丹佛斯?jié)h森是 1915 年 HK 快速接頭的原始設計者，樹立了行業標準。

特征：

自密封提升閥設計提供出色的高低壓密封。
三價鍍鋅鋼，帶不銹鋼彈簧、滾珠和擋圈。
聚四氟乙烯背靠密封
提供廣泛的定制，以適應所有應用。
領先制造商中流量zui高
更高的流量等同于更高的效率和更低的能耗

5600系列快速接頭
5600系列
丹佛斯 5600 系列提供多種端口配置以及多種帶閥和非帶閥配置。

特征：

自密封提升閥設計提供出色的高低壓密封。
流線型閥門提供zui小的壓降。
高電阻碳鋼，三價鍍鋅。
提供廣泛的定制，以適應所有應用。
領先制造商中流量zui高

5100 系列快速接頭
5100 系列
常見于自卸拖車濕式管路，更高的流量性能可以縮短循環時間并提高生產率。

特征：

管狀閥結構，在斷開過程中幾乎沒有流體損失，減少了環境和工人安全隱患。
低空氣夾雜物，可在高達 500psi 的壓力下連接。
優異的抗振性和耐腐蝕性能。
流量比競爭品牌高出 115%

核心 4 氣動快速接頭 Pneumatic quick disconnects

Auto-Flo series氣動快速接頭
設計具有高流量和易于自動連接的特點。

特征：

Auto-Flo 23 是第一款自動通用快速斷開接頭，設計用于工業、ARO 210 和 Tru Flate 交換插頭/公頭。

簡單、自動的按壓連接設計提供線路的即時連接和斷開。

通用設計使Auto-Flo成為極其靈活的快速接頭系列。

1000/400/500 系列氣動快速接頭
1000/400/500 系列
堅固可靠的工業互換快速接頭，設計用于壓縮空氣、氣體和液體。

特征：

球鎖機構。

可選的套鎖可防止意外斷開。

所有尺寸均可接受美國工業交換。

400系列接受Tru-Flate交換。

鍍鎳鋼黃銅主體具有高耐腐蝕性。

210/310 系列氣動快速接頭
210/310 系列
丹佛斯 ARO 210/ 310 立交橋具有堅固的耐腐蝕性能。

特征：

丹佛斯的 ARO 210/310 立交橋采用銷鎖設計，帶有合金鋼鎖銷和自動按壓連接操作。

三價鍍鋅碳鋼具有高耐用性和卓越的腐蝕性能。

2RL/3RL 系列氣動快速接頭
2RL/3RL 系列
丹佛斯的 2RL/3RL 環鎖系列具有獨特的互換開關，專為壓縮空氣使用而設計。

特征：

高流量。

用旨在防止意外斷開的環形鎖套進行推動連接。

標準閥體材料：三價鍍鋅鋼。

為什么使用快速斷開耦合而不是傳統的螺紋連接？

傳統螺紋接頭：

無關閉系統：斷開后泄漏
連接時無法旋轉 - 管路扭曲會縮短軟管的使用壽命
額外的組裝時間
搬運困難，浪費時間拆卸（維護）
頻繁斷開連接會影響座椅性能，增加泄漏的可能性

快速斷開接頭：

關閉系統：斷開時實現密封
連接時可以旋轉，消除軟管的壓力并延長使用壽命
易于在狹小空間內組裝
使用簡單快捷（無需工具），省時且經濟
提高移動性和維護可及性
丹佛斯全新設計的平面快速斷開接頭

我們新近重新設計的平面（FF）快速斷開接頭可在更高的壓力和更高的流速下提供更高的性能。丹佛斯的 Flat Face 系列快速斷開接頭設計用于連接高性能液壓管路而不會造成流體損失，并提供更高的壓力，以幫助機器制造商滿足市場對高壓和高脈沖壓力解決方案的需求。更新后的平板面快速斷開接頭可減少壓降并減少能量損失，從而降低燃料和能耗。此外，丹佛斯的 Guardian Seal 無鎳鍍層可在惡劣環境中提供長達 1，000 小時的出色耐腐蝕性。

應用
農業
替代能源
商用車
石油和天然氣
建筑與采礦
謹慎的制造和加工
物料搬運
多板平面耦合系統

我們創新的多板系統 （Multi-FF） 擴展了丹佛斯平面快速接頭的所有優勢。我們的全新系統專為任何需要多個液壓流體連接進行動力傳輸?shù)膽�用而設計，可同時支持兩到六個平面快速接頭。

Danfoss Hansen quick disconnect couplings
Quick disconnect couplings
Quick disconnect couplings
Maximize system uptime
Featuring the latest design innovations, Danfoss Hansen quick disconnect couplings maximize ease of use and system uptime in key hydraulic, pneumatic and thermal management applications. Offered in carbon, stainless steel and brass, Danfoss Hansen quick-disconnect couplings meets or exceeds industry standards and are backed by the industry's leading 3-year warranty.

Benefits - Quick connect and disconnect
Time savings - No need for special tools
High performance - Exceeds ISO 16028 operating pressures
Couplings provide a means of quickly connecting and disconnecting a line without a loss of fluid or entrance of air into a system.

If equipment needs to be assembled quickly or if it needs routine servicing or repair, then a coupling is a better choice for a fluid connection.

When incorporating Quick Disconnect couplings, spillage of costly and dangerous liquids and other fluids can also be prevented. This contributes to a cleaner environment, making way for safer working conditions.

FD83 series quick-disconnect couplings
Danfoss Hansen FD83 couplings are designed for fluid transfer and electronics cooling applications where full flow, fluid compatibility and safety are essential.

FD83 series quick-disconnect couplings with a full-flow design, now available in a 2-inch size and additional configurations of the popular 1-inch size, are known globally for their performance and reliability.

Their turn-to-connect feature allows connections to be made without the risk of hose torsion or the need for additional adapters, which also prevents leaks due to incorrect assembly.

Read more
Core 4 hydraulic quick disconnects
With hundreds of sizes and styles to choose from, Danfoss has the right quick disconnect couplings for your next project. Our “core 4” offering represent the four most common, widely sold hydraulic and pneumatic quick disconnect styles that are easy to order, always in stock and ready to ship.

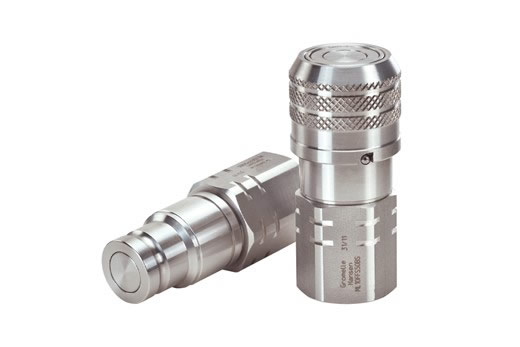

Flat Face / MLFF series
Flat Face / MLFF series
FF series superior flow saves cost by reducing fuel consumption.

Features:

Standard sleeve lock prevents accidental disconnection.
Industry leading flow and operating pressure performance.
Guardian Seal zinc trivalent plating offers up to 1,000 of corrosion resistance.
Color coded rings allow for easy identification of lines to prevent cross connecting.
Connect under pressure plug able to connect up to 350 bar.
HK series
HK series
Danfoss Hansen was the original designer of the HK coupling in 1915 setting the industry standard.

Features:

Self-sealing poppet valve design provides excellent high and low pressure sealing.
Zinc trivalent plated steel with stainless steel springs, balls and retaining rings.
PTFE back up seal
Wide array of customizations offered to suit all applications.
Highest flow among leading manufacturers
Higher flow equates to higher efficiency and less energy consumption

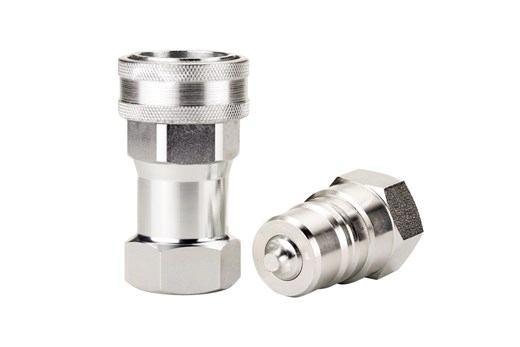

5600 series
5600 series
Danfoss' 5600 Series offers a wide array of port configurations and multiple valved and non-valved configurations.

Features:

Self-sealing poppet valve design provides excellent high and low pressure sealing.
Streamlined valving provides minimum pressure drop.
High resistance carbon steel with zinc trivalent plating.
Wide array of customizations offered to suit all applications.
Highest flow among leading manufacturers
5100 series
5100 series
Commonly found on dump trailer wet lines, higher flow performance can reduce cycle time and increase productivity.

Features:

Tubular valve construction for virtually no fluid loss during disconnection, reducing environmental and worker safety hazards.
Low air inclusions and connect under pressure capability up to 500psi.
Excellent vibration resistance and corrosion performance.
Up to 115% more flow over competing brands
Core 4 Pneumatic quick disconnects

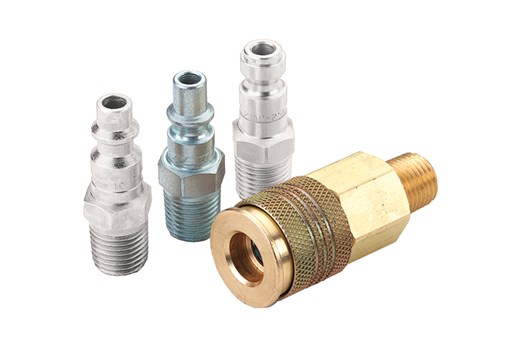

Auto-Flo series
Auto-Flo series
Designed with high flow and easy automatic connections.

Features:

Auto-Flo 23 is the first automatic universal quick disconnect coupling designed to operate with Industrial, ARO 210 and Tru Flate Interchange plugs/males.

Easy, automatic push-to-connect design provides instantaneous connection and disconnection of lines.

The universal design makes Auto-Flo an extremely flexible coupling series.

1000/400/500 series
1000/400/500 series
Industrial Interchange coupling that is rugged and reliable designed for use with compressed air, gases, and liquids.

Features:

Ball latching mechanism.

Optional sleeve lock prevents accidental disconnection.

All sizes accept US Industrial Interchange.

400 series accepts Tru-Flate Interchange.

Brass body with nickel plated steel offers high corrosion resistance.

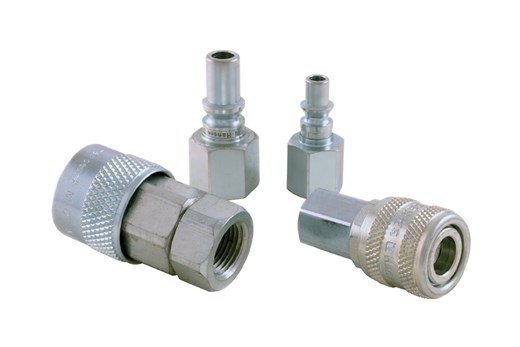

210/310 series
210/310 series
Danfoss ARO 210/ 310 interchange offers rugged corrosion resistant performance.

Features:

Danfoss' ARO 210/310 interchange offers a pin-lock design with alloy steel locking pins and automatic push-to-connect operation.

Zinc trivalent plated carbon steel offers high durability with superior corrosion performance.

2RL/3RL series
2RL/3RL series
Danfoss' 2RL/3RL ring lock series have a unique interchange which are designed for use with compressed air.

Features:

High Flow capacity.

Push to connect with a ring lock sleeve designed to prevent accidental disconnection.

Standard body material: Zinc trivalent plated steel.

Why use a quick disconnect coupling over a conventional threaded connection?
Traditional threaded fitting:

No shut-off system: leakage after disconnection
Cannot rotate while connected - line twisting decreases life of hose
Additional assembly time
Difficult handling, waste of time to disassemble (maintenance)
Frequent disconnection effects seating performance, increases likelihood of leaking
Quick disconnect coupling:

Shut-off system: sealing achieved upon disconnection
Can rotate while connected, taking stress out of hose and extending life
Ease of assembly in tight spaces
Easy and fast to use (without tool), time saving and economical
Increased mobility and access for maintenance
Danfoss' newly redesigned Flat Face quick disconnect couplings
Our newly redesigned Flat Face (FF) quick disconnect couplings provide greater performance at higher pressures along with higher flow rates.

Danfoss' Flat Face series quick disconnect couplings are designed to connect top performing hydraulic lines without fluid loss and offer increased pressures to help machine manufacturers meet market demand for high pressure and high impulse pressure solutions.

The renewed flat faced quick disconnect couplings reduce pressure drops and decrease energy loss, resulting in lower fuel and energy consumption. Plus, Danfoss' Guardian Seal nickel-free plating offers outstanding corrosion resistance in tough environments for up to 1,000 hours.

Applications
Agriculture
Alternative energy
Commercial vehicle
Oil and gas
Construction & mining
Discreet manufacturing & processing
Material handling
Multiplate flat face coupling system

Our innovative multiplate system (Multi-FF) extends all the benefits of Danfoss flat face couplings. Designed for any application demanding multiple hydraulic fluid connections for power transmission, our brand new system supports two to six flat face couplings simultaneously.丹佛斯?jié)h森快速接頭 Danfoss Hansen quick disconnect couplings -- 信德邁科技（北京）有限公司產品代理 丹佛斯動力系統簽約中國經銷商
