丹佛斯?jié)h森UQD系列低流阻無泄漏快換接頭
Danfoss Hansen Universal Quick Disconnect - UQD Series

丹佛斯?jié)h森UQD專為熱管理應用而設計，有4種尺寸可供選擇，有2種顏色可供選擇。它符合OCP（開放計算項目），并超過了指定性能特性的要求。丹佛斯UQD提供顏色識別（紅色和藍色），并保證100%氦氣泄漏測試。Danfoss Hansen UQD is designed for thermal management applications, available in 4 sizes and has 2 color options. It complies with OCP (Open Compute Project) and exceeds requirements of specified performance characteristics. Danfoss UQD offers color identification (red and blue) and guarantees 100% helium-leak testing.

丹佛斯?jié)h森UQD系列低流阻無泄漏快換接頭
Danfoss Hansen Universal Quick Disconnect - UQD Series

Product Features

- 根據OCP（開放計算項目）UQD規范設計
- 一鍵連接設計
- 高流量且無泄漏
- 雙重關閉-平面閥
- 超過OCP流量額定值至少25%，從而降低總能耗
- 標準材料：303、304不銹鋼提供廣泛的流體兼容性
- 標準密封材料：三元乙丙橡膠
- 彩色陽極氧化鋁套管
- 插座上的顏色編碼（紅色/藍色）套筒和插頭上的O形圈
- 廣泛的終端選項：ORB、BSPP在插頭上，推入式軟管在插座上�？筛鶕�(jù)要求提供其他配置
- 工作溫度-40°C至+150°C
- 典型工作壓力：6.9bar，對于較小尺寸，最高可達20bar

- Designed per OCP (Open Compute Project) UQD specification
- Push-to-connect design
- High flow and no spillage
- Double shut off - flat face valves
- Exceeds OCP flow ratings at least by 25% resulting in reduction in overall energy consumption
- Best in class force to connect
- Standard material: 303, 304 stainless steel provides broad fluid compatibility
- Standard seal material: EPDM
- Color anodized aluminum sleeves
- Color coded (red/blue) sleeves on socket and O-rings on plug

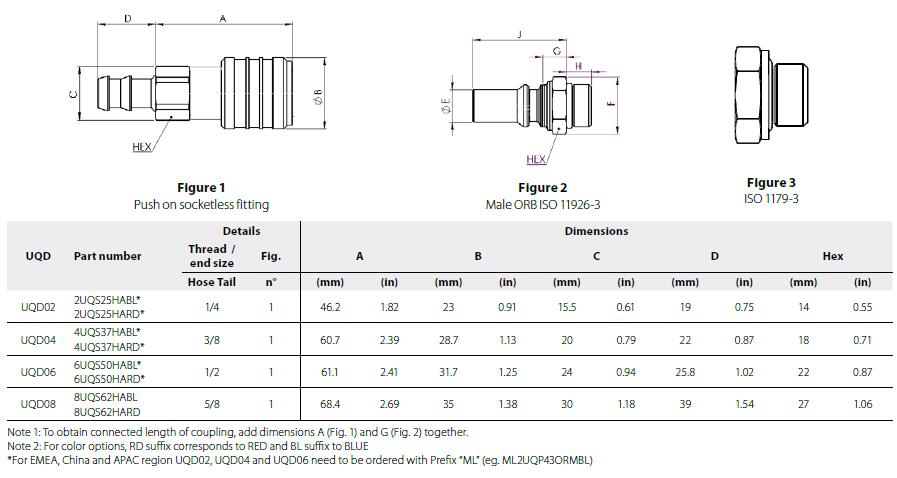

- Wide range of terminal end options: ORB, BSPP on plug and push on hose on socket. Additional configurations available upon request
- Operating temperature -40°C to +150°C
- Typical working pressure: 6.9 Bar, up to 20 bar for smaller sizes

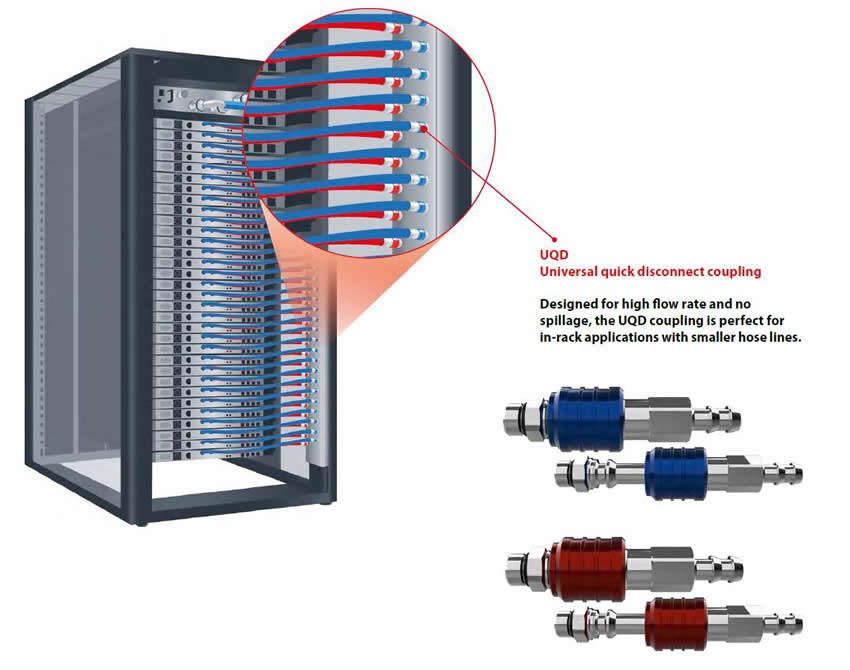

液體冷卻難題的解決方案 - 內部機架解決方案
丹佛斯的直接芯片冷卻解決方案通過靈活、無扭結的軟管和經過氦氣測試的無泄漏快速接頭的有效布線延伸到機架中。

Solutions to your liquid cooling challenges - Inner Rack Solutions
Danfoss’ direct-to-chip cooling solutions extend into the racks through efficient routing of flexible, kink-free hoses, and leak free, helium-tested couplings.

丹佛斯擁有全面的優質流體輸送產品組合，可滿足您的熱管理系統需求。
Danfoss has a comprehensive portfolio of premium fluid conveyance products to meet your thermal management system needs.

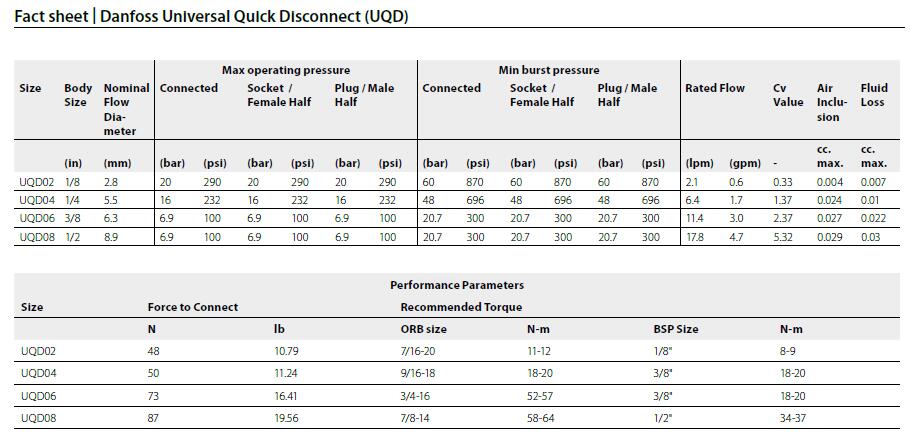

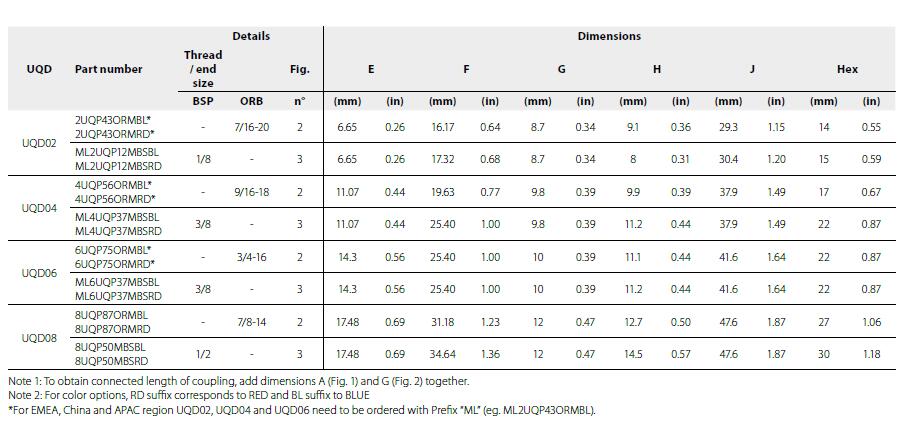

UQD02
2UQP43ORMBL*
2UQP43ORMRD*
ML2UQP12MBSBL
ML2UQP12MBSRD

UQD04
4UQP56ORMBL*
4UQP56ORMRD*
ML4UQP37MBSBL
ML4UQP37MBSRD

UQD06
6UQP75ORMBL*
6UQP75ORMRD*
ML6UQP37MBSBL
ML6UQP37MBSRD

UQD08
8UQP87ORMBL
8UQP87ORMRD
8UQP50MBSBL
8UQP50MBSRD

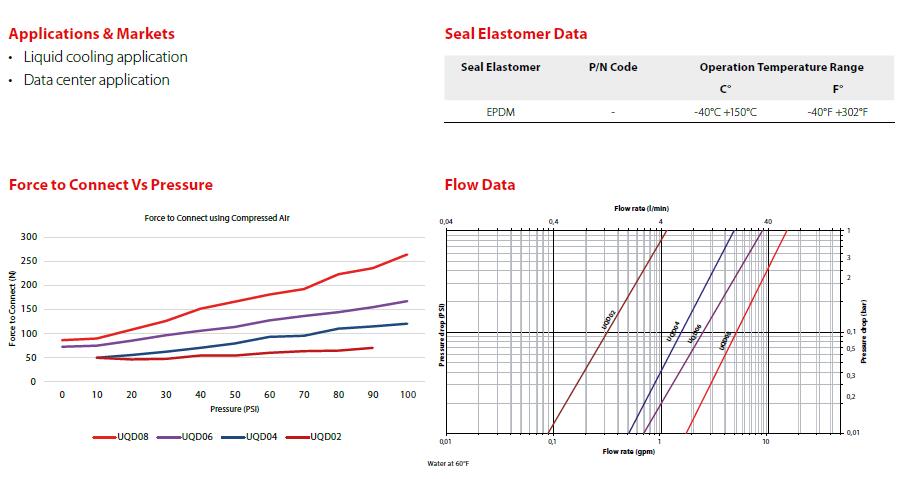

應用與市場

- 液體冷卻應用
- 數據中心應用
- Liquid cooling application
- Data center application
