Eaton Aeroquip 5600 series quick couplings快速接頭
Aeroquip 5600 Series ISO 7241/1 Series A Interchange coupling

伊頓 5600 系列是一種堅固的提升式球鎖快速斷開接頭。作為 ISO 7241-1 A 型接頭的原始制造商，伊頓重新發明了這個快速斷開接頭系列，通過提供新的不銹鋼結構來滿足您的應用需求。不銹鋼結構在惡劣的環境中提供出色的耐腐蝕性。 5600 系列不銹鋼快速接頭。The 5600 Series general purpose industrial interchange coupling features a PUSH-PULL latch and poppet valving in a low profile design. The 5600 Series features a rugged ball latch mechanism with self-sealing poppet valves in a wide array of port configurations and multiple valved and non-valved configurations.

Eaton Aeroquip 5600 series quick couplings快速接頭
Aeroquip 5600 Series ISO 7241/1 Series A Interchange coupling

應用與市場：

- 液壓和流體輸送
- 農業設備
- 建筑設備
- 鋼廠
- 廠房制造及加工設備
- 自卸車、除雪車和維修車

產品特點：

- 自密封提升閥提供出色的高低壓密封
- 不銹鋼結構在惡劣環境中提供出色的耐腐蝕性
- 標準密封材料：Buna-N。可根據要求提供 EPDM 和 FKM 密封件。
- 可用尺寸包括：5/8"、3/4"、1" *
- NPTF 內螺紋端

國際標準化組織標準： 7241/1 系列 A
標準主體材料： 標準閥體材料：303 不銹鋼
附加產品： 5600 系列配件：防塵帽、防塵塞、分離框架

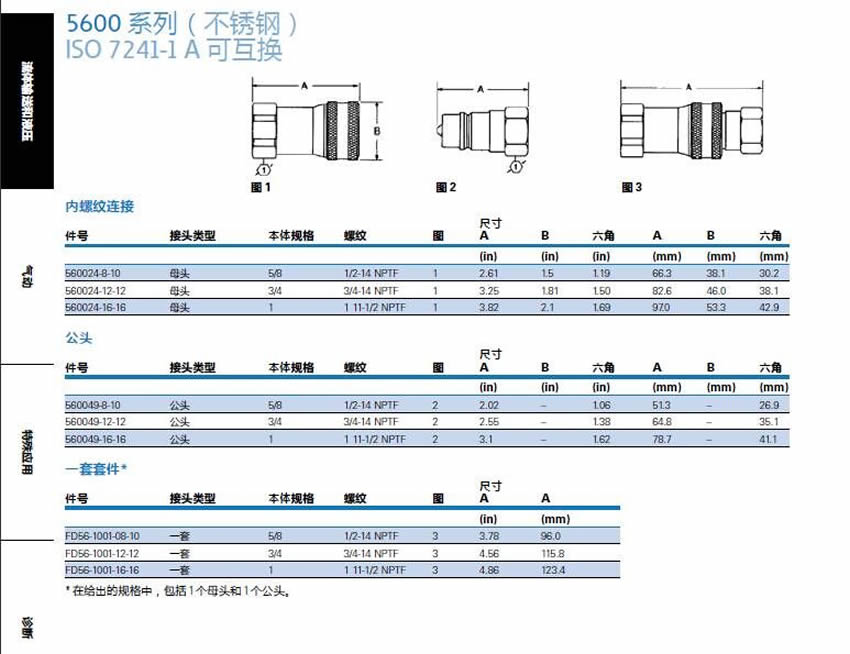

- Eaton Aeroquip 5600 stainless steel ISO 7241-1 series A interchange

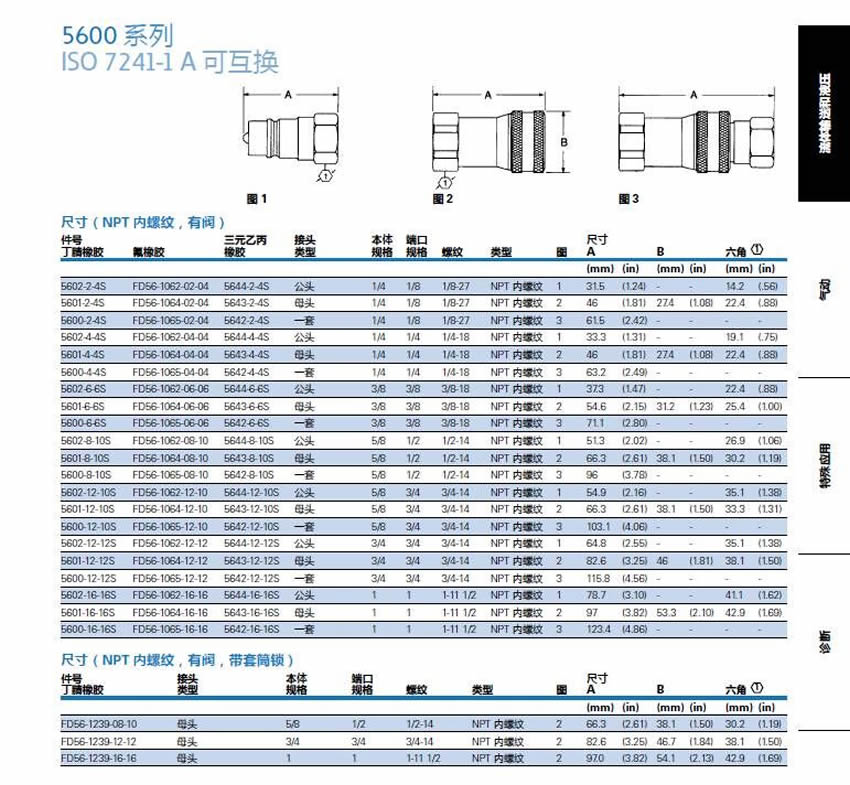

5602-2-4S FD56-1062-02-04 5644-2-4S Male 1/4 1/8 1/8-27 Female NPT 1 31.5 (1.24) --14.2 (.56)
5601-2-4S FD56-1064-02-04 5643-2-4S Female 1/4 1/8 1/8-27 Female NPT 2 46 (1.81) 27.4 (1.08) 22.4 (.88)
5600-2-4S FD56-1065-02-04 5642-2-4S Complete 1/4 1/8 1/8-27 Female NPT 3 61.5 (2.42) ----
5602-4-4S FD56-1062-04-04 5644-4-4S Male 1/4 1/4 1/4-18 Female NPT 1 33.3 (1.31) --19.1 (.75)
5601-4-4S FD56-1064-04-04 5643-4-4S Female 1/4 1/4 1/4-18 Female NPT 2 46 (1.81) 27.4 (1.08) 22.4 (.88)
5600-4-4S FD56-1065-04-04 5642-4-4S Complete 1/4 1/4 1/4-18 Female NPT 3 63.2 (2.49) ---
5602-6-6S FD56-1062-06-06 5644-6-6S Male 3/8 3/8 3/8-18 Female NPT 1 37.3 (1.47) --22.4 (.88)
5601-6-6S FD56-1064-06-06 5643-6-6S Female 3/8 3/8 3/8-18 Female NPT 2 54.6 (2.15) 31.2 (1.23) 25.4 (1.00)
5600-6-6S FD56-1065-06-06 5642-6-6S Complete 3/8 3/8 3/8-18 Female NPT 3 71.1 (2.80) ----
5602-8-10S FD56-1062-08-10 5644-8-10S Male 5/8 1/2 1/2-14 Female NPT 1 51.3 (2.02) --26.9 (1.06)
5601-8-10S FD56-1064-08-10 5643-8-10S Female 5/8 1/2 1/2-14 Female NPT 2 66.3 (2.61) 38.1 (1.50) 30.2 (1.19)
5600-8-10S FD56-1065-08-10 5642-8-10S Complete 5/8 1/2 1/2-14 Female NPT 3 96 (3.78) ---
5602-12-10S FD56-1062-12-10 5644-12-10S Male 5/8 3/4 3/4-14 Female NPT 1 54.9 (2.16) --35.1 (1.38)
5601-12-10S FD56-1064-12-10 5643-12-10S Female 5/8 3/4 3/4-14 Female NPT 2 66.3 (2.61) 38.1 (1.50) 33.3 (1.31)
5600-12-10S FD56-1065-12-10 5642-12-10S Complete 5/8 3/4 3/4-14 Female NPT 3 103.1 (4.06) ----
5602-12-12S FD56-1062-12-12 5644-12-12S Male 3/4 3/4 3/4-14 Female NPT 1 64.8 (2.55) --35.1 (1.38)
5601-12-12S FD56-1064-12-12 5643-12-12S Female 3/4 3/4 3/4-14 Female NPT 2 82.6 (3.25) 46 (1.81) 38.1 (1.50)
5600-12-12S FD56-1065-12-12 5642-12-12S Complete 3/4 3/4 3/4-14 Female NPT 3 115.8 (4.56) ---
5602-16-16S FD56-1062-16-16 5644-16-16S Male 1 1 1-11 1/2 Female NPT 1 78.7 (3.10) --41.1 (1.62)
5601-16-16S FD56-1064-16-16 5643-16-16S Female1 1 1 1-11 1/2 Female NPT 2 97 (3.82) 53.3 (2.10) 42.9 (1.69)
5600-16-16S FD56-1065-16-16 5642-16-16S
FD56-1239-08-10 Female 5/8 1/2 1/2-14 Female NPT 2 66.3 (2.61) 38.1 (1.50) 30.2 (1.19)
FD56-1239-12-12 Female 3/4 3/4 3/4-14 Female NPT 2 82.6 (3.25) 46.7 (1.84) 38.1 (1.50)
FD56-1239-16-16 Female 1 1 1-11 1/2 Female NPT 2 97.0 (3.82) 54.1 (2.13) 42.9 (1.69)
FLUID TRANSFERAND HYDRAULIC
EATON Quick Disconnect Couplings E-MEQD-MC001-E2

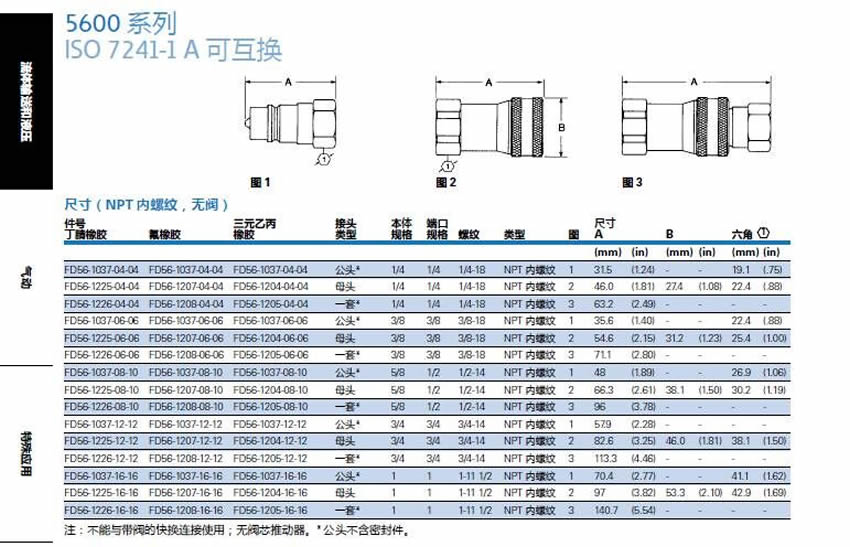

FD56-1037-04-04 FD56-1037-04-04 FD56-1037-04-04 Male 1/4 1/4 1/4-18 Female NPT 1 31.5 (1.24) --19.1 (.75)
FD56-1225-04-04 FD56-1207-04-04 FD56-1204-04-04 Female 1/4 1/4 1/4-18 Female NPT 2 46.0 (1.81) 27.4 (1.08) 22.4 (.88)
FD56-1226-04-04 FD56-1208-04-04 FD56-1205-04-04 Complete 1/4 1/4 1/4-18 Female NPT 3 63.2 (2.49)
FD56-1037-06-06 FD56-1037-06-06 FD56-1037-06-06 Male 3/8 3/8 3/8-18 Female NPT 1 35.6 (1.40) --22.4 (.88)
FD56-1225-06-06 FD56-1207-06-06 FD56-1204-06-06 Female 3/8 3/8 3/8-18 Female NPT 2 54.6 (2.15) 31.2 (1.23) 25.4 (1.00)
FD56-1226-06-06 FD56-1208-06-06 FD56-1205-06-06 Complete 3/8 3/8 3/8-18 Female NPT 3 71.1 (2.80)FD56-1037-08-10 FD56-1037-08-10 FD56-1037-08-10 Male 5/8 1/2 1/2-14 Female NPT 1 48 (1.89) --26.9 (1.06)
FD56-1225-08-10 FD56-1207-08-10 FD56-1204-08-10 Female 5/8 1/2 1/2-14 Female NPT 2 66.3 (2.61) 38.1 (1.50) 30.2 (1.19)
FD56-1226-08-10 FD56-1208-08-10 FD56-1205-08-10 Complete 5/8 1/2 1/2-14 Female NPT 3 96 (3.78) ----
FD56-1225-12-12 FD56-1207-12-12 FD56-1204-12-12 Female 3/4 3/4 3/4-14 Female NPT 2 82.6 (3.25) 46.0 (1.81) 38.1 (1.50)
FD56-1226-12-12 FD56-1208-12-12 FD56-1205-12-12 Complete 3/4 3/4 3/4-14 Female NPT 3 113.3 (4.46) ----
FD56-1037-16-16 FD56-1037-16-16 FD56-1037-16-16 Male 1 1 1-11 1/2 Female NPT 1 70.4 (2.77) --41.1 (1.62)
FD56-1225-16-16 FD56-1207-16-16 FD56-1204-16-16 Female 1 1 1-11 1/2 Female NPT 2 97 (3.82) 53.3 (2.10) 42.9 (1.69)
FD56-1226-16-16 FD56-1208-16-16 FD56-1205-16-16

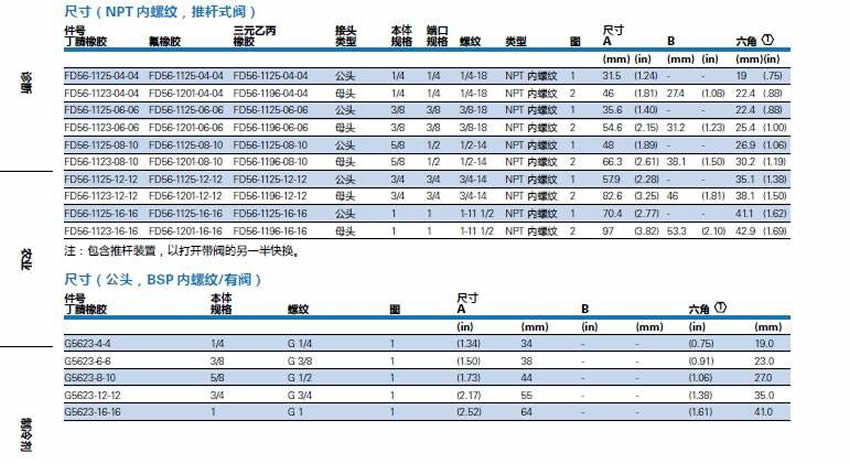

FD56-1125-04-04 FD56-1125-04-04 FD56-1125-04-04 Male 1/4 1/4 1/4-18 Female NPT 1 31.5 (1.24) --19 (.75)
FD56-1123-04-04 FD56-1201-04-04 FD56-1196-04-04 Female 1/4 1/4 1/4-18 Female NPT 2 46 (1.81) 27.4 (1.08) 22.4 (.88)
FD56-1125-06-06 FD56-1125-06-06 FD56-1125-06-06 Male 3/8 3/8 3/8-18 Female NPT 1 35.6 (1.40) --22.4 (.88)
FD56-1123-06-06 FD56-1201-06-06 FD56-1196-06-06 Female 3/8 3/8 3/8-18 Female NPT 2 54.6 (2.15) 31.2 (1.23) 25.4 (1.00)
FD56-1125-08-10 FD56-1125-08-10 FD56-1125-08-10 Male 5/8 1/2 1/2-14 Female NPT 1 48 (1.89) --26.9 (1.06)
FD56-1123-08-10 FD56-1201-08-10 FD56-1196-08-10 Female 5/8 1/2 1/2-14 Female NPT 2 66.3 (2.61) 38.1 (1.50) 30.2 (1.19)
FD56-1125-12-12 FD56-1125-12-12 FD56-1125-12-12 Male 3/4 3/4 3/4-14 Female NPT 1 57.9 (2.28) --35.1 (1.38)
FD56-1123-12-12 FD56-1201-12-12 FD56-1196-12-12 Female 3/4 3/4 3/4-14 Female NPT
FD56-1125-16-16 FD56-1125-16-16 FD56-1125-16-16 Male 1 1 1-11 1/2 Female NPT 1 70.4 (2.77) --41.1 (1.62)
FD56-1123-16-16 FD56-1201-16-16 FD56-1196-16-16 Female

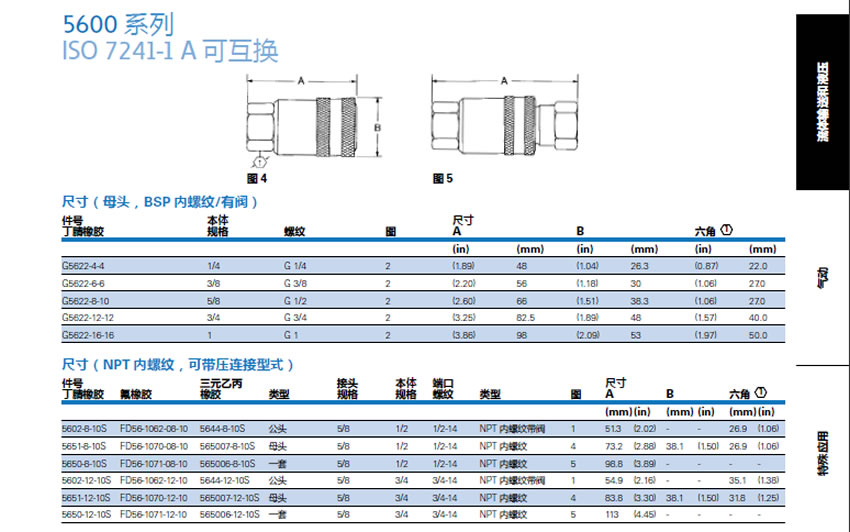

G5622-4-4 1/4 G 1/4 2 1.81 (46.0) 1.04 (26.3) 0.87 (22.0)
G5622-6-6 3/8 G 3/8 2 2.33 (59.1) 1.21 (30.8) 1.06 (27.0) G5622-8-10 5/8 G 1/2 2 2.76 (70.0) 1.51 (38.3) 1.26 (32.0)
G5622-12-12 3/4 G 3/4 2 3.32 (84.3) 1.83 (46.6) 1.61 (41.0) G5622-16-16 1 G 1 2 4.07 (103.5) 2.15 (54.6) 1.97 (50.0)
Dimensions (Female NPT, Connect Under Pressure Style) Part Number Coupling Body Port Dimensions
Buna-N Viton EPR Type Size Size Thread Type Fig. A B Hex
G5623-4-4 1/4 G 1/4 1 1.25 (31.8) --0.75 (19.0)
G5623-6-6 3/8 G 3/8 1 1.63 (41.5) --0.87 (22.0)
G5623-8-10 5/8 G 1/2 1 1.88 (47.7) --1.06 (27.0)
G5623-12-12 3/4 G 3/4 1 2.28 (58.0) --1.42 (36.0)
G5623-16-16 1 G 1 1 2.76 (70.0) --1.61 (41.0)
EATON Quick Disconnect Couplings E-MEQD-MC001-E2
5602-8-10S FD56-1062-08-10 5644-8-10S Male 5/8 1/2 1/2-14 Female NPT Valved 1 51.3 (2.02) --26.9 (1.06)
5651-8-10S FD56-1070-08-10 565007-8-10S Female 5/8 1/2 1/2-14 Female NPT 4 73.2 (2.88) 38.1 (1.50) 26.9 (1.06)
5650-8-10S FD56-1071-08-10 565006-8-10S Complete 5/8 1/2 1/2-14 Female NPT 5 98.8 (3.89) ----
5602-12-10S FD56-1062-12-10 5644-12-10S Male 5/8 3/4 3/4-14 Female NPT Valved 1 54.9 (2.16) --35.1 (1.38)
5651-12-10S FD56-1070-12-10 565007-12-10S Female 5/8 3/4 3/4-14 Female NPT 4 83.8 (3.30) 38.1 (1.50) 31.8 (1.25)
5650-12-10S FD56-1071-12-10 565006-12-10S Complete 5/8 3/4 3/4-14 Female NPT 5 113 (4.45) ----
5610-4-4S FD56-1072-04-04 560078-4-4S Male 1/4 7/16 7/16-20 Female SAE O-ring 1 32.5 (1.28) --15.7 (.62)
5608-4-4S FD56-1074-04-04 FD56-1012-04-04S Female 1/4 7/16 7/16-20 Female SAE O-ring 2 46 (1.81) 27.4 (1.08) 22.4 (.88)
5606-4-4S FD56-1075-04-04 FD56-1009-04-04S Complete 1/4 7/16 7/16-20 Female SAE O-ring 3 64.3 (2.53) ----
5610-6-6S FD56-1072-06-06 560078-6-6S Male 3/8 9/16 9/16-18 Female SAE O-ring 1 38.1 (1.50) --22.4 (.88)
5608-6-6S FD56-1074-06-06 FD56-1012-06-06S Female 3/8 9/16 9/16-18 Female SAE O-ring 2 54.6 (2.15) 31.2 (1.23) 25.4 (1.00)
5606-6-6S FD56-1075-06-06 FD56-1009-06-06S Complete 3/8 9/16 9/16-18 Female SAE O-ring 3 72.1 (2.84) ---
5610-8-10S FD56-1072-08-10 560078-8-10S Male 5/8 3/4 3/4-16 Female SAE O-ring 1 51.6 (2.03) --26.9 (1.06)
5608-8-10S FD56-1074-08-10 FD56-1012-08-10S Female 5/8 3/4 3/4-16 Female SAE O-ring 2 66.3 (2.61) 38.1 (1.50) 30.2 (1.19)
5606-8-10S FD56-1075-08-10 FD56-1009-08-10S Complete 5/8 3/4 3/4-16 Female SAE O-ring 3 96 (3.78) ----
5610-10-10S FD56-1072-10-10 560078-10-10S Male 5/8 7/8 7/8-14 Female SAE O-ring 1 52.8 (2.08) --28.4 (1.12)
5608-10-10S FD56-1074-10-10 FD56-1012-10-10S Female 5/8 7/8 7/8-14 Female SAE O-ring 2 66.3 (2.61) 38.1 (1.50) 30.2 (1.19)
5606-10-10S FD56-1075-10-10 FD56-1009-10-10S Complete 5/8 7/8 7/8-14 Female SAE O-ring 3 98.6 (3.88) ---
5610-12-12S FD56-1072-12-12 560078-12-12S Male 3/4 1 1/16 1 1/16-12 Female SAE O-ring 1 64.8 (2.55) --35.1 (1.38)
5608-12-12S FD56-1074-12-12 FD56-1012-12-12S Female 3/4 1 1/16 1 1/16-12 Female SAE O-ring 2 82.6 (3.25) 46 (1.81) 38.1
5606-12-12S FD56-1075-12-12 FD56-1009-12-12S Complete 3/4 1 1/16 1 1/16-12 Female SAE O-ring 3 115.8 (4.56) ----
5610-16-16S FD56-1072-16-16 560078-16-16S Male 1 1 5/16 1 5/16-12 Female SAE O-ring 1 78.7 (3.10) --41.1 (1.62)
5608-16-16S FD56-1074-16-16 FD56-1012-16-16S Female 1 1 5/16 1 5/16-12 Female SAE O-ring 2 97.3 (3.83) 53.3 (2.10) 42.9
5606-16-16S FD56-1075-16-16 FD56-1009-16-16S Complete 1 1 5/16 1 5/16-12 Female SAE O-ring 3 140.7 (5.54) ----
Part Number Coupling Body Port
FD56-1270-06-06 --Female 3/8 9/16 9/16-18 Female SAE O-ring 3 54.6 (2.15) 31.8 (1.23) 25.4 (1.00)
FD56-1270-08-10 --Female 5/8 3/4 3/4-16 Female SAE O-ring 3 66.3 (2.61) 38.1 (1.50) 30.2 (1.19)
FD56-1270-12-12 --Female 3/4 1 1/16 1 1/16-12 Female SAE O-ring 3 82.6 (3.25) 46.7 (1.81) 38.1 (1.50)
FD56-1270-16-16 --Female 1 1 5/16 1 5/16-12 Female SAE O-ring 3 97.0 (3.82) 54.1 (2.10) 42.9 (1.69)
FLUID TRANSFERAND HYDRAULIC
EATON Quick Disconnect Couplings E-MEQD-MC001-E2

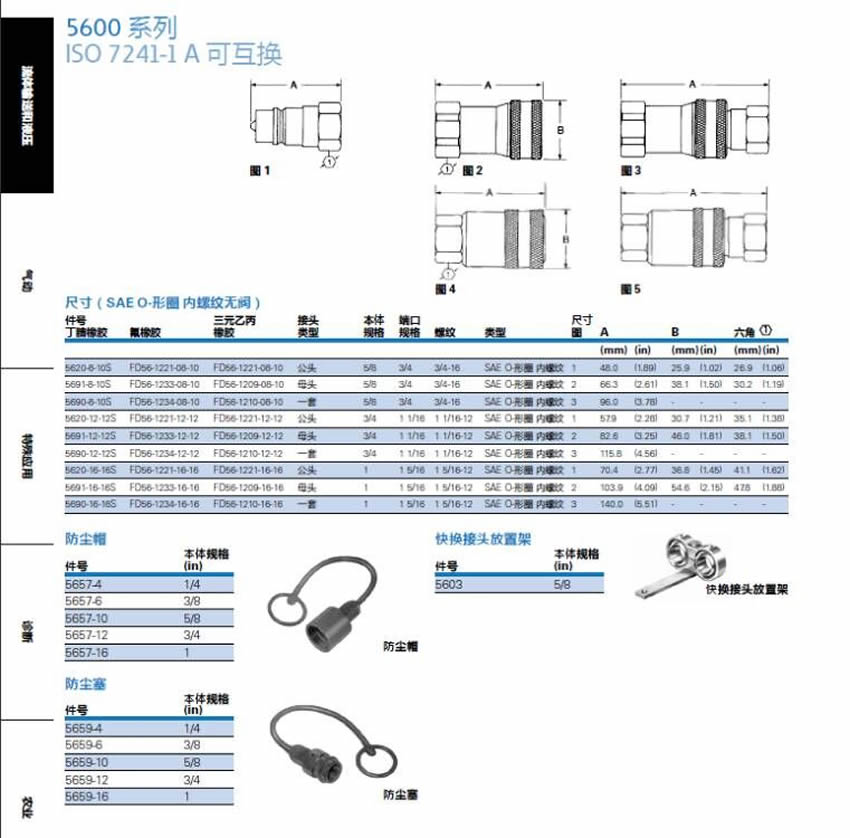

5620-8-105 FD56-1221-08-10 FD56-1221-08-10 Male 5/8 3/4 3/4-16 Female SAE O-ring 1 48.0 (1.89) 25.9 (1.02) 26.9 (1.06)
5691-8-10S FD56-1233-08-10 FD56-1209-08-10 Female 5/8 3/4 3/4-16 Female SAE O-ring 2 66.3 (2.61) 38.1 (1.50) 30.2 (1.19)
5690-8-10S FD56-1234-08-10 FD56-1210-08-10 Complete 5/8 3/4 3/4-16 Female SAE O-ring 3 96.0 (3.78) ----
5620-12-125 FD56-1221-12-12 FD56-1221-12-12 Male 3/4 1 1/16 1 1/16-12 Female SAE O-ring 1 57.9 (2.28) 30.7 (1.21) 35.1 (1.38)
5691-12-12S FD56-1233-12-12 FD56-1209-12-12 Female 3/4 1 1/16 1 1/16-12 Female SAE O-ring 2 82.6 (3.25) 46.0 (1.81) 38.1
5690-12-12S FD56-1234-12-12 FD56-1210-12-12 Complete 3/4 1 1/16 1 1/16-12 Female SAE O-ring 3 115.8 (4.56) ---
5620-16-165 FD56-1221-16-16 FD56-1221-16-16 Male 1 1 5/16 1 5/16-12 Female SAE O-ring 1 70.4 (2.77) 36.8 (1.45) 41.1 (1.62)
5691-16-16S FD56-1233-16-16 FD56-1209-16-16 Female 1 1 5/16 1 5/16-12 Female SAE O-ring 2 103.9 (4.09) 54.6 (2.15) 47.8
5690-16-16S FD56-1234-16-16 FD56-1210-16-16 Complete 1 1 5/16 1 5/16-12 Female SAE O-ring 3 140.0 (5.51) ----
Repair Kits Break Away Frame
Part Number Body Part Number Body
Buna-N Viton EPR Size Viton Size
FF082-04. FF092-04. FF093-04. 1/4 5603 -10
FF082-06 FF092-06 FF093-06 3/8
FF082-10 FF092-10 FF093-10 5/8
FF082-12 FF092-12 FF093-12 3/4
FF082-16 FF092-16 FF093-16
Part Number Body
5654-4 1/4
5657-6 3/8
5657-10 5/8
5657-12 3/4
5657-16 1 Dust Cap
Dust Plugs
Part Number Body
5659-6 3/8
5659-12 3/4
5659-4 1/4
5659-10 5/8
Dust Plug
5659-16 1
EATON Quick Disconnect Couplings E-MEQD-MC001-E2
