EATON Hansen用于石油和燃?xì)庑袠I(yè)的快速接頭產品方案
Eaton-hansen Quick Couplings for Oil and Gas Industry Solutions

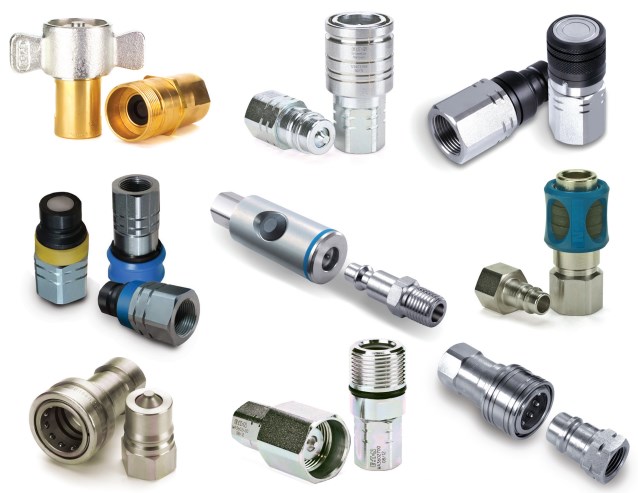

N漢森和格魯梅爾兩個品牌已有多年的歷史。在石油和燃?xì)庑袠I(yè)中，泰悉爾針對勘探和生產過程中的各種不同的應用提供了大量的快速接頭。面對日益提高的技術和環境要求，泰悉爾根據自身的經驗和專業知識可為客戶提供經過驗證的技術方案。For many years and thanks to its two brands HANSEN and COUPLEURS GROMELLE , TUTHILL has been offering a large range of quick couplings for various applications in exploration and production processes in the Oil & Gas Industry. Thanks to its experience and know-how, TUTHILL provides recognized technical solutions to its customers confronted with increasing technical and environmental constraints.
Hansen Quick Couplings for Oil and Gas Industry Solutions
PDF Catalog free download
TUTHILL has got two production plants of quick couplings in France and the USA , facilities all over the World and an expanded distribution network which allows us to be close to our customers worldwide. The service provided by TUTHILL to its customers thus becomes a key benefit in the Oil & Gas Industry where there is a constant quest for productivity improvements.
在法國和美國，泰悉爾各有一家快速接頭生產廠。遍及世界的各種設施和分銷網絡使我們與客戶保持密切聯系。
The Fire-Rated Coupling is a quick coupling designed to operate under emergency fire conditions. It exceeds all requirements of API 16D and EUB Directive 36. HKFR Series is available from 1/ 2” to 1” in steel and in AISI 303 stainless steel for size 1” . All sizes have individual Lloyd's Register Certification. Easy to connect / disconnect thanks to its ball lock mechanism, this coupling is ideal for Blow-Out Preventer applications and for building panels where space is limited thanks to its compact design. This series is designed for applications with 200 & 275 bar / 3,000 & 4,000 psi working pressures. It presents BOP marking and red color coding to help visual identification.
Lloyd’s Register Certification
該防火型快速接頭是設計用于火災情形下使用的。它的性能要求超過 API 16D 和 EUB Directive 36 。規格從 1/2” 到 1” 的 HKFR 系列快速接頭，其材質為鋼， 1” 的快速接頭有 AISI 303 不銹鋼材質。所有規格的快速接頭都具有單獨的 Lloyd's 登記證書。它采用便于連接及斷開的球鎖機構，是防噴裝置的理想選擇。它緊湊的設計適用于空間有限的金屬建筑嵌板。該設計被用于工作壓力為 200 和 275 bar/3,000 和 4,000psi 的場合。Certifi ed to 700° C/1300° F。它含有 BOP 標記和紅色的編碼，幫助視覺識別。
W6000 Series W-6000 系列
Our W-6000 Series is designed for severe pulsating pressures with hose bending, vibrations, hydraulic shocks, etc. These highly robust couplings are available from 1/ 4” to 2” in steel, F15NM and AISI 316L stainless steel. Working pressures are 300 to 1100 bar / 4,400 to 16,000 psi for steel and F15NM stainless steel and 180 to 500 bar / 2,600 to 7,300 psi for AISI 316L . It can be connected against residual pressure.
W6000 系列 用在由于膠管彎曲、震動及液壓波動等使得工作壓力產生劇烈脈動的場合。規格從 1/ 4” 到 2” 的高強度的快速接頭，其材質為鋼、 F15NM and AISI 316L 不銹鋼。對于鋼和 F15NM 不銹鋼材質的快速接頭，其工作壓力為 300 至 1100 bar/4,400 至 16,000psi ，而對于 AISI 316L 不銹鋼材質的快速接頭，其工作壓力則為 180 至 500 bar/2,600 至 7,300psi 。連接時能抵抗殘余壓力。
Because Oil & Gas applications are very severe, TUTHILL has developed some specific W-6000 couplings to satisfy every hydraulic and environmental constraints:
由于石油和燃?xì)獾氖褂脳l件較為惡劣，為此泰悉爾開發了一些特制的 W6000 快速接頭以滿足要求。
• 1/ 4” coupling in AISI 316Ti stainless steel for sea seismology exploration, 1/ 4” AISI 316Ti 不銹鋼快速接頭可 用于海洋勘探的。
1/ 4” coupling in F15NM stainless steel, with Autoclave end-connection for subsea tree test application up 具有高壓連接端的 1/4” F15NM 不銹鋼快速接頭可 用于海底樹探測。
• 1/ 4” , 3/ 8” & 1/ 2” couplings in Sanicro, panel-mounted plug, for underwater well-head application, 由 SANICRO 合金制造、裝在面板上的 1/4” 、 3/8” 和 1/2” 快速接頭可 用于水下。
• 3” coupling in AISI 316L for Off-Shore equipment (150 bar / 2,200 psi working pressure). AISI 316L 不銹鋼快速接頭可用于近海設備（工作壓力為 150bar/2,200psi ）。

316Ti version 316L & Autoclave version Sanicro version 3" 316L version
or further details, please contact us. 如需了解進一步的詳情，請聯系我們。
96 Series 96 系列
Series 96 is a heavy-duty wing nut coupling designed for use in hydraulic lines where dry break and minimum air inclusion are required. It is a connect / disconnect under pressure coupling. Body sizes are 3/ 4” , 1" and 1” 1/4 and the materials are in brass and steel for corrosion resistance and durability. The working pressure is up to 200 bar / 3,000 psi. These couplings are used in many hydraulic applications in the Oil & Gas industry
96 系列是一種負載力強的翼形螺母連接接頭，應用于需要干式截流和最少的空氣殘留的液壓線路。它能在壓力環境下連接或斷開。主體尺寸為 3/ 4” 、 1” 和 1 1/ 4” 。材料為抗腐蝕和耐久性好銅和鋼。工作壓力可達 200bar/3,000psi 。這種接頭被廣泛用于石油和燃?xì)庑袠I(yè)。
HK Series HK 系列
The HK Series is designed for general purpose hydraulic service in stationary and mobile Oil & Gas applications. It is available in sizes from 1/ 8” to 3” , in brass, steel and AISI 303 & AISI 316 stainless steels. It meets the ISO 7241-1 Series B standard. A High-Impulse version which gives increased resistance to brinelling is also available. The working pressure is up to 345 bar / 5,000 psi. A wide variety of options is available like sleeve lock, one-way and straight-thru designs, release clamp with chain, etc.
HK 系列接頭設計用于一般用途的液壓服務（靜止的和流動的石油和燃?xì)猓Ｖ黧w尺寸從 1/ 8” 到 3” ，材料為銅、鋼和 AISI 316 不銹鋼。它滿足 ISO 7241-1 系列 B 標準。高的耐沖擊性能抵抗海水沖力。工作壓力可達 345bar/5,000psi 。選擇范圍廣，如套筒鎖、單向關斷、直通式及帶鏈條的釋放夾等。
The actual drilling constraints require ever more efficient equipments. To meet this new technical requirement, TUTHILL has developed a 24HK coupling which is a 3" quick coupling allowing high hydraulic flow. Available in steel, its strong design is well-adapted to severe environment. Working pressure is 120 bar /1,800 psi and flow-rate / pressure drop is 1 bar at 1500 l /min, 1.45 psi at 396 GPM US .
在實際使用中，要求效率更高的配備。為了滿足新的技術要求，泰悉爾開發了 24HK 系列 3” 快速接頭，它能應用于大流量。材料為鋼。優良的設計對惡劣的環境有很強的適應性。工作
壓力為 120bar/1,800psi 。壓降為 1bar 時，流量為 1500l /min 。
H5000 Series H5000 系列
Our H-5000 Series is designed for high pressure applications and is well-adapted to resist hydraulic and mechanical constraints. It is available in sizes from 1/ 8” to 2” , in brass, steel and AISI 316L stainless steel. Working pressure is up to 1000 bar / 14,500 psi.
H-5000 系列接頭設計用于高壓流體。不受液壓和機械條件的限制。主體尺寸從 1/ 8” 到 2” ，材料為銅、鋼和 AISI 316L 不銹鋼。工作壓力可達 1000bar/14,500psi 。
FF Series FF 系列
The FF Series is flat face quick coupling used in all applications where there is a risk of contamination of hydraulic circuits, as well as requirements for safety, environmental and cleanliness of the work area. It meets the requirements of ISO 16028 and presents a wide choice of end connections. Our range of FF dry-break couplings is one the most performing due to its working pressures up to 350 bar / 5,000 psi. It is available in steel and sizes from 1/4" to 1". 3/8" is compatible with ANSI T 3.20.15 Standard specified by HTMA. Rugged color plastic rings are also available for quick identification of the circuits.

FF 系列是平面快速接頭，用于有污染的液壓管路以及有安全、環境和清潔要求的工作區域。它滿足 ISO 16028 標準并有多種尾端連接方式可供選擇。 FF 干式接頭的工作壓力可達350bar/5,000psi 。材料為鋼，主體尺寸從 1/ 4” 到 1” 。 3/ 8” 的接頭符合 HTMA 指定的 ANSI T 3.20.15 標準。粗糙的彩色塑料環可用來快速鑒別各環線。
Additional hydraulic products 其它的液壓產品
TUTHILL also offers a wide range of hydraulic products among which: 泰悉爾還提供大量其它的液壓產品：
H-15000 Series which is designed for general purpose hydraulic service. Available in sizes from 1/ 4” to 1” , in steel, it meets the ISO 7241-1 Series A standard. Working pressure is from 200 to 315 bar / 2,900 to 4,600 psi. H-15000 系列是通用的液壓接頭。主體尺寸從 1/ 4” 到 1” ，材料為鋼。它滿足 ISO 7241-1 系列 A 標準。工作壓力從 200 到 315bar/2,900 到 4,600psi 。
HP3 / W-56000 Series which is high pressure hydraulic screw-to-connect quick couplings designed to operate at pressures up to 700 bar / 10,000 psi. It is used to connect hydraulic pump, cylinders, etc. It is interchangeable with other makes of couplings with the same design. Available with ball and poppet valving.

HP3 / W-56000 系列是由螺紋連接的高壓液壓接頭，設計用于在壓力高達 700bar/10,000psi 的高壓環境中工作。它被用于連接泵、油缸等。它具有互換性。 HP3 采用球形閥， W-56000 采用錐形閥。
R-4000 Series which is Inline Check Valve products available in brass, steel and AISI 316L stainless steel. This Series presents a wide range of crack pressures, sizes between 1/ 8” to 2” and working pressures up to 700 bar / 10,000 psi. R-4000 系列是在線止回閥，材料有銅、鋼和 AISI 316L 不銹鋼。該系列有高的強度。主體尺寸從 1/ 8” 到 2” 。工作壓力高達 700bar/10,000psi 。
Breathing air quick couplings
空氣耦合快速接頭
When performance is a life and death issue, the safety and reliability of a TUTHILL Coupling is the solution. Used in various forms of breathing air systems including SCUBA, Breather Boxes and In Plant connections, our quick disconnect couplings provide ease of use and the highest degree of safety.
生死問題為當務之急時，安全可靠的泰悉爾接頭是一個解決方案。使用各種形式的空氣耦合系統（包括隔離服、呼吸器箱和在工廠中的連接點），我們的快速斷開接頭使用方便且高度安全。
Pneumatic quick couplings 氣動快速接頭
TUTHILL offers a large range of pneumatic quick couplings used to connect pneumatic tools and accessories to compressed air supplies. Because safety is not negotiable, TUTHILL has developed safety quick couplings which meet ISO 4414 Standard. Many profiles and sizes are available.
泰悉爾提供將各種將氣動工具和附件連接到氣源的氣動快速接頭。由于安全問題不容質疑，泰悉爾已經開發出了滿足 ISO 4414 標準的安全快速接頭。有多種規格尺寸。
Specific quick couplings 專用快速接頭
TUTHILL is specialized in developing made-to-measure solutions and can offer quick couplings in different superior materials as Inconel or Uranus B6, to resist offshore environment. TUTHILL is ISO 9001-certified and works with various international Standards such as the European Directives PED, TPED. Product qualifications according to Oil & Gas Standards is also possible when required.
泰悉爾精通于給出專用的設計方案并能提供各種優良材質（鎳鈷合金 Inconel 或 Uranus B6 ）的快速接頭，以抵抗近海的環境。泰悉爾具有 ISO 9001 證書并與各國標準化組織（如歐洲 Directives PED 、 TPED ）一起工作。如有需要，符合石油和燃?xì)鈽?biāo)準的產品品質也可得到。
For a specific request, TUTHILL has developed multi-couplings in AISI 316L (size 1/2") and F15NM (size 1” 1/2) fire-tested and certified Lloyd's OSG 1000/499. Working pressure is up to 210 bar / 3,100 psi.
對于特定的要求，泰悉爾已開發出材料為 AISI 316L 不銹鋼（主體尺寸 1/2” ）、材料為 F15NM 不銹鋼（主體尺寸 1 1/2” ）、的接頭組（已通過 Lloyd's OSG 1000/499 證書及消防試驗）。工作壓力達 210bar/3,000psi 。
