EATON Hansen ST系列大流量模具冷卻直通式快速接頭
Hansen Straight Through Hydraulic Couplings by Hansen Couplings

Manufacturer: Hansen Couplings
EATON Hansen ST系列直通式快速接頭

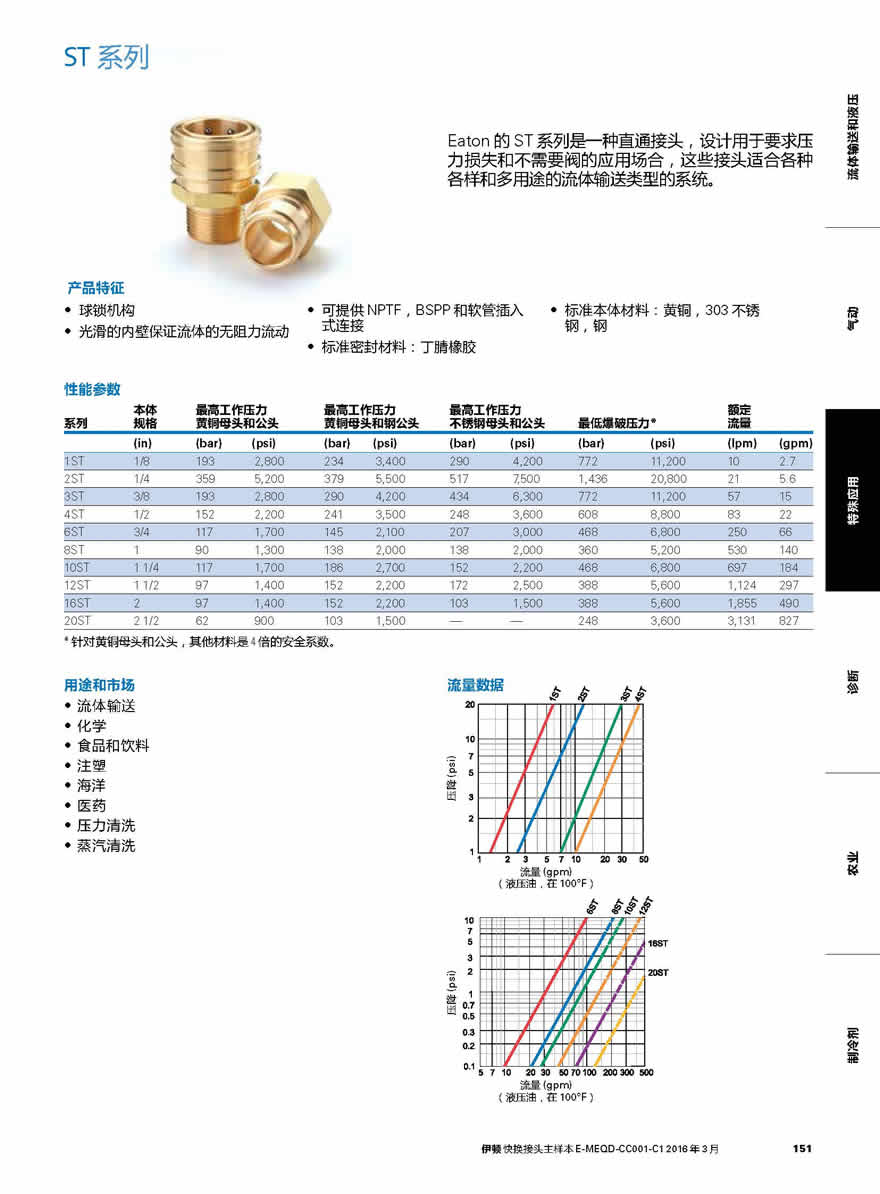

EATON Hansen ST系列是一種無閥門快速接頭，用于需要最大流量及最少壓降的領域。EATON Hansen ST系列直通式快速接頭應用：ST系列提供的大流量被用于壓力清洗裝置、蒸汽清洗、液體運輸、模具冷卻線路及化工。Eaton ST系列是一種直通接頭，設計用于要求壓力損失和不需要閥的應用場合，這些接頭適合各種各樣和多用途的流體輸送類型的系統。

EATON HANSEN ST Series Straight Through Hydraulic Quick-Connect Couplings
Hansen ST系列大流量模具冷卻直通式快速接頭

特點和優勢：

- 主體尺寸：1/8”、1/4”、3/8”、1/2”、3/4”、1”、1-1/4”、1-1/2”、2”和2-1/2”
- 材質：鋼、黃銅、不銹鋼、塑料
- 螺紋連接形式：NPT、BSP、坡口連接
- 工作壓力：
鋼質接頭最大可承受：5,500psi (380bar)
黃銅接頭最大可承受：5,200psi (360bar)
不銹鋼接頭最大可承受：7,500psi (520bar)
塑料接頭最大可承受：100psi (8bar)
- 球形鎖手動操作
- 平滑的通道使液體和氣體能夠更自由流動
- 內螺紋和外螺紋的NPTF和BSPP連接標準，軟管坡口連接

標準材質：

- 母頭為黃銅或303不銹鋼
- 不銹鋼彈簧、鋼球和扣環
- 公頭為黃銅、鍍鋅鋼和303不銹鋼
- 主體尺寸1/4''和3/8''的接頭可選高強度熱處理416不銹鋼公頭
- 丁晴橡膠密封圈 NBR
- 套筒鎖
- 密封件：特氟龍（1ST 到 8ST)、氯丁橡膠、氟橡膠、丁晴橡膠NBR和三元乙丙橡膠密封圈
- 備件：部分尺寸可選防塵帽和防塵塞

Eaton HANSEN ST Series - Quick Disconnect Couplings - Male End Sockets & Plugs
Eaton HANSEN ST Series is a straight through coupling

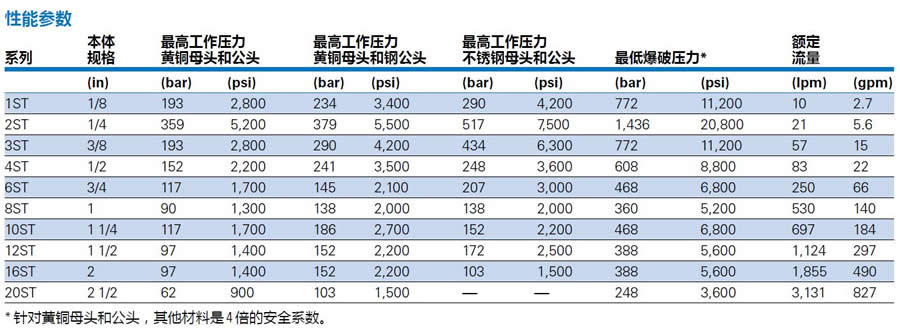

Series	Body Size	Max. Operating Pressure						Min. Burst Pressure		Rated Flow
Brass Socket & Plug		Brass Socket & Steel Plug		Stainless Socket & Plug
(in)	(bar)	(psi)	(bar)	(psi)	(bar)	(psi)	(bar)	(psi)	(lpm)	(gpm)
1ST	1/8	193	2,800	234	3,400	290	4,200	772	11,200	10	2.7
2ST	1/4	359	5,200	379	5,500	517	7,500	1,436	20,800	21	5.6
3ST	3/8	193	2,800	290	4,200	434	6,300	772	11,200	57	15
4ST	1/2	152	2,200	241	3,500	248	3,600	608	8,800	83	22
6ST	3/4	117	1,700	145	2,100	207	3,000	468	6,800	250	66
8ST	1	90	1,300	138	2,000	138	2,000	360	5,200	530	140
10ST	1 1/4	117	1,700	186	2,700	152	2,200	468	6,800	697	184
12ST	1 1/2	97	1,400	152	2,200	172	2,500	388	5,600	1,124	297
16ST	2	97	1,400	152	2,200	103	1,500	388	5,600	1,855	490
20ST	2 1/2	62	900	103	1,500	-	-	248	3,600	3,131	827

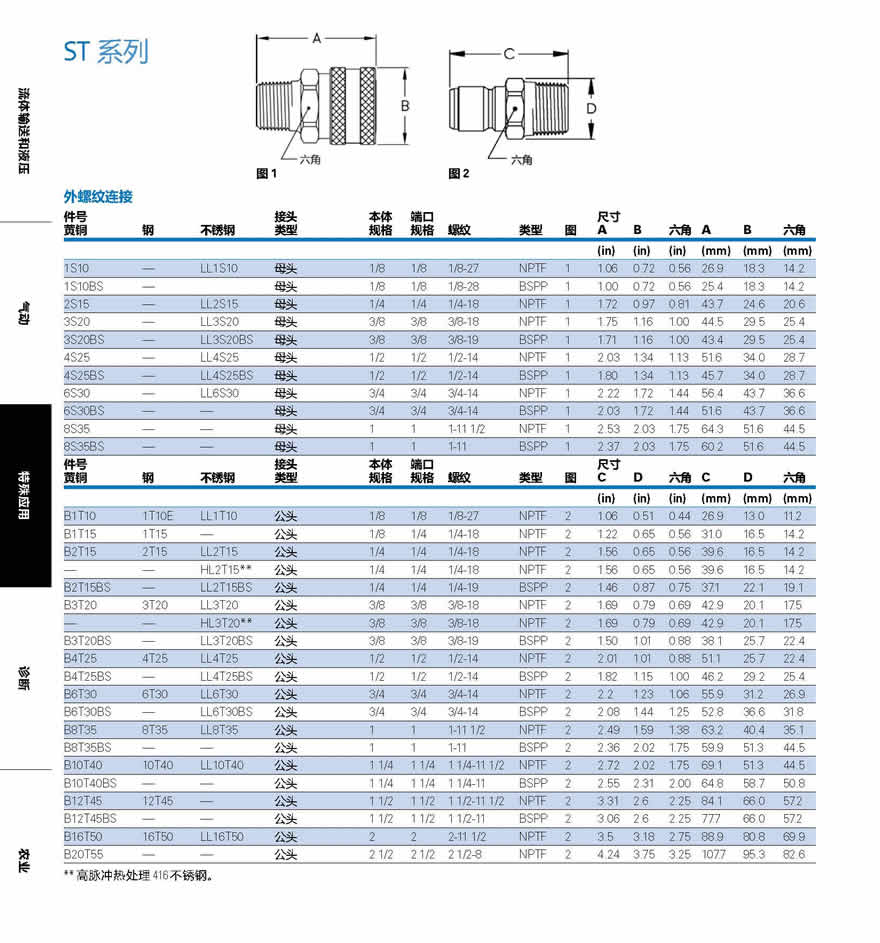

Dimensions ST Series - Female Socket (Male End Connections)

- Dimensions ST Series - Female Socket (Male End Connections)

Part NumberBrass	Part NumberSteel	Part Number303 Stainless Steel	Coupling Type	Body Size	Port Size	Thread	Type	Figure
A	B	Hex
in(mm)	in(mm)	in(mm)
1S10	-	LL1S10	Socket/Female	1/8	1/8	1/8 - 27	Male NPTF	1
1S10BS	-	-	Socket/Female	1/8	1/8	1/8 - 28	Male BSPP	1
2S15	-	LL2S15	Socket/Female	1/4	1/4	1/4 - 18	Male NPTF	1
3S20	-	LL3S20	Socket/Female	3/8	3/8	3/8 - 18	Male NPTF	1
3S20BS	-	LL3S20BS	Socket/Female	3/8	3/8	3/8 - 19	Male BSPP	1
4S25	-	LL4S25	Socket/Female	1/2	1/2	1/2 - 14	Male NPTF	1
4S25BS	-	LL4S25BS	Socket/Female	1/2	1/2	1/2 - 14	Male BSPP	1
6S30	-	LL6S30	Socket/Female	3/4	3/4	3/4 - 14	Male NPTF	1
6S30BS	-	-	Socket/Female	3/4	3/4	3/4 - 14	Male BSPP	1
8S35	-	-	Socket/Female	1	1	1-11 1/2	Male NPTF	1
8S35BS	-	-	Socket/Female	1	1	1/11	Male BSPP	1

- Dimensions ST Series - Male Plug (Male End Connections)

Part NumberBrass	Part NumberSteel	Part Number303 Stainless Steel	Coupling Type	Body Size	Port Size	Thread	Type	Figure
C	D	Hex
in(mm)	in(mm)	in(mm)
B1T10	1T10E	LL1T10	Plug/Male	1/8	1/8	1/8 - 27	Male NPTF	2
B1T15	1T15	-	Plug/Male	1/8	1/4	1/4 - 18	Male NPTF	2
B2T15	2T15	LL2T15	Plug/Male	1/4	1/4	1/4 - 18	Male NPTF	2
-	-	HL2T15*	Plug/Male	1/4	1/4	1/4 - 18	Male NPTF	2
B2T15BS	-	LL2T15BS	Plug/Male	1/4	1/4	1/4 - 19	Male BSPP	2
B3T20	3T20	LL3T20	Plug/Male	3/8	3/8	3/8 - 18	Male NPTF	2
-	-	HL3T20*	Plug/Male	3/8	3/8	3/8 - 18	Male NPTF	2
B3T20BS	-	LL3T20BS	Plug/Male	3/8	3/8	3/8 - 19	Male BSPP	2
B4T25	4T25	LL4T25	Plug/Male	1/2	1/2	1/2 - 14	Male NPTF	2
B4T25BS	-	LL4T25BS	Plug/Male	1/2	1/2	1/2 - 14	Male BSPP	2
B6T30	6T30	LL6T30	Plug/Male	3/4	3/4	3/4 - 14	Male NPTF	2
B6T30BS	-	LL6T30BS	Plug/Male	3/4	3/4	3/4 - 14	Male BSPP	2
B8T35	8T35	LL8T35	Plug/Male	1	1	1-11 1/2	Male NPTF	2
B8T35BS	-	-	Plug/Male	1	1	1/11	Male BSPP	2
B10T40	10T40	LL10T40	Plug/Male	1 1/4	1 1/4	1 1/4-11 1/2	Male NPTF	2
B10T40BS	-	-	Plug/Male	1 1/4	1 1/4	1 1/4-11	Male BSPP	2
B12T45	12T45	-	Plug/Male	1 1/2	1 1/2	1 1/2-11 1/2	Male NPTF	2
B12T45BS	-	-	Plug/Male	1 1/2	1 1/2	1 1/2-11	Male BSPP	2
B16T50	16T50	LL16T50	Plug/Male	2	2	2-11 1/2	Male NPTF	2
B20T55	-	-	Plug/Male	2 1/2	2 1/2	2 1/2-8	Male NPTF	2

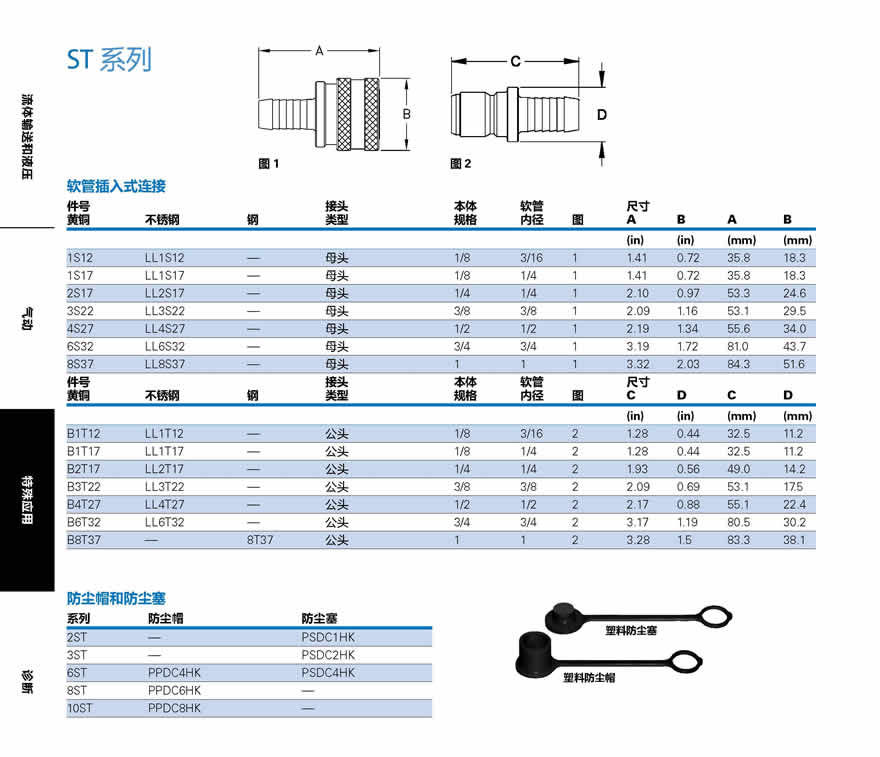

Series Dust Cap Dust Plug
2ST - PSDC1HK
3ST - PSDC2HK
6ST PPDC4HK PSDC4HK
8ST PPDC6HK -
10ST PPDC8HK

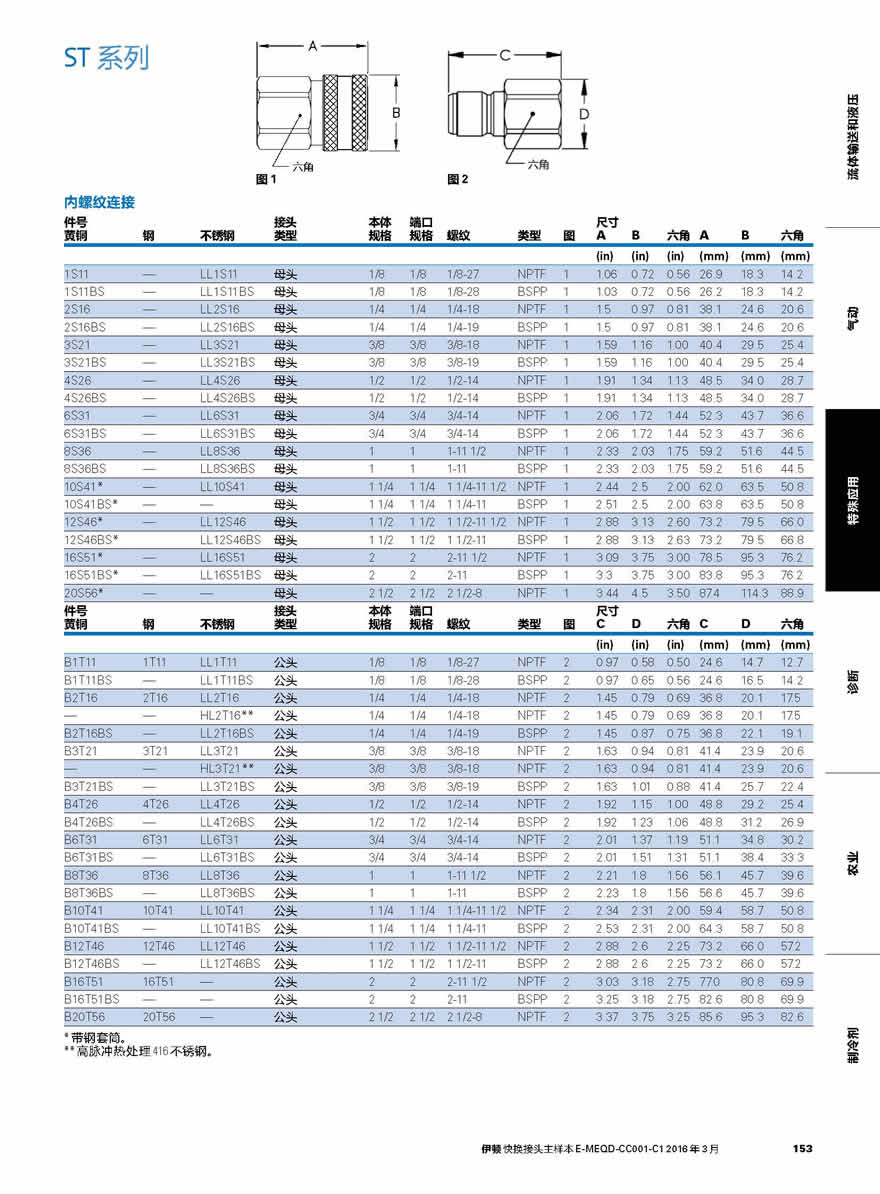

Body Size	Steel Part Number (nitrile seals)	Brass Part Number (nitrile seals)	303 Stainless Steel Part Number (nitrile seals)	Viton seals suffix	EPDM seals suffix	NPTF	BSPP	Hosetail I/D	Connection Type	Coupling Type
1/8	-	1S10	LL1S10	-143	-192	2001/8 - 27	-	-	Male thread	Socket
1/8	-	1S10-BS	-	-143	-192	-	2001/8/28	-	Male thread	Socket
1/8	1T10E	B1T10	LL1T10	-	-	2001/8 - 27	-	-	Male thread	Plug
1/8	1T15	B1T15	-	-	-	2001/4 -18	-	-	Male thread	Plug
1/8	-	1S11	LL1S11	-143	-192	2001/8/27	-	-	Female thread	Socket
1/8	-	1S11-BS	LL1S11-BS	-143	-192	-	2001/8/27	-	Female thread	Socket
1/8	1T11	B1T11	LL1T11	-	-	2001/8/27	-	-	Female thread	Plug
1/8	-	B1T11-BS	LL1T11-BS	-	-	-	2001/8/27	-	Female thread	Plug
1/8	-	1S12	LL1S12	-143	-192	-	-	#####	Hosetail	Socket
1/8	-	1S17	LL1S17	-143	-192	-	-	1/4	Hosetail	Socket
1/8	-	B1T12	LL1T12	-	-	-	-	#####	Hosetail	Plug
1/8	-	B1T17	LL1T17	-	-	-	-	1/4	Hosetail	Plug
1/4	-	2S15	LL2S15	-143	-192	2001/4/18	-	-	Male thread	Socket
1/4	2T15	B2T15	LL2T15	-	-	2001/4/18	-	-	Male thread	Plug
1/4	-	B2T15-BS	LL2T15-BS	-	-	-	2001/4/19	-	Male thread	Plug
1/4	-	2S16	LL2S16	-143	-192	2001/4/18	-	-	Female thread	Socket
1/4	-	2S16-BS	LL2S16-BS	-143	-192	-	2001/4/19	-	Female thread	Socket
1/4	2T16	B2T16	LL2T16	-	-	2001/4/18	-	-	Female thread	Plug
1/4	-	B2T16-BS	LL2T16-BS	-	-	-	2001/4/19	-	Female thread	Plug
1/4	-	2S17	LL2S17	-143	-192	-	-	1/4	Hosetail	Socket
1/4	-	B2T17	LL2T17	-	-	-	-	1/4	Hosetail	Plug
3/8	-	3S20	LL3S20	-143	-192	2003/8/18	-	-	Male thread	Socket
3/8	-	3S20-BS	LL3S20-BS	-143	-192	-	2003/8/19	-	Male thread	Socket
3/8	3T20	B3T20	LL3T20	-	-	2003/8/18	-	-	Male thread	Plug
3/8	-	B3T20-BS	LL3T20-BS	-	-	-	2003/8/19	-	Male thread	Plug
3/8	-	3S21	LL3S21	-143	-192	2003/8/18	-	-	Female thread	Socket
3/8	-	3S21-BS	LL3S21-BS	-143	-192	-	2003/8/19	-	Female thread	Socket
3/8	3T21	B3T21	LL3T21	-	-	2003/8/19	-	-	Female thread	Plug
3/8	-	B3T21-BS	LLT21-BS	-	-	-	2003/8/19	-	Female thread	Plug
3/8	-	3S22	LL3S21	-143	-192	-	-	3/8	Hosetail	Socket
3/8	-	B3T22	LL3T22	-	-	-	-	3/8	Hosetail	Plug
1/2	-	4S25	LL4S25	-143	-192	2001/2/14	-	-	Male thread	Socket
1/2	-	4S25-BS	LL4S25-BS	-143	-192	-	2001/2/14	-	Male thread	Socket
1/2	4T25	B4T25	LL4T25	-	-	2001/2/14	-	-	Male thread	Plug
1/2	-	B4T25-BS	LL4T25-BS	-	-	-	2001/2/14	-	Male thread	Plug
1/2	-	4S26	LL4S26	-143	-192	2001/2/14	-	-	Female thread	Socket
1/2	-	4S26-BS	LL4S26-BS	-143	-192	-	2001/2/14	-	Female thread	Socket
1/2	4T26	B4T26	LL4T26	-	-	2001/2/14	-	-	Female thread	Plug
1/2	-	B4T26-BS	LL4T26-BS	-	-	-	2001/2/14	-	Female thread	Plug
1/2	-	4S27	LL4S27	-143	-192	-	-	1/2	Hosetail	Socket
1/2	-	B4T27	LL4T27	-	-	-	-	1/2	Hosetail	Plug
3/4	-	6S30	LL6S30	-143	-192	2003/4/14	-	-	Male thread	Socket
3/4	-	6S30-BS	LL6S30-BS	-143	-192	-	2003/4/14	-	Male thread	Socket
3/4	6T30	B6T30	LL6T30	-	-	2003/4/14	-	-	Male thead	Plug
3/4	-	B6T30-BS	LL6T30-BS	-	-	-	2003/4/14	-	Male thread	Plug
3/4	-	6S31	LL6S31	-143	-192	2003/4/14	-	-	Female thread	Socket
3/4	-	6S31-BS	LL6S31-BS	-143	-192	-	2003/4/14	-	Female thread	Socket
3/4	6T31	B6T31	LL6T31	-	-	2003/4/14	-	-	Female thread	Plug
3/4	-	B6T31-BS	LL6T31-BS	-	-	-	2003/4/14	-	Female thread	Plug
3/4	-	6S32	LL6S32	-143	-192	-	-	3/4	Hosetail	Socket
3/4	-	B6T32	LL6T32	-	-	-	-	3/4	Hosetail	Plug
1	-	8S35	-	-143	-192	1-11.1/2	-	-	Male thread	Socket
1	-	8S35-BS	-	-143	-192	-	1/11	-	Male thread	Socket
1	8T35	B8T35	LL8T35	-	-	1-11.1/2	-	-	Male thread	Plug
1	-	B8T35-BS	-	-	-	-	1/11	-	Male thread	Plug
1	-	8S36	LL8S36	-143	-192	1-11.1/2	-	-	Female thread	Socket
1	-	8S36-BS	LL8S36-BS	-143	-192	-	1/11	-	Female thread	Socket
1	8T36	B8T36	LL8T36	-	-	1-11.1/2	-	-	Female thread	Plug
1	-	B8T36-BS	LL8T36-BS	-	-	-	1/11	-	Female thread	Plug
1	-	8S37	LL8S37	-143	-192	-	-	1	Hosetail	Socket
1	8T37	-	LL8T37	-	-	-	-	1	Hosetail	Plug
1.1/4	10T40	B10T40	LL10T40	-	-	1.1/4-11.1/2	-	-	Male thread	Plug
1.1/4	-	B10T40-BS	-	-	-	-	1.1/4-11	-	Male thread	Plug
1.1/4	-	10S41	LL10S41	-143	-192	1.1/4-11	-	-	Female thread	Socket
1.1/4	-	10S41-BS	-	-143	-192	-	1.1/4-11	-	Female thread	Socket
1.1/4	10T41	B10T41	LL10T41	-	-	1.1/4-11	-	-	Female thread	Plug
1.1/4	-	B10T41-BS	LL10T41-BS	-	-	-	1.1/4-11	-	Female thread	Plug
1.1/2	12T45	B12T45	-	-	-	1.1/2-11.1/2	-	-	Male thread	Plug
1.1/2	-	B12T45-BS	-	-	-	-	1.1/2-11	-	Male thead	Plug
1.1/2	-	12S46	LL12S46	-143	-192	1.1/2-11.1/2	-	-	Male thread	Socket
1.1/2	-	12S46-BS	LL12S46-BS	-143	-192	-	1.1/2-11	-	Female thread	Socket
1.1/2	12T46	B12T46	LL12T46	-	-	1.1/2-11.1/2	-	-	Female thread	Plug
1.1/2	-	B12T46-BS	LL12T46-BS	-	-	-	1.1/2-11	-	Female thread	Plug
2	16T50	B16T50	LL16T50	-	-	2-11.1/2	-	-	Male thread	Plug
2	-	16S51	LL16S51	-143	-192	2-11.1/2	-	-	Female thread	Socket
2	-	16S51-BS	LL16S51-BS	-143	-192	-	2/11	-	Female thread	Socket
2	16T51	B16T51	LL16T51	-	-	2-11.1/2	-	-	Female thread	Plug
2	-	B16T51-BS	-	-	-	-	2/11	-	Female thread	Plug
2.1/2	-	B20T55	-	-	-	2.1/2-8	-	-	Male thread	Plug
2.1/2	-	20S56	-	-143	-192	2.1/2-8	-	-	Female thread	Socket
2.1/2	20T56	B20T56	-	-	-	-	2.1/2-8	-	Female thread	Plug
