Eaton Aeroquip FD85系列螺紋連接快速接頭 Eaton’s FD85 Series Thread-to-Connect Coupling
Eaton FD85 Series Male Plug Thread to Connect 3/4-14 Female NPTF Quick Disconnect Coupling Steel
Eaton FD85 Series - Thread to Connect - Plugs (Male) - Steel
FD85系列螺紋連接快速接頭石油和天然氣開采設備配套

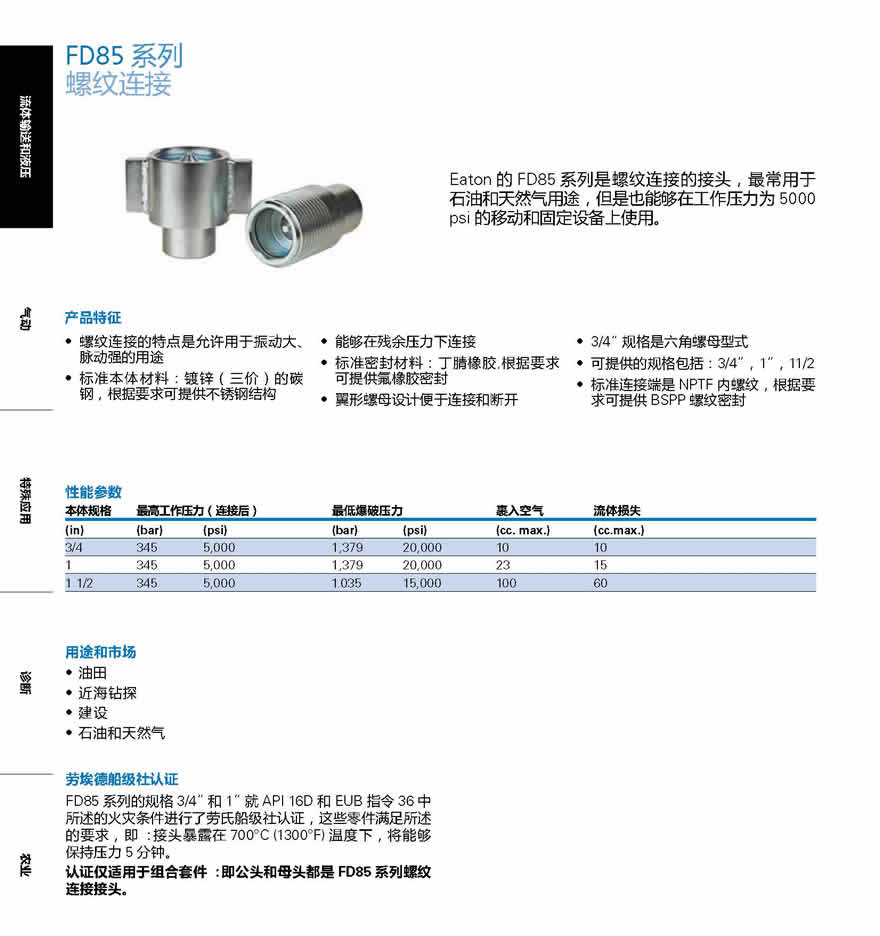

伊頓 FD85 系列是一種螺紋連接接頭，最常用于石油和天然氣應用，但也可以在工作壓力為 5,000 psi 的移動和固定設備的苛刻應用中找到。Eaton FD85 Series is a thread to connect coupling most commonly used in Oil and Gas applications, but can also be found on demanding applications on both mobile and stationary equipment where operating pressures of 5,000 psi are present.
Eaton FD85 Series Male Plug Thread to Connect 3/4-14 Female NPTF Quick Disconnect Coupling Steel
Eaton FD85 Series - Thread to Connect - Plugs (Male) - Steel
Eaton Aeroquip FD85系列螺紋連接快速接頭
產品特點：
- 螺紋連接功能允許在高振動和脈沖應用中使用。
- 殘壓連接能力
- 翼形螺母和扳手扁平設計便于連接和斷開
- 3/4" 設計采用六角螺母設計。標準主體材料： 鍍鋅三價碳鋼。可根據要求提供不銹鋼結構。
標準印章 布納-N。可根據要求提供 FKM 密封件。
FD85 系列組件： 5100 系列插頭（公） 5100 系列插座（母） 5100 系列成套連接器
應用與市場：
- 油田
- 近海鉆探
- 建設
- 石油和天然氣
勞埃德船級社認證
FD85系列的規格 3/4”和 1”就 API 16D和 EUB指令 36中所述的火災條件進行了勞氏船級社認證，這些零件滿足所述的要求，即：接頭暴露在 700°C (1300°F)溫度下，將能夠保持壓力 5分鐘。
認證僅適用于組合套件：即公頭和母頭都是 FD85系列螺紋連接接頭。
Physical Characteristics
|
Maximum Operating Pressure |
Minimum Burst Pressure |
| Body Size |
Connected |
Plug/Male Half |
Socket/Female Half |
Connected |
Plug/Male Half |
Socket/Female Half |
| in |
bar |
psi |
bar |
psi |
bar |
psi |
bar |
psi |
bar |
psi |
bar |
psi |
| 3/4" |
345 |
5,000 |
345 |
5,000 |
345 |
5,000 |
1,380 |
20,000 |
1,380 |
20,000 |
1,380 |
20,000 |
| 1" |
345 |
5,000 |
345 |
5,000 |
345 |
5,000 |
1,380 |
20,000 |
1,380 |
20,000 |
1,380 |
20,000 |
| 1 1/4" |
345 |
5,000 |
345 |
5,000 |
345 |
5,000 |
1,035 |
15,000 |
1,035 |
15,000 |
1,035 |
15,000 |
| 1 1/2" |
345 |
5,000 |
345 |
5,000 |
345 |
5,000 |
1,035 |
15,000 |
1,035 |
15,000 |
1,035 |
15,000 |
| 2" |
345 |
5,000 |
345 |
5,000 |
345 |
5,000 |
1,035 |
15,000 |
1,035 |
15,000 |
1,035 |
15,000 |
| Body Size |
Part Number |
NPT Female Thread |
BSPP Female Thread |
Coupling Type |
| 3/4 |
FD85-1001-12-12 |
2003/4/14 |
- |
Plug |
| 3/4 |
FD85-1017-12-12 |
- |
2003/4/14 |
Plug |
| 1 |
FD85-1001-16-16 |
1-11.1/2 |
- |
Plug |
| 1 |
FD85-1017-16-16 |
- |
1/11 |
Plug |
| 1.1/4 |
FD85-1001-20-20 |
1.1/4-11 |
- |
Plug |
| 1.1/4 |
FD85-1017-20-20 |
- |
1.1/4-11 |
Plug |
| 1.1/2 |
FD85-1001-24-24 |
1.1/2-11.1/2 |
- |
Plug |
| 1.1/2 |
FD85-1017-24-24 |
- |
1.1/2-11 |
Plug |
| 2 |
FD85-1001-32-32 |
2-11.1/2 |
- |
Plug |
| 2 |
FD85-1017-32-32 |
- |
2/11 |
Plug |
| 3/4 |
FD85-1003-12-12 |
2003/4/14 |
- |
Socket |
| 3/4 |
FD85-1019-12-12 |
- |
2003/4/14 |
Socket |
| 1 |
FD85-1003-16-16 |
1-11.1/2 |
- |
Socket |
| 1 |
FD85-1019-16-16 |
- |
1/11 |
Socket |
| 1.1/4 |
FD85-1003-20-20 |
1.1/4-11 |
- |
Socket |
| 1.1/4 |
FD85-1019-20-20 |
- |
1.1/4-11 |
Socket |
| 1.1/2 |
FD85-1003-24-24 |
1.1/2-11.1/2 |
- |
Socket |
| 1.1/2 |
FD85-1019-24-24 |
- |
1.1/2-11 |
Socket |
| 2 |
FD85-1003-32-32 |
2-11.1/2 |
- |
Socket |
| 2 |
FD85-1019-32-32 |
- |
2/11 |
Socket |
| 3/4 |
FD85-1000-12-12 |
2003/4/14 |
- |
Complete |
| 3/4 |
FD85-1016-12-12 |
- |
2003/4/14 |
Complete |
| 1 |
FD85-1000-16-16 |
1-11.1/2 |
- |
Complete |
| 1 |
FD85-1016-16-16 |
- |
1.11 |
Complete |
| 1.1/4 |
FD85-1000-20-20 |
1.1/4-11 |
- |
Complete |
| 1.1/4 |
FD85-1016-20-20 |
- |
1.1/4-11 |
Complete |
| 1.1/2 |
FD85-1000-24-24 |
1.1/2-11.1/2 |
- |
Complete |
| 1.1/2 |
FD85-1016-24-24 |
- |
1.1/2-11 |
Complete |
| 2 |
FD85-1000-32-32 |
2-11.1/2 |
- |
Complete |
| 2 |
FD85-1016-32-32 |
- |
2/11 |
Complete |
-

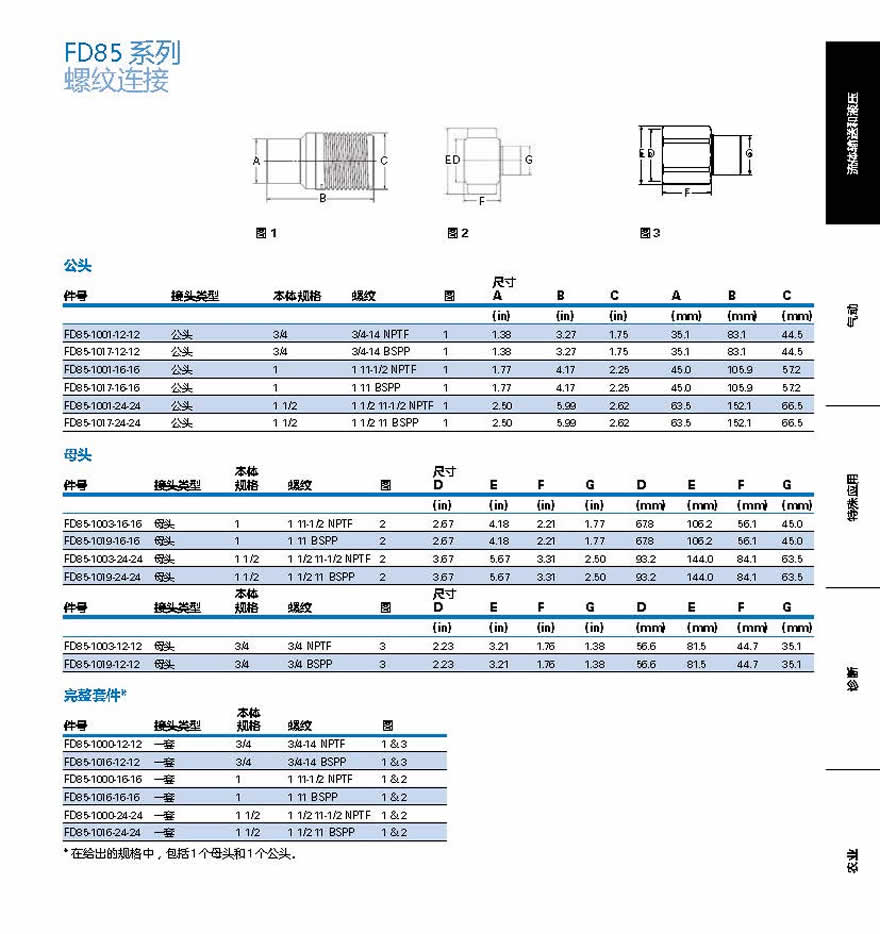

| Part Number |
Body Size |
Thread Size (Female) |
Dimensions |
Weight |
| NBR |
in |
NPT |
BSPP |
A(in) |
B(in) |
C(in) |
A(mm) |
B(mm) |
C(mm) |
A/F(in) |
A/F(mm) |
Lbs |
grams |
| FD85-1001-12-12 |
3/4 |
2003/4/14 |
- |
1.39 |
3.27 |
1.74 |
35.2 |
83.1 |
44.3 |
1 1/3 |
33 |
1.162 |
480 |
| FD85-1017-12-12 |
3/4 |
- |
G 3/4-14 |
1.39 |
3.27 |
1.74 |
35.2 |
83.1 |
44.3 |
1 1/3 |
33 |
1.162 |
480 |
|
| FD85-1001-16-16 |
1 |
1-11 1/2 |
- |
1.77 |
4.17 |
2.24 |
45 |
106 |
57.1 |
1 5/8 |
41 |
2.921 |
1120 |
| FD85-1017-16-16 |
1 |
- |
G 1-11 |
1.77 |
4.17 |
2.25 |
45 |
106 |
57.1 |
1 5/8 |
41 |
2.974 |
1120 |
|
| FD85-1001-20-20 |
1 1/4 |
1 1/4-11 |
- |
2.15 |
5.37 |
2.62 |
54.5 |
136.4 |
66.6 |
2 |
50 |
5.633 |
1875 |
| FD85-1017-20-20 |
1 1/4 |
- |
G 1 1/4-11 |
2.15 |
5.37 |
2.62 |
54.5 |
136.4 |
66.6 |
2 |
50 |
5.633 |
1875 |
|
| FD85-1001-24-24 |
1 1/2 |
1 1/2-11 1/2 |
- |
2.5 |
5.99 |
3.25 |
63.5 |
152.2 |
82.55 |
2 3/8 |
60 |
7.721 |
3150 |
| FD85-1017-24-24 |
1 1/2 |
- |
G 1 1/2-11 |
2.5 |
5.99 |
3.25 |
63.5 |
152.2 |
82.55 |
2 3/8 |
60 |
7.721 |
3150 |
|
| FD85-1001-32-32 |
2 |
2-11 1/2 |
- |
3.25 |
7 |
4 |
82.5 |
179.2 |
101.6 |
3 |
76 |
15.046 |
5635 |
| FD85-1017-32-32 |
2 |
- |
G 2-11 |
3.25 |
7 |
4 |
82.5 |
179.2 |
101.6 |
3 |
76 |
15.046 |
5635 |
Eaton FD85 系列螺紋連接接頭經過勞氏船級社認證，確保在石油和天然氣應用中的可靠性
日期： 2014 年 11 月 6 日
明尼蘇達州伊甸草原。… 動力管理公司伊頓今天宣布，3/4 英寸和 1 英寸尺寸的 FD85 系列螺紋連接快速接頭現在作為標準產品帶有勞埃德注冊證書，適用于石油和天然氣應用。獨立認證確保快速接頭的性能符合行業標準，這有助于減少因設備故障或故障而造成的代價高昂的停機時間。
根據第三方完成的測試和勞氏船級社審核員的見證，伊頓的 FD85 系列螺紋連接接頭經認證能夠在 700 攝氏度的溫度下保持 5 分鐘的壓力。該認證適用于兩個配合部件均為伊頓 FD85 系列螺紋連接快速接頭的組件。
“勞氏船級社提供行業認可的認可印章，讓最終用戶放心，伊頓的 FD85 系列快速接頭將有助于最大限度地減少設備故障，”伊頓金屬產品經理 Canan Myers 說。“伊頓致力于開發能夠延長正常運行時間并提高機械安全性和可靠性的產品，這有助于客戶應對當今不斷變化的石油和天然氣行業中更具挑戰性的恢復環境和增加的風險。”
FD85 系列是一種螺紋連接的快速斷開快速接頭，通常用于各種陸上和海上石油和天然氣應用，包括動力裝置和鉆井設備。快速接頭采用碳鋼制成，提供標準的 National Pipe Taper Fuel (NPTF) 螺紋端，可根據要求提供英國標準平行管 (BSPP) 螺紋端。在要求苛刻的應用要求工作壓力為 5,000 磅/平方英寸 (psi) 的設備上發現，該認證確保接頭符合美國石油協會 (API) 標準 16D 防噴器 (BOP) 和能源和公用事業委員會 (EUB) 指令 36附錄 3。
伊頓的 Hansen HKFR 系列防噴器快速斷開接頭還通過了勞氏船級社認證，符合標準 API 16D BOP 和 EUB 指令 36。
Eaton’s FD85 Series Thread-to-Connect Coupling Lloyd’s Registry Certified, Ensuring Reliability in Oil and Gas Applications
Date: November 6, 2014
EDEN PRAIRIE, MINN. … Power management company Eaton today announced that the FD85 Series thread-to-connect couplings in ?-inch and 1-inch sizes now carry a Lloyd’s Registry Certificate for oil and gas applications as a standard offering. The independent certification provides assurance that the couplings will perform to industry standards, which helps to reduce costly downtime due to equipment malfunction or failure.
Based on testing completed by a third party and witnessed by a Lloyd’s Registry auditor, Eaton’s FD85 Series thread-to-connect couplings are certified as capable of maintaining pressures when exposed to a temperature of 700 degrees Celsius for a five-minute period. The certification applies to those assemblies where both mating parts are Eaton FD85 Series thread-to-connect couplings.
“Lloyd’s Registry provides an industry-recognized stamp of approval that gives end users peace of mind that Eaton’s FD85 Series couplings will help minimize equipment failure,” said Canan Myers, product manager, Metals, Eaton. “Eaton is dedicated to developing products that improve uptime and enhance the safety and reliability of machinery, which helps customers address the more challenging recovery environments and increased risk in today’s changing oil and gas industry.”
The FD85 Series is a screw together, quick disconnect coupling commonly used in a variety of on- and off-shore oil and gas applications, including power units and drilling equipment. Offered in carbon steel, the couplings offer standard National Pipe Taper Fuel (NPTF) thread ends, with British Standard Parallel Pipe (BSPP) thread ends available on request. Found on equipment where demanding applications require operating pressures of 5,000 pounds per square inch (psi), the certification ensures that the couplings meet American Petroleum Institute (API) standard 16D Blow Out Preventer (BOP) and Energy and Utilities Board (EUB) directive 36 Appendix 3.
Eaton’s Hansen HKFR Series Blow Out Preventer Quick Disconnect Couplings are also Lloyd’s Registry certified to standard API 16D BOP and EUB directive 36.
