SWIVELS；S-Inline，HS-Heavy Duty Inline，9S-90° Swivel，9SS-Dual Plane Swivel，18S-Parallel Plane Swivel，Flange Swivels
SWIVELS；9S-90° Swivel
“9S”系列旋轉閥代表了工業上完整的尺寸和配置范圍之一。該系列已重新設計，以納入一個整體桶安排，從而消除了釬焊接頭的需要。這些旋轉閥壓力平衡，工作壓力高達5000 psi。所有配置均采用4:1安全系數設計，并包括符合RoHS標準的鍍鋅層。The "9S" Series swivels represent one of the most complete range of sizes and configurations available to industry. This series has been redesigned to incorporate a one piece barrel arrangement thus eliminating the need for braze joints. These swivels are pressure balanced with operating pressures up to 5,000 psi. All configurations are designed with a 4:1 Safety Factor and include RoHS compliant zinc plating.
HYDRAULICS, INC. 設計特性
防護處理.黃色鉻酸鹽RoHS兼容表面鍍鋅
整體熔模鑄造筒體-無釬焊接頭
全4:1設計安全系數
標準O形環和支承環-現場可更換密封套件
可選密封材料
拋光缸孔-延長密封壽命
嵌入式和保護防塵密封件
低旋轉扭矩的壓力平衡
重型固定環
優良的流動特性

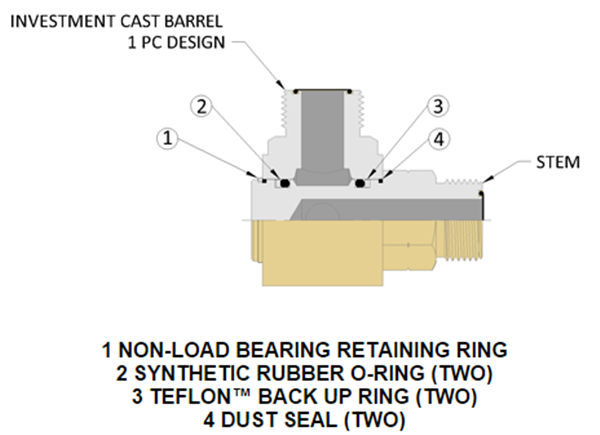

HYDRAULICS, INC. Design Features
Protective treatment - Zinc Plating with Yellow Chromate RoHS compliant finish
One piece investment cast barrel - no braze joint
Full 4:1 design safety factor
Standard O-Ring and back up ring - Field replaceable seal kits
Optional seal material
Burnished barrel bore - Extends seal life
Recessed and protected dust seals
Pressure balanced for low rotational torque
Heavy duty retainer ring
Excellent flow characteristics
壓力限制：Pressure Limitations:
“9S”系列旋轉閥的工作壓力取決于所選的端口選擇，可達5000 psi（34.5 MPa）；然而，連接管道的額定壓力可能高于或低于旋轉閥。流體動力系統的額定工作壓力不應超過其額定部件。Maximum working pressure for “9S” Series swivels is up to 5,000 psi (34.5 MPa) depending on port options chosen; however, connecting plumbing may be rated higher or lower than that of the swivel. The rated working pressure of a fluid power system should not exceed the lowest rated component therein.
安裝信息：Installation Information:
Hydraulics, Inc.的旋轉接頭通常被認為是流體動力系統中遇到的低速旋轉。轉速取決于系統環境，流體類型和與溫度和壓力有關的極端條件是首要考慮因素。可疑的應用應通過實驗室或原型測試證明。安裝時應避免污染，連接管道不應造成過度負荷。水龍頭不應用作承重或結構構件。請參閱安全信息，選擇和使用液壓系統，包括旋轉接頭。Hydraulics, Inc. swivel joints are generally considered for low speed rotation as encountered in fluid power systems. Maximum speed of rotation depends upon system environment, with fluid types and extreme conditions related to temperature and pressure being of prime consideration. Questionable applications should be proven by laboratory or prototype testing. Contamination at installation should be avoided and connecting plumbing should not cause undue loading. The swivel should not be used as a load bearing or structural member. Refer to Safety Information, Selecting and Using Hydraulics, Inc. Swivel Joints.
選項：Options:
本目錄中顯示的旋轉閥被視為Hydraulics, Inc.的標準配置。對于本目錄中未顯示的與壓力額定值或端口選項相關的其他要求，請與我們聯系。可通過在零件號中添加密封化合物指示符后綴來指定可選的密封材料。Swivels shown in this catalog are considered standard to Hydraulics, Inc. For other requirements relative to pressure ratings or port options, not shown in this catalog, please contact us. Optional seal material may be specified by adding the seal compound designator suffix to the part number.
 |
 |
 |
| Male O-Ring Face Seal to Male O-Ring Face Seal |
Male O-Ring Face Seal to Female O-Ring Face Seal |
Male O-Ring Face Seal to Male JIC |
 |
 |
 |
| Male O-Ring Face Seal to Male SAE O-Ring Boss |
Male O-Ring Face Seal to Male Pipe |
Male O-Ring Face Seal to Female Pipe |
 |
 |
 |
| Female O-Ring Face Seal Union to Male O-Ring Face Seal |
Female O-Ring Face Seal Union to Female O-Ring Face Seal |
Female O-Ring Face Seal Union to Male JIC |
 |
 |
 |
| Female O-Ring Face Seal Union to Male SAE O-Ring Boss |
Female O-Ring Face Seal Union to Male Pipe |
Female O-Ring Face Seal Union to Female Pipe |
 |
 |
 |
Male JIC to Male O-Ring Face Seal
|
Male JIC to Female O-Ring Face Seal |
Male JIC to Male JIC |
 |
 |
 |
| Male JIC to Male SAE O-Ring Boss |
Male JIC to Male Pipe |
Male JIC to Female Pipe |
 |
 |
 |
| Female Pipe Union to Male O-Ring Face Seal |
Female Pipe Union to Female O-Ring Face Seal |
Female Pipe Union to Male JIC |
 |
 |
 |
| Female Pipe Union to Male SAE O-Ring Boss |
Female Pipe Union to Male Pipe |
Female Pipe Union to Female Pipe |
 |
 |
 |
| Female Pipe to Male O-Ring Face Seal |
Female Pipe to Female O-Ring Face Seal |
Female Pipe to Male JIC |
 |
 |
 |
| Female Pipe to Male SAE O-Ring Boss |
Female Pipe to Male Pipe |
Female Pipe to Female Pipe |
 |
 |
 |
| Male Pipe to Male O-Ring Face Seal |
Male Pipe to Female O-Ring Face Seal |
Male Pipe to Male JIC |
 |
 |
 |
| Male Pipe to O-Male SAE O-Ring Boss |
Male Pipe to Male Pipe |
Male Pipe to Female Pipe |

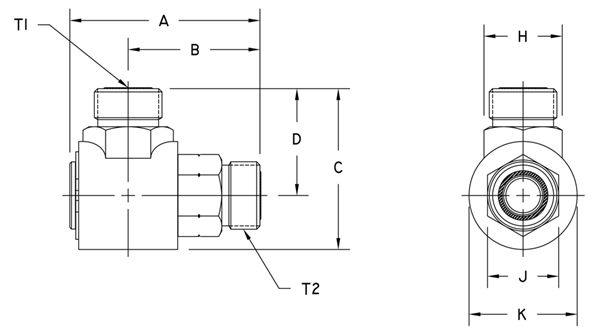

SWIVELS | 9S-90° SWIVEL | MALE O-RING FACE SEAL TO MALE O-RING FACE SEAL
MALE O-RING FACE SEAL TO MALE O-RING FACE SEAL
male-o-ring-face-seal-to-male-o-ring-face-seal
| Part Number |
T1 |
T2 |
A |
B |
C |
D |
H Hex |
J Hex(* = Round) |
K Dia. |
Max W.P. |
| 9S4F4-F4 |
9/16-18 UNF-2A |
9/16-18 UNF-2A |
2.12 53.8 mm |
1.40 35.6 mm |
1.44 36.6 mm |
1.06 26.9 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S6F6-F6 |
11/16-16 UN-2A |
11/16-16 UN-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.62 41.1 mm |
1.16 29.5 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F6-F8 |
11/16-16 UN-2A |
13/16-16 UN-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.62 41.1 mm |
1.16 29.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F8-F6 |
13/16-16 UN-2A |
11/16-16 UN-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.74 44.2 mm |
1.26 32.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F8-F8 |
13/16-16 UN-2A |
13/16-16 UN-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.74 44.2 mm |
1.26 32.0 mm |
1.00 25.4 mm |
1.00 25.4 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S8F8-F8 |
13/16-16 UN-2A |
13/16-16 UN-2A |
2.58 65.5 mm |
1.74 44.2 mm |
2.12 53.8 mm |
1.37 34.8 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8F8-F10 |
13/16-16 UN-2A |
1-14 UNS-2A |
2.77 70.4 mm |
1.93 49.0 mm |
2.12 53.8 mm |
1.37 34.8 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8F10-F8 |
1-14 UNS-2A |
13/16-16 UN-2A |
2.58 65.5 mm |
1.74 44.2 mm |
2.28 57.9 mm |
1.53 38.9 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8F10-F10 |
1-14 UNS-2A |
1-14 UNS-2A |
2.77 70.4 mm |
1.93 49.0 mm |
2.28 57.9 mm |
1.53 38.9 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S12F12-F12 |
1 3/16-12 UN-2A |
1 3/16-12 UN-2A |
3.34 84.8 mm |
2.30 58.4 mm |
2.83 71.9 mm |
1.88 47.8 mm |
1.38 35.1 mm |
1.25 31.8 mm |
1.90 48.3 mm |
5,000 PSI 34.5 MPa |
| 9S16F16-F16 |
1 7/16-12 UN-2A |
1 7/16-12 UN-2A |
3.76 95.5 mm |
2.62 66.5 mm |
3.12 79.2 mm |
2.05 52.1 mm |
1.62 41.1 mm |
1.62 41.1 mm |
2.13 54.1 mm |
4,000 PSI 27.6 MPa |
| 9S20F20-F20 |
1 11/16-12 UN-2A |
1 11/16-12 UN-2A |
4.12 104.6 mm |
2.80 71.1 mm |
3.57 90.7 mm |
2.19 55.6 mm |
2.00 50.8 mm |
2.00 50.8 mm |
2.75 69.9 mm |
4,000 PSI 27.6 MPa |
| 9S24F24-F24 |
2-12 UN-2A |
2-12 UN-2A |
5.26 133.6 mm |
3.49 88.6 mm |
4.33 110.0 mm |
2.58 65.5 mm |
2.37 60.2 mm |
2.37 60.2 mm |
3.50 88.9 mm |
4,000 PSI 27.6 MPa |

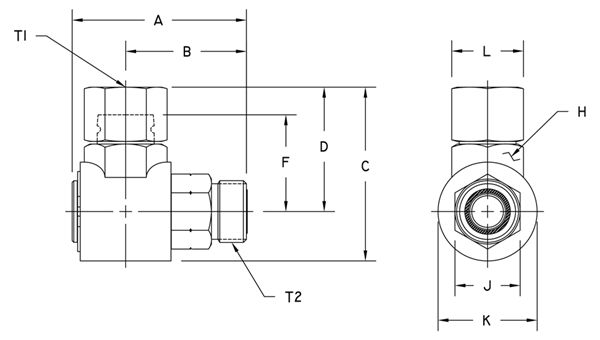

SWIVELS | 9S-90° SWIVEL | MALE O-RING FACE SEAL TO FEMALE O-RING FACE SEAL
MALE O-RING FACE SEAL TO FEMALE O-RING FACE SEAL
male-o-ring-face-seal-to-female-o-ring-face-seal
| Part Number |
T1 |
T2 |
A |
B |
C |
D |
F |
H Hex |
J Hex(* = Round) |
K Dia. |
Max W.P. |
| 9S4F4-FF4 |
9/16-18 UNF-2A |
9/16-18 UNF-2B |
1.87 47.5 mm |
1.15 29.2 mm |
1.44 36.6 mm |
1.06 26.9 mm |
0.83 21.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S6F6-FF6 |
11/16-16 UN-2A |
11/16-16 UN-2B |
2.22 56.4 mm |
1.37 34.8 mm |
1.62 41.1 mm |
1.16 29.5 mm |
1.00 25.4 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F6-FF8 |
11/16-16 UN-2A |
13/16-16 UN-2B |
2.38 60.5 mm |
1.53 38.9 mm |
1.62 41.1 mm |
1.16 29.5 mm |
1.10 27.9 mm |
1.00 25.4 mm |
1.00 25.4 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F8-FF6 |
13/16-16 UN-2A |
11/16-16 UN-2B |
2.22 56.4 mm |
1.37 34.8 mm |
1.74 44.2 mm |
1.26 32.0 mm |
1.00 25.4 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F8-FF8 |
13/16-16 UN-2A |
13/16-16 UN-2B |
2.38 60.5 mm |
1.53 38.9 mm |
1.74 44.2 mm |
1.26 32.0 mm |
1.10 27.9 mm |
1.00 25.4 mm |
1.00 25.4 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S8F8-FF8 |
13/16-16 UN-2A |
13/16-16 UN-2B |
2.36 59.9 mm |
1.52 38.6 mm |
2.12 53.8 mm |
1.37 34.8 mm |
1.08 27.4 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8F8-FF10 |
13/16-16 UN-2A |
1-14 UNS-2B |
2.46 62.5 mm |
1.62 41.1 mm |
2.12 53.8 mm |
1.37 34.8 mm |
1.09 27.7 mm |
1.13 28.7 mm |
1.25 31.8 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8F10-FF8 |
1-14 UNS-2A |
13/16-16 UN-2B |
2.36 59.9 mm |
1.52 38.6 mm |
2.28 57.9 mm |
1.53 38.9 mm |
1.08 27.4 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8F10-FF10 |
1-14 UNS-2A |
1-14 UNS-2B |
2.46 62.5 mm |
1.62 41.1 mm |
2.28 57.9 mm |
1.53 38.9 mm |
1.09 27.7 mm |
1.13 28.7 mm |
1.25 31.8 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S12F12-FF12 |
1 3/16-12 UN-2A |
1 3/16-12 UN-2B |
2.92 74.2 mm |
1.88 47.8 mm |
2.83 71.9 mm |
1.88 47.8 mm |
1.31 33.3 mm |
1.37 34.8 mm |
1.37 34.8 mm |
1.90 48.3 mm |
5,000 PSI 34.5 MPa |
| 9S16F16-FF16 |
1 7/16-12 UN-2A |
1 7/16-12 UN-2B |
3.21 81.5 mm |
2.06 52.3 mm |
3.12 79.2 mm |
2.05 52.1 mm |
1.48 37.6 mm |
1.62 41.1 mm |
1.62 41.1 mm |
2.13 54.1 mm |
4,000 PSI 27.6 MPa |
| 9S20F20-FF20 |
1 11/16-12 UN-2A |
1 11/16-12 UN-2B |
3.55 90.2 mm |
2.33 59.2 mm |
3.57 90.7 mm |
2.19 55.6 mm |
1.65 41.9 mm |
2.00 50.8 mm |
2.00 50.8 mm |
2.75 69.9 mm |
4,000 PSI 27.6 MPa |
| 9S24F24-FF24 |
2-12 UN-2A |
2-12 UN-2B |
4.43 112.5 mm |
2.66 67.6 mm |
4.33 110.0 mm |
2.58 65.5 mm |
2.08 52.8 mm |
2.37 60.2 mm |
2.37 60.2 mm |
3.50 88.9 mm |
4,000 PSI 27.6 MPa |

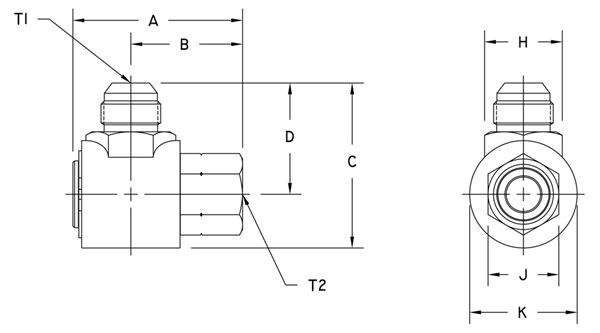

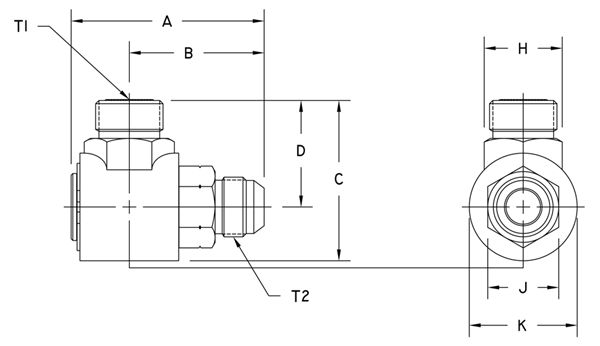

SWIVELS | 9S-90° SWIVEL | MALE O-RING FACE SEAL TO MALE JIC
MALE O-RING FACE SEAL TO MALE JIC
male-o-ring-face-seal-to-male-jic
| Part Number |
T1 |
T2 |
A |
B |
C |
D |
H Hex |
J Hex(* = Round) |
K Dia. |
Max W.P. |
| 9S4F4-J4 |
9/16-18 UNF-2A |
7/16-20 UNF-2A |
2.24 56.9 mm |
1.52 38.6 mm |
1.44 36.6 mm |
1.06 26.9 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S4F4-J5 |
9/16-18 UNF-2A |
1/2-20 UNF-2A |
2.24 56.9 mm |
1.52 38.6 mm |
1.44 36.6 mm |
1.06 26.9 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S6F4-J6 |
9/16-18 UNF-2A |
9/16-18 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.57 39.9 mm |
1.11 28.2 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F6-J5 |
11/16-16 UN-2A |
1/2-20 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.62 41.1 mm |
1.16 29.5 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F6-J6 |
11/16-16 UN-2A |
9/16-18 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.62 41.1 mm |
1.16 29.5 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F6-J8 |
11/16-16 UN-2A |
3/4-16 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.62 41.1 mm |
1.16 29.5 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F8-J6 |
13/16-16 UN-2A |
9/16-18 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.72 43.7 mm |
1.26 32.0 mm |
1.13 28.7 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F8-J8 |
13/16-16 UN-2A |
3/4-16 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.72 43.7 mm |
1.26 32.0 mm |
1.13 28.7 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S8F8-J10 |
13/16-16 UN-2A |
7/8-14 UNF-2A |
2.83 71.9 mm |
1.99 50.5 mm |
2.12 53.8 mm |
1.37 34.8 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8F10-J10 |
1-14 UNS-2A |
7/8-14 UNF-2A |
2.83 71.9 mm |
1.99 50.5 mm |
2.28 57.9 mm |
1.53 38.9 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S12F12-J12 |
1 3/16-12 UN-2A |
1 1/16-12 UN-2A |
3.40 86.4 mm |
2.36 59.9 mm |
2.83 71.9 mm |
1.88 47.8 mm |
1.38 35.1 mm |
1.25 31.8 mm |
1.90 48.3 mm |
5,000 PSI 34.5 MPa |
| 9S16F16-J16 |
1 7/16-12 UN-2A |
1 5/16-12 UN-2A |
3.82 97.0 mm |
2.68 68.1 mm |
3.12 79.2 mm |
2.05 52.1 mm |
1.62 41.1 mm |
1.62 41.1 mm |
2.13 54.1 mm |
4,000 PSI 27.6 MPa |
| 9S20F20-J20 |
1 11/16-12 UN-2A |
1 5/8-12 UN-2A |
4.12 104.6 mm |
2.80 71.1 mm |
3.57 90.7 mm |
2.19 55.6 mm |
2.00 50.8 mm |
2.00 50.8 mm |
2.75 69.9 mm |
4,000 PSI 27.6 MPa |
| 9S24F24-J24 |
2-12 UN-2A |
1 7/8-12 UN-2A |
5.27 133.9 mm |
3.50 88.9 mm |
4.33 110.0 mm |
2.58 65.5 mm |
2.37 60.2 mm |
2.37 60.2 mm |
3.50 88.9 mm |
4,000 PSI 27.6 MPa |

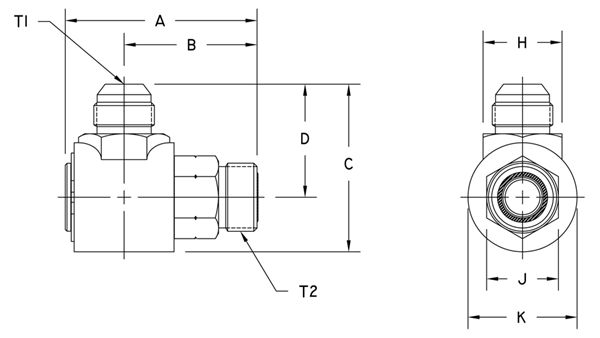

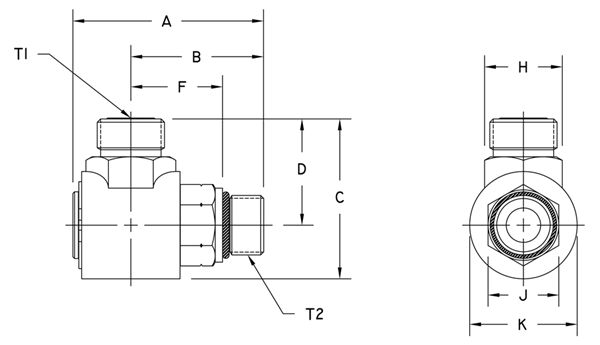

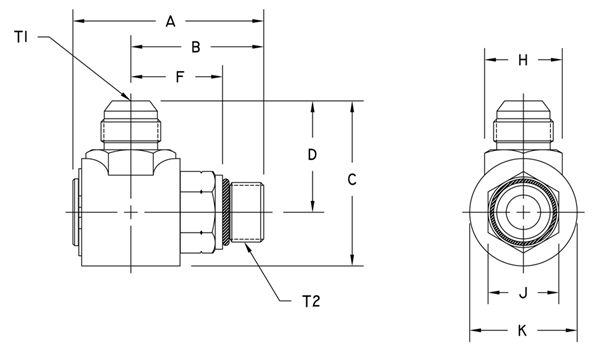

SWIVELS | 9S-90° SWIVEL | MALE O-RING FACE SEAL TO MALE SAE O-RING BOSS
MALE O-RING FACE SEAL TO MALE SAE O-RING BOSS
male-o-ring-face-seal-to-male-sae-o-ring-boss
| Part Number |
T1 |
T2 |
A |
B |
C |
D |
F |
H Hex |
J Hex(* = Round) |
K Dia. |
Max W.P. |
| 9S4F4-O4 |
9/16-18 UNF-2A |
7/16-20 UNF-2A |
2.20 55.9 mm |
1.48 37.6 mm |
1.44 36.6 mm |
1.06 26.9 mm |
1.05 26.7 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S4F4-O5 |
9/16-18 UNF-2A |
1/2-20 UNF-2A |
2.20 55.9 mm |
1.48 37.6 mm |
1.44 36.6 mm |
1.06 26.9 mm |
1.05 26.7 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S6F4-O6 |
9/16-18 UNF-2A |
9/16-18 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.57 39.9 mm |
1.11 28.2 mm |
1.18 30.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F6-O4 |
11/16-16 UN-2A |
7/16-20 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.62 41.1 mm |
1.16 29.5 mm |
1.22 31.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F6-O5 |
11/16-16 UN-2A |
1/2-20 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.62 41.1 mm |
1.16 29.5 mm |
1.22 31.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F6-O6 |
11/16-16 UN-2A |
9/16-18 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.62 41.1 mm |
1.16 29.5 mm |
1.18 30.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F6-O8 |
11/16-16 UN-2A |
3/4-16 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.62 41.1 mm |
1.16 29.5 mm |
1.10 27.9 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F8-O4 |
13/16-16 UN-2A |
7/16-20 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.74 44.2 mm |
1.26 32.0 mm |
1.22 31.0 mm |
1.13 28.7 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F8-O5 |
13/16-16 UN-2A |
1/2-20 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.74 44.2 mm |
1.26 32.0 mm |
1.22 31.0 mm |
1.13 28.7 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F8-O6 |
13/16-16 UN-2A |
9/16-18 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.74 44.2 mm |
1.26 32.0 mm |
1.18 30.0 mm |
1.13 28.7 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F8-O8 |
13/16-16 UN-2A |
3/4-16 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.74 44.2 mm |
1.26 32.0 mm |
1.10 27.9 mm |
1.13 28.7 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S8F8-O8 |
13/16-16 UN-2A |
3/4-16 UNF-2A |
2.58 65.5 mm |
1.74 44.2 mm |
2.12 53.8 mm |
1.37 34.8 mm |
1.19 30.2 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8F8-O10 |
13/16-16 UN-2A |
7/8-14 UNF-2A |
2.82 71.6 mm |
1.98 50.3 mm |
2.12 53.8 mm |
1.37 34.8 mm |
1.35 34.3 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8F8-O12 |
13/16-16 UN-2A |
1 1/16-12 UN-2A |
3.00 76.2 mm |
2.16 54.9 mm |
2.12 53.8 mm |
1.37 34.8 mm |
1.44 36.6 mm |
1.13 28.7 mm |
1.25 31.8 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8F10-O8 |
1-14 UNS-2A |
3/4-16 UNF-2A |
2.58 65.5 mm |
1.74 44.2 mm |
2.28 57.9 mm |
1.53 38.9 mm |
1.19 30.2 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8F10-O10 |
1-14 UNS-2A |
7/8-14 UNF-2A |
2.82 71.6 mm |
1.98 50.3 mm |
2.28 57.9 mm |
1.53 38.9 mm |
1.35 34.3 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S12F12-O12 |
1 3/16-12 UN-2A |
1 1/16-12 UN-2A |
3.37 85.6 mm |
2.33 59.2 mm |
2.83 71.9 mm |
1.88 47.8 mm |
1.62 41.1 mm |
1.38 35.1 mm |
1.25 31.8 mm |
1.90 48.3 mm |
5,000 PSI 34.5 MPa |
| 9S16F16-O16 |
1 7/16-12 UN-2A |
1 5/16-12 UN-2A |
3.62 91.9 mm |
2.48 63.0 mm |
3.12 79.2 mm |
2.05 52.1 mm |
1.78 45.2 mm |
1.63 41.4 mm |
1.62 41.1 mm |
2.13 54.1 mm |
4,000 PSI 27.6 MPa |
| 9S20F20-O20 |
1 11/16-12 UN-2A |
1 5/8-12 UN-2A |
4.08 103.6 mm |
2.75 69.9 mm |
3.57 90.7 mm |
2.20 55.9 mm |
2.04 51.8 mm |
2.00 50.8 mm |
2.00 50.8 mm |
2.75 69.9 mm |
4,000 PSI 27.6 MPa |
| 9S24F24-O24 |
2-12 UN-2A |
1 7/8-12 UN-2A |
4.91 124.7 mm |
3.14 79.8 mm |
4.33 110.0 mm |
2.58 65.5 mm |
2.42 61.5 mm |
2.37 60.2 mm |
2.37 60.2 mm |
3.50 88.9 mm |
4,000 PSI 27.6 MPa |

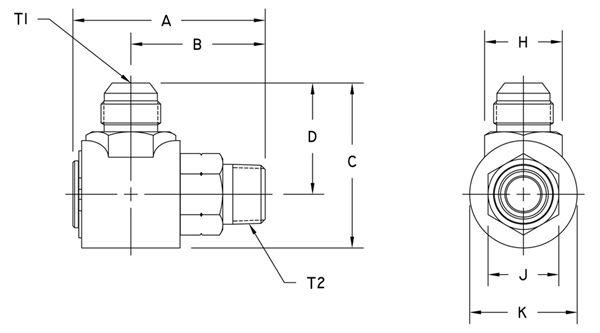

SWIVELS | 9S-90° SWIVEL | MALE O-RING FACE SEAL TO MALE PIPE
MALE O-RING FACE SEAL TO MALE PIPE
male-o-ring-face-seal-to-male-pipe
| Part Number |
T1 |
T2 |
A |
B |
C |
D |
H Hex |
J Hex(* = Round) |
K Dia. |
Max W.P. |
| 9S4F4-P4 |
9/16-18 UNF-2A |
1/4-18 NPTF |
2.24 56.9 mm |
1.52 38.6 mm |
1.44 36.6 mm |
1.06 26.9 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S6F4-P6 |
9/16-18 UNF-2A |
3/8-18 NPTF |
2.50 63.5 mm |
1.65 41.9 mm |
1.57 39.9 mm |
1.11 28.2 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F6-P4 |
11/16-16 UN-2A |
1/4-18 NPTF |
2.50 63.5 mm |
1.65 41.9 mm |
1.62 41.1 mm |
1.16 29.5 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F6-P6 |
11/16-16 UN-2A |
3/8-18 NPTF |
2.50 63.5 mm |
1.65 41.9 mm |
1.62 41.1 mm |
1.16 29.5 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F8-P4 |
13/16-16 UN-2A |
1/4-18 NPTF |
2.50 63.5 mm |
1.65 41.9 mm |
1.74 44.2 mm |
1.26 32.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F8-P6 |
13/16-16 UN-2A |
3/8-18 NPTF |
2.50 63.5 mm |
1.65 41.9 mm |
1.74 44.2 mm |
1.26 32.0 mm |
1.13 28.7 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S8F8-P8 |
13/16-16 UN-2A |
1/2-14 NPTF |
2.83 71.9 mm |
1.99 50.5 mm |
2.12 53.8 mm |
1.37 34.8 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8F10-P8 |
1-14 UNS-2A |
1/2-14 NPTF |
2.83 71.9 mm |
1.99 50.5 mm |
2.28 57.9 mm |
1.53 38.9 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S12F12-P12 |
1 3/16-12 UN-2A |
3/4-14 NPTF |
3.40 86.4 mm |
2.37 60.2 mm |
2.83 71.9 mm |
1.88 47.8 mm |
1.38 35.1 mm |
1.25 31.8 mm |
1.90 48.3 mm |
5,000 PSI 34.5 MPa |
| 9S16F16-P16 |
1 7/16-12 UN-2A |
1-11 1/2 NPTF |
3.82 97.0 mm |
2.70 68.6 mm |
3.12 79.2 mm |
2.05 52.1 mm |
1.63 41.4 mm |
1.63 41.4 mm |
2.13 54.1 mm |
4,000 PSI 27.6 MPa |
| 9S20F20-P20 |
1 11/16-12 UN-2A |
1 1/4-11 1/2 NPTF |
4.18 106.2 mm |
2.85 72.4 mm |
3.57 90.7 mm |
2.20 55.9 mm |
2.00 50.8 mm |
2.00 50.8 mm |
2.75 69.9 mm |
4,000 PSI 27.6 MPa |
| 9S24F24-P24 |
2-12 UN-2A |
1 1/2-11 1/2 NPTF |
5.32 135.1 mm |
3.55 90.2 mm |
4.33 110.0 mm |
2.58 65.5 mm |
2.37 60.2 mm |
2.37 60.2 mm |
3.50 88.9 mm |
4,000 PSI 27.6 MPa |

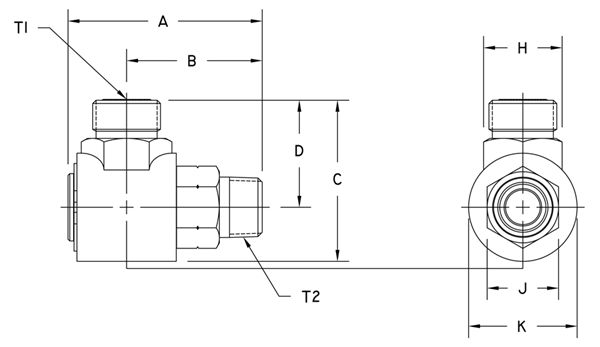

SWIVELS | 9S-90° SWIVEL | MALE O-RING FACE SEAL TO FEMALE PIPE
MALE O-RING FACE SEAL TO FEMALE PIPE
male-o-ring-face-seal-to-female-pipe
| Part Number |
T1 |
T2 |
A |
B |
C |
D |
H Hex |
J Hex(* = Round) |
K Dia. |
Max W.P. |
| 9S4F4-PF4 |
9/16-18 UNF-2A |
1/4-18 NPTF |
2.24 56.9 mm |
1.52 38.6 mm |
1.44 36.6 mm |
1.06 26.9 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S6F4-PF6 |
9/16-18 UNF-2A |
3/8-18 NPTF |
2.50 63.5 mm |
1.65 41.9 mm |
1.57 39.9 mm |
1.11 28.2 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F6-PF4 |
11/16-16 UN-2A |
1/4-18 NPTF |
2.50 63.5 mm |
1.65 41.9 mm |
1.62 41.1 mm |
1.16 29.5 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F6-PF6 |
11/16-16 UN-2A |
3/8-18 NPTF |
2.50 63.5 mm |
1.65 41.9 mm |
1.62 41.1 mm |
1.16 29.5 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F8-PF4 |
13/16-16 UN-2A |
1/4-18 NPTF |
2.50 63.5 mm |
1.65 41.9 mm |
1.74 44.2 mm |
1.26 32.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6F8-PF6 |
13/16-16 UN-2A |
3/8-18 NPTF |
2.50 63.5 mm |
1.65 41.9 mm |
1.74 44.2 mm |
1.26 32.0 mm |
1.13 28.7 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S8F8-PF8 |
13/16-16 UN-2A |
1/2-14 NPTF |
2.62 66.5 mm |
1.79 45.5 mm |
2.12 53.8 mm |
1.37 34.8 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8F10-PF8 |
1-14 UNS-2A |
1/2-14 NPTF |
2.62 66.5 mm |
1.79 45.5 mm |
2.28 57.9 mm |
1.53 38.9 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S12F12-PF12 |
1 3/16-12 UN-2A |
3/4-14 NPTF |
3.00 76.2 mm |
1.97 50.0 mm |
2.83 71.9 mm |
1.88 47.8 mm |
1.38 35.1 mm |
1.25 31.8 mm |
1.90 48.3 mm |
5,000 PSI 34.5 MPa |
| 9S16F16-PF16 |
1 7/16-12 UN-2A |
1-11 1/2 NPTF |
3.40 86.4 mm |
2.22 56.4 mm |
3.12 79.2 mm |
2.05 52.1 mm |
1.63 41.4 mm |
1.62 41.1 mm |
2.13 54.1 mm |
4,000 PSI 27.6 MPa |
| 9S20F20-PF20 |
1 11/16-12 UN-2A |
1 1/4-11 1/2 NPTF |
4.18 106.2 mm |
2.86 72.6 mm |
3.57 90.7 mm |
2.20 55.9 mm |
2.00 50.8 mm |
2.00 50.8 mm |
2.75 69.9 mm |
4,000 PSI 27.6 MPa |
| 9S24F24-PF24 |
2-12 UN-2A |
1 1/2-11 1/2 NPTF |
4.89 124.2 mm |
3.12 79.2 mm |
4.33 110.0 mm |
2.58 65.5 mm |
2.37 60.2 mm |
2.37 60.2 mm |
3.50 88.9 mm |
4,000 PSI 27.6 MPa |

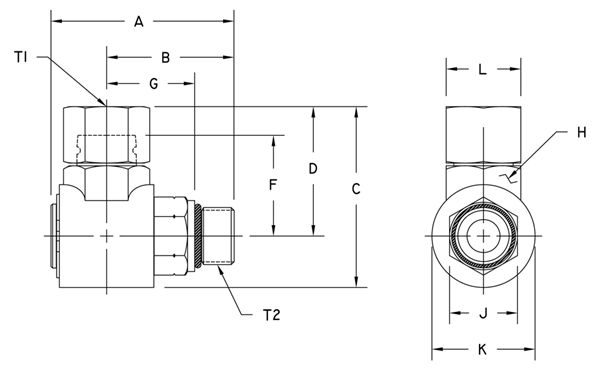

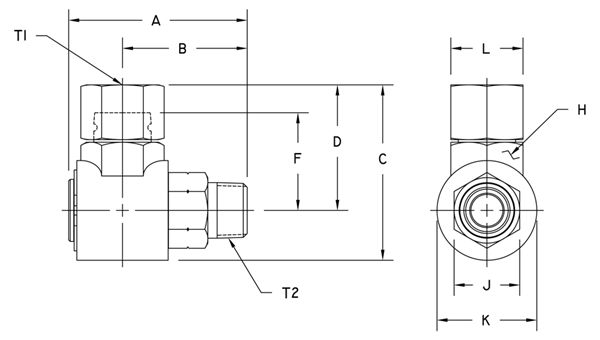

SWIVELS | 9S-90° SWIVEL | FEMALE O-RING FACE SEAL UNION TO MALE O-RING FACE SEAL
FEMALE O-RING FACE SEAL UNION TO MALE O-RING FACE SEAL
female-o-ring-face-seal-union-to-male-o-ring-face-seal
| Part Number |
T1 |
T2 |
A |
B |
C |
D |
F |
H Hex |
J Hex(* = Round) |
K Dia. |
L Hex |
Max W.P. |
| 9S4FU4-F4 |
9/16-18 UNF-2B |
9/16-18 UNF-2A |
2.12 53.8 mm |
1.40 35.6 mm |
1.57 39.9 mm |
1.20 30.5 mm |
0.88 22.4 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S6FU6-F6 |
11/16-16 UN-2B |
11/16-16 UN-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.93 49.0 mm |
1.47 37.3 mm |
1.13 28.7 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
0.87 22.1 mm |
5,000 PSI 34.5 MPa |
| 9S6FU6-F8 |
11/16-16 UN-2B |
13/16-16 UN-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.93 49.0 mm |
1.47 37.3 mm |
1.13 28.7 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
0.87 22.1 mm |
5,000 PSI 34.5 MPa |
| 9S8FU8-F8 |
13/16-16 UN-2B |
13/16-16 UN-2A |
2.58 65.5 mm |
1.74 44.2 mm |
2.55 64.8 mm |
1.80 45.7 mm |
1.41 35.8 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
0.94 23.9 mm |
5,000 PSI 34.5 MPa |
| 9S8FU8-F10 |
13/16-16 UN-2B |
1-14 UNS-2A |
2.77 70.4 mm |
1.93 49.0 mm |
2.55 64.8 mm |
1.80 45.7 mm |
1.41 35.8 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
0.94 23.9 mm |
5,000 PSI 34.5 MPa |
| 9S8FU10-F8 |
1-14 UNS-2B |
13/16-16 UN-2A |
2.58 65.5 mm |
1.74 44.2 mm |
2.71 68.8 mm |
1.96 49.8 mm |
1.51 38.4 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
1.12 28.4 mm |
5,000 PSI 34.5 MPa |
| 9S8FU10-F10 |
1-14 UNS-2B |
1-14 UNS-2A |
2.77 70.4 mm |
1.93 49.0 mm |
2.71 68.8 mm |
1.96 49.8 mm |
1.51 38.4 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
1.12 28.4 mm |
5,000 PSI 34.5 MPa |
| 9S12FU12-F12 |
1 3/16-12 UN-2B |
1 3/16-12 UN-2A |
3.34 84.8 mm |
2.30 58.4 mm |
3.34 84.8 mm |
2.39 60.7 mm |
1.86 47.2 mm |
1.38 35.1 mm |
1.25 31.8 mm |
1.90 48.3 mm |
1.38 35.1 mm |
5,000 PSI 34.5 MPa |
| 9S16FU16-F16 |
1 7/16-12 UN-2B |
1 7/16-12 UN-2A |
3.76 95.5 mm |
2.62 66.5 mm |
3.66 93.0 mm |
2.60 66.0 mm |
2.06 52.3 mm |
1.63 41.4 mm |
1.63 41.4 mm |
2.13 54.1 mm |
1.63 41.4 mm |
4,000 PSI 27.6 MPa |
| 9S20FU20-F20 |
1 11/16-12 UN-2B |
1 11/16-12 UN-2A |
4.12 104.6 mm |
2.80 71.1 mm |
4.09 103.9 mm |
2.72 69.1 mm |
2.20 55.9 mm |
2.00 50.8 mm |
2.00 50.8 mm |
2.75 69.9 mm |
2.00 50.8 mm |
4,000 PSI 27.6 MPa |
| 9S24FU24-F24 |
2-12 UN-2B |
2-12 UN-2A |
5.26 133.6 mm |
3.49 88.6 mm |
4.93 125.2 mm |
3.18 80.8 mm |
2.59 65.8 mm |
2.37 60.2 mm |
2.37 60.2 mm |
3.50 88.9 mm |
2.25 57.2 mm |
4,000 PSI 27.6 MPa |

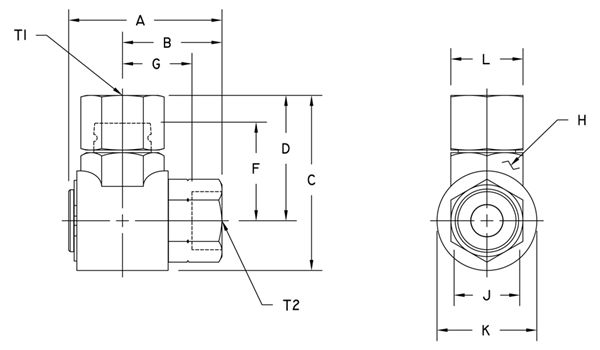

9S-90° SWIVEL | FEMALE O-RING FACE SEAL UNION TO FEMALE O-RING FACE SEAL
FEMALE O-RING FACE SEAL UNION TO FEMALE O-RING FACE SEAL
female-o-ring-face-seal-union-to-female-o-ring-face-seal
| Part Number |
T1 |
T2 |
A |
B |
C |
D |
F |
G |
H Hex |
J Hex(* = Round) |
K Dia. |
L Hex |
Max W.P. |
| 9S4FU4-FF4 |
9/16-18 UNF-2B |
9/16-18 UNF-2B |
1.87 47.5 mm |
1.15 29.2 mm |
1.57 39.9 mm |
1.20 30.5 mm |
0.88 22.4 mm |
0.83 21.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S6FU6-FF6 |
11/16-16 UN-2B |
11/16-16 UN-2B |
2.22 56.4 mm |
1.37 34.8 mm |
1.93 49.0 mm |
1.47 37.3 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
0.87 22.1 mm |
5,000 PSI 34.5 MPa |
| 9S6FU6-FF8 |
11/16-16 UN-2B |
13/16-16 UN-2B |
2.38 60.5 mm |
1.53 38.9 mm |
1.93 49.0 mm |
1.47 37.3 mm |
1.13 28.7 mm |
1.10 27.9 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
0.87 22.1 mm |
5,000 PSI 34.5 MPa |
| 9S8FU8-FF8 |
13/16-16 UN-2B |
13/16-16 UN-2B |
2.36 59.9 mm |
1.52 38.6 mm |
2.55 64.8 mm |
1.80 45.7 mm |
1.41 35.8 mm |
1.08 27.4 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
0.94 23.9 mm |
5,000 PSI 34.5 MPa |
| 9S8FU8-FF10 |
13/16-16 UN-2B |
1-14 UNS-2B |
2.46 62.5 mm |
1.62 41.1 mm |
2.55 64.8 mm |
1.80 45.7 mm |
1.41 35.8 mm |
1.09 27.7 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
0.94 23.9 mm |
5,000 PSI 34.5 MPa |
| 9S8FU10-FF8 |
1-14 UNS-2B |
13/16-16 UN-2B |
2.36 59.9 mm |
1.52 38.6 mm |
2.71 68.8 mm |
1.96 49.8 mm |
1.51 38.4 mm |
1.08 27.4 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
1.12 28.4 mm |
5,000 PSI 34.5 MPa |
| 9S8FU10-FF10 |
1-14 UNS-2B |
1-14 UNS-2B |
2.46 62.5 mm |
1.62 41.1 mm |
2.71 68.8 mm |
1.96 49.8 mm |
1.51 38.4 mm |
1.09 27.7 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
1.12 28.4 mm |
5,000 PSI 34.5 MPa |
| 9S12FU12-FF12 |
1 3/16-12 UN-2B |
1 3/16-12 UN-2B |
2.92 74.2 mm |
1.88 47.8 mm |
3.34 84.8 mm |
2.39 60.7 mm |
1.86 47.2 mm |
1.31 33.3 mm |
1.38 35.1 mm |
1.25 31.8 mm |
1.90 48.3 mm |
1.38 35.1 mm |
5,000 PSI 34.5 MPa |
| 9S16FU16-FF16 |
1 7/16-12 UN-2B |
1 7/16-12 UN-2B |
3.21 81.5 mm |
2.09 53.1 mm |
3.66 93.0 mm |
2.60 66.0 mm |
2.06 52.3 mm |
1.48 37.6 mm |
1.63 41.4 mm |
1.63 41.4 mm |
2.13 54.1 mm |
1.63 41.4 mm |
4,000 PSI 27.6 MPa |
| 9S20FU20-FF20 |
1 11/16-12 UN-2B |
1 11/16-12 UN-2B |
3.55 90.2 mm |
2.10 53.3 mm |
4.09 103.9 mm |
2.72 69.1 mm |
2.20 55.9 mm |
1.65 41.9 mm |
2.00 50.8 mm |
2.00 50.8 mm |
2.75 69.9 mm |
2.00 50.8 mm |
4,000 PSI 27.6 MPa |
| 9S24FU24-FF24 |
2-12 UN-2B |
2-12 UN-2B |
4.43 112.5 mm |
2.66 67.6 mm |
4.93 125.2 mm |
3.18 80.8 mm |
2.59 65.8 mm |
2.08 52.8 mm |
2.37 60.2 mm |
2.37 60.2 mm |
3.50 88.9 mm |
2.25 57.2 mm |
4,000 PSI 27.6 MPa |
SWIVELS | 9S-90° SWIVEL | FEMALE O-RING FACE SEAL UNION TO MALE JIC
FEMALE O-RING FACE SEAL UNION TO MALE JIC
female-o-ring-face-seal-union-to-male-jic
| Part Number |
T1 |
T2 |
A |
B |
C |
D |
F |
H Hex |
J Hex(* = Round) |
K Dia. |
L Hex |
Max W.P. |
| 9S4FU4-J4 |
9/16-18 UNF-2B |
7/16-20 UNF-2A |
2.24 56.9 mm |
1.42 36.1 mm |
1.57 39.9 mm |
1.20 30.5 mm |
0.88 22.4 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S4FU4-J5 |
9/16-18 UNF-2B |
1/2-20 UNF-2A |
2.24 56.9 mm |
1.52 38.6 mm |
1.57 39.9 mm |
1.20 30.5 mm |
0.88 22.4 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S6FU6-J5 |
11/16-16 UN-2B |
1/2-20 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.93 49.0 mm |
1.47 37.3 mm |
1.13 28.7 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
0.87 22.1 mm |
5,000 PSI 34.5 MPa |
| 9S6FU6-J6 |
11/16-16 UN-2B |
9/16-18 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.93 49.0 mm |
1.47 37.3 mm |
1.13 28.7 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
0.87 22.1 mm |
5,000 PSI 34.5 MPa |
| 9S6FU6-J8 |
11/16-16 UN-2B |
3/4-16 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.93 49.0 mm |
1.47 37.3 mm |
1.13 28.7 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
0.87 22.1 mm |
5,000 PSI 34.5 MPa |
| 9S8FU8-J8 |
13/16-16 UN-2B |
3/4-16 UNF-2A |
2.83 71.9 mm |
1.99 50.5 mm |
2.55 64.8 mm |
1.80 45.7 mm |
1.41 35.8 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| 9S8FU8-J10 |
13/16-16 UN-2B |
7/8-14 UNF-2A |
2.83 71.9 mm |
1.99 50.5 mm |
2.55 64.8 mm |
1.80 45.7 mm |
1.41 35.8 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| 9S8FU10-J8 |
1-14 UNS-2B |
3/4-16 UNF-2A |
2.83 71.9 mm |
1.99 50.5 mm |
2.71 68.8 mm |
1.96 49.8 mm |
1.51 38.4 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
1.12 28.4 mm |
5,000 PSI 34.5 MPa |
| 9S8FU10-J10 |
1-14 UNS-2B |
7/8-14 UNF-2A |
2.83 71.9 mm |
1.99 50.5 mm |
2.71 68.8 mm |
1.96 49.8 mm |
1.51 38.4 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
1.12 28.4 mm |
5,000 PSI 34.5 MPa |
| 9S12FU12-J12 |
1 3/16-12 UN-2B |
1 1/16-12 UN-2A |
3.40 86.4 mm |
2.36 59.9 mm |
3.34 84.8 mm |
2.39 60.7 mm |
1.86 47.2 mm |
1.38 35.1 mm |
1.25 31.8 mm |
1.90 48.3 mm |
1.38 35.1 mm |
5,000 PSI 34.5 MPa |
| 9S16FU16-J16 |
1 7/16-12 UN-2B |
1 5/16-12 UN-2A |
3.82 97.0 mm |
2.68 68.1 mm |
3.66 93.0 mm |
2.60 66.0 mm |
2.06 52.3 mm |
1.63 41.4 mm |
1.63 41.4 mm |
2.13 54.1 mm |
1.63 41.4 mm |
4,000 PSI 27.6 MPa |
| 9S20FU20-J20 |
1 11/16-12 UN-2B |
1 5/8-12 UN-2A |
4.12 104.6 mm |
2.80 71.1 mm |
4.09 103.9 mm |
2.72 69.1 mm |
2.20 55.9 mm |
2.00 50.8 mm |
2.00 50.8 mm |
2.75 69.9 mm |
2.00 50.8 mm |
4,000 PSI 27.6 MPa |
| 9S24FU24-J24 |
2-12 UN-2B |
1 7/8-12 UN-2A |
5.27 133.9 mm |
3.50 88.9 mm |
4.93 125.2 mm |
3.18 80.8 mm |
2.59 65.8 mm |
2.37 60.2 mm |
2.37 60.2 mm |
3.50 88.9 mm |
2.25 57.2 mm |
4,000 PSI 27.6 MPa |
SWIVELS | 9S-90° SWIVEL | FEMALE O-RING FACE SEAL UNION TO MALE SAE O-RING BOSS
FEMALE O-RING FACE SEAL UNION TO MALE SAE O-RING BOSS
female-o-ring-face-seal-union-to-male-sae-o-ring-boss
| Part Number |
T1 |
T2 |
A |
B |
C |
D |
F |
G |
H Hex |
J Hex(* = Round) |
K Dia. |
L Hex |
Max W.P. |
| 9S4FU4-O4 |
9/16-18 UNF-2B |
7/16-20 UNF-2B |
2.20 55.9 mm |
1.48 37.6 mm |
1.57 39.9 mm |
1.20 30.5 mm |
0.88 22.4 mm |
1.05 26.7 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S4FU4-O5 |
9/16-18 UNF-2B |
1/2-20 UNF-2B |
2.20 55.9 mm |
1.48 37.6 mm |
1.57 39.9 mm |
1.20 30.5 mm |
0.88 22.4 mm |
1.05 26.7 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S6FU6-O4 |
11/16-16 UN-2B |
7/16-20 UNF-2B |
2.50 63.5 mm |
1.65 41.9 mm |
1.93 49.0 mm |
1.47 37.3 mm |
1.13 28.7 mm |
1.22 31.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
0.87 22.1 mm |
5,000 PSI 34.5 MPa |
| 9S6FU6-O5 |
11/16-16 UN-2B |
1/2-20 UNF-2B |
2.50 63.5 mm |
1.65 41.9 mm |
1.93 49.0 mm |
1.47 37.3 mm |
1.13 28.7 mm |
1.22 31.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
0.87 22.1 mm |
5,000 PSI 34.5 MPa |
| 9S6FU6-O6 |
11/16-16 UN-2B |
9/16-18 UNF-2B |
2.50 63.5 mm |
1.65 41.9 mm |
1.93 49.0 mm |
1.47 37.3 mm |
1.13 28.7 mm |
1.18 30.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
0.87 22.1 mm |
5,000 PSI 34.5 MPa |
| 9S6FU6-O8 |
11/16-16 UN-2B |
3/4-16 UNF-2B |
2.50 63.5 mm |
1.65 41.9 mm |
1.93 49.0 mm |
1.47 37.3 mm |
1.13 28.7 mm |
1.10 27.9 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
0.87 22.1 mm |
5,000 PSI 34.5 MPa |
| 9S8FU8-O8 |
13/16-16 UN-2B |
3/4-16 UNF-2B |
2.58 65.5 mm |
1.74 44.2 mm |
2.55 64.8 mm |
1.80 45.7 mm |
1.41 35.8 mm |
1.19 30.2 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| 9S8FU8-O10 |
13/16-16 UN-2B |
7/8-14 UNF-2B |
2.82 71.6 mm |
1.98 50.3 mm |
2.55 64.8 mm |
1.80 45.7 mm |
1.41 35.8 mm |
1.35 34.3 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
1.00 25.4 mm |
5,000 PSI 34.5 MPa |
| 9S8FU10-O8 |
1-14 UNS-2B |
3/4-16 UNF-2B |
2.58 65.5 mm |
1.74 44.2 mm |
2.71 68.8 mm |
1.96 49.8 mm |
1.51 38.4 mm |
1.19 30.2 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
1.12 28.4 mm |
5,000 PSI 34.5 MPa |
| 9S8FU10-O10 |
1-14 UNS-2B |
7/8-14 UNF-2B |
2.82 71.6 mm |
1.98 50.3 mm |
2.71 68.8 mm |
1.96 49.8 mm |
1.51 38.4 mm |
1.35 34.3 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
1.12 28.4 mm |
5,000 PSI 34.5 MPa |
| 9S12FU12-O12 |
1 3/16-12 UN-2B |
1 1/16-12 UN-2B |
3.37 85.6 mm |
2.33 59.2 mm |
3.34 84.8 mm |
2.39 60.7 mm |
1.86 47.2 mm |
1.62 41.1 mm |
1.38 35.1 mm |
1.25 31.8 mm |
1.90 48.3 mm |
1.38 35.1 mm |
5,000 PSI 34.5 MPa |
| 9S16FU16-O16 |
1 7/16-12 UN-2B |
1 5/16-12 UN-2B |
3.62 91.9 mm |
2.48 63.0 mm |
3.66 93.0 mm |
2.60 66.0 mm |
2.06 52.3 mm |
1.78 45.2 mm |
1.63 41.4 mm |
1.63 41.4 mm |
2.13 54.1 mm |
1.63 41.4 mm |
4,000 PSI 27.6 MPa |
| 9S20FU20-O20 |
1 11/16-12 UN-2B |
1 5/8-12 UN-2B |
4.08 103.6 mm |
2.75 69.9 mm |
4.09 103.9 mm |
2.72 69.1 mm |
2.20 55.9 mm |
2.04 51.8 mm |
2.00 50.8 mm |
2.00 50.8 mm |
2.75 69.9 mm |
2.00 50.8 mm |
4,000 PSI 27.6 MPa |
| 9S24FU24-O24 |
2-12 UN-2B |
1 7/8-12 UN-2B |
4.91 124.7 mm |
3.14 79.8 mm |
4.93 125.2 mm |
3.18 80.8 mm |
2.59 65.8 mm |
2.42 61.5 mm |
2.37 60.2 mm |
2.37 60.2 mm |
3.50 88.9 mm |
2.25 57.2 mm |
4,000 PSI 27.6 MPa |
SWIVELS | 9S-90° SWIVEL | FEMALE O-RING FACE SEAL UNION TO MALE PIPE
FEMALE O-RING FACE SEAL UNION TO MALE PIPE
female-o-ring-face-seal-union-to-male-pipe
| Part Number |
T1 |
T2 |
A |
B |
C |
D |
F |
H Hex |
J Hex(* = Round) |
K Dia. |
L Hex |
Max W.P. |
| 9S4FU4-P4 |
9/16-18 UNF-2B |
1/4-18 NPTF |
2.24 56.9 mm |
1.52 38.6 mm |
1.57 39.9 mm |
1.20 30.5 mm |
0.88 22.4 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S6FU6-P4 |
11/16-16 UN-2B |
1/4-18 NPTF |
2.50 63.5 mm |
1.65 41.9 mm |
1.93 49.0 mm |
1.47 37.3 mm |
1.13 28.7 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
0.87 22.1 mm |
5,000 PSI 34.5 MPa |
| 9S6FU6-P6 |
11/16-16 UN-2B |
3/8-18 NPTF |
2.50 63.5 mm |
1.65 41.9 mm |
1.93 49.0 mm |
1.47 37.3 mm |
1.13 28.7 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
0.87 22.1 mm |
5,000 PSI 34.5 MPa |
| 9S8FU8-P8 |
13/16-16 UN-2B |
1/2-14 NPTF |
2.83 71.9 mm |
1.99 50.5 mm |
2.55 64.8 mm |
1.80 45.7 mm |
1.41 35.8 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
0.94 23.9 mm |
5,000 PSI 34.5 MPa |
| 9S8FU10-P8 |
1-14 UNS-2B |
1/2-14 NPTF |
2.83 71.9 mm |
1.99 50.5 mm |
2.71 68.8 mm |
1.96 49.8 mm |
1.51 38.4 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
1.12 28.4 mm |
5,000 PSI 34.5 MPa |
| 9S12FU12-P12 |
1 3/16-12 UN-2B |
3/4-14 NPTF |
3.40 86.4 mm |
2.37 60.2 mm |
3.34 84.8 mm |
2.39 60.7 mm |
1.86 47.2 mm |
1.38 35.1 mm |
1.25 31.8 mm |
1.90 48.3 mm |
1.38 35.1 mm |
5,000 PSI 34.5 MPa |
| 9S16FU16-P16 |
1 7/16-12 UN-2B |
1-11 1/2 NPTF |
3.82 97.0 mm |
2.70 68.6 mm |
3.66 93.0 mm |
2.60 66.0 mm |
2.06 52.3 mm |
1.63 41.4 mm |
1.63 41.4 mm |
2.13 54.1 mm |
1.63 41.4 mm |
4,000 PSI 27.6 MPa |
| 9S20FU20-P20 |
1 11/16-12 UN-2B |
1 1/4-11 1/2 NPTF |
4.18 106.2 mm |
2.86 72.6 mm |
4.09 103.9 mm |
2.72 69.1 mm |
2.20 55.9 mm |
2.00 50.8 mm |
2.00 50.8 mm |
2.75 69.9 mm |
2.00 50.8 mm |
4,000 PSI 27.6 MPa |
| 9S24FU24-P24 |
2-12 UN-2B |
1 1/2-11 1/2 NPTF |
5.32 135.1 mm |
3.55 90.2 mm |
4.93 125.2 mm |
3.18 80.8 mm |
2.59 65.8 mm |
2.37 60.2 mm |
2.37 60.2 mm |
3.50 88.9 mm |
2.25 57.2 mm |
4,000 PSI 27.6 MPa |
SWIVELS | 9S-90° SWIVEL | FEMALE O-RING FACE SEAL UNION TO FEMALE PIPE
FEMALE O-RING FACE SEAL UNION TO FEMALE PIPE
female-o-ring-face-seal-union-to-female-pipe
Part Number |
T1 |
T2 |
A |
B |
C |
D |
F |
H Hex |
J Hex(* = Round) |
K Dia. |
L Hex |
Max W.P. |
9S4FU4-PF4 |
9/16-18 UNF-2B |
1/4-18 NPTF |
2.24 56.9 mm |
1.52 38.6 mm |
1.57 39.9 mm |
1.20 30.5 mm |
0.88 22.4 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
9S6FU6-PF4 |
11/16-16 UN-2B |
1/4-18 NPTF |
2.50 63.5 mm |
1.65 41.9 mm |
1.93 49.0 mm |
1.47 37.3 mm |
1.13 28.7 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
0.87 22.1 mm |
5,000 PSI 34.5 MPa |
9S6FU6-PF6 |
11/16-16 UN-2B |
3/8-18 NPTF |
2.50 63.5 mm |
1.65 41.9 mm |
1.93 49.0 mm |
1.47 37.3 mm |
1.13 28.7 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
0.87 22.1 mm |
5,000 PSI 34.5 MPa |
9S8FU8-PF8 |
13/16-16 UN-2B |
1/2-14 NPTF |
2.62 66.5 mm |
1.79 45.5 mm |
2.55 64.8 mm |
1.80 45.7 mm |
1.41 35.8 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
0.94 23.9 mm |
5,000 PSI 34.5 MPa |
9S8FU10-PF8 |
1-14 UNS-2B |
1/2-14 NPTF |
2.62 66.5 mm |
1.79 45.5 mm |
2.71 68.8 mm |
1.96 49.8 mm |
1.51 38.4 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
1.12 28.4 mm |
5,000 PSI 34.5 MPa |
9S12FU12-PF12 |
1 3/16-12 UN-2B |
3/4-14 NPTF |
3.00 76.2 mm |
1.97 50.0 mm |
3.34 84.8 mm |
2.39 60.7 mm |
1.86 47.2 mm |
1.38 35.1 mm |
1.25 31.8 mm |
1.90 48.3 mm |
1.38 35.1 mm |
5,000 PSI 34.5 MPa |
9S16FU16-PF16 |
1 7/16-12 UN-2B |
1-11 1/2 NPTF |
3.40 86.4 mm |
2.22 56.4 mm |
3.66 93.0 mm |
2.60 66.0 mm |
2.06 52.3 mm |
1.63 41.4 mm |
1.63 41.4 mm |
2.13 54.1 mm |
1.63 41.4 mm |
4,000 PSI 27.6 MPa |
9S20FU20-PF20 |
1 11/16-12 UN-2B |
1 1/4-11 1/2 NPTF |
4.18 106.2 mm |
2.86 72.6 mm |
4.09 103.9 mm |
2.72 69.1 mm |
2.20 55.9 mm |
2.00 50.8 mm |
2.00 50.8 mm |
2.75 69.9 mm |
2.00 50.8 mm |
4,000 PSI 27.6 MPa |
9S24FU24-PF24 |
2-12 UN-2B |
1 1/2-11 1/2 NPTF |
4.89 124.2 mm |
3.12 79.2 mm |
4.93 125.2 mm |
3.18 80.8 mm |
2.59 65.8 mm |
2.37 60.2 mm |
2.37 60.2 mm |
3.50 88.9 mm |
2.25 57.2 mm |
4,000 PSI 27.6 MPa |
SWIVELS | 9S-90° SWIVEL | MALE JIC TO MALE O-RING FACE SEAL
MALE JIC TO MALE O-RING FACE SEAL
male-jic-to-male-o-ring-face-seal
| Part Number |
T1 |
T2 |
A |
B |
C |
D |
H Hex |
J Hex(* = Round) |
K Dia. |
Max W.P. |
| 9S4J4-F4 |
7/16-20 UNF-2A |
9/16-18 UNF-2A |
2.12 53.8 mm |
1.40 35.6 mm |
1.43 36.3 mm |
1.05 26.7 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S4J5-F4 |
1/2-20 UNF-2A |
9/16-18 UNF-2A |
2.12 53.8 mm |
1.40 35.6 mm |
1.43 36.3 mm |
1.05 26.7 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S6J5-F6 |
1/2-20 UNF-2A |
11/16-16 UN-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J5-F8 |
1/2-20 UNF-2A |
13/16-16 UN-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.00 25.4 mm |
1.00 25.4 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J6-F6 |
9/16-18 UNF-2A |
11/16-16 UN-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J6-F8 |
9/16-18 UNF-2A |
13/16-16 UN-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.00 25.4 mm |
1.00 25.4 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J8-F6 |
3/4-16 UNF-2A |
11/16-16 UN-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.95 49.5 mm |
1.49 37.8 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J8-F8 |
3/4-16 UNF-2A |
13/16-16 UN-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.95 49.5 mm |
1.49 37.8 mm |
1.00 25.4 mm |
1.00 25.4 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S8J8-F8 |
3/4-16 UNF-2A |
13/16-16 UN-2A |
2.58 65.5 mm |
1.74 44.2 mm |
2.19 55.6 mm |
1.45 36.8 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8J8-F10 |
3/4-16 UNF-2A |
1-14 UNS-2A |
2.77 70.4 mm |
1.93 49.0 mm |
2.19 55.6 mm |
1.45 36.8 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8J10-F8 |
7/8-14 UNF-2A |
13/16-16 UN-2A |
2.58 65.5 mm |
1.74 44.2 mm |
2.29 58.2 mm |
1.54 39.1 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8J10-F10 |
7/8-14 UNF-2A |
1-14 UNS-2A |
2.77 70.4 mm |
1.93 49.0 mm |
2.29 58.2 mm |
1.54 39.1 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S12J12-F12 |
1 1/16-12 UN-2A |
1 3/16-12 UN-2A |
3.34 84.8 mm |
2.30 58.4 mm |
2.92 74.2 mm |
1.97 50.0 mm |
1.38 35.1 mm |
1.25 31.8 mm |
1.90 48.3 mm |
5,000 PSI 34.5 MPa |
| 9S16J16-F16 |
1 5/16-12 UN-2A |
1 7/16-12 UN-2A |
3.76 95.5 mm |
2.62 66.5 mm |
3.23 82.0 mm |
2.17 55.1 mm |
1.63 41.4 mm |
1.63 41.4 mm |
2.13 54.1 mm |
4,000 PSI 27.6 MPa |
| 9S20J20-F20 |
1 5/8-12 UN-2A |
1 11/16-12 UN-2A |
4.12 104.6 mm |
2.80 71.1 mm |
3.90 99.1 mm |
2.52 64.0 mm |
2.00 50.8 mm |
2.00 50.8 mm |
2.75 69.9 mm |
4,000 PSI 27.6 MPa |
| 9S24J24-F24 |
1 7/8-12 UN-2A |
2-12 UN-2A |
5.26 133.6 mm |
3.49 88.6 mm |
4.76 120.9 mm |
3.01 76.5 mm |
2.37 60.2 mm |
2.37 60.2 mm |
3.50 88.9 mm |
4,000 PSI 27.6 MPa |
SWIVELS | 9S-90° SWIVEL | MALE JIC TO FEMALE O-RING FACE SEAL
MALE JIC TO FEMALE O-RING FACE SEAL
male-jic-to-female-o-ring-face-seal
| Part Number |
T1 |
T2 |
A |
B |
C |
D |
F |
H Hex |
J Hex(* = Round) |
K Dia. |
Max W.P. |
| 9S4J4-FF4 |
7/16-20 UNF-2A |
9/16-18 UNF-2B |
1.87 47.5 mm |
1.15 29.2 mm |
1.43 36.3 mm |
1.05 26.7 mm |
0.83 21.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S4J5-FF4 |
1/2-20 UNF-2A |
9/16-18 UNF-2B |
1.87 47.5 mm |
1.15 29.2 mm |
1.43 36.3 mm |
1.05 26.7 mm |
0.83 21.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S6J5-FF6 |
1/2-20 UNF-2A |
11/16-16 UN-2B |
2.22 56.4 mm |
1.37 34.8 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.00 25.4 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J5-FF8 |
1/2-20 UNF-2A |
13/16-16 UN-2B |
2.38 60.5 mm |
1.53 38.9 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.10 27.9 mm |
1.00 25.4 mm |
1.00 25.4 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J6-FF6 |
9/16-18 UNF-2A |
11/16-16 UN-2B |
2.22 56.4 mm |
1.37 34.8 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.00 25.4 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J6-FF8 |
9/16-18 UNF-2A |
13/16-16 UN-2B |
2.38 60.5 mm |
1.53 38.9 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.10 27.9 mm |
1.00 25.4 mm |
1.00 25.4 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J8-FF6 |
3/4-16 UNF-2A |
11/16-16 UN-2B |
2.22 56.4 mm |
1.37 34.8 mm |
1.95 49.5 mm |
1.49 37.8 mm |
1.00 25.4 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J8-FF8 |
3/4-16 UNF-2A |
13/16-16 UN-2B |
2.38 60.5 mm |
1.53 38.9 mm |
1.95 49.5 mm |
1.49 37.8 mm |
1.10 27.9 mm |
1.00 25.4 mm |
1.00 25.4 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S8J8-FF8 |
3/4-16 UNF-2A |
13/16-16 UN-2B |
2.36 59.9 mm |
1.52 38.6 mm |
2.19 55.6 mm |
1.45 36.8 mm |
1.08 27.4 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8J8-FF10 |
3/4-16 UNF-2A |
1-14 UNS-2B |
2.46 62.5 mm |
1.62 41.1 mm |
2.19 55.6 mm |
1.45 36.8 mm |
1.09 27.7 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8J10-FF8 |
7/8-14 UNF-2A |
13/16-16 UN-2B |
2.36 59.9 mm |
1.52 38.6 mm |
2.29 58.2 mm |
1.54 39.1 mm |
1.08 27.4 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8J10-FF10 |
7/8-14 UNF-2A |
1-14 UNS-2B |
2.46 62.5 mm |
1.62 41.1 mm |
2.29 58.2 mm |
1.54 39.1 mm |
1.09 27.7 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S12J12-FF12 |
1 1/16-12 UN-2A |
1 3/16-12 UN-2B |
2.92 74.2 mm |
1.88 47.8 mm |
2.92 74.2 mm |
1.97 50.0 mm |
1.31 33.3 mm |
1.38 35.1 mm |
1.25 31.8 mm |
1.90 48.3 mm |
5,000 PSI 34.5 MPa |
| 9S16J16-FF16 |
1 5/16-12 UN-2A |
1 7/16-12 UN-2B |
3.21 81.5 mm |
2.06 52.3 mm |
3.23 82.0 mm |
2.17 55.1 mm |
1.48 37.6 mm |
1.63 41.4 mm |
1.63 41.4 mm |
2.13 54.1 mm |
4,000 PSI 27.6 MPa |
| 9S20J20-FF20 |
1 5/8-12 UN-2A |
1 11/16-12 UN-2B |
3.55 90.2 mm |
2.23 56.6 mm |
3.90 99.1 mm |
2.52 64.0 mm |
1.65 41.9 mm |
2.00 50.8 mm |
2.00 50.8 mm |
2.75 69.9 mm |
4,000 PSI 27.6 MPa |
| 9S24J24-FF24 |
1 7/8-12 UN-2A |
2-12 UN-2B |
4.43 112.5 mm |
2.66 67.6 mm |
4.76 120.9 mm |
3.01 76.5 mm |
2.08 52.8 mm |
2.37 60.2 mm |
2.37 60.2 mm |
3.50 88.9 mm |
4,000 PSI 27.6 MPa |

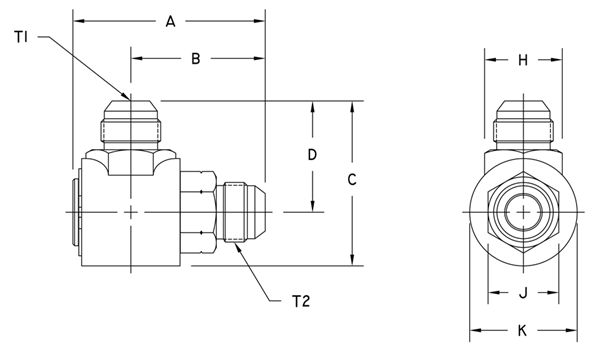

SWIVELS | 9S-90° SWIVEL | MALE JIC TO MALE JIC
MALE JIC TO MALE JIC
male-jic-to-male-jic
| Part Number |
T1 |
T2 |
A |
B |
C |
D |
H Hex |
J Hex(* = Round) |
K Dia. |
Max W.P. |
| 9S4J4-J4 |
7/16-20 UNF-2A |
7/16-20 UNF-2A |
2.24 56.9 mm |
1.52 38.6 mm |
1.43 36.3 mm |
1.05 26.7 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S4J4-J5 |
7/16-20 UNF-2A |
1/2-20 UNF-2A |
2.24 56.9 mm |
1.52 38.6 mm |
1.43 36.3 mm |
1.05 26.7 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S4J5-J4 |
1/2-20 UNF-2A |
7/16-20 UNF-2A |
2.24 56.9 mm |
1.52 38.6 mm |
1.43 36.3 mm |
1.05 26.7 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S6J5-J6 |
1/2-20 UNF-2A |
9/16-18 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J5-J8 |
1/2-20 UNF-2A |
3/4-16 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J6-J5 |
9/16-18 UNF-2A |
1/2-20 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J6-J6 |
9/16-18 UNF-2A |
9/16-18 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J6-J8 |
9/16-18 UNF-2A |
3/4-16 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J8-J5 |
3/4-16 UNF-2A |
1/2-20 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.95 49.5 mm |
1.49 37.8 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J8-J6 |
3/4-16 UNF-2A |
9/16-18 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.95 49.5 mm |
1.49 37.8 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J8-J8 |
3/4-16 UNF-2A |
3/4-16 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.95 49.5 mm |
1.49 37.8 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S8J8-J8 |
3/4-16 UNF-2A |
3/4-16 UNF-2A |
2.83 71.9 mm |
1.99 50.5 mm |
2.19 55.6 mm |
1.45 36.8 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8J8-J10 |
3/4-16 UNF-2A |
7/8-14 UNF-2A |
2.83 71.9 mm |
1.99 50.5 mm |
2.19 55.6 mm |
1.45 36.8 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8J10-J8 |
7/8-14 UNF-2A |
3/4-16 UNF-2A |
2.83 71.9 mm |
1.99 50.5 mm |
2.29 58.2 mm |
1.54 39.1 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8J10-J10 |
7/8-14 UNF-2A |
7/8-14 UNF-2A |
2.83 71.9 mm |
1.99 50.5 mm |
2.29 58.2 mm |
1.54 39.1 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S12J12-J12 |
1 1/16-12 UN-2A |
1 1/16-12 UN-2A |
3.40 86.4 mm |
2.36 59.9 mm |
2.92 74.2 mm |
1.97 50.0 mm |
1.38 35.1 mm |
1.25 31.8 mm |
1.90 48.3 mm |
5,000 PSI 34.5 MPa |
| 9S16J16-J16 |
1 5/16-12 UN-2A |
1 5/16-12 UN-2A |
3.82 97.0 mm |
2.68 68.1 mm |
3.23 82.0 mm |
2.17 55.1 mm |
1.63 41.4 mm |
1.63 41.4 mm |
2.13 54.1 mm |
4,000 PSI 27.6 MPa |
| 9S20J20-J20 |
1 5/8-12 UN-2A |
1 5/8-12 UN-2A |
4.13 104.9 mm |
2.81 71.4 mm |
3.90 99.1 mm |
2.52 64.0 mm |
2.00 50.8 mm |
2.00 50.8 mm |
2.75 69.9 mm |
4,000 PSI 27.6 MPa |
| 9S24J24-J24 |
1 7/8-12 UN-2A |
1 7/8-12 UN-2A |
5.27 133.9 mm |
3.50 88.9 mm |
4.76 120.9 mm |
3.01 76.5 mm |
2.37 60.2 mm |
2.37 60.2 mm |
3.50 88.9 mm |
4,000 PSI 27.6 MPa |
| 9S32J32-J32 |
2 1/2-12 UN-2A |
2 1/2-12 UN-2A |
6.25 158.8 mm |
4.15 105.4 mm |
5.97 151.6 mm |
3.72 94.5 mm |
2.87 72.9 mm |
*3.12 79.2 mm |
4.50 114.3 mm |
3,000 PSI 20.7 MPa |
SWIVELS | 9S-90° SWIVEL | MALE JIC TO MALE SAE O-RING BOSS
MALE JIC TO MALE SAE O-RING BOSS
male-jic-to-male-sae-o-ring-boss
| Part Number |
T1 |
T2 |
A |
B |
C |
D |
F |
H Hex |
J Hex(* = Round) |
K Dia. |
Max W.P. |
| 9S4J4-O4 |
7/16-20 UNF-2A |
7/16-20 UNF-2A |
2.20 55.9 mm |
1.48 37.6 mm |
1.43 36.3 mm |
1.05 26.7 mm |
1.05 26.7 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S4J4-O5 |
7/16-20 UNF-2A |
1/2-20 UNF-2A |
2.20 55.9 mm |
1.48 37.6 mm |
1.43 36.3 mm |
1.05 26.7 mm |
1.05 26.7 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S4J5-O4 |
1/2-20 UNF-2A |
7/16-20 UNF-2A |
2.20 55.9 mm |
1.48 37.6 mm |
1.43 36.3 mm |
1.05 26.7 mm |
1.05 26.7 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S6J5-O5 |
1/2-20 UNF-2A |
1/2-20 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.22 31.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J5-O6 |
1/2-20 UNF-2A |
9/16-18 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.18 30.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J5-O8 |
1/2-20 UNF-2A |
3/4-16 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.10 27.9 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J6-O4 |
9/16-18 UNF-2A |
7/16-20 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.22 31.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J6-O5 |
9/16-18 UNF-2A |
1/2-20 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.22 31.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J6-O6 |
9/16-18 UNF-2A |
9/16-18 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.18 30.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J6-O8 |
9/16-18 UNF-2A |
3/4-16 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.10 27.9 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J8-O4 |
3/4-16 UNF-2A |
7/16-20 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.95 49.5 mm |
1.49 37.8 mm |
1.22 31.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J8-O5 |
3/4-16 UNF-2A |
1/2-20 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.95 49.5 mm |
1.49 37.8 mm |
1.22 31.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J8-O6 |
3/4-16 UNF-2A |
9/16-18 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.95 49.5 mm |
1.49 37.8 mm |
1.18 30.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J8-O8 |
3/4-16 UNF-2A |
3/4-16 UNF-2A |
2.50 63.5 mm |
1.65 41.9 mm |
1.95 49.5 mm |
1.49 37.8 mm |
1.10 27.9 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S8J8-O8 |
3/4-16 UNF-2A |
3/4-16 UNF-2A |
2.58 65.5 mm |
1.74 44.2 mm |
2.19 55.6 mm |
1.45 36.8 mm |
1.19 30.2 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8J8-O10 |
3/4-16 UNF-2A |
7/8-14 UNF-2A |
2.83 71.9 mm |
1.99 50.5 mm |
2.19 55.6 mm |
1.45 36.8 mm |
1.35 34.3 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8J8-O12 |
3/4-16 UNF-2A |
1 1/16-12 UN-2A |
3.00 76.2 mm |
2.16 54.9 mm |
2.19 55.6 mm |
1.45 36.8 mm |
1.44 36.6 mm |
1.13 28.7 mm |
1.25 31.8 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8J10-O8 |
7/8-14 UNF-2A |
3/4-16 UNF-2A |
2.58 65.5 mm |
1.74 44.2 mm |
2.29 58.2 mm |
1.54 39.1 mm |
1.19 30.2 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8J10-O10 |
7/8-14 UNF-2A |
7/8-14 UNF-2A |
2.83 71.9 mm |
1.99 50.5 mm |
2.29 58.2 mm |
1.54 39.1 mm |
1.35 34.3 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8J10-O12 |
7/8-14 UNF-2A |
1 1/16-12 UN-2A |
3.00 76.2 mm |
2.16 54.9 mm |
2.29 58.2 mm |
1.54 39.1 mm |
1.44 36.6 mm |
1.13 28.7 mm |
1.25 31.8 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S12J12-O12 |
1 1/16-12 UN-2A |
1 1/16-12 UN-2A |
3.37 85.6 mm |
2.33 59.2 mm |
2.92 74.2 mm |
1.97 50.0 mm |
1.62 41.1 mm |
1.38 35.1 mm |
1.25 31.8 mm |
1.90 48.3 mm |
5,000 PSI 34.5 MPa |
| 9S16J16-O16 |
1 5/16-12 UN-2A |
1 5/16-12 UN-2A |
3.62 91.9 mm |
2.48 63.0 mm |
3.23 82.0 mm |
2.17 55.1 mm |
1.78 45.2 mm |
1.63 41.4 mm |
1.63 41.4 mm |
2.13 54.1 mm |
4,000 PSI 27.6 MPa |
| 9S20J20-O20 |
1 5/8-12 UN-2A |
1 5/8-12 UN-2A |
4.08 103.6 mm |
2.76 70.1 mm |
3.90 99.1 mm |
2.52 64.0 mm |
2.04 51.8 mm |
2.00 50.8 mm |
2.00 50.8 mm |
2.75 69.9 mm |
4,000 PSI 27.6 MPa |
| 9S24J24-O24 |
1 7/8-12 UN-2A |
1 7/8-12 UN-2A |
4.91 124.7 mm |
3.14 79.8 mm |
4.76 120.9 mm |
3.01 76.5 mm |
2.42 61.5 mm |
2.37 60.2 mm |
2.37 60.2 mm |
3.50 88.9 mm |
4,000 PSI 27.6 MPa |
| 9S32J32-O32 |
2 1/2-12 UN-2A |
2 1/2-12 UN-2A |
6.14 156.0 mm |
4.04 102.6 mm |
5.97 151.6 mm |
3.72 94.5 mm |
3.33 84.6 mm |
2.87 72.9 mm |
*3.12 79.2 mm |
4.50 114.3 mm |
3,000 PSI 20.7 MPa |
SWIVELS | 9S-90° SWIVEL | MALE JIC TO MALE PIPE
MALE JIC TO MALE PIPE
male-jic-to-male-pipe
| Part Number |
T1 |
T2 |
A |
B |
C |
D |
H Hex |
J Hex(* = Round) |
K Dia. |
Max W.P. |
| 9S4J4-P4 |
7/16-20 UNF-2A |
1/4-18 NPTF |
2.24 56.9 mm |
1.52 38.6 mm |
1.43 36.3 mm |
1.05 26.7 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S4J5-P4 |
1/2-20 UNF-2A |
1/4-18 NPTF |
2.24 56.9 mm |
1.52 38.6 mm |
1.43 36.3 mm |
1.05 26.7 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S6J5-P6 |
1/2-20 UNF-2A |
3/8-18 NPTF |
2.50 63.5 mm |
1.65 41.9 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J6-P4 |
9/16-18 UNF-2A |
1/4-18 NPTF |
2.50 63.5 mm |
1.65 41.9 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J6-P6 |
9/16-18 UNF-2A |
3/8-18 NPTF |
2.50 63.5 mm |
1.65 41.9 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J8-P4 |
3/4-16 UNF-2A |
1/4-18 NPTF |
2.50 63.5 mm |
1.65 41.9 mm |
1.95 49.5 mm |
1.49 37.8 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J8-P6 |
3/4-16 UNF-2A |
3/8-18 NPTF |
2.50 63.5 mm |
1.65 41.9 mm |
1.95 49.5 mm |
1.49 37.8 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S8J8-P8 |
3/4-16 UNF-2A |
1/2-14 NPTF |
2.83 71.9 mm |
1.99 50.5 mm |
2.19 55.6 mm |
1.45 36.8 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8J10-P8 |
7/8-14 UNF-2A |
1/2-14 NPTF |
2.83 71.9 mm |
1.99 50.5 mm |
2.29 58.2 mm |
1.54 39.1 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S12J12-P12 |
1 1/16-12 UN-2A |
3/4-14 NPTF |
3.40 86.4 mm |
2.35 59.7 mm |
2.92 74.2 mm |
1.97 50.0 mm |
1.38 35.1 mm |
1.25 31.8 mm |
1.90 48.3 mm |
5,000 PSI 34.5 MPa |
| 9S16J16-P16 |
1 5/16-12 UN-2A |
1-11 1/2 NPTF |
3.82 97.0 mm |
2.68 68.1 mm |
3.23 82.0 mm |
2.17 55.1 mm |
1.63 41.4 mm |
1.63 41.4 mm |
2.13 54.1 mm |
4,000 PSI 27.6 MPa |
| 9S20J20-P20 |
1 5/8-12 UN-2A |
1 1/4-11 1/2 NPTF |
4.18 106.2 mm |
2.86 72.6 mm |
3.90 99.1 mm |
2.52 64.0 mm |
2.00 50.8 mm |
2.00 50.8 mm |
2.75 69.9 mm |
4,000 PSI 27.6 MPa |
| 9S24J24-P24 |
1 7/8-12 UN-2A |
1 1/2-11 1/2 NPTF |
5.32 135.1 mm |
3.55 90.2 mm |
4.76 120.9 mm |
3.01 76.5 mm |
2.37 60.2 mm |
2.37 60.2 mm |
3.50 88.9 mm |
4,000 PSI 27.6 MPa |
| 9S32J32-P32 |
2 1/2-12 UN-2A |
2-11 1/2 NPTF |
6.25 158.8 mm |
4.15 105.4 mm |
5.97 151.6 mm |
3.72 94.5 mm |
2.87 72.9 mm |
*3.12 79.2 mm |
4.50 114.3 mm |
3,000 PSI 20.7 MPa |
SWIVELS | 9S-90° SWIVEL | MALE JIC TO FEMALE PIPE
MALE JIC TO FEMALE PIPE
male-jic-to-female-pipe
| Part Number |
T1 |
T2 |
A |
B |
C |
D |
H Hex |
J Hex(* = Round) |
K Dia. |
Max W.P. |
| 9S4J4-PF4 |
7/16-20 UNF-2A |
1/4-18 NPTF |
2.24 56.9 mm |
1.52 38.6 mm |
1.43 36.3 mm |
1.05 26.7 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S4J5-PF4 |
1/2-20 UNF-2A |
1/4-18 NPTF |
2.24 56.9 mm |
1.52 38.6 mm |
1.43 36.3 mm |
1.05 26.7 mm |
0.75 19.1 mm |
0.75 19.1 mm |
0.75 19.1 mm |
5,000 PSI 34.5 MPa |
| 9S6J5-PF6 |
1/2-20 UNF-2A |
3/8-18 NPTF |
2.50 63.5 mm |
1.65 41.9 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J6-PF4 |
9/16-18 UNF-2A |
1/4-18 NPTF |
2.50 63.5 mm |
1.65 41.9 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J6-PF6 |
9/16-18 UNF-2A |
3/8-18 NPTF |
2.50 63.5 mm |
1.65 41.9 mm |
1.64 41.7 mm |
1.18 30.0 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J8-PF4 |
3/4-16 UNF-2A |
1/4-18 NPTF |
2.50 63.5 mm |
1.65 41.9 mm |
1.95 49.5 mm |
1.49 37.8 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S6J8-PF6 |
3/4-16 UNF-2A |
3/8-18 NPTF |
2.50 63.5 mm |
1.65 41.9 mm |
1.95 49.5 mm |
1.49 37.8 mm |
1.00 25.4 mm |
0.87 22.1 mm |
0.92 23.4 mm |
5,000 PSI 34.5 MPa |
| 9S8J8-PF8 |
3/4-16 UNF-2A |
1/2-14 NPTF |
2.62 66.5 mm |
1.78 45.2 mm |
2.19 55.6 mm |
1.45 36.8 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S8J10-PF8 |
7/8-14 UNF-2A |
1/2-14 NPTF |
2.62 66.5 mm |
1.78 45.2 mm |
2.29 58.2 mm |
1.54 39.1 mm |
1.13 28.7 mm |
1.00 25.4 mm |
1.50 38.1 mm |
5,000 PSI 34.5 MPa |
| 9S12J12-PF12 |
1 1/16-12 UN-2A |
3/4-14 NPTF |
3.00 76.2 mm |
1.96 49.8 mm |
2.92 74.2 mm |
1.97 50.0 mm |
1.38 35.1 mm |
1.25 31.8 mm |
1.90 48.3 mm |
5,000 PSI 34.5 MPa |
| 9S16J16-PF16 |
1 5/16-12 UN-2A |
1-11 1/2 NPTF |
3.40 86.4 mm |
2.26 57.4 mm |
3.23 82.0 mm |
2.17 55.1 mm |
1.63 41.4 mm |
1.63 41.4 mm |
2.13 54.1 mm |
4,000 PSI 27.6 MPa |
| 9S20J20-PF20 |
1 5/8-12 UN-2A |
1 1/4-11 1/2 NPTF |
4.18 106.2 mm |
2.86 72.6 mm |
3.90 99.1 mm |
2.52 64.0 mm |
2.00 50.8 mm |
2.00 50.8 mm |
2.75 69.9 mm |
4,000 PSI 27.6 MPa |
| 9S24J24-PF24 |
1 7/8-12 UN-2A |
1 1/2-11 1/2 NPTF |
4.89 124.2 mm |
3.12 79.2 mm |
4.76 120.9 mm |
3.01 76.5 mm |
2.37 60.2 mm |
2.37 60.2 mm |
3.50 88.9 mm |
4,000 PSI 27.6 MPa |
| 9S32J32-PF32 |
2 1/2-12 UN-2A |
2-11 1/2 NPTF |
5.50 139.7 mm |
3.40 86.4 mm |
5.97 151.6 mm |
3.72 94.5 mm |
2.87 72.9 mm |
*3.12 79.2 mm |
4.50 114.3 mm |
3,000 PSI 20.7 MPa |
更多型號點擊查看
Male O-Ring Face Seal to Male O-Ring Face Seal
Male O-Ring Face Seal to Female O-Ring Face Seal
Male O-Ring Face Seal to Male JIC
Male O-Ring Face Seal to Male SAE O-Ring Boss
Male O-Ring Face Seal to Male Pipe
Male O-Ring Face Seal to Female Pipe
Female O-Ring Face Seal Union to Male O-Ring Face Seal
Female O-Ring Face Seal Union to Female O-Ring Face Seal
Female O-Ring Face Seal Union to Male JIC
Female O-Ring Face Seal Union to Male SAE O-Ring Boss
Female O-Ring Face Seal Union to Male Pipe
Female O-Ring Face Seal Union to Female Pipe
Male JIC to Male O-Ring Face Seal
Male JIC to Female O-Ring Face Seal
Male JIC to Male JIC
Male JIC to Male SAE O-Ring Boss
Male JIC to Male Pipe
Male JIC to Female Pipe
Female Pipe Union to Male O-Ring Face Seal
Female Pipe Union to Female O-Ring Face Seal
Female Pipe Union to Male JIC
Female Pipe Union to Male SAE O-Ring Boss
Female Pipe Union to Male Pipe
Female Pipe Union to Female Pipe
Female Pipe to Male O-Ring Face Seal
Female Pipe to Female O-Ring Face Seal
Female Pipe to Male JIC
Female Pipe to Male SAE O-Ring Boss
Female Pipe to Male Pipe
Female Pipe to Female Pipe
Male Pipe to Male O-Ring Face Seal
Male Pipe to Female O-Ring Face Seal
Male Pipe to Male JIC
Male Pipe to O-Male SAE O-Ring Boss
Male Pipe to Male Pipe
Male Pipe to Female Pipe
Part Number
9S4F4-F4
9S6F6-F6
9S6F6-F8
9S6F8-F6
9S6F8-F8
9S8F8-F8
9S8F8-F10
9S8F10-F8
9S8F10-F10
9S12F12-F12
9S16F16-F16
9S20F20-F20
9S24F24-F24
Part Number
9S4F4-FF4
9S6F6-FF6
9S6F6-FF8
9S6F8-FF6
9S6F8-FF8
9S8F8-FF8
9S8F8-FF10
9S8F10-FF8
9S8F10-FF10
9S12F12-FF12
9S16F16-FF16
9S20F20-FF20
9S24F24-FF24
Part Number
9S4F4-J4
9S4F4-J5
9S6F4-J6
9S6F6-J5
9S6F6-J6
9S6F6-J8
9S6F8-J6
9S6F8-J8
9S8F8-J10
9S8F10-J10
9S12F12-J12
9S16F16-J16
9S20F20-J20
9S24F24-J24
Part Number
9S4F4-O4
9S4F4-O5
9S6F4-O6
9S6F6-O4
9S6F6-O5
9S6F6-O6
9S6F6-O8
9S6F8-O4
9S6F8-O5
9S6F8-O6
9S6F8-O8
9S8F8-O8
9S8F8-O10
9S8F8-O12
9S8F10-O8
9S8F10-O10
9S12F12-O12
9S16F16-O16
9S20F20-O20
9S24F24-O24
Part Number
9S4F4-P4
9S6F4-P6
9S6F6-P4
9S6F6-P6
9S6F8-P4
9S6F8-P6
9S8F8-P8
9S8F10-P8
9S12F12-P12
9S16F16-P16
9S20F20-P20
9S24F24-P24
Part Number
9S4F4-PF4
9S6F4-PF6
9S6F6-PF4
9S6F6-PF6
9S6F8-PF4
9S6F8-PF6
9S8F8-PF8
9S8F10-PF8
9S12F12-PF12
9S16F16-PF16
9S20F20-PF20
9S24F24-PF24
Part Number
9S4FU4-F4
9S6FU6-F6
9S6FU6-F8
9S8FU8-F8
9S8FU8-F10
9S8FU10-F8
9S8FU10-F10
9S12FU12-F12
9S16FU16-F16
9S20FU20-F20
9S24FU24-F24
Part Number
9S4FU4-FF4
9S6FU6-FF6
9S6FU6-FF8
9S8FU8-FF8
9S8FU8-FF10
9S8FU10-FF8
9S8FU10-FF10
9S12FU12-FF12
9S16FU16-FF16
9S20FU20-FF20
9S24FU24-FF24
Part Number
9S4FU4-J4
9S4FU4-J5
9S6FU6-J5
9S6FU6-J6
9S6FU6-J8
9S8FU8-J8
9S8FU8-J10
9S8FU10-J8
9S8FU10-J10
9S12FU12-J12
9S16FU16-J16
9S20FU20-J20
9S24FU24-J24
Part Number
9S4FU4-O4
9S4FU4-O5
9S6FU6-O4
9S6FU6-O5
9S6FU6-O6
9S6FU6-O8
9S8FU8-O8
9S8FU8-O10
9S8FU10-O8
9S8FU10-O10
9S12FU12-O12
9S16FU16-O16
9S20FU20-O20
9S24FU24-O24
Part Number
9S4FU4-P4
9S6FU6-P4
9S6FU6-P6
9S8FU8-P8
9S8FU10-P8
9S12FU12-P12
9S16FU16-P16
9S20FU20-P20
9S24FU24-P24
Part Number
9S4FU4-PF4
9S6FU6-PF4
9S6FU6-PF6
9S8FU8-PF8
9S8FU10-PF8
9S12FU12-PF12
9S16FU16-PF16
9S20FU20-PF20
9S24FU24-PF24
Part Number
9S4J4-F4
9S4J5-F4
9S6J5-F6
9S6J5-F8
9S6J6-F6
9S6J6-F8
9S6J8-F6
9S6J8-F8
9S8J8-F8
9S8J8-F10
9S8J10-F8
9S8J10-F10
9S12J12-F12
9S16J16-F16
9S20J20-F20
9S24J24-F24
Part Number
9S4J4-FF4
9S4J5-FF4
9S6J5-FF6
9S6J5-FF8
9S6J6-FF6
9S6J6-FF8
9S6J8-FF6
9S6J8-FF8
9S8J8-FF8
9S8J8-FF10
9S8J10-FF8
9S8J10-FF10
9S12J12-FF12
9S16J16-FF16
9S20J20-FF20
9S24J24-FF24
Part Number
9S4J4-J4
9S4J4-J5
9S4J5-J4
9S6J5-J6
9S6J5-J8
9S6J6-J5
9S6J6-J6
9S6J6-J8
9S6J8-J5
9S6J8-J6
9S6J8-J8
9S8J8-J8
9S8J8-J10
9S8J10-J8
9S8J10-J10
9S12J12-J12
9S16J16-J16
9S20J20-J20
9S24J24-J24
9S32J32-J32
Part Number
9S4J4-O4
9S4J4-O5
9S4J5-O4
9S6J5-O5
9S6J5-O6
9S6J5-O8
9S6J6-O4
9S6J6-O5
9S6J6-O6
9S6J6-O8
9S6J8-O4
9S6J8-O5
9S6J8-O6
9S6J8-O8
9S8J8-O8
9S8J8-O10
9S8J8-O12
9S8J10-O8
9S8J10-O10
9S8J10-O12
9S12J12-O12
9S16J16-O16
9S20J20-O20
9S24J24-O24
9S32J32-O32
Part Number
9S4J4-P4
9S4J5-P4
9S6J5-P6
9S6J6-P4
9S6J6-P6
9S6J8-P4
9S6J8-P6
9S8J8-P8
9S8J10-P8
9S12J12-P12
9S16J16-P16
9S20J20-P20
9S24J24-P24
9S32J32-P32
Part Number
9S4J4-PF4
9S4J5-PF4
9S6J5-PF6
9S6J6-PF4
9S6J6-PF6
9S6J8-PF4
9S6J8-PF6
9S8J8-PF8
9S8J10-PF8
9S12J12-PF12
9S16J16-PF16
9S20J20-PF20
9S24J24-PF24
9S32J32-PF32
|
