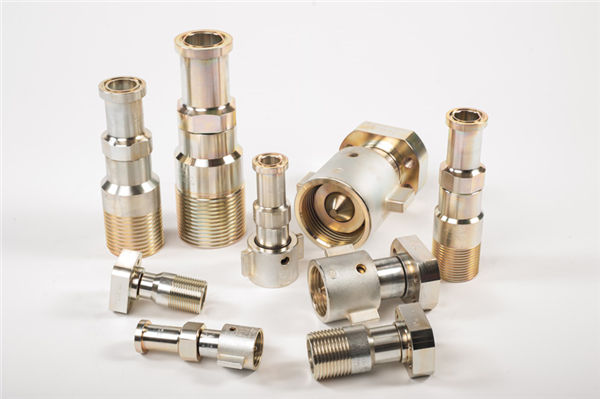

6TV - POPPET STYLE FLANGED PORT
6TV系列螺紋連接管接頭為采礦、建筑、石油和其他自然資源部門常見的流體動力系統提供高流量和低能耗。SAE J518代碼61和代碼62四螺栓法蘭端端口在2000至6000 psi的壓力下提供無泄漏解決方案。注意：不適用于氣體流體形式6TV series thread to connect couplings provide for high flow and low energy loss in fluid power systems common to mining, construction, oil and other natural resource sectors. World class SAE J518 code 61 and code 62 four bolt flange end ports provide leak free solutions at pressures from 2,000 thru 6,000 psi. CAUTION: NOT FOR GAS FLUID FORM
操作極限：
6000磅/平方英寸（41.4兆帕）工作壓力
全4:1安全系數-所有尺寸
真空至28“Hg（1.0巴）
溫度范圍-30°F至+250°F（-34°C至121°C）-標準丁腈橡膠密封
防護處理.黃色鉻酸鹽RoHS兼容表面鍍鋅
尺寸-3/4“至2 1/2”
Operating Limits:
Up to 6,000 psi (41.4 Mpa) operating pressure
Full 4:1 Safety Factor - all sizes
Vacuum to 28" Hg (1.0 bar)
Temperature range -30°F to +250°F (-34°C to 121°C) - Standard Buna Seals
Protective Treatment - Zinc Plating with Yellow Chromate RoHS Compliant Finish
Sizes - 3/4" thru 2 1/2"
設計特點
耦合器和接頭作為單獨的項目提供。它們還與額定壓力為5000磅/平方英寸的5TV系列聯接器相匹配。
連接器和螺紋接頭端端口是四個螺栓法蘭連接，符合SAE J518，代碼61和代碼62。法蘭頭或法蘭孔。
彈性密封大大降低了端口泄漏的可能性。
高級鋼結構提供了4:1的設計系數。
改進的提升閥導向器在更惡劣的條件下工作。
錘耳翼形螺母輔助在壓力下組裝聯軸節。
可在聯軸器螺母檢查孔處目測整個組件。
平頂短梯形螺紋防止磨損，防止裝配和儲存損壞。
保護性處理是用黃色鉻酸鹽RoHS處理的鋅鍍層。

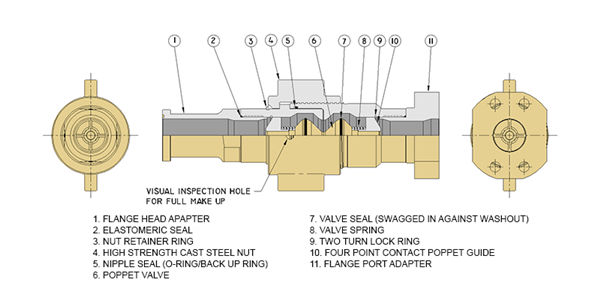

Design Features
Couplers and nipple are supplied as individual items. They also mate the 5TV series couplings rated at 5,000 psi.
Coupler and nipple end ports are four bolt flange connections to SAE J518, code 61 and code 62. Flange head or flange ports.
Elastomeric seal greatly reduces end port leakage potential.
High grade steel construction provides a 4:1 design factor.
Improved poppet guide performs under more severe conditions.
Hammer lug wing nut aides in assembly of coupling under pressure.
Full assembly can be visually verified at coupler nut inspection hole.
Flat crested stub-acme threads prevent galling and resist rig-up and storage damage.
Protective treatment is zinc plating with yellow chromate RoHS compliant finish.
 |
 |
Coupler - Female Half |
Nipple - Male Half |
警告！WARNING!
液壓系統公司5TV和6TV管接頭不可與其他制造商生產的類似管接頭互換。液壓系統，公司聲明的耦合性能是基于配合真正的液壓系統，公司5TV和6TV閥門和螺紋連接聯軸節和接頭。Hydraulics, Inc. 5TV & 6TV couplings are not considered interchangeable with similar couplings produced by other manufacturers. Hydraulics, Inc. stated coupling performance is based on mating genuine Hydraulics, Inc. 5TV & 6TV valved and thread-to-connect couplings and nipples.
警告！WARNING!
要延長5TV和6TV管接頭的功能服務，請僅使用原裝液壓系統，包括更換部件。To extend functional service of 5TV & 6TV couplings, use only genuine Hydraulics, Inc. replacement components.

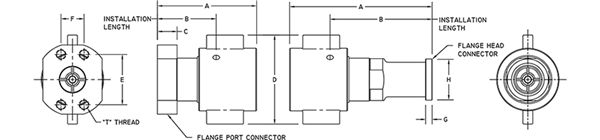

COUPLINGS | 6TV - POPPET STYLE FLANGED PORT | COUPLER - FEMALE HALF
6TV COUPLER - FEMALE HALF
| Part Number |
Port Connector |
Port Size |
PC Sub |
A |
B |
C |
D |
G |
H |
T |
| 6TVC5-FH12 |
FH - SAE J518 4-Bolt Flange Head |
-12 (3/4") |
Code 61 |
5.73
145.5 mm |
4.48
113.8 mm |
|
3.00
76.2 mm |
0.27
6.7 mm |
1.50
38.1 mm |
|
| 6TVHC5-FH12 |
FH - SAE J518 4-Bolt Flange Head |
-12 (3/4") |
Code 61 |
5.73
145.5 mm |
4.48113.8 mm |
|
2.00
50.8 mm |
0.27
6.7 mm |
1.50
38.1 mm |
|
| 6TVC5-FH16 |
FH - SAE J518 4-Bolt Flange Head |
-16 (1") |
Code 61 |
6.45
163.8 mm |
4.86
123.4 mm |
|
3.75
95.3 mm |
0.32
8.0 mm |
1.75
44.5 mm |
|
| 6TVC4-FH20 |
FH - SAE J518 4-Bolt Flange Head |
-20 (1 1/4") |
Code 61 |
7.77
197.4 mm |
5.75
146.1 mm |
|
4.51
114.6 mm |
0.32
8.0 mm |
2.00
50.8 mm |
|
| 6TVC3-FH24 |
FH - SAE J518 4-Bolt Flange Head |
-24 (1 1/2") |
Code 61 |
8.44214.4 mm |
6.14
156.0 mm |
|
4.75
120.7 mm |
0.32
8.0 mm |
2.38
60.5 mm |
|
| 6TVC3-FH32 |
FH - SAE J518 4-Bolt Flange Head |
-32 (2") |
Code 61 |
9.59
243.6 mm |
6.52
165.6 mm |
|
6.75
171.5 mm |
0.38
9.5 mm |
2.81
71.4 mm |
|
| 6TVC25-FH40 |
FH - SAE J518 4-Bolt Flange Head |
-40 (2 1/2") |
Code 61 |
10.56
268.2 mm |
7.06
179.3 mm |
|
8.01
203.5 mm |
0.38
9.5 mm |
3.31
84.1 mm |
|
| 6TVC6-FH12 |
FH - SAE J518 4-Bolt Flange Head |
-12 (3/4") |
Code 62 |
5.98
151.9 mm |
4.73
120.1 mm |
|
3.00
76.2 mm |
0.35
8.8 mm |
1.63
41.3 mm |
|
| 6TVHC6-FH12 |
FH - SAE J518 4-Bolt Flange Head |
-12 (3/4") |
Code 62 |
5.98
151.9 mm |
4.73
120.1 mm |
|
2.00
50.8 mm |
0.35
8.8 mm |
1.63
41.3 mm |
|
| 6TVC6-FH16 |
FH - SAE J518 4-Bolt Flange Head |
-16 (1") |
Code 62 |
7.01
178.1 mm |
5.42
137.7 mm |
|
3.75
95.3 mm |
0.38
9.5 mm |
1.88
47.6 mm |
|
| 6TVC6-FH20 |
FH - SAE J518 4-Bolt Flange Head |
-20 (1 1/4") |
Code 62 |
8.33
211.6 mm |
6.31
160.3 mm |
|
4.51
114.6 mm |
0.41
10.3 mm |
2.13
54.0 mm |
|
| 6TVC6-FH24 |
FH - SAE J518 4-Bolt Flange Head |
-24 (1 1/2") |
Code 62 |
8.88
225.6 mm |
6.58
167.1 mm |
|
4.75
120.7 mm |
0.50
12.7 mm |
2.50
63.5 mm |
|
| 6TVC6-FH32 |
FH - SAE J518 4-Bolt Flange Head |
-32 (2") |
Code 62 |
10.82
274.8 mm |
7.75
196.9 mm |
|
6.75
171.5 mm |
0.50
12.7 mm |
3.13
79.4 mm |
|
| 640C6FH32 |
FH - SAE J518 4-Bolt Flange Head |
-32 (2") |
Code 62 |
11.62
295.1 mm |
8.13
206.5 mm |
|
8.01
203.5 mm |
0.50
12.7 mm |
3.13
79.4 mm |
|
| 6TVC5-FP12 |
FP - SAE J518 4-Bolt Flange Port |
-12 (3/4") |
Code 61 |
4.00
101.6 mm |
2.7569.9 mm |
0.8822.4 mm |
3.00
76.2 mm |
|
|
3/8-16UNC-2B |
| 6TVHC5-FP12 |
FP - SAE J518 4-Bolt Flange Port |
-12 (3/4") |
Code 61 |
4.00
101.6 mm |
2.7569.9 mm |
0.8822.4 mm |
2.00
50.8 mm |
|
|
3/8-16UNC-2B |
| 6TVC5-FP16 |
FP - SAE J518 4-Bolt Flange Port |
-16 (1") |
Code 61 |
4.61
117.1 mm |
3.02
76.7 mm |
0.8822.4 mm |
3.75
95.3 mm |
|
|
3/8-16UNC-2B |
| 6TVC4-FP20 |
FP - SAE J518 4-Bolt Flange Port |
-20 (1 1/4") |
Code 61 |
5.68
144.3 mm |
3.66
93.0 mm |
1.0626.9 mm |
4.51
114.6 mm |
|
|
7/16-14UNC-2B |
| 6TVC3-FP24 |
FP - SAE J518 4-Bolt Flange Port |
-24 (1 1/2") |
Code 61 |
6.38
162.1 mm |
4.08
103.6 mm |
1.0626.9 mm |
4.75
120.7 mm |
|
|
1/2-13UNC-2B |
| 6TVC3-FP32 |
FP - SAE J518 4-Bolt Flange Port |
-32 (2") |
Code 61 |
7.41
188.2 mm |
4.34
110.2 mm |
1.0626.9 mm |
6.75
171.5 mm |
|
|
1/2-13UNC-2B |
| 6TVC25-FP40 |
FP - SAE J518 4-Bolt Flange Port |
-40 (2 1/2") |
Code 61 |
8.56
217.4 mm |
5.07128.8 mm |
1.6942.9 mm |
8.01
203.5 mm |
|
|
1/2-13UNC-2B |
| 6TVC6-FP12 |
FP - SAE J518 4-Bolt Flange Port |
-12 (3/4") |
Code 62 |
4.13
104.9 mm |
2.88
73.2 mm |
0.9423.9 mm |
3.00
76.2 mm |
|
|
3/8-16UNC-2B |
| 6TVHC6-FP12 |
FP - SAE J518 4-Bolt Flange Port |
-12 (3/4") |
Code 62 |
4.13
104.9 mm |
2.88
73.2 mm |
0.9423.9 mm |
2.00
50.8 mm |
|
|
3/8-16UNC-2B |
| 6TVC6-FP16 |
FP - SAE J518 4-Bolt Flange Port |
-16 (1") |
Code 62 |
4.85
123.2 mm |
3.26
82.8 mm |
1.0626.9 mm |
3.75
95.3 mm |
|
|
7/16-14UNC-2B |
| 6TVC6-FP20 |
FP - SAE J518 4-Bolt Flange Port |
-20 (1 1/4") |
Code 62 |
5.88
149.4 mm |
3.86
98.0 mm |
1.1228.4 mm |
4.51
114.6 mm |
|
|
1/2-13UNC-2B |
| 6TVC6-FP24 |
FP - SAE J518 4-Bolt Flange Port |
-24 (1 1/2") |
Code 62 |
6.80
172.7 mm |
4.50
114.3 mm |
1.3835.1 mm |
4.75120.7 mm |
|
|
5/8-11UNC-2B |
| 6TVC6-FP32 |
FP - SAE J518 4-Bolt Flange Port |
-32 (2") |
Code 62 |
8.07
205.0 mm |
5.00
127.0 mm |
1.5038.1 mm |
6.75
171.5 mm |
|
|
3/4-10UNC-2B |
| 640C6FP32 |
FP - SAE J518 4-Bolt Flange Port |
-32 (2") |
Code 62 |
8.87
225.3 mm |
5.88
149.4 mm |
2.0050.8 mm |
8.01
203.5 mm |
|
|
3/4-10UNC-2B |
COUPLINGS | 6TV - POPPET STYLE FLANGED PORT | NIPPLE - MALE HALF
NIPPLE - MALE HALF
| Part Number |
Port Connector |
Port Size |
PC Sub |
A |
B |
C |
E |
F |
G |
H |
T |
| 6TVN5-FH12 |
FH - SAE J518 4-Bolt Flange Head |
-12 (3/4") |
Code 61 |
6.15
156.2 mm |
1.75
44.5 mm |
|
|
|
0.27
6.7 mm |
1.50
38.1 mm |
|
| 6TVN5-FH16 |
FH - SAE J518 4-Bolt Flange Head |
-16 (1") |
Code 61 |
7.18
182.4 mm |
2.25
57.2 mm |
|
|
|
0.32
8.0 mm |
1.75
44.5 mm |
|
| 6TVN4-FH20 |
FH - SAE J518 4-Bolt Flange Head |
-20 (1 1/4") |
Code 61 |
8.70
221.0 mm |
2.63
66.8 mm |
|
|
|
0.32
8.0 mm |
2.0050.8 mm |
|
| 6TVN3-FH24 |
FH - SAE J518 4-Bolt Flange Head |
-24 (1 1/2") |
Code 61 |
9.39
238.5 mm |
3.25
82.6 mm |
|
|
|
0.32
8.0 mm |
2.3860.5 mm |
|
| 6TVN3-FH32 |
FH - SAE J518 4-Bolt Flange Head |
-32 (2") |
Code 61 |
10.57
268.5 mm |
4.00
101.6 mm |
|
|
|
0.38
9.5 mm |
2.81
71.4 mm |
|
| 6TVN25-FH40 |
FH - SAE J518 4-Bolt Flange Head |
-40 (2 1/2") |
Code 61 |
12.39
314.7 mm |
5.25
133.4 mm |
|
|
|
0.38
9.5 mm |
3.31
84.1 mm |
|
| 6TVN6-FH12 |
FH - SAE J518 4-Bolt Flange Head |
-12 (3/4") |
Code 62 |
6.40
162.6 mm |
1.75
44.5 mm |
|
|
|
0.35
8.8 mm |
1.63
41.3 mm |
|
| 6TVN6-FH16 |
FH - SAE J518 4-Bolt Flange Head |
-16 (1") |
Code 62 |
7.73
196.3 mm |
2.25
57.2 mm |
|
|
|
0.38
9.5 mm |
1.88
47.6 mm |
|
| 6TVN6-FH20 |
FH - SAE J518 4-Bolt Flange Head |
-20 (1 1/4") |
Code 62 |
9.26
235.2 mm |
2.6366.8 mm |
|
|
|
0.41
10.3 mm |
2.13
54.0 mm |
|
| 6TVN6-FH24 |
FH - SAE J518 4-Bolt Flange Head |
-24 (1 1/2") |
Code 62 |
9.83
249.7 mm |
3.25
82.6 mm |
|
|
|
0.50
12.7 mm |
2.50
63.5 mm |
|
| 6TVN6-FH32 |
FH - SAE J518 4-Bolt Flange Head |
-32 (2") |
Code 62 |
11.80
299.7 mm |
4.00
101.6 mm |
|
|
|
0.50
12.7 mm |
3.13
79.4 mm |
|
| 640N6FH32 |
FH - SAE J518 4-Bolt Flange Head |
-32 (2") |
Code 62 |
13.45
341.6 mm |
5.25
133.4 mm |
|
|
|
0.50
12.7 mm |
3.13
79.4 mm |
|
| 6TVN5-FP12 |
FP - SAE J518 4-Bolt Flange Port |
-12 (3/4") |
Code 61 |
4.43
112.5 mm |
1.75
44.5 mm |
0.88
22.4 mm |
1.88
47.8 mm |
0.88
22.4 mm |
|
3/8-16UNC-2B |
| 6TVN5-FP16 |
FP - SAE J518 4-Bolt Flange Port |
-16 (1") |
Code 61 |
5.33
135.4 mm |
2.25
57.2 mm |
0.88
22.4 mm |
2.06
52.3 mm |
1.03
26.2 mm |
|
3/8-16UNC-2B |
| 6TVN4-FP20 |
FP - SAE J518 4-Bolt Flange Port |
-20 (1 1/4") |
Code 61 |
6.61
167.9 mm |
2.63
66.8 mm |
1.06
26.9 mm |
2.31
58.7 mm |
1.19
30.2 mm |
|
7/16-14UNC-2B |
| 6TVN3-FP24 |
FP - SAE J518 4-Bolt Flange Port |
-24 (1 1/2") |
Code 61 |
7.33
186.2 mm |
3.25
82.6 mm |
1.06
26.9 mm |
2.75
69.9 mm |
1.41
35.8 mm |
|
1/2-13UNC-2B |
| 6TVN3-FP32 |
FP - SAE J518 4-Bolt Flange Port |
-32 (2") |
Code 61 |
8.39
213.1 mm |
4.00
101.6 mm |
1.06
26.9 mm |
3.06
77.7 mm |
1.69
42.9 mm |
|
1/2-13UNC-2B |
| 6TVN25-FP40 |
FP - SAE J518 4-Bolt Flange Port |
-40 (2 1/2") |
Code 61 |
10.39
263.9 mm |
5.25
133.4 mm |
1.69
42.9 mm |
3.50
88.9 mm |
2.00
50.8 mm |
|
1/2-13UNC-2B |
| 6TVN6-FP12 |
FP - SAE J518 4-Bolt Flange Port |
-12 (3/4") |
Code 62 |
4.56
115.8 mm |
1.75
44.5 mm |
0.94
23.9 mm |
2.00
50.8 mm |
0.94
23.9 mm |
|
3/8-16UNC-2B |
| 6TVN6-FP16 |
FP - SAE J518 4-Bolt Flange Port |
-16 (1") |
Code 62 |
5.57
141.5 mm |
2.25
57.2 mm |
1.06
26.9 mm |
2.25
57.2 mm |
1.09
27.7 mm |
|
7/16-14UNC-2B |
| 6TVN6-FP20 |
FP - SAE J518 4-Bolt Flange Port |
-20 (1 1/4") |
Code 62 |
6.81
173.0 mm |
2.63
66.8 mm |
1.12
28.4 mm |
2.63
66.8 mm |
1.25
31.8 mm |
|
1/2-13UNC-2B |
| 6TVN6-FP24 |
FP - SAE J518 4-Bolt Flange Port |
-24 (1 1/2") |
Code 62 |
7.75
196.9 mm |
3.25
82.6 mm |
1.38
35.1 mm |
3.13
79.5 mm |
1.44
36.6 mm |
|
5/8-11UNC-2B |
| 6TVN6-FP32 |
FP - SAE J518 4-Bolt Flange Port |
-32 (2") |
Code 62 |
9.05
229.9 mm |
4.00
101.6 mm |
1.50
38.1 mm |
3.81
96.8 mm |
1.75
44.5 mm |
|
3/4-10UNC-2B |
| 640N6FP32 |
FP - SAE J518 4-Bolt Flange Port |
-32 (2") |
Code 62 |
10.70
271.8 mm |
5.25
133.4 mm |
2.00
50.8 mm |
3.81
96.8 mm |
1.75
44.5 mm |
|
3/4-10UNC-2B |
Coupler - Female Half Part Number
6TVC5-FH12
6TVHC5-FH12
6TVC5-FH16
6TVC4-FH20
6TVC3-FH24
6TVC3-FH32
6TVC25-FH40
6TVC6-FH12
6TVHC6-FH12
6TVC6-FH16
6TVC6-FH20
6TVC6-FH24
6TVC6-FH32
640C6FH32
6TVC5-FP12
6TVHC5-FP12
6TVC5-FP16
6TVC4-FP20
6TVC3-FP24
6TVC3-FP32
6TVC25-FP40
6TVC6-FP12
6TVHC6-FP12
6TVC6-FP16
6TVC6-FP20
6TVC6-FP24
6TVC6-FP32
640C6FP32
Nipple - Male Half Part Number
6TVN5-FH12
6TVN5-FH16
6TVN4-FH20
6TVN3-FH24
6TVN3-FH32
6TVN25-FH40
6TVN6-FH12
6TVN6-FH16
6TVN6-FH20
6TVN6-FH24
6TVN6-FH32
640N6FH32
6TVN5-FP12
6TVN5-FP16
6TVN4-FP20
6TVN3-FP24
6TVN3-FP32
6TVN25-FP40
6TVN6-FP12
6TVN6-FP16
6TVN6-FP20
6TVN6-FP24
6TVN6-FP32
640N6FP32
|
