Hydraulics Inc.快速接頭COUPLINGS TVF系列
COUPLINGS | TVF - FLAT FACE STYLE | Coupler - Female Half | Nipple - Male Half |

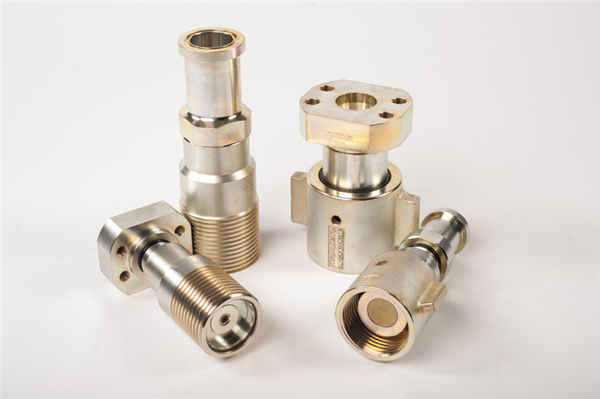

TVF - FLAT FACE STYLE
應用領域Field of Application
TVF系列聯軸器是一個平面無泄漏設計，是環保的。這種聯軸器是建立在承受惡劣的服務，在系統與高浪涌和沖擊負荷，并找到青睞與高馬力流體系統在許多行業。優越的流量特性、各種螺紋和法蘭端口選項以及堅固的可靠性使TVF聯軸器成為一個有吸引力的選項。The TVF Series coupling is a flat face no-spill design that is environmentally friendly. This coupling is built to withstand severe service in systems with high surge and shock loads and finds favor with high horsepower fluid systems across many industries. Superior flow characteristics, a variety of threaded and flanged port options, and rugged dependability make the TVF coupling an attractive option.
操作極限：
工作壓力高達6000磅/平方英寸（41.4兆帕）-耦合或非耦合
全4:1安全系數（耦合或非耦合）
連續工作應用的優越流動特性
平頂短梯形螺紋和全鋼結構，可承受儲存和裝配損壞
用于環保連接/斷開的平面閥門
黃鉻酸RoHS兼容面漆鍍鋅的防護處理
多端口選項–NPTF、BSPP、內螺紋SAE O形環、SAE法蘭端口和法蘭頭
工作溫度-30°F至250°F（-34°C至121°C）
Operating Limits:
Operating Pressures up to 6,000 psi (41.4 Mpa) - Coupled or Uncoupled
Full 4:1 Safety Factor (Coupled or Uncoupled)
Superior Flow Characteristics for continuous duty applications
Flat crested stub-acme threads and all steel contruction withstand storage and rig up damage
Flat face valving for environmentally friendly connect/disconnect
Protective treatment of zinc plating with yellow chromate RoHS compliant finish
Multiple port options – NPTF, BSPP, Female SAE O-Ring, SAE Flange Port and Flange Head
Operating Temperature -30°F to 250°F (-34°C to 121°C)

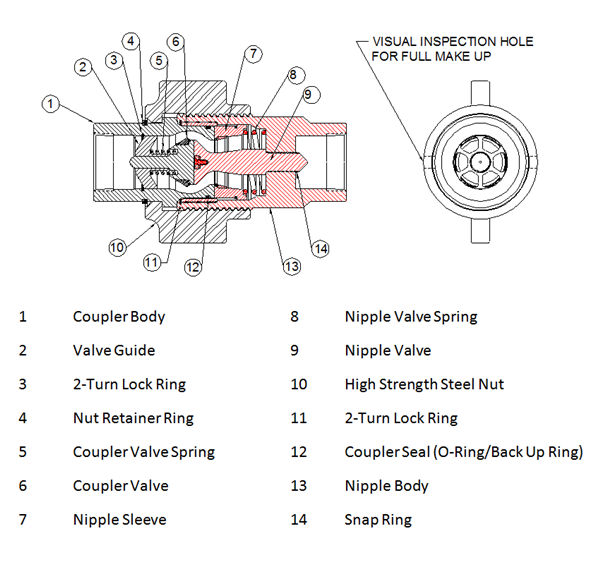

這些聯軸節簡化了長長度、大口徑撓性軟管組件的裝配。它們設計用于在極端壓力以及結構和系統引起的沖擊載荷的惡劣環境中工作。閥門結構允許在軟管孔中流體熱膨脹產生的壓力下進行組裝，并通過高強度錘形凸耳螺母進行組裝。These couplings simplify the rigging of long length, large bore flex hose assemblies. They are designed to operating in rugged environments under extreme pressures as well as structural and system induced shock loads. Valve construction permits assembly against pressure created by thermal expansion of fluid in the hose bore and make up is facilitated by a high strength hammer lug nut.
Coupler - Female Half
 |
 |
 |
PF - Female Pipe Port Connector |
OF- Female SAE O-Ring Port Connector |
BF - Female British Pipe Port Connector |
 |
 |

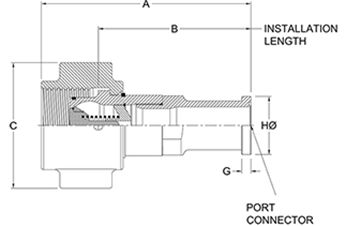

FH - SAE J518 4-Bolt Flange Head - Port Connector |
FP - SAE J518 4-Bolt Flange Port - Port Connector |
Nipple - Male Half
 |
|
|
PF - Female Pipe Port Connector |
OF - Female SAE O-Ring Port Connector
|
BF - Female British Pipe Port Connector |
 |
 |
FH - SAE J518 4-Bolt Flange Head - Port Connector |
FP - SAE J518 4-Bolt Flange Port - Port Connector |
由于技術進步和產品改進，本網站上顯示的所有設計和尺寸數據如有更改，恕不另行通知。技術資料是根據受控環境條件下的實際試驗結果編制的，數據被認為是可靠的，但不能對其在各種現場條件下的準確性承擔任何責任。Because of technological progress and product improvements, all design and dimensional data shown on this website is subject to change without notice. Technical information has been prepared from actual test results under controlled environmental conditions and data is considered to be reliable, but no responsibility can be assumed for its accuracy under varied field conditions.
WARNING!
Hydraulics，Inc.TVF聯軸器不可與其他制造商生產的類似聯軸器互換。液壓系統，公司聲明的耦合性能是基于配合真正的液壓系統，公司TVF閥門和螺紋連接的公頭和母頭。Hydraulics, Inc. TVF couplings are not considered interchangeable with similar couplings produced by other manufacturers. Hydraulics, Inc. stated coupling performance is based on mating genuine Hydraulics, Inc. TVF valved and thread to connect couplers and nipples.
WARNING!
若要延長TVF管接頭的功能服務，請僅使用原裝液壓系統，包括更換部件。To extend functional service of TVF couplings, use only genuine Hydraulics, Inc. replacement components.

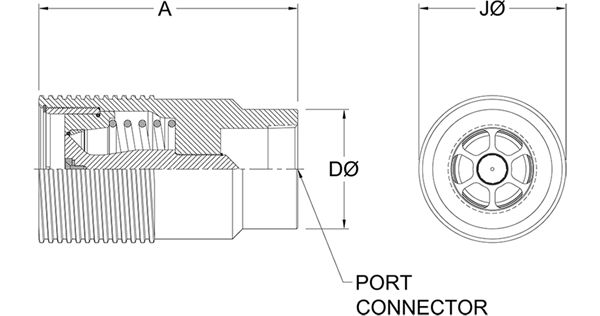

COUPLINGS | TVF - FLAT FACE STYLE | NIPPLE - MALE HALF - PF - FEMALE PIPE
TVF -NIPPLE - MALE HALF - PF - FEMALE PIPE
| Part Number |
T1 |
Port Connector |
Port Size |
A |
D |
J |
| TVF-N-20 |
1 1/4-11 1/2NPTF |
PF - Female Pipe |
-20 (1 1/4") |
5.35
135.9 mm |
2.25
57.2 mm |
2.63
66.8 mm |
| TVF-N-24 |
1 1/2-11 1/2NPTF |
PF - Female Pipe |
-24 (1 1/2") |
5.97
151.6 mm |
2.50
63.5 mm |
3.25
82.6 mm |
| TVF-N-32 |
2-11 1/2NPTF |
PF - Female Pipe |
-32 (2") |
7.05
179.1 mm |
3.25
82.6 mm |
4.00
101.6 mm |
COUPLINGS | TVF - FLAT FACE STYLE | NIPPLE - MALE HALF - OF - FEMALE SAE O-RING
TVF - NIPPLE - MALE HALF - OF - FEMALE SAE O-RING
| Part Number |
T1 |
Port Connector |
Port Size |
A |
D |
J |
| TVF-N-20OF |
1 5/8-12UN-2B |
OF - Female SAE O-Ring |
-20 (1 1/4") |
5.35
135.9 mm |
2.25
57.2 mm |
2.63
66.8 mm |
| TVF-N-24OF |
1 7/8-12UN-2B |
OF - Female SAE O-Ring |
-24 (1 1/2") |
5.97
151.6 mm |
2.50
63.5 mm |
3.25
82.6 mm |
| TVF-N-32OF |
2 1/2-12UN-2B |
OF - Female SAE O-Ring |
-32 (2") |
7.05
179.1 mm |
3.25
82.6 mm |
4.00
101.6 mm |
COUPLINGS | TVF - FLAT FACE STYLE | NIPPLE - MALE HALF - BF - FEMALE BRITISH PIPE
TVF - NIPPLE - MALE HALF - BF - FEMALE BRITISH PIPE
| Part Number |
T1 |
Port Connector |
Port Size |
A |
D |
J |
| TVF-N-20BF |
G 1 1/4-11BSPP |
BF - Female British Pipe |
-20 (1 1/4") |
5.35
135.9 mm |
2.25
57.2 mm |
2.63
66.8 mm |
| TVF-N-24BF |
G 1 1/2-11BSPP |
BF - Female British Pipe |
-24 (1 1/2") |
5.97
151.6 mm |
2.50
63.5 mm |
3.25
82.6 mm |
| TVF-N-32BF |
G 2-11BSPP |
BF - Female British Pipe |
-32 (2") |
7.05
179.1 mm |
3.25
82.6 mm |
4.00
101.6 mm |

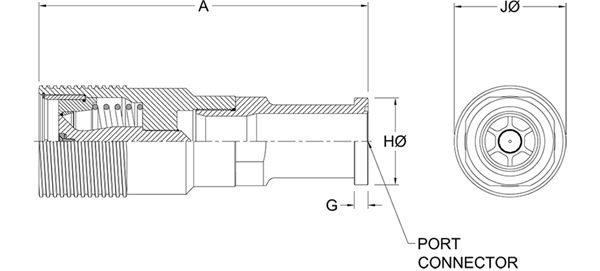

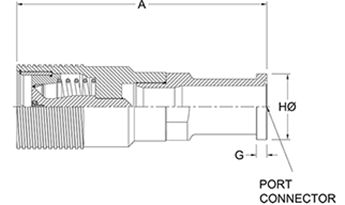

COUPLINGS | TVF - FLAT FACE STYLE | NIPPLE - MALE HALF - FH - SAE J518 4-BOLT FLANGE HEAD
TVF - NIPPLE - MALE HALF - FH - SAE J518 4-BOLT FLANGE HEAD
| Part Number |
Port Connector |
Port Size |
PC Sub |
A |
G |
J |
T |
| TVFN4-FH20 |
FH - SAE J518 4-Bolt Flange Head |
-20 (1 1/4") |
Code 61 |
8.70
221.0 mm |
0.32
8.0 mm |
2.00
50.8 mm |
2.63
66.8 mm |
| TVFN3-FH24 |
FH - SAE J518 4-Bolt Flange Head |
-24 (1 1/2") |
Code 61 |
9.39
238.5 mm |
0.32
8.0 mm |
2.38
60.5 mm |
3.25
82.6 mm |
| TVFN3-FH32 |
FH - SAE J518 4-Bolt Flange Head |
-32 (2") |
Code 61 |
10.57
268.5 mm |
0.38
9.5 mm |
2.81
71.4 mm |
4.00
101.6 mm |
| TVFN6-FH20 |
FH - SAE J518 4-Bolt Flange Head |
-20 (1 1/4") |
Code 62 |
9.26
235.2 mm |
0.41
10.3 mm |
2.13
54.1 mm |
2.63
66.8 mm |
| TVFN6-FH24 |
FH - SAE J518 4-Bolt Flange Head |
-24 (1 1/2") |
Code 62 |
9.83
249.7 mm |
0.50
12.7 mm |
2.50
63.5 mm |
3.25
82.6 mm |
| TVFN6-FH32 |
FH - SAE J518 4-Bolt Flange Head |
-32 (2") |
Code 62 |
11.80
299.7 mm |
0.50
12.7 mm |
3.12
79.2 mm |
4.00
101.6 mm |

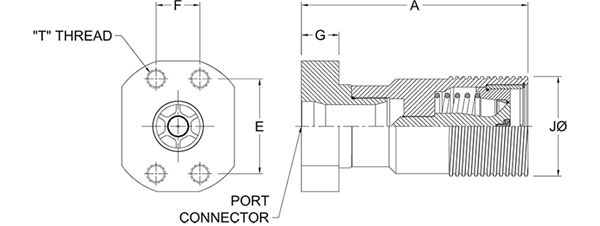

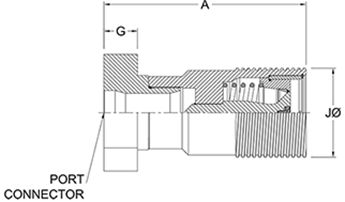

COUPLINGS | TVF - FLAT FACE STYLE | NIPPLE - MALE HALF - FP - SAE J518 4-BOLT FLANGE PORT
TVF - NIPPLE - MALE HALF - FP - SAE J518 4-BOLT FLANGE PORT
| Part Number |
Port Connector |
Port Size |
PC Sub |
A |
E |
F |
G |
J |
T |
| TVFN4-FP20 |
FP - SAE J518 4-Bolt Flange Port |
-20 (1 1/4") |
Code 61 |
6.61
167.9 mm |
2.31
58.7 mm |
1.19
30.2 mm |
1.06
26.9 mm |
2.63
66.8 mm |
7/16-14UNC-2B |
| TVFN3-FP24 |
FP - SAE J518 4-Bolt Flange Port |
-24 (1 1/2") |
Code 61 |
7.33
186.2 mm |
2.75
69.9 mm |
1.41
35.8 mm |
1.06
26.9 mm |
3.25
82.6 mm |
1/2-13UNC-2B |
| TVFN3-FP32 |
FP - SAE J518 4-Bolt Flange Port |
-32 (2") |
Code 61 |
8.39
213.1 mm |
3.06
77.7 mm |
1.69
42.9 mm |
1.06
26.9 mm |
4.00
101.6 mm |
1/2-13UNC-2B |
| TVFN6-FP20 |
FP - SAE J518 4-Bolt Flange Port |
-20 (1 1/4") |
Code 62 |
6.81
173.0 mm |
2.63
66.8 mm |
1.25
31.8 mm |
1.12
28.4 mm |
2.63
66.8 mm |
1/2-13UNC-2B |
| TVFN6-FP24 |
FP - SAE J518 4-Bolt Flange Port |
-24 (1 1/2") |
Code 62 |
7.75
196.9 mm |
3.13
79.5 mm |
1.44
36.6 mm |
1.38
35.1 mm |
3.25
82.6 mm |
5/8-11UNC-2B |
| TVFN6-FP32 |
FP - SAE J518 4-Bolt Flange Port |
-32 (2") |
Code 62 |
9.05
229.9 mm |
3.81
96.8 mm |
1.75
44.5 mm |
1.50
38.1 mm |
4.00
101.6 mm |
3/4-10UNC-2B |
