Eaton’s Line of Hansen EC Series Couplings
EC Series: Enhanced Design for Medical Imaging Market
醫學成像市場設備配套用液冷快速接頭

伊頓的EC系列快速連接管接頭提供卓越的流動性能和易用性和可靠性。增強的設計使連接和斷開冷卻管路變得快速和容易。無泄漏密封和易于使用的設計創造了安全連接，可以大大減少圖像錯誤的可能性。Eaton’s EC Series quick connect couplings provide superior flow performance with ease and reliability.The enhanced design makes it fast and easy to connect and disconnect cooling lines. The leak-free seals and easy to use design creates secure connections that can significantly reduce the possibility of image error.

EC series Cooling coupling
EC Series Electronic Cooling Coupling

EC series Cooling coupling特征

Features
- 流量：EC系列耦合提供了可比的競爭平面產品中的低壓力下降。
Flow: The EC Series Coupling provides the lowest pressure drop among comparable competitive flat face products.
- 耐久性：經設計和測試，可承受高重力環境。
Durability: Designed and tested to withstand high g-force environments.
- 可靠性：EC系列的新設計減少了漏點，提高了產品的可靠性，大限度地減少了泄漏和空氣包合。
Dependability: The new design of the EC Series reduces leak points, improves product reliability,minimizes spillage and air inclusion.
- 連接：與以前的設計相比，連接力減少了30%，便于操作和連接。
Connection: 30% reduction in force to connect compared to previous design allowing for easier handling and connections.

Benefits

- 改善電氣系統的保護，減少泄漏。
Improved protection of electrical system with minimal spillage.
- 用戶友好的技術服務
User friendly to service technicians.
- 低壓降，降低泵負荷。
Low pressure drop, which reduces pump load.
- 進行長期可靠性和耐久性試驗。
Cycle tested for long term reliability and durability.

材質Materials

- 316 Stainless Steel
- Brass
- Steel

密封Seals

- Buna
- Viton
- EPDM

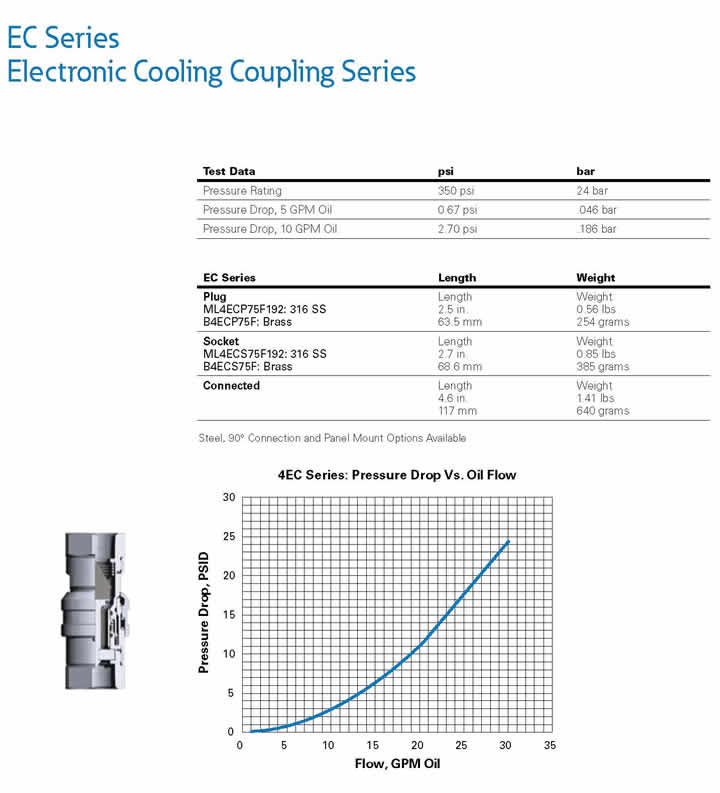

EC Series Electronic Cooling Coupling

Test Data psi bar
Pressure Rating 350 psi 24 bar
Pressure Drop, 5 GPM Oil 0.67 psi .046 bar
Pressure Drop, 10 GPM Oil 2.70 psi .186 bar
EC Series Length Weight

Plug

ML4ECP75F192: 316 SS
B4ECP75F: Brass

Socket

ML4ECS75F192: 316 SS
B4ECS75F: Brass
