Rely on Eaton to drive uptime and safety
The pressure is on for oil and gas companies to withstand the demands of tougher environments economic, environmental, regulatory and operational. Making it more important than ever to rely on a partner to bring a new dimension of expertise to help optimize performance and ensure uninterrupted operations in the world’s most dangerous conditions.
When you work with Eaton, you can count on a comprehensive range of products that are designed for harsh and hazardous operating environments that are part of the day-to-day requirements of your industry. Eaton delivers safe and reliable supply of power management to keep mission-critical systems working every hour of every day. In your world uptime is profits and safety is vital; our business is to help you achieve that and more.
Innovation to dependably manage your power needs
Whether your business is in exploration, drilling, well service, downtime and improve production capacity. From water fracking or another part of the energy supply chain, Eaton suction and discharge, chemical transfer, bulk transfer and innovative solutions help you extend lifecycles and meet fracking hose, Eaton products take on the challenges served changing regulatory or processing requirements. Eaton’s up by the most demanding environments. Rely on Eaton for industrial hose products deliver the reliability that you require durable, field-proven parts and systems. Turn the page to learn to meet the constant demands for uptime and productivity. more about our extensive industrial product offering that can Across the industry, you’ll find Eaton products dependably start serving your business as soon as you make the call. managing power and flow, which matches your need to reduce
Eaton Industrial Hose Oil and Gas Exploration
Fracturing Well Service
Waterfrompondortruckedin
Eaton Industrial Hose Oil and Gas Exploration PDF Catalog
點(diǎn)擊下載
Innovation to take on the toughest challenges

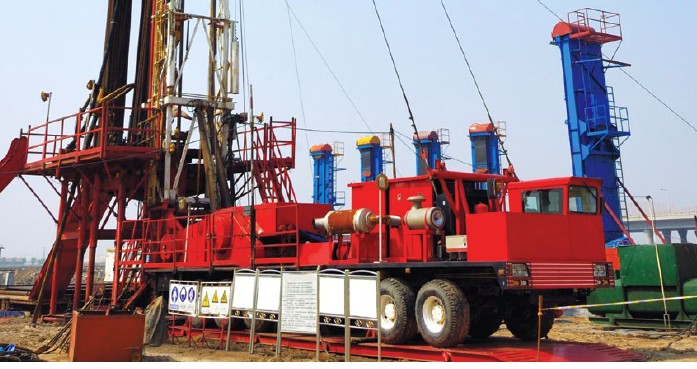

Well Drilling
Eaton supports fracking and well service operations with quality products built to perform in the world’s harshest environments. Eaton offers solutions that help you protect people, the environment and operational assets when and where it’s needed.
1 Mud Tank 2 Shale Shakers 3 Suction Hose (mud pump) 4 Mud Pump
5
Motor or Power Source
6
Vibrating Hose
7
Draw works
8
Standpipe
9
Rotary, Slim Hole Hose Goose neck Traveling Block Drill Line Pipe Rack Crown Block Derrick Monkey Board Pipe Rack Swivel Kelly Drive Rotary Table Drill Floor Bell Nipple Blowout Preventer Annular Blowout Preventers Pipe and Shear Ram Drill String Drill Bit Casing Head Flow Line
Dependable Solutions to Drive your Performance
Eaton Industrial Oil and Gas Exploration
Table of Contents
Air and Multipurpose Petroleum
H6009 Bulldog Gold 7 EHP502 High Pressure Petroleum 31 EHA500 High Pressure Air 8 Suction and Discharge H9949 Shock-Safe 8 EHP504 High Pressure Petroleum Discharge 31 H6008 Concord Yellow Jack 9 H1193 Royalflex Petroleum 32 H115 & H116 Performer II 10 H0369 Corrugated Bobcat Light Duty 32 H201 Easy Couple 11 EHP503 Corrugated Petroleum tank truck 33 H0105 Bosflex A/W 12 H901 Boston Bull Dog Fuel Oil Delivery 33 H0106 Bosflex A/W 12 H0363 PUMA. Petroleum 34 H1981 & H1982 Boston Marathoner 13 EHP519 PUMA. Flat Corrugated Petroleum 34 EHA501 Medium Pressure Air 14 EHP500 Petroleum tank truck 35
EHA502 High Pressure Air 15Specialty Chemical EH920 2” UL LPG 37
H0523 Chemcat Petrochemical 17 H900 UL LPG 37 H0554 Armorcat Petrochemical 17Steam EHC001 XLPE Suction and Discharge 18 EH084 Steam Slayer. 39 EHC002 Corrugated XLPE Suction and Discharge 18 H9568 Concord 250 Steam 39 EHC005 Corrugated UHMW Suction and Discharge 19 EHS001 Concord Steam 40
Material Handling Water
EHK006 Plaster, Grout and Cement Spraying 21 H1196 Royalflex Water 43 EHK007 Concrete Placement 21 H0364 Otter EPDM Suction and Discharge 44 H0034 Concord Sandblast 22 EH360 Water Suction and Discharge 45 H0521 LYNX Heavy Duty Softwall Dry Material 22 EHW003 Medium Duty Discharge 46 H0319 LYNX Softwall Dry Material 23 H345 Pressure Washer 47 H0349 Wildcat Hot Air 23 H0347 Sabertooth 24
Oil & Gas Exploration
EHP009 Oilfield Vacuum 27 EHP007 Oilfield Suction 27 EHP001 BLACKCAt. FRAC 28 EHP002 Oilfield Mud Suction and Discharge 28 H0377 Kelly Power Oil 29
Air and Multipurpose
H6009 Bulldog Gold EHA500 High Pressure Air H9949 Shock-Safe H6008 Concord Yellow Jack H115 & H116 Performer II H201 Easy Couple H0105 Bosflex A/ W H0106 Bosflex A/ W H1981 and 1982 Boston Marathoner EHA501 Medium Pressure Air EHA502 High Pressure Air
Use of damaged hose or improper use may result in bodily injury or property damage. Please consult Eaton catalog or Technical Support for proper application.
Air and Multipurpose

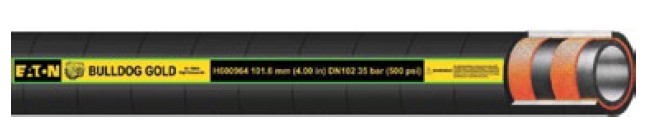

Bulldog Gold H6009
Part No. Hose I.D. Hose O.D. Max Operating Pressure Burst Pressure Weight Length
DN mm in mm in bar psi bar psi kg/m lbs/ft mtr ft
H600916 25 25,4 1.00 38,1 1.50 70 1000 275 4000 1,20 0.80 15,2 50
H600916-100 25 25,4 1.00 38,1 1.50 70 1000 275 4000 1,20 0.80 30,5 100
H600920 31 31,8 1.25 46,0 1.81 55 800 220 3200 1,80 1.20 15,2 50
H600924 38 38,1 1.50 54,0 2.12 41 600 165 2400 2,01 1.34 15,2 50
H600924-100 38 38,1 1.50 54,0 2.12 41 600 165 2400 2,01 1.34 30,5 100
H600932 51 50,8 2.00 67,5 2.66 41 600 165 2400 2,95 1.97 15,2 50
H600932-100 51 50,8 2.00 67,5 2.66 41 600 165 2400 2,95 1.97 30,5 100
H600932-150 51 50,8 2.00 67,5 2.66 41 600 165 2400 2,95 1.97 46,0 150
H600940 60 63,5 2.50 80,2 3.16 41 600 165 2400 3,75 2.50 15,2 50
H600940-100 60 63,5 2.50 80,2 3.16 41 600 165 2400 3,75 2.50 30,5 100
H600948 80 76,2 3.00 94,5 3.72 41 600 165 2400 4,72 3.15 15,2 50
H600948-100 80 76,2 3.00 94,5 3.72 41 600 165 2400 4,72 3.15 30,5 100
H600964 102 101,6 4.00 127,0 5.00 35 500 138 2000 7,97 5.32 15,2 50
H600964-100 102 101,6 4.00 127,0 5.00 35 500 138 2000 7,97 5.32 30,5 100
H600964-150 102 101,6 4.00 127,0 5.00 35 500 138 2000 7,97 5.32 46,0 150
Construction:
Tube: Nitrile (RMA Class A) Reinforcement:
1.00” -1.25” 1-wire braid 1.50” -3.00” 2-wire braid 4.00” 3-wire braid
Cover: Pin-pricked carboxylated nitrile
Operating Temperature:
-40°C to +121°C (-40°F to +250°F)
Application:
.
Provide power to air-operated construction equipment
.
Power air-operated drills, boring, and mining equipment
Markets:
.
Construction
.
Mining
.
Oil and gas exploration
.
Water drilling
.
Ship building
Type of Couplings:
.
”U” Series
.
TTC
.
Union
.
Boss male
.
Ground joint female
.
Air hammer
.
Air king
Contact coupling manufacturer for attachment procedure and other coupling recommendations
Air and Multipurpose
High Pressure Air EHA500
Part No. Hose I.D. Hose O.D. Max Operating Pressure Burst Pressure Weight Length
mtr ft DN mm in mm in bar psi bar psi kg/m lbs/ft mtr ft
EHA500-08YW MXX 100 12 12,7 0.50 23,0 0.91 41 600 165 2400 0,51 0.34 40-61 100
EHA500-12YW MXX 100 19 19,1 0.75 29,5 1.16 41 600 165 2400 0,62 0.42 40-61 100
EHA500-16YW MXX 100 25 25,4 1.00 36,0 1.42 41 600 165 2400 0,88 0.59 40-61 100
EHA500-20YW MXX 100 31 31,8 1.25 43,0 1.69 41 600 165 2400 1,12 0.75 40-61 100
EHA500-24YW MXX 100 38 38,1 1.50 50,0 1.97 41 600 165 2400 1,55 1.04 40-61 100
EHA500-32YW MXX 100 51 50,8 2.00 66,0 2.60 41 600 165 2400 2,51 1.69 40-61 100
EHA500-40YW MXX 100 60 63,5 2.50 80,0 3.15 41 600 165 2400 3,36 2.26 40-61 100
EHA500-48YW MXX 100 80 76,2 3.00 93,9 3.70 41 600 165 2400 4,49 3.02 40-61 100
EHA500-64YW MXX 100 102 101,6 4.00 122,0 4.80 41 600 165 2400 6,77 4.55 40-61 100
**50 ft. length also available and black cover available on a MTO basis
Construction: Application:
Tube: Oil-resistant synthetic . High-pressure air NBR / SBR rubber Reinforcement: High-tensile Operating Temperature:
steel wire -40°C to +70°C Cover: Pin-pricked (-40°F to +200°F) SBR/ EPDM blend
Shock-Safe H9949
Markets:
.
Construction
.
Oil field equipment
.
Drilling equipment
.
Mining
.
Rental industry
.
Steel
.
Paper
Type of Couplings:
.
Boss
.
Ground joint
.
Air hammer
.
Air king
Contact coupling manufacturer for attachment procedure and other coupling recommendations
Part No. Hose I.D. Hose O.D. Max Operating Pressure Burst Pressure Weight Length
DN mm in mm in bar psi bar psi kg/m lbs/ft mtr ft
H994904-500R 6 6,6 0.26 15,1 0.59 19 275 75 1100 0,22 0.15 152,4 500
H994906-500R 10 9,7 0.38 18,3 0.72 19 275 75 1100 0,28 0.19 152,4 500
H994908-500R 12 12,7 0.50 22,2 0.88 19 275 75 1100 0,40 0.27 152,4 500
H994912-500R 19 19,1 0.75 29,4 1.16 19 275 75 1100 0,61 0.41 152,4 500
H994916-300R 25 25,4 1.00 36,5 1.44 19 275 75 1100 0,95 0.64 91,4 300
Construction: Application: Markets:
Tube: Nitrile . Air and water transfer . Oil and gas exploration (non-conductive) where hose must be . Steel and metal
Reinforcement: 2 braid non-conductive . Mining
Cover: Vinyl nitrile . In-plant service (non-conductive)
Operating Temperature:
-40°C to +82°C (-40°F to +180°F)
Type of Couplings:
.
“U” Series
.
TTC
.
“Z” Series
Contact coupling manufacturer for attachment procedure and other coupling recommendations
Air and Multipurpose
Concord Yellow Jack H6008
Part No. Hose I.D. Hose O.D. Max Operating Pressure Burst Pressure Weight Length
DN mm in mm in bar psi bar psi kg/m lbs/ft mtr ft
H600808 12 6,6 0.26 24,6 0.97 103 1500 415 6000 0,60 0.40 15,2 50
H600808-100 12 9,7 0.38 24,6 0.97 103 1500 415 6000 0,60 0.40 30,2 100
H600812-100 19 12,7 0.50 31,7 1.25 83 1200 330 4800 1,00 0.67 30,2 100
H600816 25 19,1 0.75 38,1 1.50 70 1000 275 4000 1,27 0.85 15,2 50
H600816-100 25 25,4 1.00 38,1 1.50 70 1000 275 4000 1,27 0.85 30,2 100
H600820 31 31,8 1.25 46,0 1.81 44,8 650 180 2600 1,87 1.25 15,2 50
H600824 38 38,1 1.50 54,0 2.12 41 600 165 2400 2,49 1.66 15,2 50
H600824-100 38 38,1 1.50 54,0 2.12 41 600 165 2400 2,49 1.66 30,2 100
H600832 51 50,8 2.00 67,4 2.66 41 600 165 2400 3,09 2.06 15,2 50
H600832-100* 51 50,8 2.00 67,4 2.66 41 600 165 2400 3,09 2.06 30,2 100
H600840 60 63,5 2.50 80,2 3.16 28 400 110 1600 3,66 2.44 15,2 50
H600840-100* 60 63,5 2.50 80,2 3.16 28 400 110 1600 3,66 2.44 30,2 100
H600848 80 76,2 3.00 94,5 3.72 28 400 110 1600 4,15 2.77 15,2 50
H600848-100 80 76,2 3.00 94,5 3.72 28 400 110 1600 4,15 2.77 30,2 100
H600864 102 101,6 4.00 126,9 4.99 28 400 110 1600 6,43 4.29 15,2 50
*
150 ft. length available
Construction:
Tube: Vinyl nitrile (RMA Class A)
Reinforcement:
0.50” – 1.25” 1-wire braid 1.50” – 3.00” 2-wire braid 4.00” 3-wire braid
Cover: Pin-pricked neoprene MSHA approved
Operating Temperature:
-40°C to +100°C (-40°F to +212°F)
Application:
.
Power operated drills, boring, and mining equipment
.
Provide power to air-operated equipment
Markets:
.
Oil and gas exploration
.
Metal working
.
Construction
.
Mining
Type of Couplings:
.
"U" Series
.
"Z" Series
.
Boss
.
Ground joint
.
Air hammer
.
Air king
Contact coupling manufacturer for attachment procedure and other coupling recommendations
Warning
Use of damaged hose or improper use may result in bodily injury or property damage. Please consult Eaton catalog or Technical Support for proper application.
Air and Multipurpose
Performer II H115 & H116
Part No. Hose I.D. Hose O.D. Max Operating Pressure Burst Pressure Weight Length
DN mm in mm in bar psi bar psi kg/m lbs/ft mtr ft
H11504-550R 6 6,6 0.26 14,8 0.58 20,7 300 83 1200 0,15 0.10 167,6 550
H11505-550R* 8 8,0 0.31 16,7 0.66 20,7 300 83 1200 0,21 0.14 167,6 550
H11506-550R* 10 10,0 0.38 18,1 0.71 20,7 300 83 1200 0,28 0.19 167,6 550
H11508-550R* 12 12,7 0.50 22,2 0.88 20,7 300 83 1200 0,40 0.27 167,6 550
H11512-550R* 19 19,0 0.75 29,4 1.16 20,7 300 83 1200 0,61 0.41 167,6 550
H11516-300R* 25 25,4 1.00 36,5 1.44 15,5 225 62 900 0,68 0.46 91,4 300
H11520-300R* 31 32,0 1.25 44,5 1.75 15,5 225 62 900 0,97 0.65 91,4 300
H11524-300R* 38 38,1 1.50 50,8 2.00 15,5 225 62 900 1,22 0.82 91,4 300
H11604-550R 6 6,6 0.26 12,7 0.50 15,5 225 62 900 0,12 0.08 167,6 550
H11605-550R 8 8,0 0.31 15,9 0.63 15,5 225 62 900 0,19 0.13 167,6 550
H11606-550R 10 10,0 0.38 16,7 0.66 15,5 225 62 900 0,19 0.13 167,6 550
H11608-550R 12 12,7 0.50 20,6 0.81 15,5 225 62 900 0,25 0.17 167,6 550
*
50 ft. length available ** Maximum three cut lengths on each reel and product packaging will vary +/-10 %
Construction: Application: Markets: Type of Couplings:
Tube: Nitrile . Air and water transfer, high . Construction . “U” Series (RMA Class B) oil-resistant . Forest industry . TTC Reinforcement: . Provide power to operated . Metal working . “Z” Series
H115 -2 braid equipment . Oil and gas exploration . Boss
.
H116 -1 braid Pneumatic tools on . In-plant service . Ground joint
production line Cover: Vinyl nitrile . Plastic molding high oil-resistant . Ship building Contact coupling manufacturer for
attachment procedure and other coupling recommendations
Operating Temperature:
-40°C to +82°C (-40°F to +180°F)
Air and Multipurpose
Easy Couple H201
Part No. Hose I.D. Hose O.D. Max Operating Pressure Burst Pressure Weight Length
DN mm in mm in bar psi bar psi kg/m lbs/ft mtr ft
H20104XX 6 6,4 0.25 12,7 0.50 20,7 300 83 1200 0,13 0.09 15,2 50
H20104XX-250R** 6 6,4 0.25 12,7 0.50 20,7 300 83 1200 0,13 0.09 76,2 250
H20104XX-500R 6 6,4 0.25 12,7 0.50 20,7 300 83 1200 0,13 0.09 152,4 500
H20106XX 10 9,7 0.38 16,7 0.66 20,7 300 83 1200 0,19 0.13 15,2 50
H20106XX-250R** 10 9,7 0.38 16,7 0.66 20,7 300 83 1200 0,19 0.13 76,2 250
H20106XX-500R 10 9,7 0.38 16,7 0.66 20,7 300 83 1200 0,19 0.13 152,4 500
H20108XX 12 12,7 0.50 19,2 0.76 20,7 300 83 1200 0,22 0.15 15,2 50
H20108XX-250R** 12 12,7 0.50 19,2 0.76 20,7 300 83 1200 0,22 0.15 76,2 250
H20108XX-500R 12 12,7 0.50 19,2 0.76 20,7 300 83 1200 0,22 0.15 152,4 500
H20110XX 16 16,0 0.63 23,6 0.93 20,7 300 83 1200 0,34 0.23 15,2 50
H20110XX-250R 16 16,0 0.63 23,6 0.93 20,7 300 83 1200 0,34 0.23 76,2 250
H20112XX 19 19,1 0.75 26,3 1.04 20,7 300 83 1200 0,39 0.26 15,2 50
H20112XX-250R 19 19,1 0.75 26,3 1.04 20,7 300 83 1200 0,39 0.26 76,2 250
H20116XX 25 25,4 1.00 34,9 1.38 13,8 200 55 800 0,57 0.38 15,2 50
H20116XX-250R 25 25,4 1.00 34,9 1.38 13,8 200 55 800 0,57 0.38 76,2 250
* All sizes available in Black, Blue and Red **Green, Gray and Yellow available
Construction: Application: Markets: Type of Couplings:
Tube: Vinyl Nitrile . Air and water . Oil and gas exploration . Aeroquip. socketless (RMA Class A) . Pneumatic tools . Construction . Push on couplings Reinforcement: . Air tools . Mining . “B” Series Fiber, 1 braid . Plastic molding
Cover: (BK) Neoprene MSHA Operating Temperature: Contact coupling manufacturer for Approved attachment procedure and other -40°C to +100°C coupling recommendations (BU,GN, GY, RD,YW) (-40°F to +212°F) Vinyl nitrile
Warning
Use of damaged hose or improper use may result in bodily injury or property damage. Please consult Eaton catalog or Technical Support for proper application.
Air and Multipurpose
Bosflex A/W H0105
Part No. Hose I.D. Hose O.D. Max Operating Pressure Burst Pressure Weight Length
DN mm in mm in bar psi bar psi kg/m lbs/ft mtr ft
H010504RD 6 6,6 0.26 15,6 0.62 20,7 300 84 1200 0,21 0.14 15 50
H010504RD-600R 6 6,6 0.26 15,6 0.62 20,7 300 84 1200 0,21 0.14 183 600
H010506RD 10 9,8 0.39 18,0 0.71 20,7 300 84 1200 0,27 0.18 15 50
H010506RD-600R 10 9,8 0.39 18,0 0.71 20,7 300 84 1200 0,27 0.18 183 600
H010508RD 12 13,0 0.51 22,1 0.87 20,7 300 84 1200 0,34 0,23 15 50
H010508RD-600R 12 13,0 0.51 22,1 0.87 20,7 300 84 1200 0,34 0,23 183 600
H010510RD-600R 16 16,1 0.64 25,3 1.00 20,7 300 84 1200 0,45 0.30 183 600
H010512RD* 19 19,6 0.77 29,1 1.15 15,5 225 63 900 0,55 0.37 15 50
H010512RD-600R* 19 19,6 0.77 29,1 1.15 15,5 225 63 900 0,55 0.37 183 600
H010516RD* 25 25,7 1.01 34,7 1.37 13,8 200 56 800 0,89 0.60 15 50
H010516RD-600R* 25 25,7 1.01 34,7 1.37 13,8 200 56 800 0,89 0.60 183 600
H010520BK-300 31 31,8 1.25 44,5 1.75 13,8 200 56 800 0,97 0.65 91,4 300
H010524BK-300 38 38,1 1.50 50,8 2.00 13,8 200 56 800 1,22 0.82 91,4 300
*Also available in black
Construction: Application: Markets:Type of Couplings:
Tube: EPDM . Air and water transfer . Construction and agriculture . “U” Series Reinforcement: . Spraying and conveying . Mining . Barbed inserts 4 Spiral, -20 & -24 2 Braid water-based liquid fertilizers . Oil and gas exploration . Quick disconnect and pesticides . In plant air service
Cover: EPDM
. Assembly/manufacturers Operating Temperature: Paper/pulp
.
-40°C to +82°C . Ship building (-40°F to +180°F)
Bosflex A/W H0106
Construction: Application: Markets:Type of Couplings:
Tube: EPDM . Air and water transfer . Construction and agriculture . “U” Series Reinforcement: . Spraying and conveying Mining . Barbed inserts
.
2 Spiral water-based liquid fertilizers . Rental industry . Quick disconnect and pesticides . Oil and gas exploration
Cover: EPDM
. In-plant air service Operating Temperature: Assembly/manufacturers
.
-40°C to +82°C . Paper/pulp (-40°F to +180°F) . Ship building
Air and Multipurpose
Boston Marathoner H1981 & H1982
Part No. Hose I.D. Hose O.D. Max Operating Pressure Burst Pressure Weight Length
DN mm in mm in bar psi bar psi kg/m lbs/ft mtr ft
H198104RD-600R 6 6,6 0.26 12,4 0.49 14 200 55 800 0,15 0.10 183 600
H198106RD-600R 10 9,8 0.38 18,0 0.71 14 200 55 800 0,22 0.15 183 600
H198108RD-600R 12 13,0 0.50 22,2 0.88 14 200 55 800 0,28 0.19 183 600
H198112RD-600R* 19 19,1 0.75 29,2 1.15 16 225 62 900 0,55 0.37 183 600
H198204RD-600R 6 6,6 0.26 14,8 0.58 21 300 83 1200 0,19 0.13 183 600
H198206RD-600R** 10 9,8 0.38 18,0 0.71 21 300 83 1200 0,27 0.18 183 600
H198208RD-600R** 12 13,0 0.50 22,1 0.87 21 300 83 1200 0,34 0.23 183 600
H198210RD-600R** 16 16,0 0.63 25,4 1.00 21 300 83 1200 0,37 0.25 183 600
H198212RD-600R** 19 19,1 0.75 29,2 1.15 21 300 83 1200 0,55 0.37 183 600
H198216RD-400R** 25 25,0 1.00 36,2 1.43 21 300 83 1200 0,96 0.64 183 600
* Additional packaging available ** Additional colors available
Construction: Application: Markets: Type of Couplings:
Tube: Nitrile blend . Medium oil-resistant . Construction . “U” Series Reinforcement: . Air and water transfer . Mining . TTC 2 or 4 Spiral . Paper industry . “Z” Series Cover: Pin-pricked Operating Temperature: . Oil and gas exploration . Boss nitrile blend -40°C to +82°C In-plant service . Ground joint
. .
(-40°F to +180°F) Air hammer
. Air king
Air and Multipurpose
Medium Pressure Air EHA501
Part No. Hose I.D. Hose O.D. Max Operating Pressure Burst Pressure Weight Length
mtr ft DN mm in mm in bar psi bar psi kg/m lbs/ft mtr ft
EHA501-08YW MXX 100 12 12,7 0.50 22,0 0.87 20,7 300 62,0 900 0,33 0.22 40-61 100
EHA501-10YW MXX 100 16 16,0 0.63 25,0 0.98 20,7 300 62,0 900 0,37 0.25 40-61 100
EHA501-12YW MXX 100 19 19,0 0.75 29,0 1.14 20,7 300 62,0 900 0,50 0.33 40-61 100
EHA501-16YW MXX 100 25 25,4 1.00 36,0 1.42 20,7 300 62,0 900 0,67 0.45 40-61 100
EHA501-20YW MXX 100 31 32,0 1.20 44,0 1.73 20,7 300 62,0 900 0,96 0.64 40-61 100
EHA501-24YW MXX 100 38 38,0 1.50 51,0 2.01 20,7 300 62,0 900 1,18 0.79 40-61 100
EHA501-28YW MXX 100 45 44,5 1.75 60,0 2.36 20,7 300 62,0 900 1,63 1.10 40-61 100
EHA501-32YW MXX 100 51 50,8 2.00 65,0 2.56 20,7 300 62,0 900 1,66 1.11 40-61 100
EHA501-40YW MXX 100 60 63,5 2.50 80,0 3.15 20,7 300 62,0 900 2,45 1.65 40-61 100
EHA501-48YW MXX 100 80 76,2 3.00 92,0 3.62 20,7 300 62,0 900 2,65 1.78 40-61 100
EHA501-64YW MXX 100 102 101,6 4.00 118,0 4.65 20,7 300 62,0 900 3,81 2.56 40-61 100
* Product also available in BK Black
Construction: Application:
Tube: Natural/synthetic . Medium-duty air service rubber
Reinforcement:
High-tensile synthetic textile Cover: Synthetic rubber
Operating Temperature:
-25°C to +70°C (-13°F to +158°F)
Markets:
.
Construction
.
Mining
.
Oil and gas exploration
.
Drilling equipment
.
Rental industry
.
Steel
.
Quarries
Type of Couplings:
.
Boss male
.
Ground joint female
.
Air hammer
.
Air king
Contact coupling manufacturer for attachment procedure and other coupling recommendations
Air and Multipurpose
High Pressure Air EHA502
Part No. Hose I.D. Hose O.D. Max Operating Pressure Burst Pressure Weight Length
mtr ft DN mm in mm in bar psi bar psi kg/m lbs/ft mtr ft
EHA502-08YW MXX 100 12 12,7 0.50 23,0 0.91 28,0 400 83,0 1200 0,38 0.26 40-61 100
EHA502-10YW MXX 100 16 16,0 0.63 26,0 1.02 28,0 400 83,0 1200 0,45 0.30 40-61 100
EHA502-12YW MXX 100 19 19,0 0.75 30,0 1.18 28,0 400 83,0 1200 0,57 0.38 40-61 100
EHA502-16YW MXX 100 25 25,4 1.00 37,0 1.46 28,0 400 83,0 1200 0,72 0.48 40-61 100
EHA502-20YW MXX 100 31 32,0 1.20 44,0 1.73 28,0 400 83,0 1200 0,95 0.64 40-61 100
EHA502-24YW MXX 100 38 38,0 1.50 51,0 2.01 28,0 400 83,0 1200 1,21 0.81 40-61 100
EHA502-28YW MXX 100 45 44,5 1.75 60,0 2.36 28,0 400 83,0 1200 1,66 1.12 40-61 100
EHA502-32YW MXX 100 51 50,8 2.00 66,0 2.60 28,0 400 83,0 1200 1,83 1.23 40-61 100
EHA502-40YW MXX 100 60 63,5 2.50 80,0 3.15 28,0 400 83,0 1200 2,51 1.68 40-61 100
EHA502-48YW MXX 100 80 76,2 3.00 92,0 3.62 28,0 400 83,0 1200 2,79 1.87 40-61 100
EHA502-64YW MXX 100 102 101,6 4.00 118,0 4.65 28,0 400 83,0 1200 3,53 2.37 40-61 100
* Product also available in BK Black
Construction: Application:
Tube: Natural/synthetic . Heavy-duty air service rubber
Reinforcement:
High-tensile synthetic textile Cover: Synthetic rubber
Operating Temperature:
-25°C to +70°C (13°F to +158°F)
Markets:
.
Construction
.
Mining
.
Oil and gas exploration
.
Drilling equipment
.
Rental industry
.
Steel
.
Quarries
Type of Couplings:
.
Boss male
.
Ground joint female
.
Air hammer
.
Air king
Contact coupling manufacturer for attachment procedure and other coupling recommendations
Chemical
H0523 Chemcat Petrochemical H0554 Armorcat Petrochemical EHC001 XLPE Suction and Discharge EHC002 Corrugated XLPE Suction and Discharge EHC005 Corrugated UHMW Suction and Discharge
Elevated temperatures can change chemical resistance ratings. Please refer to the Chemical Compatibility information prior to use. Factors such as concentration, fluid contamination, and extreme temperatures may affect these performance specification. Please consult Eaton catalog or Technical Support for proper application.
Chemical
Chemcat Petrochemical H0523
Part No. Hose I.D. Hose O.D. Max Operating Pressure Burst Pressure Minimum Bend Radius r Vacuum Weight Length
DN mm in mm in bar psi bar psi mm in kPa in/Hg kg/m lbs/ft mtr ft
H052312XX-100 19 19,1 0.75 30,6 1.20 13,8 200 70 1000 101,6 4.00 94,8 28 0,46 0.31 30,5 100
H052316XX-100 25 25,4 1.00 38,9 1.53 13,8 200 70 1000 139,7 5.50 94,8 28 0,82 0.55 30,5 100
H052320XX-100 31 31,8 1.25 47,8 1.88 13,8 200 70 1000 152,4 6.00 94,8 28 1,00 0.67 30,5 100
H052324XX-100 38 38,1 1.50 54,1 2.13 13,8 200 70 1000 190,5 7.50 94,8 28 1,33 0.89 30,5 100
H052332XX-100 51 50,8 2.00 66,8 2.63 13,8 200 70 1000 203,2 8.00 94,8 28 1,74 1.16 30,5 100
H052340XX-100 60 63,5 2.50 79,5 3.13 13,8 200 70 1000 203,2 8.00 94,8 28 2,13 1.42 30,5 100
H052348XX-100 80 76,2 3.00 92,2 3.63 13,8 200 70 1000 228,6 9.00 94,8 28 2,52 1.68 30,5 100
H052364XX-100 102 101,6 4.00 118,6 4.67 10,5 150 52 750 381,0 15.00 94,8 28 3,39 2.26 30,5 100
* Additional lengths available on select items ** XX notes color GN for green PR for purple
Construction:
Tube: UHMW-PE FDA-approved material
Reinforcement:
Fiber ply and dual helical wires Cover: EPDM
Operating Temperature:
-40°C to +80°C (-40°F to +250°F)
Armorcat Petrochemical H0554
Application:
.
For transfer of acids, chemicals, solvents, and petroleum products
.
Food transfer
Refer to chemical compatibility and applications for temperature rating
Markets:
.
Chemical petroleum industry
.
In-plant transfers
.
Tank truck
.
Paper/pulp industry
.
Bulk hauling
.
Ship building
.
Forest products
Type of Couplings:
.
Cam and groove
.
Combination nipple or swaged/crimped
r
Max Operating
Burst
Minimum
Part No.
Hose I.D.
Hose O.D.
Pressure
Pressure
Bend Radius
Vacuum
Weight
Length
DN
mm
in
mm
in
bar
psi
bar
psi
mm
in
kPa
in/Hg
kg/m
lbs/ft
mtr
ft
H055416 25
25,4
1.00
38,7
1.52
20,7
300 103
1500
152,4
6.00
94,8
28
0,82
0.55
15,2
50
H055416-150 25
25,4
1.00
38,7
1.52
20,7
300 103
1500
152,4
6.00
94,8
28
0,82
0.55
45,7
150
H055424-150 38
38,1
1.50
50,0
1.97
20,7
300 103
1500
203,2
8.00
94,8
28
1,44
0.97
45,7
150
H055432 51
50,8
2.00
65,9
2.59
20,7
300 103
1500
355,6
14.00
94,8
28
2,31
1.55
15,2
50
H055432-100 51
50,8
2.00
65,9
2.59
20,7
300 103
1500
355,6
14.00
94,8
28
2,31
1.55
30,5
100
H055448 80
76,1
3.00
95,3
3.75
20,7
300 103
1500
558,8
22.00
94,8
28
3,44
2.31
15,2
50
H055448-150 80
76,1
3.00
95,3
3.75
20,7
300 103
1500
558,8
22.00
94,8
28
3,44
2.31
45,7
150
H055464-150 102
101,6
4.00
121,2
4.77
20,7
300 103
1500
558,8
22.00
94,8
28
6,28
4.22
45,7
150
Construction: Application: Markets: Type of Couplings:
Tube: UHMW-PE . For transfer of acids, . Chemical petroleum industry . Cam and groove FDA-approved material chemicals, solvents, and . In-plant transfers . Combination nipple Reinforcement: petroleum products . Tank truck or swaged/crimped 2-wire braid, dual . Loading and unloading, . Paper/pulp industry . Clamps-double bolt
stainless steel static wire, pumping, suction, or gravity . Bulk hauling or bands 3.00” and 4.00” helical wire flow discharge . Oil and gas exploration Cover: EPDM Contact coupling manufacturer for
Operating Temperature: attachment procedure and other -40°C to +80°C coupling recommendations
(-40°F to +176°F)
Chemical
XLPE Suction and Discharge EHC001
Part No. Hose I.D. Hose O.D. Max Oper Pressure Burst Pressure Minimum Bend Radius r Vacuum Weight Length
mtr ft DN mm in mm in bar psi bar psi mm in kPa in/Hg kg/m lbs/ft mtr ft
EHC001-12GN MXX 100 19 19,1 0.75 31 1.22 10,5 150 41 600 80 3.15 94,8 28 0,67 0.45 40-61 100
EHC001-16GN MXX 100 25 25,4 1.00 37 1.46 10,5 150 41 600 110 4.33 94,8 28 0,82 0.55 40-61 100
EHC001-20GN MXX 100 31 31,8 1.25 45 1.77 10,5 150 41 600 165 6.50 94,8 28 1,13 0.76 40-61 100
EHC001-24GN MXX 100 38 38,1 1.50 52 2.05 10,5 150 41 600 225 8.86 94,8 28 1,46 0.98 40-61 100
EHC001-28GN MXX 100 45 44,5 1.75 59 2.32 10,5 150 41 600 285 11.22 94,8 28 1,78 1.20 40-61 100
EHC001-32GN MXX 100 51 50,8 2.00 67 2.64 10,5 150 41 600 350 13.78 94,8 28 2,26 1.52 40-61 100
EHC001-40GN MXX 100 60 63,5 2.50 80 3.15 10,5 150 41 600 450 17.72 94,8 28 2,82 1.90 40-61 100
EHC001-44GN MXX 100 70 70,0 2.75 87 3.43 10,5 150 41 600 550 21.65 94,8 28 3,19 2.14 40-61 100
EHC001-48GN MXX 100 80 76,2 3.00 93 3.66 10,5 150 41 600 800 31.50 94,8 28 3,43 2.31 40-61 100
EHC001-64GN MXX 100 102 101,6 4.00 120 4.72 10,5 150 41 600 1200 47.24 94,8 28 5,29 3.56 40-61 100
Construction:Application:
Tube: XLPE. For transfer of acids,
Reinforcement: High-tensile chemicals, solvents, and synthetic textile, dual steel petroleum products helical wire and anti-static copper wire Operating Temperature:
Cover: EPDM-40°C to +80°C (-40°F to +176°F)
Corrugated XLPE Suction and Discharge EHC002
Markets:
.
Chemical petroleum industry
.
In-plant transfers
.
Tank truck
.
Paper/pulp industry
.
Bulk hauling
Type of Couplings:
.
Cam and groove
.
Combination nipple or swaged/crimped
.
Clamps-double bolt or bands
Part No. Hose I.D. Hose O.D. Max Oper Pressure Burst Pressure Minimum Bend Radius r Vacuum Weight Length
mtr ft DN mm in mm in bar psi bar psi mm in kPa in/Hg kg/m lbs/ft mtr ft
EHC002-12GN MXX 100 19 19,1 0.75 29,0 1.14 10,5 150 31 450 70 2.76 94,8 28 0,49 0.33 40-61 100
EHC002-16GN MXX 100 25 25,4 1.00 36,0 1.42 10,5 150 31 450 100 3.94 94,8 28 0,64 0.43 40-61 100
EHC002-20GN MXX 100 31 31,8 1.25 43,0 1.69 10,5 150 31 450 130 5.12 94,8 28 0,96 0.65 40-61 100
EHC002-24GN MXX 100 38 38,1 1.50 50,0 1.97 10,5 150 31 450 160 6.30 94,8 28 1,11 0.75 40-61 100
EHC002-32GN MXX 100 51 50,8 2.00 64,0 2.52 10,5 150 31 450 250 9.84 94,8 28 1,60 1.08 40-61 100
EHC002-40GN MXX 100 60 63,5 2.50 78,0 3.07 10,5 150 31 450 350 13.78 94,8 28 2,26 1.52 40-61 100
EHC002-48GN MXX 100 80 76,1 3.00 91,0 3.58 10,5 150 31 450 450 17.72 94,8 28 2,60 1.75 40-61 100
EHC002-64GN MXX 100 102 101,6 4.00 119,0 4.69 10,5 150 31 450 700 27.56 94,8 28 4,33 2.91 40-61 100
EHC002-80GN MXX 100 130 127,0 5.00 148,0 5.83 10,5 150 31 450 900 35.43 94,8 28 6,75 4.54 40-61 100
Construction:Application: Markets: Type of Couplings:
Tube: XLPE . For transfer of acids, . Chemical petroleum industry . Cam and groove Reinforcement: High-tensile chemicals, solvents, and . In-plant transfers . Combination nipple or synthetic textile, dual steel petroleum products . Tank truck swaged/crimped
helical wire and anti-static . Paper/pulp industry copper wire Operating Temperature: . Bulk hauling
Cover: Flat corrugated EPDM-40°C to +80°C . Oil and gas exploration Contact coupling manufacturer for
attachment procedure and other (-40°F to +176°F) coupling recommendations
Chemical
Corrugated UHMW Suction and Discharge EHC005
Part No. Hose I.D. Hose O.D. Max Oper Pressure Burst Pressure Minimum Bend Radius r Vacuum Weight Length
mtr ft DN mm in mm in bar psi bar psi mm in kPa in/Hg kg/m lbs/ft mtr ft
EHC005-12GN MXX 100 19 19,1 0.75 29,0 1.14 10,5 150 41 600 90 3.54 94,8 28 0,57 0.38 40-61 100
EHC005-16GN MXX 100 25 25,4 1.00 36,0 1.42 10,5 150 41 600 110 4.33 94,8 28 0,76 0.51 40-61 100
EHC005-20GN MXX 100 31 31,8 1.25 44,0 1.69 10,5 150 41 600 150 5.91 94,8 28 1,08 0.73 40-61 100
EHC005-24GN MXX 100 38 38,1 1.50 50,0 1.97 10,5 150 41 600 175 6.89 94,8 28 1,24 0.83 40-61 100
EHC005-32GN MXX 100 51 50,8 2.00 65,0 2.56 10,5 150 41 600 250 9.84 94,8 28 1,96 1.32 40-61 100
EHC005-40GN MXX 100 60 63,5 2.50 78,0 3.07 10,5 150 41 600 325 12.80 94,8 28 2,33 1.57 40-61 100
EHC005-48GN MXX 100 80 76,1 3.00 91,0 3.58 10,5 150 41 600 450 17.72 94,8 28 2,99 2.01 40-61 100
EHC005-64GN MXX 100 102 101,6 4.00 118,0 4.69 10,5 150 41 600 650 25.59 94,8 28 4,28 2.87 40-61 100
*Product available in additional colors on a MTO basis
Construction: Application: Markets: Type of Couplings:
Tube: UHMW-PE . For transfer of acids, . Chemical petroleum industry . Cam and groove
Reinforcement: High-tensile synthetic textile, steel helical chemicals, solvents, and petroleum products . In-plant transfers . Tank truck . Combination nipple or swaged/crimped
wire and anti-static copper . Paper/pulp industry
wire Operating Temperature: . Bulk hauling
Cover: Corrugated EPDM -40°C to +80°C (-40°F to +176°F) . Oil and gas exploration Contact coupling manufacturer for attachment procedure and other coupling recommendations
Material Handling
EHK006 Plaster, Grout, & Cement Spraying EHK007 Concrete Placement H0034 Concord Sandblast H0521 LYNX Heavy Duty Softwall Dry Material H0319 LYNX Softwall Dry Material H0349 Wildcat Hot Air H0347 Sabertooth
Use of damaged hose or improper use may result in bodily injury or property damage. Please consult Eaton catalog or Technical Support for proper application.
Material Handling
Plaster, Grout and Cement Spraying EHK006
Construction:
Tube: Natural rubber
Reinforcement: High-tensile synthetic textile and anti-static copper wire
Cover: Pin-pricked synthetic rubber
Concrete Placement EHK007
Application:
. For high-pressure spraying plaster, grout, sand, gypsum, and ready mixed concrete
Operating Temperature:
-40°C to +70°C (-40°F to +158°F)
Markets:Type of Couplings:
.
Construction. Victaulic male NPT
.
Cement
.
Swimming pool
Part No. Hose I.D. Hose O.D. Max Oper Pressure Burst Pressure Minimum Bend Radius r Weight Length
mtr ft DN mm in mm in bar psi bar psi mm in kg/m lbs/ft mtr ft
EHK007-32 MXX 100 51 51,0 2.00 70,0 2.76 85 1232 200 2900 275 10.83 3,03 2.04 40-61 100
EHK007-40 MXX 100 60 63,5 2.50 88,0 3.46 85 1232 200 2900 300 11.81 4,48 3.01 40-61 100
EHK007-48 MXX 100 80 76,2 3.00 102,0 4.02 85 1232 200 2900 350 13.78 5,46 3.67 40-61 100
EHK007-64 MXX 100 102 101,6 4.00 130,0 5.12 85 1232 200 2900 400 15.75 8,46 5.69 40-61 100
EHK007-80 MXX 100 130 127,0 5.00 155,0 6.10 85 1232 200 2900 500 19.69 9,63 6.47 40-61 100
EHK007-96 MXX 100 150 153,0 6.00 180,0 7.09 85 1232 140 2032 650 25.59 10,99 7.39 40-61 100
Construction: Application: Markets:Type of Couplings:
Tube: Natural and . High-pressure concrete . Construction . Victaulic male NPT CBR blend pumping . Cement placement Reinforcement: High-tensile steel cords Operating Temperature:
Cover: Pin-pricked -40°C to +70°C
synthetic rubber (-40°F to +158°F) Contact coupling manufacturer for attachment procedure and other coupling recommendations.
Material Handling
Concord Sandblast H0034
Part No. Hose I.D. Hose O.D. Max Operating Pressure Burst Pressure Minimum Bend Radius r Weight Length
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft mtr ft
H003408-100 12 12,7 0.50 28,5 1.12 10,5 150 41 600 60 2.36 0,60 0.40 30,5 100
H003412-100 19 19,0 0.75 38,1 1.50 10,5 150 41 600 80 3.15 1,03 0.69 30,5 100
H003416-100 24 25,4 1.00 47,6 1.87 10,5 150 41 600 115 4.53 1,53 1.03 30,5 100
H003420-100 31 31,8 1.25 54,8 2.16 10,5 150 41 600 135 5.31 1,84 1.23 30,5 100
H003424-100 38 38,0 1.50 60,0 2.36 10,5 150 41 600 175 6.89 1.98 1.33 30,5 100
H003432-100 51 50,8 2.00 73,0 2.87 10,5 150 41 600 310 12,2 2.47 1.66 30,5 100
LYnX Heavy Duty Softwall Dry Material H0521
Construction:
Tube: Natural rubber blend Reinforcement:
.50” 2-ply textile .75”–2.00” 4-ply textile
Cover: SBR
Operating Temperature:
-40°C to +70°C (-40°F to +158°F)
Application:
.
Conveys sand or shot for cleaning purposes
.
Conveys sand from sandblast equipment to clean steel or concrete before painting or sealing
Markets: Type of Couplings:
.
Construction . Sandblast couplings that
.
Metal working attach to the O.D. of hose
.
Ship building
Contact coupling manufacturer for attachment procedure and other coupling recommendations
Part No. Hose I.D. Hose O.D. Max Operating Pressure Burst Pressure Weight Length
DN mm in mm in bar psi bar psi kg/m lbs/ft mtr ft
H052164-100 102 101,6 4.00 122,2 4.03 5,0 75 20,7 300 4,03 2.71 30,5 100
H052180-100 130 127,0 5.00 147,0 5.79 5,0 75 20,7 300 5,02 3.37 30,5 100
Markets:
.
In-plant transfers
.
Tank truck
.
Bottling plant
.
Coal plant
.
Dry cement operations
.
Well service
Construction:
Tube: 1/4” tube thickness natural rubber blend
Reinforcement: 2-ply textile and conductive copper static wire
Cover: SBR blend
Operating Temperature:
-40°C to +70°C (-40°F to +158°F)
Application:
.
Transfer of dry bulk
.
Discharge of abrasive materials
.
Transfer of bottle caps
.
Transfer of cleaning agents
Type of Couplings:
.
Cam and groove
.
Combination nipple
Contact coupling manufacturer for attachment procedure and other coupling recommendations
Material Handling
LYnX Softwall Dry Material H0319
Part No. Hose I.D. Hose O.D. Max Operating Pressure Burst Pressure Weight Length
DN mm in mm in bar psi bar psi kg/m lbs/ft mtr ft
H031964-100 102 101,6 4.00 117 4.61 5 75 20,7 300 3,35 2.25 30,5 100
H031980-100 130 127,0 5.00 144 5.67 5 75 20,7 300 4,22 2.84 30,5 100
Construction:
Tube: 3/16” tube thickness natural rubber blend
Reinforcement: 2-ply textile and conductive copper static wire
Cover: SBR blend
Operating Temperature:
-40°C to +70°C (-40°F to +158°F)
Wildcat Hot Air H0349
Application:
.
Transfer of dry bulk
.
Discharge of abrasive materials
.
Transfer of bottle caps
.
Transfer of cleaning agents
Markets:
.
In-plant transfers
.
Tank truck
.
Bottling plant
.
Coal plant
.
Dry cement operations
.
Well service
Type of Couplings:
.
Cam and groove
.
Combination nipple
Contact coupling manufacturer for attachment procedure and other coupling recommendations
Part No. Hose I.D. Hose O.D. Max Operating Pressure Burst Pressure Minimum Bend Radius r Vacuum Weight Length
DN mm in mm in bar psi bar psi mm in kPa in/Hg kg/m lbs/ft mtr ft
H034948-100 80 76,2 3.00 90,5 3.56 10,5 150 42 600 350 13.78 81,3 24 2,85 1.92 30,5 100
H034964-100 102 101,6 4.00 116,6 4.59 7,0 100 28 400 460 18.11 81,3 24 3,58 2.41 30,5 100
Construction: Application: Markets:
Tube: EPDM . Hot-air blower hose . Construction Reinforcement: Textile . Hot, dry, non-oily applications . In-plant transfers with dual helical wires . Tank truck
Cover: Pin-pricked EPDM . Dry cement delivery
Operating Temperature:
-34°C to +177°C (-30°F to +350°F)
Type of Couplings:
.
Cam and groove
.
Combination nipple
Contact coupling manufacturer for attachment procedure and other coupling recommendations
Material Handling
Sabertooth H0347
Part No. Hose I.D. Hose O.D. Max Operating Pressure Burst Pressure Minimum Bend Radius r Weight Length
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft mtr ft
H034748-100 80 76,2 3.00 101,6 4.00 7 100 28 400 228,6 9.00 4.76 3.20 30,5 100
H034764-100 102 101,6 4.00 127,0 5.00 7 100 28 400 279,4 11.00 6,55 4.40 30,5 100
Construction:
Tube: Static dissipating natural rubber/SBR
Reinforcement: 2-ply fiber with helical wires
Cover: SBR
Operating Temperature:
-23°C to +71°C (-10°F to +160°F)
Application:
.
Transfer of dry bulk
.
Discharge of abrasive material
.
Transfer of bottle caps
.
Transfer of cleaning agents
Markets:
.
In-plant transfers
.
Tank truck
.
Bottling plant
.
Coal plant
.
Dry cement operations
.
Well service
Type of Couplings:
.
Cam and groove
.
Combination nipple
Contact coupling manufacturer for attachment procedure and other coupling recommendations
Warning
Use of damaged hose or improper use may result in bodily injury or property damage. Please consult Eaton catalog or Technical Support for proper application.

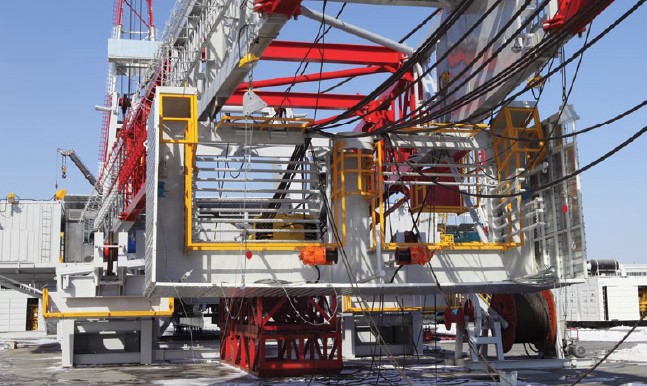

Oil and Gas Exploration
EHP009 Oilfield Vacuum EHP007 Oilfield Suction EHP001 BLACKCAT FRAC EHP002 Oilfield Mud Suction and Discharge H0377 Kelly Power Oil
Use of damaged hose or improper use may result in bodily injury or property damage. Please consult Eaton catalog or Technical Support for proper application.
Oil and Gas Exploration
Oilfield Vacuum EHP009
Part No. Hose I.D. Hose O.D. Max Oper Pressure Burst Pressure Minimum Bend Radius r Vacuum Weight Length
mtr ft DN mm in mm in bar psi bar psi mm in kPa in/Hg kg/m lbs/ft mtr ft
EHP009-24 MXX 100 38 38,1 1.50 45,1 1.78 10,5 150 31 450 115 4.53 94,8 28 1,07 0.72 40-61 100
EHP009-32 MXX 100 51 50,8 2.00 61,1 2.41 10,5 150 31 450 145 5.71 94,8 28 1,58 1.06 40-61 100
EHP009-40 MXX 100 60 63,5 2.50 80,5 3.17 10,5 150 31 450 195 7.68 94,8 28 2,12 1.42 40-61 100
EHP009-48 MXX 100 80 76,2 3.00 90,9 3.58 10,5 150 31 450 240 9.45 94,8 28 2,70 1.81 40-61 100
EHP009-64 MXX 100 102 101,6 4.00 116,4 4.58 10,5 150 31 450 340 13.39 94,8 28 3,87 2.60 40-61 100
EHP009-96 MXX 100 150 152,4 6.00 171,4 6.75 10,5 150 31 450 650 25.59 80,0 24 7,57 5.09 40-61 100
EHP009-128 MXX 20 200 203,2 8.00 224,5 8.84 10,5 150 31 450 900 35.43 80,0 24 13,52 9.09 10 20
EHP009-128 MXX 25 200 203,2 8.00 224,5 8.84 10,5 150 31 450 900 35.43 80,0 24 13,52 9.09 10 25
EHP009-160 MXX 20 250 254,0 10.00 276,5 10.88 10,5 150 31 450 1400 55.12 80,0 24 17,89 12.02 10 20
EHP009-160 MXX 25 250 254,0 10.00 276,4 10.88 10,5 150 31 450 1400 55.12 80,0 24 17,89 12.02 10 25
Construction:
Tube: Nitrile blend
Reinforcement: High-tensile synthetic textile with dual steel helical wires
Cover: Corrugated EPDM blend
Oilfield Suction EHP007
Application:
. For transfer applications such
as drilling mud or crude oil Not recommended for refined petroleum products
Operating Temperature:
-30°C to +80°C (-22°F to +176°F)
Markets: Type of Couplings:
.
Oil and gas exploration . Cam locks
.
Well service . Male NPT
.
Fracking industry . Unions
Part No. Hose I.D. Hose O.D. Max Oper Pressure Burst Pressure Minimum Bend Radius r Vacuum Weight Length
mtr ft DN mm in mm in bar psi bar psi mm in kPa in/Hg kg/m lbs/ft mtr ft
EHP007-24 MXX 100 38 38,1 1.50 49,0 1.93 10,5 150 31 450 110 4.33 94,8 28 1,11 0.75 40-61 100
EHP007-32 MXX 100 51 50,8 2.00 63,0 2.48 10,5 150 31 450 170 6.69 94,8 28 1,58 1.06 40-61 100
EHP007-40 MXX 100 60 63,5 2.50 76,0 2.99 10,5 150 31 450 210 8.27 94,8 28 2,04 1.37 40-61 100
EHP007-48 MXX 100 80 76,2 3.00 89,0 3.50 10,5 150 31 450 230 9.06 94,8 28 2,69 1.81 40-61 100
EHP007-64 MXX 100 102 101,6 4.00 117,0 4.61 10,5 150 31 450 400 15.75 94,8 28 3,90 2.62 40-61 100
EHP007-96 MXX 100 150 152,4 6.00 170,0 6.69 10,5 150 31 450 675 26.57 94,8 28 7,56 5.08 40-61 100
EHP007-128 MXX 20 200 203,2 8.00 228,0 8.98 10,5 150 31 450 1025 40.35 80,0 24 13,79 9.27 10 20
EHP007-128 MXX 25 200 203,2 8.00 228,0 8.98 10,5 150 31 450 1025 40.35 80,0 24 13,79 9.27 10 25
EHP007-160 MXX 20 250 254,0 10.00 282,0 11.10 10,5 150 31 450 1450 57.09 80,0 24 18,30 12.30 10 20
EHP007-160 MXX 25 250 254,0 10.00 282,0 11.10 10,5 150 31 450 1450 57.09 80,0 24 18,30 12.30 10 25
Construction: Application: Markets: Type of Couplings:
Tube: Nitrile blend . For transfer applications such . Oil and gas exploration . Cam locks Reinforcement: High-tensile as drilling mud or crude oil . Well service . Male NPT
synthetic textile with a single . For use with petroleum . Fracking industry . Unions steel helical wire for smaller products with aromatic
sizes and dual helical wire content up to 50% Contact coupling manufacturer for available on 8.00” and 10.00” attachment procedure and other
and an anti-static copper wire Operating Temperature: coupling recommendations
-35°C to +70°C Cover: Nitrile/PVC (-31°F to +158°F)
EATON Industrial Hose Oil and Gas Exploration E-HOIN-BB004-E 27
Oil and Gas Exploration
BLACKCAT FRAC EHP001
Part No. Hose I.D. Hose O.D. Max Operating Pressure Burst Pressure Minimum Bend Radius r Weight Length
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft mtr ft
EHP00148 80 76,2 3.00 93,7 3.69 28 400 110 1600 762 30.0 3,08 2.07 15,3 50
EHP00148-100 80 76,2 3.00 93,7 3.69 28 400 110 1600 762 30.0 3,08 2.07 30,5 100
EHP00164 102 101,6 4.00 118,7 4.67 28 400 110 1600 1016 40.0 3,58 2.43 15,3 50
EHP00164-100 102 101,6 4.00 118,7 4.67 28 400 110 1600 1016 40.0 3,58 2.43 30,5 100
Construction: Application:
Tube: Nitrile blend . Petroleum based fluids, non-(RMA Class A) potable and salt water, Reinforcement: 4-ply fracturing solutions,
and slurries polyester fabric
Cover: Bruiser. abrasion
resistant cover Operating Temperature:
-40°C to +93°C
(-40°F to +200°F)
Oilfield Mud Suction and Discharge EHP002
Markets: Type of Couplings:
.
Oil and gas exploration . King crimp style
.
Well service combination nipples
.
Fracking industry . One-piece hammer union frac fitting
Contact coupling manufacturer for attachment procedure and other coupling recommendations
Part No. Hose I.D. Hose O.D. Max Oper Pressure Burst Pressure Minimum Bend Radius r Vacuum Weight Length
mtr ft DN mm in mm in bar psi bar psi mm in kPa in/Hg kg/m lbs/ft mtr ft
EHP002-16 MXX 100 25 25,4 1.00 34,0 1.34 10,5 150 31 450 90 3.54 94,8 28 0,60 0.40 40-61 100
EHP002-24 MXX 100 38 38,1 1.50 48,0 1.89 10,5 150 31 450 135 5.31 94,8 28 1,11 0.75 40-61 100
EHP002-32 MXX 100 51 50,8 2.00 62,0 2.44 10,5 150 31 450 200 7.87 94,8 28 1,68 1.13 40-61 100
EHP002-40 MXX 100 60 63,5 2.50 75,0 2.95 10,5 150 31 450 270 10.63 94,8 28 2,12 1.42 40-61 100
EHP002-48 MXX 100 80 76,2 3.00 89,0 3.50 10,5 150 31 450 340 13.39 94,8 28 2,75 1.85 40-61 100
EHP002-64 MXX 100 102 101,6 4.00 115,0 4.53 10,5 150 31 450 450 17.72 94,8 28 3,81 2.56 40-61 100
EHP002-96 MXX 100 150 152,4 6.00 168,0 6.61 10,5 150 31 450 700 27.56 94,8 28 7,19 4.83 40-61 100
EHP002-128 MXX 20 200 203,2 8.00 225,0 8.86 10,5 150 31 450 1100 43.31 80,0 24 13,22 8.88 20 20
EHP002-128 MXX 25 200 203,2 8.00 225,0 8.86 10,5 150 31 450 1100 43.31 80,0 24 13,22 8.88 20 25
EHP002-160 MXX 20 250 254,0 10.00 279,0 10.98 10,5 150 31 450 1500 59.06 80,0 24 18,26 12.27 10 20
EHP002-160 MXX 25 250 254,0 10.00 279,0 10.98 10,5 150 31 450 1500 59.06 80,0 24 18,26 12.27 10 25
EHP002-192 MXX 20 305 304,8 12.00 329,0 12.95 10,5 150 31 450 1900 74.80 80,0 24 20,68 13.90 10 20
EHP002-192 MXX 25 305 304,8 12.00 329,0 12.95 10,5 150 31 450 1900 74.80 80,0 24 20,68 13.90 10 25
Construction:
Tube: Synthetic and natural rubber blend
Reinforcement: High-tensile synthetic textile and a single steel helical wire available on smaller sizes and dual helical wires available for 8.00” through 12.00”
Cover: EPDM blend
Application: Markets: Type of Couplings:
. For transfer applications such . Oil and gas exploration . Cam locks
as drilling mud . Well service . Male NPT
. Fracking industry . Unions
Operating Temperature:
-25°C to +70°C Contact coupling manufacturer for
(-13°F to +158°F) attachment procedure and other coupling recommendations
Oil and Gas Exploration
Kelly Power Oil H0377
Part No. Hose I.D. Hose O.D. Max Operating Pressure Burst Pressure Minimum Bend Radius r Weight Length
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft mtr ft
H037732 51 50,8 2.00 66,7 2.63 207 3000 830 12000 635 25.00 4,61 3.10 15,2 50
H037732-100 51 50,8 2.00 66,7 2.63 207 3000 830 12000 635 25.00 4,61 3.10 30,5 100
.
430 “U” Series
Construction:
Tube: Nitrile/Hypalon blend Reinforcement:
4-spiral wire Cover: Neoprene
Application:
. Rotary drilling on portable drilling rigs, work over rigs and slim hole rigs
Operating Temperature:
-40°C to +121°C (-40°F to +250°F)
Markets:
.
Oil and gas exploration
.
Well service
.
Fracking industry
Type of Couplings:
.
Unions
.
Boss male
Contact coupling manufacturer for attachment procedure and other coupling recommendations
Petroleum
EHP502 High Pressure Petroleum Suction and Discharge EHP504 High Pressure Petroleum Discharge H1193 Royalflex Petroleum H0369 Corrugated Bobcat Light Duty EHP503 Corrugated Petroleum Tank Truck H901 Boston Bull Dog Fuel Oil Delivery H0363 PUMA Petroleum EHP519 PUMA Flat Corrugated Petroleum EHP500 Petroleum Tank Truck
Use of damaged hose or improper use may result in bodily injury or property damage. Please consult Eaton catalog or Technical Support for proper application.
Petroleum
High Pressure Petroleum Suction and Discharge EHP502
Part No. Hose I.D. Hose O.D. Max Oper Pressure Burst Pressure Minimum Bend Radius r Vacuum Weight Length
mtr ft DN mm in mm in bar psi bar psi mm in kPa in/Hg kg/m lbs/ft mtr ft
EHP502-16 MXX 100 25 25,4 1.00 37,0 1.38 17,2 250 52 750 110 4.33 94,8 28 0,80 0.39 40-61 100
EHP502-20 MXX 100 31 31,8 1.25 44,0 1.73 17,2 250 52 750 145 5.71 94,8 28 1,04 0.58 40-61 100
EHP502-24 MXX 100 38 38,1 1.50 51,0 2.00 17,2 250 52 750 180 7.09 94,8 28 1,37 0.92 40-61 100
EHP502-28 MXX 100 45 44,5 1.75 58,0 2.28 17,2 250 52 750 220 8.66 94,8 28 1,62 1.09 40-61 100
EHP502-32 MXX 100 51 50,8 2.00 65,0 2.56 17,2 250 52 750 265 10.43 94,8 28 1,89 1.27 40-61 100
EHP502-40 MXX 100 60 63,5 2.50 79,0 3.11 17,2 250 52 750 330 13.00 94,8 28 2,48 1.67 40-61 100
EHP502-48 MXX 100 80 76,2 3.00 92,0 3.62 17,2 250 52 750 400 15.75 94,8 28 3,26 2.19 40-61 100
EHP502-56 MXX 100 90 90,0 3.50 107,0 4.21 17,2 250 52 750 475 18.70 94,8 28 4,03 2.71 40-61 100
EHP502-64 MXX 100 102 101,6 4.00 118,0 4.65 17,2 250 52 750 535 21.06 94,8 28 4,31 2.90 40-61 100
EHP502-80 MXX 100 130 127,0 5.00 148,0 5.83 17,2 250 52 750 685 27.00 80,0 24 7,01 4.71 40-61 100
EHP502-96 MXX 100 150 152,4 6.00 175,5 6.91 17,2 250 52 750 840 33.02 80,0 24 9,63 6.47 40-61 100
Construction: Application: Markets: Type of Couplings:
Tube: NBR . For transfer of petroleum . Petroleum industry . Cam and groove
Reinforcement: High-tensile products . Paper/pulp industry . Combination nipple or synthetic textile helical wire . For suction and discharge of . Oil and gas exploration swaged/crimped
and anti-static copper wire petroleum products with . Ship building aromatic content up to 50% Contact coupling manufacturer for Cover: Synthetic rubber . Tank trucks attachment procedure and other Operating Temperature: . Waste hauling coupling recommendations
-35°C to +70°C . Well service (-31°F to +158°F)
High Pressure Petroleum Discharge EHP504
Part No. Hose I.D. Hose O.D. Max Oper Pressure Burst Pressure Minimum Bend Radius r Weight Length
mtr ft DN mm in mm in bar psi bar psi mm in kg/m lbs/ft mtr ft
EHP504-16 MXX 100 25 25,4 1.00 36 1.42 17,2 250 52 750 254 10.00 0,65 0.44 40-61 100
EHP504-20 MXX 100 31 32,0 1.25 43 1.69 17,2 250 52 750 320 12.60 0,86 0.58 40-61 100
EHP504-24 MXX 100 38 38,0 1.50 49 1.93 17,2 250 52 750 380 14.96 0,97 0.65 40-61 100
EHP504-28 MXX 100 45 44,5 1.75 56 2.20 17,2 250 52 750 445 17.52 1,23 0.83 40-61 100
EHP504-32 MXX 100 51 50,8 2.00 63 2.48 17,2 250 52 750 508 20.00 1,39 0.93 40-61 100
EHP504-40 MXX 100 60 63,5 2.50 76 2.99 17,2 250 52 750 635 25.00 1,79 1.20 40-61 100
EHP504-48 MXX 100 80 76,2 3.00 90 3.54 17,2 250 52 750 762 30.00 2,33 1.57 40-61 100
EHP504-56 MXX 100 90 90,0 3.50 105 4.13 17,2 250 52 750 900 35.43 2,96 1.99 40-61 100
EHP504-64 MXX 100 102 101,6 4.00 117 4.61 17,2 250 52 750 1016 40.00 3,35 2.25 40-61 100
EHP504-80 MXX 100 130 127,0 5.00 144 5.67 17,2 250 52 750 1270 50.00 4,55 3.06 40-61 100
EHP504-96 MXX 100 150 152,4 6.00 171 6.73 17,2 250 52 750 1524 60.00 5,96 4.01 40-61 100
Construction: Application: Markets: Type of Couplings:
Tube: Nitrile . High pressure discharge of . Petroleum industry . Cam and groove
Reinforcement: High-tensile petroleum products . Paper/pulp industry . Combination nipple or synthetic textile . For use with petroleum . Oil and gas exploration swaged/crimped and anti-static copper wire products with aromatic . Ship building . Clamps band
content up to 50%
Cover: Synthetic rubber . Tank trucks Operating Temperature: . Waste hauling
-35°C to +70°C(-31°F to +158°F)
EATON Industrial Hose Oil and Gas Exploration E-HOIN-BB004-E 31
Petroleum
Royalflex Petroleum H1193
Part No. Hose I.D. Hose O.D. Max Operating Pressure Burst Pressure Minimum Bend Radius r Vacuum Weight Length
DN mm in mm in bar psi bar psi mm in kPa in/Hg kg/m lbs/ft mtr ft
H119324 38 38,1 1.50 50,8 2.00 20,7 300 83 1200 152,4 6.00 100 30 1,19 0.80 15,2 50
H119324-100 38 38,1 1.50 50,8 2.00 20,7 300 83 1200 152,4 6.00 100 30 1,19 0.80 30,5 100
H119324-120 38 38,1 1.50 50,8 2.00 20,7 300 83 1200 152,4 6.00 100 30 1,19 0.80 36,6 120
H119332 51 50,8 2.00 63,5 2.50 20,7 300 83 1200 203,2 8.00 100 30 1,64 1.10 15,2 50
H119332-100 51 50,8 2.00 63,5 2.50 20,7 300 83 1200 203,2 8.00 100 30 1,64 1.10 30,5 100
H119332-120 51 50,8 2.00 63,5 2.50 20,7 300 83 1200 203,2 8.00 100 30 1,64 1.10 36,6 120
H119340-100 60 63,5 2.50 76,2 3.00 20,7 300 83 1200 254,0 10.00 100 30 1,99 1.34 30,5 100
H119340-120 60 63,5 2.50 76,2 3.00 20,7 300 83 1200 254,0 10.00 100 30 1,99 1.34 36,6 120
H119348 80 76,2 3.00 88,9 3.50 17,2 250 70 1000 304,8 12.00 100 30 2,98 2.00 15,2 50
H119348-100 80 76,2 3.00 88,9 3.50 17,2 250 70 1000 304,8 12.00 100 30 2,98 2.00 30,5 100
H119348-120 80 76,2 3.00 88,9 3.50 17,2 250 70 1000 304,8 12.00 100 30 2,98 2.00 36,6 120
H119364 102 101,6 4.00 114,3 4.50 13,8 200 41 600 406,4 16.00 100 30 4,05 2.72 15,2 50
H119364-100 102 101,6 4.00 114,3 4.50 13,8 200 41 600 406,4 16.00 100 30 4,05 2.72 30,5 100
H119364-120 102 101,6 4.00 114,3 4.50 13,8 200 41 600 406,4 16.00 100 30 4,05 2.72 36,6 120
*Additional lengths available
Construction:
Tube: Nitrile blend
Reinforcement: 100% polyester and helical wire Cover: Nitrile blend
Corrugated Bobcat Light Duty H0369
Application:
. Transfer of petroleum products
Operating Temperature:
-29°C to +82°C (-20°F to +180°F)
Markets:
.
Petroleum industry
.
Oil and gas exploration
.
Tank trucks
.
Waste hauling
.
Batch plants
.
Refineries
Type of Couplings:
.
Male NPT
.
Cam locks
Contact coupling manufacturer for attachment procedure and other coupling recommendations.
Construction:
Tube: Vinyl nitrile
Reinforcement: 2-ply fiber with dual helical wires
Cover: Corrugated vinyl nitrile blend
Application:
.
Transfer and blending of petroleum products
.
Transfer of crude oil, salt water, slurries, and non-potable water
Operating Temperature:
-40°C to +82°C (-40°F to +180°F)
Markets:
.
Petroleum industry
.
Oil and gas exploration
.
Tank trucks
.
Waste hauling
.
Batch plants
.
Gasoline drop
Type of Couplings:
.
Cam and groove
.
Combination nipple or swaged/crimped
Contact coupling manufacturer for attachment procedure and other coupling recommendations.
Petroleum
Corrugated Petroleum Tank Truck EHP503
Part No. Hose I.D. Hose O.D. Max Oper Pressure Burst Pressure Minimum Bend Radius r Vacuum Weight Length
mtr ft DN mm in mm in bar psi bar psi mm in kPa in/Hg kg/m lbs/ft mtr ft
EHP503-12BK MXX 100 19 19,1 0.75 29,0 1.14 10,5 150 31,0 450 65 2.56 94,8 28 0,46 0.31 40-61 100
EHP503-16BK MXX 100 25 25,4 1.00 36,0 1.42 10,5 150 31,0 450 85 3.35 94,8 28 0,61 0.41 40-61 100
EHP503-20BK MXX 100 31 31,8 1.25 43,0 1.69 10,5 150 31,0 450 110 4.35 94,8 28 0,85 0.57 40-61 100
EHP503-24BK MXX 100 38 38,1 1.50 49,0 1.93 10,5 150 31,0 450 130 5.12 94,8 28 0,99 0.67 40-61 100
EHP503-32BK MXX 100 51 50,8 2.00 63,0 2.48 10,5 150 31,0 450 175 6.89 94,8 28 1,50 1.01 40-61 100
EHP503-40BK MXX 100 60 63,5 2.50 77,0 3.03 10,5 150 31,0 450 210 8.27 94,8 28 2,10 1.41 40-61 100
EHP503-48BK MXX 100 80 76,2 3.00 90,0 3.54 10,5 150 31,0 450 250 9.84 94,8 28 2,60 1.75 40-61 100
EHP503-64BK MXX 100 102 101,6 4.00 117,0 4.61 10,5 150 31,0 450 360 14.17 94,8 28 3,82 2.57 40-61 100
EHP503-80BK MXX 100 130 127,0 5.00 145,0 5.71 10,5 150 31,0 450 480 18.90 80,0 24 6,19 4.16 40-61 100
EHP503-96BK MXX 100 150 152,4 6.00 172,0 6.77 10,5 150 31,0 450 600 23.62 80,0 24 8,62 5.79 40-61 100
EHP503-128BK MXX 20 200 203,2 8.00 225,0 8.86 10,5 150 31,0 450 900 35.43 80,0 24 12,43 8.35 20 20
Construction:
Tube: Nitrile blend
Reinforcement: High-tensile synthetic textile with a single steel helical wire and anti-static copper wire
Cover: Flat corrugated synthetic blend
Application:
. For use with petroleum products with aromatic content up to 50%
Operating Temperature:
-35°C to +70°C (-31°F to +158°F)
Markets:
.
Petroleum industry
.
Paper/pulp industry
.
Oil and gas exploration
.
Ship building
.
Tank trucks
.
Waste hauling
Type of Couplings:
.
Cam and groove
.
Combination nipple or swaged/crimped
Contact coupling manufacturer for attachment procedure and other coupling recommendations
Boston Bull Dog Fuel Oil Delivery H901
Construction:
Tube: Nitrile rubber Reinforcement:
2 braid fiber Cover: Vinyl nitrile rubber
Application:
. Fuel oil transfer for residential and/or commercial delivery
Operating Temperature:
-40°C to +82°C (-40°F to +180°F)
Markets:
.
Tank truck
.
Petroleum refining
.
Chemical processing
.
Home delivery of fuel
Type of Couplings:
.
Reattachable
.
Internally expanded permanent attached
Contact coupling manufacturer for attachment procedure and other coupling recommendations
Petroleum
PUMA Petroleum H0363
Part No. Hose I.D. Hose O.D. Max Oper Pressure Burst Pressure Minimum Bend Radius r Vacuum Weight Length
mtr ft DN mm in mm in bar psi bar psi mm in kPa in/Hg kg/m lbs/ft mtr ft
H036312BK MXX 100 19 19,1 0.75 28,8 1.13 10,5 150 41,0 600 110 4.33 94,8 28 0,59 0.40 40-61 100
H036316BK MXX 100 25 25,4 1.00 38,0 1.50 10,5 150 41,0 600 152 5.98 94,8 28 0,91 0.61 40-61 100
H036320BK MXX 100 31 31,8 1.25 45,0 1.77 10,5 150 41,0 600 190 7,48 94,8 28 1,09 0.73 40-61 100
H036324BK MXX 100 38 38,1 1.50 52,5 2.07 10,5 150 41,0 600 200 7.87 94,8 28 1,44 0.97 40-61 100
H036332BK MXX 100 51 50,8 2.00 65,0 2.56 10,5 150 41,0 600 255 10.04 94,8 28 2,01 1.35 40-61 100
H036340BK MXX 100 60 63,5 2.50 77,0 3.03 10,5 150 41,0 600 315 12.40 94,8 28 2,30 1.55 40-61 100
H036348BK MXX 100 80 76,2 3.00 90,5 3.56 10,5 150 41,0 600 380 14.96 94,8 28 2,93 1.97 40-61 100
H036364BK MXX 100 102 101,6 4.00 116,3 4.58 10,5 150 41,0 600 510 20.08 94,8 28 3,78 2.54 40-61 100
H036396BK MXX 20 150 152,4 6.00 174,0 6.85 10,5 150 41,0 600 780 30.71 94,8 28 8,45 5.68 10 20
H036396BK MXX 25 150 152,4 6.00 174,0 6.85 10,5 150 41,0 600 780 90.71 94,8 28 8,45 5.68 10 25
H03638ABK MXX 20 200 203,2 8.00 226,8 8.93 10,5 150 41,0 600 1100 43.31 80,0 24 13,19 8.86 10 20
H03638ABK MXX 25 200 203,2 8.00 226,8 8.93 10,5 150 41,0 600 1100 43.31 80,0 24 13,19 8.86 10 25
***50 ft. lengths available on select items
Construction:Application:
Tube: Vinyl nitrile blend . For suction and discharge of petroleum products
Reinforcement: Fiber 2-or 4-ply with dual helical wires and anti-static copper wire Operating Temperature:
Cover: Vinyl nitrile blend-40°C to +82°C (-40°F to +180°F)
PUMA Flat Corrugated Petroleum EHP519
Markets:Type of Couplings:
.
Tank truck. Cam and groove
.
Paper/pulp industry. Combination nipple or
.
Oil and gas exploration swaged/crimped
.
Ship building
.
Batch plants
Part No. Hose I.D. Hose O.D. Max Oper Pressure Burst Pressure Minimum Bend Radius r Vacuum Weight Length
mtr ft DN mm in mm in bar psi bar psi mm in kPa in/Hg kg/m lbs/ft mtr ft
EHP519-12 MXX 100 19 19,1 0.75 28,4 1.12 10,5 150 41 600 55 2.17 94,8 28 0,47 0.31 40-61 100
EHP519-16 MXX 100 25 25,4 1.00 35,2 1.39 10,5 150 41 600 75 2.95 94,8 28 0,62 0.41 40-61 100
EHP519-20 MXX 100 31 31,8 1.25 43,2 1.70 10,5 150 41 600 90 3.54 94,8 28 0,94 0.63 40-61 100
EHP519-24 MXX 100 38 38,1 1.50 49,2 1.94 10,5 150 41 600 115 4.53 94,8 28 1.10 0.74 40-61 100
EHP519-32 MXX 100 51 50,8 2.00 62,8 2.47 10,5 150 41 600 145 5.71 94,8 28 1.51 1.02 40-61 100
EHP519-40 MXX 100 60 63,5 2.50 78,3 3.08 10,5 150 41 600 195 7.68 94,8 28 2.35 1.58 40-61 100
EHP519-48 MXX 100 80 76,2 3.00 91,4 3.60 10,5 150 41 600 240 9.45 94,8 28 2.87 1.93 40-61 100
EHP519-64 MXX 100 102 101,6 4.00 116,8 4.60 10,5 150 41 600 340 13.39 94,8 28 4.05 2.72 40-61 100
EHP519-96 MXX 100 150 152,4 6.00 174,0 6.85 10,5 150 41 600 650 25.59 94,8 28 9.54 6.41 40-61 100
EHP519-128 MXX 20 200 203,2 8.00 226,6 8.92 10,5 150 41 600 900 35.43 80,0 24 13.00 8.74 20-40 20,25
Construction:Application:
Tube: Nitrile . For suction and discharge
Reinforcement: High-tensile of petroleum synthetic textile with a dual helical wires and an anti-static Operating Temperature:
copper wire -40°C to +82°C Cover: Flat corrugated (-40°F to +180°F) nitrile rubber
Markets:
.
Petroleum industry
.
Paper/pulp industry
.
Oil and gas exploration
.
Ship building
.
Tank trucks
.
Waste hauling
.
Well service
Type of Couplings:
.
Cam and groove
.
Combination nipple or swaged/crimped
Contact coupling manufacturer for attachment procedure and other coupling recommendations.
Petroleum
Petroleum Tank Truck EHP500
Part No. Hose I.D. Hose O.D. Max Oper Pressure Burst Pressure Minimum Bend Radius r Vacuum Weight Length
mtr ft DN mm in mm in bar psi bar psi mm in kPa in/Hg kg/m lbs/ft mtr ft
EHP500-12BK MXX 200 19 19,1 0.75 30,0 1.18 10,5 150 31,0 450 70 2.76 94,8 28 0,59 0.40 40-61 200
EHP500-16BK MXX 200 25 25,4 1.00 36,0 1.44 10,5 150 31,0 450 75 2.95 94,8 28 0,71 0.48 40-61 200
EHP500-20BK MXX 200 31 31,8 1.25 43,0 1.69 10,5 150 31,0 450 85 3.35 94,8 28 0,91 0.61 40-61 200
EHP500-24BK MXX 200 38 38,1 1.50 49,0 1.93 10,5 150 31,0 450 110 4.33 94,8 28 1,17 0.79 40-61 200
EHP500-32BK MXX 200 51 50,8 2.00 63,0 2.48 10,5 150 31,0 450 170 6.69 94,8 28 1,65 1.11 40-61 200
EHP500-40BK MXX 200 60 63,5 2.50 77,0 3.03 10,5 150 31,0 450 210 8.27 94,8 28 2,13 1.43 40-61 200
EHP500-48BK MXX 200 80 76,2 3.00 89,0 3.50 10,5 150 31,0 450 230 9.06 94,8 28 2,81 1.89 40-61 200
EHP500-64BK MXX 200 102 101,6 4.00 117,0 4.61 10,5 150 31,0 450 400 15.75 94,8 28 4,06 2.73 40-61 200
EHP500-96BK MXX 200 150 152,4 6.00 170,0 6.69 10,5 150 31,0 450 675 26.57 80,0 24 7,87 5.29 40-61 200
EHP500-128BK MXX 20 200 203,2 8.00 228,0 8.98 10,5 150 31,0 450 1200 47.24 80,0 24 14,42 9.69 40-61 100
*Additional lengths available on select sizes ** Additional colors available on a MTO basis
Construction: Application: Markets: Type of Couplings:
Tube: Synthetic nitrile blend . For suction and discharge of . Petroleum industry . Cam and groove
Reinforcement: High-tensile petroleum products . Paper/pulp industry . Combination nipple or synthetic textile with a . For use with petroleum . Oil and gas exploration swaged/crimped single steel helical wire and products with aromatic . Ship building
anti-static copper wire content up to 50% . Tank trucks Contact coupling manufacturer for Cover: Nitrile/PVC blend . Waste hauling attachment procedure and other coupling recommendations.
Operating Temperature: . Batch plants
-35°C to +70°C (-31°F to +158°F)
Petroleum
Specialty
EH920 2” UL LPG H900 UL LPG
Use of damaged hose or improper use may result in bodily injury or property damage. Please consult Eaton catalog or Technical Support for proper application.
Specialty
UL LPG H920
Part No. Hose I.D. Hose O.D. Max Operating Pressure Burst Pressure Weight Length
DN mm in mm in bar psi bar psi kg/m lbs/ft mtr ft
EH92032-150 51 50,8 2.00 69,9 2.75 24 350 120 1750 2,38 1.60 46 150
Construction:
Tube: Nitrile
Reinforcement: Textile braid and stainless steel static wire
Cover: Pin-pricked neoprene
UL LPG H900
Application:
. For transfer and delivery of propane and butane
Operating Temperature:
-40°C to +60°C (-40°F to +140°F)
Hose is capable of this rating. LP Gas should never be elevated above 100°F.
Markets:
.
LPG delivery vehicles
.
Petroleum refineries
.
Chemical processing
.
Tank truck
Type of Couplings:
. Swaged or crimp male couplings
Contact coupling manufacturer for attachment procedure and other coupling recommendations
Additional lengths available on select items
Construction: Application:
Tube: Nitrile . For transfer and delivery of propane and butane
Reinforcement:
Textile braid . Transfer of natural gas in open, well-ventilated areas Cover: Pin-pricked (1 psiG max. working
vinyl nitrile pressure)
Operating Temperature:
-40°C to +60°C (-40°F to +140°F)
Hose is capable of this rating. LP Gas should never be elevated above 100°F.
Markets:
.
LPG delivery vehicles
.
Petroleum refineries
.
Chemical processing
.
Tank truck
Type of Couplings:
.
“U” Series
.
Swaged or crimp male couplings
Contact coupling manufacturer for attachment procedure and other coupling recommendations
Steam
EH084 Steam Slayer H9568 Concord 250 Steam EHS001 Concord Steam
Use of damaged hose or improper use may result in bodily injury or property damage. Please consult Eaton catalog or Technical Support for proper application.
Steam
Steam Slayer EH084
Construction:
Tube: Special chlorobutyl blend
Reinforcement:
2-wire braid Cover: Pin-pricked EPDM
Concord 250 Steam H9568
Application:
. Transfer of steam for processing products and cleaning equipment
Operating Temperature:
Maximum operating +232°C (+450°F)
Markets:
.
Refining and petrochemical
.
Paper industry
.
Industrial cleaning markets
.
Oil and gas exploration
.
Steel
.
Ship building
Type of Couplings:
. EJ Series
Contact coupling manufacturer for attachment procedure and other coupling recommendations
Part No. Hose I.D. Hose O.D. Max Operating Pressure Burst Pressure Weight Length
DN mm in mm in bar psi bar psi kg/m lbs/ft mtr ft
H956808BK 12 12,7 0.50 26,2 1.03 17,2 250 172 2500 0,68 0.46 15,2 50
H95608BK-100* 12 12,7 0.50 26,2 1.03 17,2 250 172 2500 0,68 0.46 30,5 100
H956812BK 19 19,0 0.75 34,0 1.34 17,2 250 172 2500 1,04 0.70 15,2 50
H956812BK-100* 19 19,0 0.75 34,0 1.34 17,2 250 172 2500 1,04 0.70 30,5 100
H956816BK 25 25,4 1.00 39,6 1.56 17,2 250 172 2500 1,43 0.96 15,2 50
H956816BK-100* 25 25,4 1.00 39,6 1.56 17,2 250 172 2500 1,43 0.96 30,5 100
* MTO — Make to order
Construction:
Tube: EPDM Reinforcement: 2-wire braid Cover: Pin-pricked EPDM
Application:
. Transfer of steam for processing products and cleaning equipment
Operating Temperature:
Maximum operating +232°C (+450°F)
Markets:
.
Refining and petrochemical
.
Paper industry
.
Industrial cleaning markets
.
Oil and gas exploration
.
Steel
.
Ship building
Type of Couplings:
. EJ Series
Contact coupling manufacturer for attachment procedure and other coupling recommendations
Steam
Concord Steam EHS001
Part No. Hose I.D. Hose O.D. Max Oper Pressure Burst Pressure Weight Length
mtr ft DN mm in mm in bar psi bar psi kg/m lbs/ft mtr ft
EHS001-40 MXX 50 60 63,5 2.50 79,5 3.13 17,2 250 172 2500 2,97 1.99 40-61 50
EHS001-48 MXX 50 80 76,2 3.00 93,0 3.66 17,2 250 172 2500 3,88 2.61 40-61 50
EHS001-64 MXX 50 102 101,6 4.00 131,2 5.17 17,2 250 172 2500 6,60 4.43 40-61 50
Construction:
Tube: EPM blend
Reinforcement: High-tensile steel wire Cover: Pin-pricked EPDM
Application:
. Transfer of steam for processing products and cleaning equipment
Operating Temperature:
-40°C to +208°C (-40°F to +407°F)
Markets:
.
Refining and petrochemical
.
Paper industry
.
Industrial cleaning markets
.
Oil and gas exploration
.
Ship building
Type of Couplings:
.
Boss male
.
Ground joint female
Contact coupling manufacturer for attachment procedure and other coupling recommendations
Water
H1196 Royalflex Water H0364 OTTER EPDM Suction and Discharge EH360 Water Suction and Discharge EHW003 Medium Duty Discharge H345 Pressure Washer
Use of damaged hose or improper use may result in bodily injury or property damage. Please consult Eaton catalog or Technical Support for proper application.
Water
Royalflex Water H1196
Part No. Hose I.D. Hose O.D. Max Operating Pressure Burst Pressure Minimum Bend Radius r Vacuum Weight Length
DN mm in mm in bar psi bar psi mm in kPa in/Hg kg/m lbs/ft mtr ft
H119624 38 38,1 1.50 50,8 2.00 20,7 300 83 1200 152,4 6.00 100 30 1,19 0.81 15,2 50
H119624-100 38 38,1 1.50 50,8 2.00 20,7 300 83 1200 152,4 6.00 100 30 1,19 0.81 30,5 100
H119624-120 38 38,1 1.50 50,8 2.00 20,7 300 83 1200 152,4 6.00 100 30 1,19 0.81 36,6 120
H119632 51 50,8 2.00 63,5 2.50 20,7 300 83 1200 203,2 8.00 100 30 1,64 1.10 15,2 50
H119632-100 51 50,8 2.00 63,5 2.50 20,7 300 83 1200 203,2 8.00 100 30 1,64 1.10 30,5 100
H119632-120 51 50,8 2.00 63,5 2.50 20,7 300 83 1200 203,2 8.00 100 30 1,64 1.10 36,6 120
H119640 60 63,5 2.50 76,2 3.00 20,7 300 83 1200 254,0 10.00 100 30 1,99 1.34 15,2 50
H119640-100 60 63,5 2.50 76,2 3.00 20,7 300 83 1200 254,0 10.00 100 30 1,99 1.34 30,5 100
H119640-120 60 63,5 2.50 76,2 3.00 20,7 300 83 1200 254,0 10.00 100 30 1,99 1.34 36,0 120
H119648 80 76,2 3.00 88,9 3.50 17,2 250 70 1000 304,8 12.00 100 30 2,98 2.00 15,2 50
H119648-100 80 76,2 3.00 88,9 3.50 17,2 250 70 1000 304,8 12.00 100 30 2,98 2.00 30,5 100
H119648-120 80 76,2 3.00 88,9 3.50 17,2 250 70 1000 304,8 12.00 100 30 2,98 2.00 36,6 120
H119664 102 101,6 4.00 114,3 4.50 13,8 200 41 600 406,4 16.00 100 30 4,05 2.72 15,2 50
H119664-100 102 101,6 4.00 114,3 4.50 13,8 200 41 600 406,4 16.00 100 30 4,05 2.72 30,5 100
H119664-120 102 101,6 4.00 114,3 4.50 13,8 200 41 600 406,4 16.00 100 30 4,05 2.72 36,6 120
*Additional lengths available
Construction:
Tube: Thermoplastic vinyl nitrile
Reinforcement: 100% polyester and helical wire
Cover: Thermoplastic vinyl nitrile
Application:
.
Transfer of water, liquid diluted fertilizers and pesticides
.
Pumping, suction, and discharge of water and slurries
Operating Temperature:
-29°C to +82°C (-20°F to +180°F)
Markets:
.
Petroleum industry
.
Oil and gas exploration
.
Tank trucks
.
Waste hauling
.
Batch plants
Type of Couplings:
.
Male NPT
.
Cam locks
Contact coupling manufacturer for attachment procedure and other coupling recommendations.
Water
OTTER EPDM Water Suction and Discharge H0364
Part No. Hose I.D. Hose O.D. Max Oper Pressure Burst Pressure Minimum Bend Radius r Vacuum Weight Length
mtr ft DN mm in mm in bar psi bar psi mm in kPa in/Hg kg/m lbs/ft mtr ft
H036420 MXX 100 31 31,8 1.25 42,0 1.65 10,5 150 31,5 450 110 4.33 92 27 0,86 0.58 40-61 50,100
H036424 MXX 100 38 38,1 1.50 48,0 1.89 10,5 150 31,5 450 135 5.31 92 27 1,09 0.73 40-61 50,100
H036432 MXX 100 51 50,8 2.00 62,0 2.44 10,5 150 31,5 450 200 7.87 92 27 1,63 1.10 40-61 50,100
H036440 MXX 100 60 63,5 2.50 75,0 2.95 10,5 150 31,5 450 270 10.63 92 27 2,07 1.39 40-61 50,100
H036448 MXX 100 80 76,2 3.00 89,0 3.50 10,5 150 31,5 450 340 13.39 92 27 2,69 1.81 40-61 100
H036464 MXX 100 102 101,6 4.00 115,0 4.53 10,5 150 31,5 450 450 17.72 80 24 3,72 2.50 40-61 50,100
H036480 MXX 100 130 127,0 5.00 142,0 5.59 10,5 150 31,5 450 572 22.52 80 24 5,32 3.57 40-61 100
H036496 MXX 20 150 152,4 6.00 168,0 6.61 10,5 150 31,5 450 700 27.56 80 24 6,98 4.69 20-40 20,25
H03648A MXX 20 200 203,2 8.00 225,0 8.86 10,5 150 31,5 450 1100 43.31 80 24 12,84 8.62 10 20,25
*Additional lengths available on select sizes
Construction: Application: Markets:Type of Couplings:
Tube: EPDM . Pumping, suction, and . Agriculture . Cam and groove discharge of water, mud, . Construction . Combination nipple,
Reinforcement: Textile and steel helical wire and slurries . Equipment rental or swaged/crimped
Cover: EPDM . Diluted agricultural fertilizers . Mining
. Convey water . Shipbuilding
. Transfer and haul Contact coupling manufacturer for
Operating Temperature:. Oil and gas exploration attachment procedure and other salt water (brine) coupling recommendations
-23°C to +82°C . Tank truck (-10°F to +180°F)
Water
Water Suction and Discharge EH360
Part No. Hose I.D. Hose O.D. Max Oper Pressure Burst Pressure Minimum Bend Radius r Vacuum Weight Length
mtr ft DN mm in mm in bar psi bar psi mm in kPa in/Hg kg/m lbs/ft mtr ft
EH36016 MXX 100 25 25,4 1.00 34,0 1.34 10,5 150 31 450 70 2.76 94,8 28 0,64 0.43 40-61 100
EH36020 MXX 100 31 31,8 1.25 42,0 1.65 10,5 150 31 450 125 4.92 94,8 28 0,97 0.65 40-61 100
EH36024 MXX 100 38 38,1 1.50 48,0 1.89 10,5 150 31 450 150 5.91 94,8 28 1,20 0.81 40-61 100
EH36028 MXX 100 45 44,5 1.75 55,0 2.17 10,5 150 31 450 185 7.28 94,8 28 1,44 0.97 40-61 100
EH36032 MXX 100 51 50,8 2.00 62,0 2.44 10,5 150 31 450 215 8.46 94,8 28 1,76 1.18 40-61 100
EH36040 MXX 100 60 63,5 2.50 75,0 2.95 10,5 150 31 450 280 11.02 94,8 28 2,22 1.49 40-61 100
EH36044 MXX 100 70 70,0 2.75 82,0 3.23 10,5 150 31 450 320 12.60 91,8 28 2,54 1.71 40-61 100
EH36048 MXX 100 80 76,2 3.00 89,0 3.50 10,5 150 31 450 350 13.78 94,8 28 2,91 1.96 40-61 100
EH36064 MXX 100 102 101,6 4.00 115,0 4.53 10,5 150 31 450 490 19.29 94,8 28 4,02 2.70 40-61 100
EH36080 MXX 100 130 127,0 5.00 142,0 5.59 10,5 150 31 450 650 25.59 80,0 24 5,62 3.78 40-61 100
EH36096 MXX 100 150 152,4 6.00 169,0 6.65 10,5 150 31 450 760 29.92 80,0 24 8,20 5.51 40-61 100
EH3608A MXX 20 200 203,2 8.00 224,0 8.82 10,5 150 31 450 1120 44.09 80,0 24 12,54 8.43 20 20,25
EH360160 MXX 20 250 254,0 10.00 276,0 10.87 7,0 100 21 300 1625 63.98 80,0 24 16,61 11.16 10 20,25
EH360160A MXX 20 250 254,0 10.00 279,0 10.99 10,5 150 31 450 1525 60.04 80,0 24 18,17 12.21 10 20
EH360192 MXX 20 305 304,8 12.00 327,0 12.87 7,0 100 21 300 2015 79.33 80,0 24 19,60 13.17 10 20,25
EH360192A MXX 20 305 304,8 12.00 329,0 12.95 10,5 150 31 450 1950 76.77 80,0 24 20,52 13.79 10 20
Construction:
Tube: Synthetic rubber blend
Reinforcement: Textile and a single steel helical wire with a dual steel helical wire on 8.00”, 10.00” and 12.00”
Cover: EPDM and synthetic rubber blend
Operating Temperature:
-25°C to +70°C (-13°F to +158°F)
Application:
.
Pumping, suction, and discharge of water, mud and slurries
.
Convey water
.
Transfer and haul salt water (brine)
Markets:
.
Construction
.
Equipment rental
.
Mining
.
Shipbuilding
.
Oil and gas exploration
.
Tank truck
Type of Couplings:
.
Cam and groove
.
Combination nipple, or swaged/crimped
Contact coupling manufacturer for attachment procedure and other coupling recommendations
Water
Medium Duty Discharge EHW003
Part No. Hose I.D. Hose O.D. Max Oper Pressure Burst Pressure Weight Length
mtr ft DN mm in mm in bar psi bar psi kg/m lbs/ft mtr ft
EHW003-06BK MXX 100 10 9,5 0.38 17,0 0.67 10,5 150 31 450 0,23 0.16 40-61 100
EHW003-08BK MXX 100 12 12,7 0.50 20,0 0.79 10,5 150 31 450 0,28 0.19 40-61 100
EHW003-10BK MXX 100 16 16,1 0.64 23,0 0.91 10,5 150 31 450 0,32 0.22 40-61 100
EHW003-12BK MXX 100 19 19,1 0.75 27,0 1.06 10,5 150 31 450 0,44 0.29 40-61 100
EHW003-16BK MXX 100 25 25,4 1.00 33,0 1.30 10,5 150 31 450 0,50 0.34 40-61 100
EHW003-20BK MXX 100 31 32,0 1.25 41,0 1.61 10,5 150 31 450 0,75 0.50 40-61 100
EHW003-24BK MXX 100 38 38,0 1.50 47,0 1.85 10,5 150 31 450 0,90 0.60 40-61 100
EHW003-28BK MXX 100 45 44,5 1.75 54,0 2.13 10,5 150 31 450 1,10 0.74 40-61 100
EHW003-32BK MXX 100 51 50,8 2.00 60,0 2.36 10,5 150 31 450 1,18 0.80 40-61 100
EHW003-40BK MXX 100 60 63,5 2.50 74,0 2.91 10,5 150 31 450 1,67 1.12 40-61 100
EHW003-44BK MXX 100 70 70,0 2.75 82,0 3.23 10,5 150 31 450 2,06 1.39 40-61 100
EHW003-48BK MXX 100 80 76,2 3.00 88,0 3.46 10,5 150 31 450 2,19 1.47 40-61 100
EHW003-64BK MXX 100 102 101,6 4.00 115,0 4.53 10,5 150 31 450 3,29 2.21 40-61 100
EHW003-80BK MXX 100 130 127,0 5.00 140,0 5.51 10,5 150 31 450 3,86 2.60 40-61 100
EHW003-96BK MXX 100 150 152,4 6.00 165,0 6.50 10,5 150 31 450 4,56 3.07 40-61 100
EHW003-128BK MXX 20 200 203,2 8.00 222,0 8.74 10,5 150 31 450 8,11 5.45 20-40 20
EHW003-160BK MXX 20 250 254,0 10.00 270,0 10.63 10,5 150 31 450 10,67 7.17 20 20
Construction: Application: Markets:
Tube: Natural and synthetic . For water discharge . Construction rubber . Industrial Reinforcement: High tensile
synthetic textile
Cover: Synthetic rubber cover
Operating Temperature:
-25°C to +70°C (-13°F to +158°F)
Type of Couplings:
.
Cam and groove
.
Combination nipple, or swaged/crimped
Contact coupling manufacturer for attachment procedure and other coupling recommendations
Water
Pressure Washer H345
Part No. Hose I.D. Hose O.D. Max Operating Pressure Burst Pressure Minimum Bend Radius r Weight Length
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft mtr ft
H34504 6 6,4 0.25 12,1 0.48 207 3000 828 12000 50,8 2.00 0,19 0.13 15,2 50
H34504-100 6 6,4 0.25 12,1 0.48 207 3000 828 12000 50,8 2.00 0,19 0.13 30,5 100
H34504-250R 6 6,4 0.25 12,1 0.48 207 3000 828 12000 50,8 2.00 0,19 0.13 76,2 250
H34504-500R 6 6,4 0.25 12,1 0.48 207 3000 828 12000 50,8 2.00 0,19 0.13 152,4 500
H34506 10 9,5 0.38 16,0 0.63 207 3000 828 12000 63,5 2.50 0,31 0.21 15,2 50
H34506-100 10 9,5 0.38 16,0 0.63 207 3000 828 12000 63,5 2.50 0,31 0.21 30,5 100
H34506-250R 10 9,5 0.38 16,0 0.63 207 3000 828 12000 63,5 2.50 0,31 0.21 76,2 250
H34506-500R 10 9,5 0.38 16,0 0.63 207 3000 828 12000 63,5 2.50 0,31 0.21 152,4 500
H34508 12 12,7 0.50 20,1 0.79 207 3000 828 12000 88,9 3.50 0,46 0.31 15,2 50
H34508-100 12 12,7 0.50 20,1 0.79 207 3000 828 12000 88,9 3.50 0,46 0.31 30,5 100
H34508-250R 12 12,7 0.50 20,1 0.79 207 3000 828 12000 88,9 3.50 0,46 0.31 76,2 250
H34508-500R 12 12,7 0.50 20,1 0.79 207 3000 828 12000 88,9 3.50 0,46 0.31 152,4 500
Construction:
Tube: Nitrile RMA Class A oil resistance
Reinforcement:
1 braid wire
Cover: Vinyl Nitrile MSHA approved
Operating Temperature:
-18°C to +93°C ( 0°F to +200°F)
Application:
- High pressure cleaning and degreasing
- Washdown of food processing equipment
- Pressure wash engines, equipment, tanks, building, etc-
Markets:
-Construction
- Food
- Marine
- Agriculture
- Oil exploration/drilling
- General industry
- Mining
Type of Couplings:
- TTC Fittings
- “Z” Series
|
