Aeroquip高壓油管(液壓管)及油管總成 Aeroquip Fittings & Hoses
Aeroquip軟管液壓軟管具有防腐、耐高溫、抗拉強度高 ，柔韌性好等諸多性能，而被廣泛采用在各行業的液壓工程中，EATON aeroquip軟管有一層至多層鋼絲編織增強層（ 6 層以上），有低、中、高、超高三種壓力等級，有輕、重兩系列，公稱通徑在 3 — 51mm 。有普通型和特殊型兩種軟管以滿足在普通環境及特殊環境下使用，先進的不剝膠軟管極大減輕裝配勞動強度，廣泛應用在各行業液壓系統管路中。
Eaton Aeroquip常用液壓膠管
Aeroquip一層鋼絲編織軟管

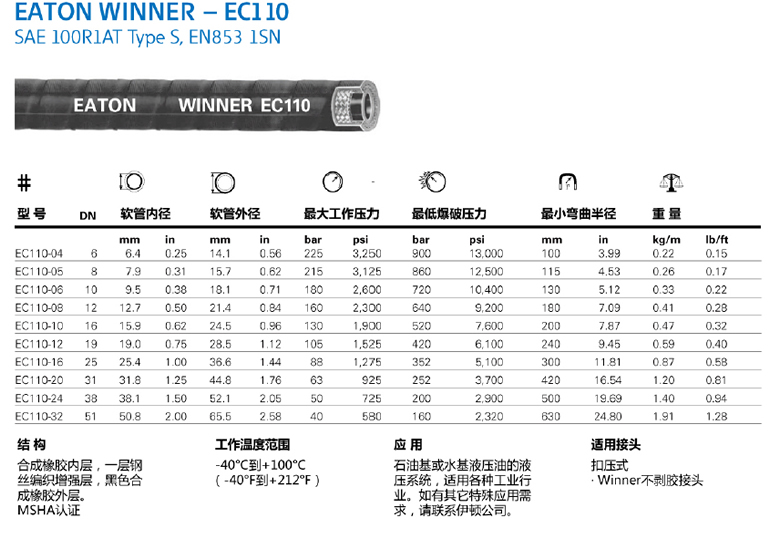

EC110
EC115
FC686
GH663
GH194
2651
1503
FC300
FC500
Aeroquip二層鋼絲編織軟管

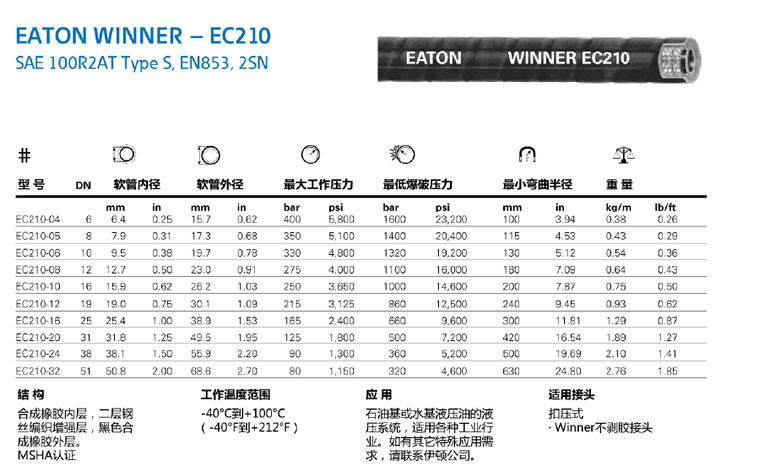

EC210
EC215
FC687
GH793
GH781
GH195
2781
GH120
FC735
Aeroquip四層鋼絲纏繞軟管
GH493

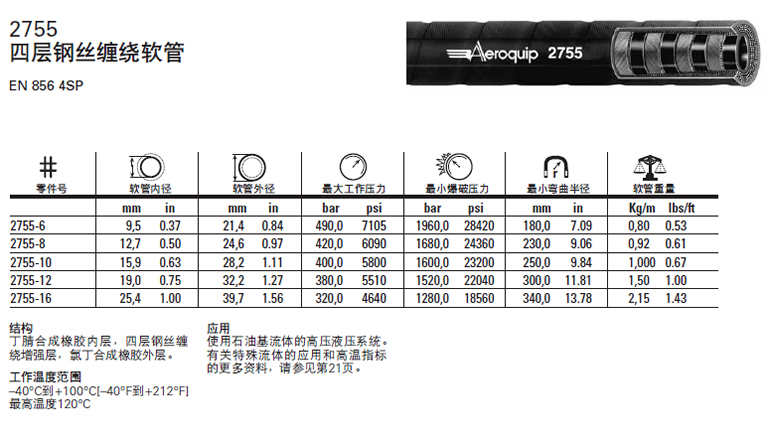

2755
GH506
FC736
Aeroquip六層鋼絲纏繞軟管
GH466
FC273
FC606
供應美國伊頓aeroquip液壓膠管 高壓橡膠軟管總成 油管總成部分軟管型號：
GH466-20，GH466-24，GH466-32，GH493-6，GH493-8，GH493-10，GH493-12，GH493-16，GH493-20，GH493-24，GH493-32，GH506-12，GH506-16，GH506-20，GH506-24，GH506-32，2755-6，2755-8，2755-10，2755-12，2755-16，2781-4，2781-6，2781-8，2781-10，2781-12，2781-16，2781-20，2781-24，2781-32，GH793-4，GH793-6，GH793-8，GH793-10，GH793-12，GH793-16，GH793-20，GH793-24，GH793-32，F(xiàn)C687-04，F(xiàn)C687-05，F(xiàn)C687-06，F(xiàn)C687-08，F(xiàn)C687-10，F(xiàn)C687-12，F(xiàn)C687-16，F(xiàn)C687-20，F(xiàn)C687-24，F(xiàn)C687-32，F(xiàn)C686-04，F(xiàn)C686-05，F(xiàn)C686-06，F(xiàn)C686-08，F(xiàn)C686-10，F(xiàn)C686-12，F(xiàn)C686-16，F(xiàn)C686-20，F(xiàn)C686-24，F(xiàn)C686-32，GH781-4，GH781-5，GH781-6，GH781-8，GH781-10，GH781-12，GH781-16，GH781-20，GH781-24，GH781-32，F(xiàn)C300-4，F(xiàn)C300-5，F(xiàn)C300-6，F(xiàn)C300-8，F(xiàn)C300-10，F(xiàn)C300-12，F(xiàn)C300-16，F(xiàn)C300-20，F(xiàn)C300-24，F(xiàn)C300-32，F(xiàn)C300-40...
EATON/aeroquip軟管液壓軟管具有防腐、耐高溫、抗拉強度高 ，柔韌性好等諸多性能，而被廣泛采用在各行業的液壓工程中
型號：GH466-20，GH466-24，GH466-32，GH493-6，GH493-8，GH493-10，GH493-12，GH493-16，GH493-20，GH493-24，GH493-32，GH506-12，GH506-16，GH506-20，GH506-24，GH506-32，2755-6，2755-8，2755-10，2755-12，2755-16，2781-4，2781-6，2781-8，2781-10，2781-12，2781-16，2781-20，2781-24，2781-32，GH793-4，GH793-6，GH793-8，GH793-10，GH793-12，GH793-16，GH793-20，GH793-24，GH793-32，F(xiàn)C687-04，F(xiàn)C687-05，F(xiàn)C687-06，F(xiàn)C687-08，F(xiàn)C687-10，F(xiàn)C687-12，F(xiàn)C687-16，F(xiàn)C687-20，F(xiàn)C687-24，F(xiàn)C687-32，F(xiàn)C686-04，F(xiàn)C686-05，F(xiàn)C686-06，F(xiàn)C686-08，F(xiàn)C686-10，F(xiàn)C686-12，F(xiàn)C686-16，F(xiàn)C686-20，F(xiàn)C686-24，F(xiàn)C686-32，GH781-4，GH781-6，GH781-8，GH781-10，GH781-12，GH781-16，GH781-20，GH781-24，GH781-32，F(xiàn)C300-04，F(xiàn)C300-05，F(xiàn)C300-06，F(xiàn)C300-08，F(xiàn)C300-10，F(xiàn)C300-12，F(xiàn)C300-16，F(xiàn)C300-20，F(xiàn)C300-24，F(xiàn)C300-32，F(xiàn)C300-40，F(xiàn)C350-04，F(xiàn)C350-05，F(xiàn)C350-06，F(xiàn)C350-08，F(xiàn)C350-10，F(xiàn)C350-12，F(xiàn)C350-16，F(xiàn)C350-20，F(xiàn)C350-24，1503-4，1503-5，1503-6，1503-8，1503-10，1503-12，1503-16，1503-20，1503-24，1503-32，1503-40...
AEROQUIP代理 AEROQUIP廠家 AEROQUIP價格 AEROQUIP經銷 AEROQUIP型號 AEROQUIP現貨
AEROQUIP agent AEROQUIP manufacturer AEROQUIP price AEROQUIP distribution AEROQUIP model AEROQUIP spot
Eaton Thermoplastic Hose
Eaton Synflex thermoplastic hoses
Eaton LifeSense Hydraulic Hose Condition Monitoring
Eaton Everflex hoses
Eaton Aeroquip Triple Crown
Eaton DYNAMAX EC850 500 Bar Spiral Hose
Eaton ICE CHAMPION EC810
Eaton EC525 AQP PLUS Hi-Temp 4-Spiral Hose
Eaton SAFESHIELD EC910 High Pressure Waterblast
Eaton Aeroquip Triple Crown
GH663
1-Wire Braided Construction
Exceeds EN853 Type 1SN
requirements
Exceeds SAE 100R1AT Type S
requirements
Qualified fitting: TTC Series
(non-skive) and global braided
(skive) nipples with 1SA sockets
Dura-Tuff abrasion resistant cover
1/2 SAE minimum bend radius
GH120
2-Wire Braided Construction
Exceeds EN857 Type 2SC
performance
Exceeds SAE 100R16 Type S low
temperature performance -57?C
to +100?C (-70?F to +212?F)
Qualified fitting: TTC Series
(non-skive) and global braided
(skive) nipples with 1SB sockets
Dura-Tuff abrasion resistant cover
1/2 SAE minimum bend radius
GH781
2-Wire Braided Construction
Exceeds EN857 Type 2SC
requirements
Exceeds SAE 100R16 Type S
requirements
Qualified fitting: TTC Series
(non-skive) and global braided
(skive) nipples with 1SB sockets
Dura-Tuff abrasion resistant cover
1/2 SAE minimum bend radius
GH793
2-Wire Braided Construction
Exceeds EN853 Type 2SN
requirements
Exceeds SAE 100RAT Type S
requirements
Qualified fitting: TTC Series
(non-skive) and global braided
(skive) nipples with 1SB sockets
Dura-Tuff abrasion resistant cover
GH493
4-Wire Spiral Construction
Exceeds SAE 100R12
requirements and meets EN856
Type 4SP performance in sizes
-8 thru -16
Qualified Fitting: TTC12 Series
Dura-Tuff abrasion resistant cover
1/2 SAE minimum bend radius
FC254
4-Wire Heavy Spiral Construction
Exceeds EN856 Type 4SH
performance
Exceeds SAE 100R11
performance
Qualified fitting: Global Spiral
TTC & ISC
Dura-Tuff abrasion resistant cover
|
