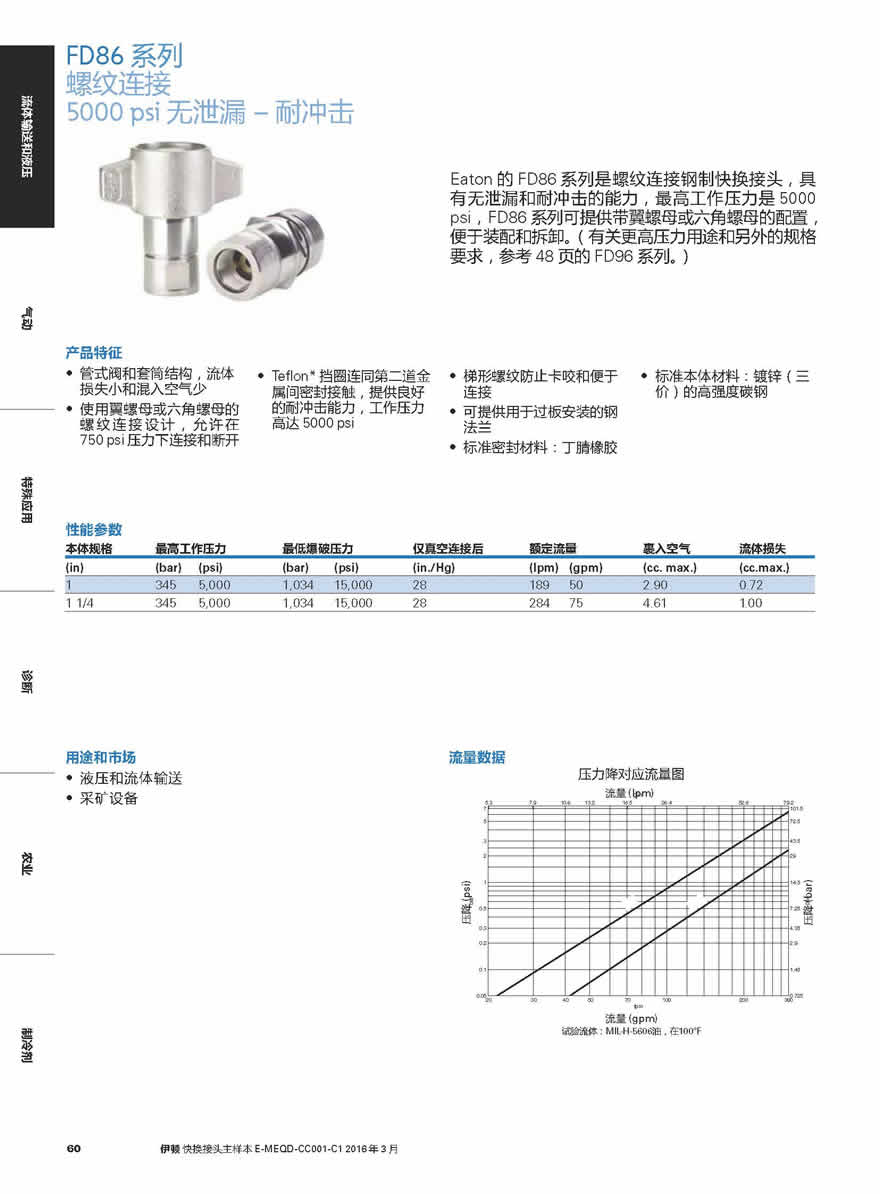

FD86系列螺紋連接 5000 psi 無泄漏 – 耐沖擊
FD86 Series Thread to Connect 5,000 psi Dry Break – High Impulse
Eaton的 FD86系列是螺紋連接鋼制快換接頭，具有無泄漏和耐沖擊的能力，最高工作壓力是 5000 psi，FD86系列可提供帶翼螺母或六角螺母的配置，便于裝配和拆卸。（有關更高壓力用途和另外的規格要求，參考 48頁的 FD96系列。）Eaton’s FD86 Series is a thread together steel quick coupling offering dry break and high impulse technology and capabilities. The maximum operating pressure is 5,000 psi. The FD86 Series is available in either wing nut or hex nut configurations for ease of assembly and disassembly. (For higher pressure applications and additional size requirements, refer to FD96 on page 44.)
產品特征
- 管式閥和套筒結構，流體
- Teflon* 擋圈連同第二道金
- 梯形螺紋防止卡咬和便于
- 標準本體材料：鍍鋅（三損失小和混入空氣少 屬間密封接觸，提供良好連接 價）的高強度碳鋼
- 使用翼螺母或六角螺母的的耐沖擊能力，工作壓力
- 可提供用于過板安裝的鋼螺紋連接設計，允許在 高達 5000 psi 法蘭 750 psi 壓力下連接和斷開
- 標準密封材料：丁腈橡膠
用途和市場
- 液壓和流體輸送
- 采礦設備
AEROQUIP FD86 Series Thread to Connect 5,000 psi Dry Break – High Impulse

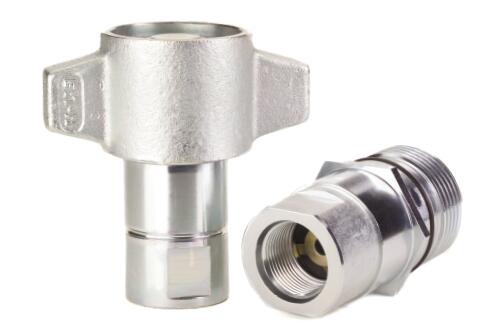

The FD86 Series is a thread together steel quick coupling offering dry break and high impulse technology and capabilities. The maximum operating pressure is 5,000 psi. The FD86 Series is available in either wing nut or hex nut configurations
for ease of assembly and disassembly. (For higher pressure applications and additional size requirements, refer to FD96 on page 42.)

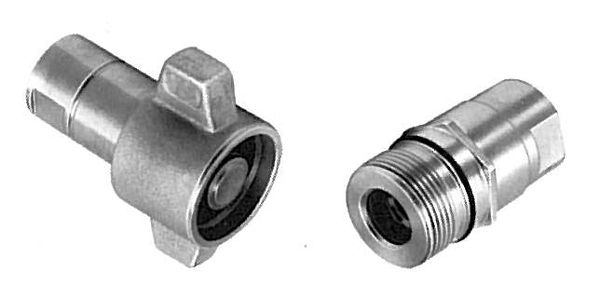

The FD86 is a thread together steel coupling offering dry break and high impulse technology and capabilities. The maximum operating pressure is 5,000 psi.- Tubular valve and sleeve construction for low fluid loss and air inclusion.
- Thread together design using wing or hex nut allows connection and disconnection against pressures up to 750 psi.
- Teflon back uop rings along with secondary metal-to-metal sealing contact provides high impulse capability up to 5,000 psi operating pressure.
- Acme threads prevent galling and provide ease of connection.
- Metal-to-metal sealing withstands +2000oF for ten minutes with no fluid loss (requirement in California for oil field blow-out preventers).
- Steel flange available for bulkhead mounting.
- Standard seal material - Buna-N.
- Standard body material - Zinc plated steel.
- Teflon is a registered trademark of Dupont.

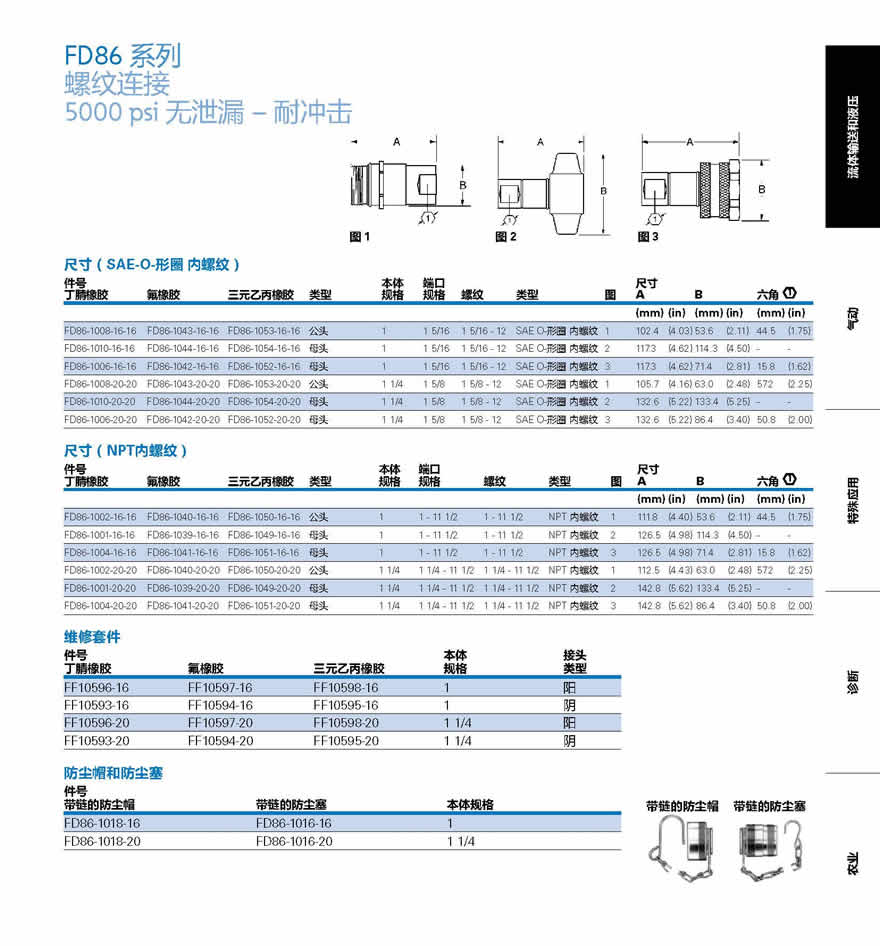

Item # |
Coupling Size |
Thread Size (P) |
Seal Material |
Type |
| FD86-1008-16-16 |
-16 |
1-5/16-12 |
BUNA-N |
Male Half - Female SAE O-Ring |
| FD86-1008-20-20 |
-20 |
1-5/8-12 |
BUNA-N |
Male Half - Female SAE O-Ring |
| FD86-1043-16-16 |
-16 |
1-5/16-12 |
Viton |
Male Half - Female SAE O-Ring |
| FD86-1043-20-20 |
-20 |
1-5/8-12 |
Viton |
Male Half - Female SAE O-Ring |
| FD86-1053-16-16 |
-16 |
1-5/16-12 |
EPR |
Male Half - Female SAE O-Ring |
| FD86-1053-20-20 |
-20 |
1-5/8-12 |
EPR |
Male Half - Female SAE O-Ring |
| FD86-1010-16-16 |
-16 |
1-5/16-12 |
BUNA-N |
Female Half - Female SAE O-Ring/With Wing Nut |
| FD86-1010-20-20 |
-20 |
1-5/8-12 |
BUNA-N |
Female Half - Female SAE O-Ring/With Wing Nut |
| FD86-1044-16-16 |
-16 |
1-5/16-12 |
Viton |
Female Half - Female SAE O-Ring/With Wing Nut |
| FD86-1044-20-20 |
-20 |
1-5/8-12 |
Viton |
Female Half - Female SAE O-Ring/With Wing Nut |
| FD86-1054-16-16 |
-16 |
1-5/16-12 |
EPR |
Female Half - Female SAE O-Ring/With Wing Nut |
| FD86-1054-20-20 |
-20 |
1-5/8-12 |
EPR |
Female Half - Female SAE O-Ring/With Wing Nut |
| FD86-1006-16-16 |
-16 |
1-5/16-12 |
BUNA-N |
Female Half - Female SAE O-Ring/With Hex Nut |
| FD86-1006-20-20 |
-20 |
1-5/8-12 |
BUNA-N |
Female Half - Female SAE O-Ring/With Hex Nut |
| FD86-1042-16-16 |
-16 |
1-5/16-12 |
Viton |
Female Half - Female SAE O-Ring/With Hex Nut |
| FD86-1042-20-20 |
-20 |
1-5/8-12 |
Viton |
Female Half - Female SAE O-Ring/With Hex Nut |
| FD86-1052-16-16 |
-16 |
1-5/16-12 |
EPR |
Female Half - Female SAE O-Ring/With Hex Nut |
| FD86-1052-20-20 |
-20 |
1-5/8-12 |
EPR |
Female Half - Female SAE O-Ring/With Hex Nut |
| FD86-1002-16-16 |
-16 |
1-11-1/2 |
BUNA-N |
Male Half - Female NPTF |
| FD86-1002-20-20 |
-20 |
1-1/4 to 11-1/2 |
BUNA-N |
Male Half - Female NPTF |
| FD86-1040-16-16 |
-16 |
1-11-1/2 |
Viton |
Male Half - Female NPTF |
| FD86-1040-20-20 |
-20 |
1-1/4 to 11-1/2 |
Viton |
Male Half - Female NPTF |
| FD86-1050-16-16 |
-16 |
1-11-1/2 |
EPR |
Male Half - Female NPTF |
| FD86-1050-20-20 |
-20 |
1-1/4 to 11-1/2 |
EPR |
Male Half - Female NPTF |
| FD86-1001-16-16 |
-16 |
1-11-1/2 |
BUNA-N |
Female Half - Female NPTF/With Wing Nut |
| FD86-1001-20-20 |
-20 |
1-1/4 to 11-1/2 |
BUNA-N |
Female Half - Female NPTF/With Wing Nut |
| FD86-1039-16-16 |
-16 |
1-11-1/2 |
Viton |
Female Half - Female NPTF/With Wing Nut |
| FD86-1039-20-20 |
-20 |
1-1/4 to 11-1/2 |
Viton |
Female Half - Female NPTF/With Wing Nut |
| FD86-1049-16-16 |
-16 |
1-11-1/2 |
EPR |
Female Half - Female NPTF/With Wing Nut |
| FD86-1049-20-20 |
-20 |
1-1/4 to 11-1/2 |
EPR |
Female Half - Female NPTF/With Wing Nut |
| FD86-1004-16-16 |
-16 |
1-11-1/2 |
BUNA-N |
Female Half - Female NPTF/With Hex Nut |
| FD86-1004-20-20 |
-20 |
1-1/4 to 11-1/2 |
BUNA-N |
Female Half - Female NPTF/With Hex Nut |
| FD86-1041-16-16 |
-16 |
1-11-1/2 |
Viton |
Female Half - Female NPTF/With Hex Nut |
| FD86-1041-20-20 |
-20 |
1-1/4 to 11-1/2 |
Viton |
Female Half - Female NPTF/With Hex Nut |
| FD86-1051-16-16 |
-16 |
1-11-1/2 |
EPR |
Female Half - Female NPTF/With Hex Nut |
| FD86-1051-20-20 |
-20 |
1-1/4 to 11-1/2 |
EPR |
Female Half - Female NPTF/With Hex Nut |
| FF10596-16 |
-16 |
N/AN/AN/AN/ABUNA-N |
|
|
| FF10596-20 |
-20 |
N/AN/AN/AN/ABUNA-N |
|
|
| FF10597-16 |
-16 |
N/AN/AN/AN/AViton |
|
|
| FF10597-20 |
-20 |
N/AN/AN/AN/AViton |
|
|
| FF10598-16 |
-16 |
N/AN/AN/AN/AEPR |
|
|
| FF10598-20 |
-20 |
N/AN/AN/AN/AEPR |
|
|
| FF10593-16 |
-16 |
N/AN/AN/AN/ABUNA-N |
|
|
| FF10593-20 |
-20 |
N/AN/AN/AN/ABUNA-N |
|
|
| FF10594-16 |
-16 |
N/AN/AN/AN/AViton |
|
|
| FF10594-20 |
-20 |
N/AN/AN/AN/AViton |
|
|
| FF10595-16 |
-16 |
N/AN/AN/AN/AEPR |
|
|
| FF10595-20 |
-20 |
N/AN/AN/AN/AEPR |
|
|
| FD86-1018-16 |
-16 |
N/AN/AN/AN/AN/ADust Cap with Chain |
|
|
| FD86-1018-20 |
-20 |
N/AN/AN/AN/AN/ADust Cap with Chain |
|
|
| D86-1016-16 |
-16 |
N/AN/AN/AN/AN/ADust Plug with Chain |
|
|
| FD86-1016-20 |
-20 |
N/AN/AN/AN/AN/ADust Plug with Chain |
|
|
| FD86-1035-16 |
-16 |
N/A0.19 |
|
|
| FD86-1035-20 |
-20 |
N/A0.19 |
|
|
EATON Quick Disconnect Couplings Part Number
FD86-1010-16-16 FD86-1044-16-16 FD86-1054-16-16 Female
FD86-1008-20-20 FD86-1043-20-20 FD86-1053-20-20 Male
FD86-1006-20-20 FD86-1042-20-20 FD86-1052-20-20 Female
FD86-1001-16-16 FD86-1039-16-16 FD86-1049-16-16 Female
FD86-1002-20-20 FD86-1040-20-20 FD86-1050-20-20 Male
FD86-1004-20-20 FD86-1041-20-20 FD86-1051-20-20 Female
|
