FD49系列 NFPA 標準 T3.20.15 HTMA 可互換
FD49 Series NFPA Standard T3.20.15 HTMA Interchange
Eaton的 FD49系列滿足 NFPA標準 T3.20.15，并且結合 HTMA（液壓工具制造商協會）來開發的， Eaton的 Twin-Guard . 密封系統防止低壓下的滲漏，允許 500 psi壓力下連接和斷開。Eaton’s FD49 Series meets NFPA standard
T3.20.15 and was developed in conjunction with
HTMA (Hydraulic Tool Manufacturer’s ssociation).
Eaton’s Twin-Guard? sealing system prevents
seepage at low pressures and allows connection
and disconnection against pressure up to 500 psi.
FD49系列 NFPA 標準 T3.20.15 HTMA 可互換
FD49 Series NFPA Standard T3.20.15 HTMA Interchange
產品特征
- 雙齊平面閥，流體損失和
- 推動連接閉鎖，用于單手
- 標準本體材料：鍍鋅（三混入空氣最少 操作 價）的高強度碳鋼
- 管式閥和套的結構，流量
- 標準密封材料：聚四氟乙大，壓降小 烯通道密封和丁腈橡膠 O-形圈支撐
用途和市場
- 液壓工具（HTMA 互換）
- 液壓和流體輸送
Eaton的 Twin-Guard.密封系統包括通道密封件和丁腈橡膠 O-形圈密封件，通道密封件防止 500 psi 壓力下連接和斷開時泄漏，丁腈橡膠 O-形圈密封件是第二道密封，消除流體滲漏。

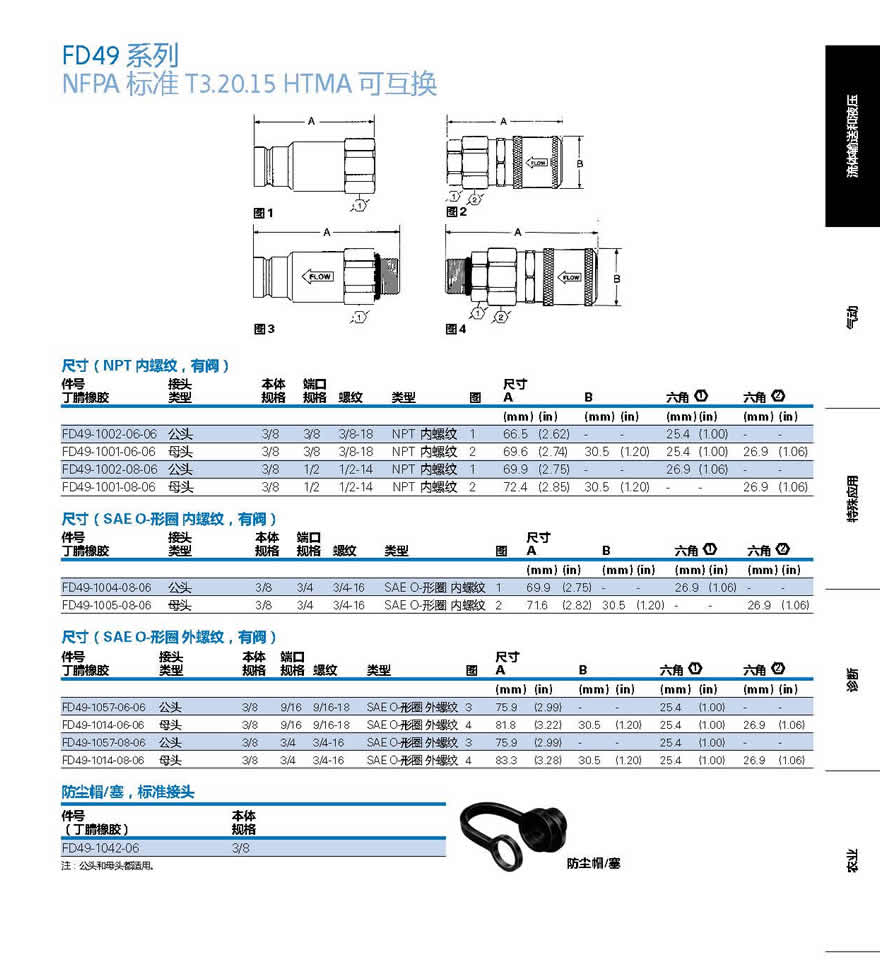

尺寸（NPT 內螺紋，有閥）
件號 接頭 本體 端口 尺寸
丁腈橡膠 類型 規格 規格 螺紋 類型 圖 A B 六角
六角
(mm) (in) (mm) (in) (mm) (in) (mm) (in)
FD49-1002-06-06 公頭 3/8 3/8 3/8-18 NPT 內螺紋 1 66.5 (2.62) - - 25.4 (1.00) - -
FD49-1001-06-06 母頭 3/8 3/8 3/8-18 NPT 內螺紋 2 69.6 (2.74) 30.5 (1.20) 25.4 (1.00) 26.9 (1.06)
FD49-1002-08-06 公頭 3/8 1/2 1/2-14 NPT 內螺紋 1 69.9 (2.75) - - 26.9 (1.06) - -
FD49-1001-08-06 母頭 3/8 1/2 1/2-14 NPT 內螺紋 2 72.4 (2.85) 30.5 (1.20) - - 26.9 (1.06)
尺寸（SAE O-形圈內螺紋，有閥）
件號接頭本體 端口 尺寸
丁腈橡膠類型規格 規格 螺紋 類型 圖 A B 六角
六角
(mm) (in) (mm) (in) (mm) (in) (mm) (in)
FD49-1004-08-06 公頭 3/8 3/4 3/4-16 SAE O-形圈內螺紋 1 69.9 (2.75) --26.9 (1.06) --
FD49-1005-08-06 母頭 3/8 3/4 3/4-16 SAE O-形圈內螺紋 2 71.6 (2.82) 30.5 (1.20) - - 26.9 (1.06)
尺寸（SAE O-形圈外螺紋，有閥）
件號接頭本體端口 尺寸
丁腈橡膠類型規格規格螺紋類型圖 A B 六角
六角
(mm) (in) (mm) (in) (mm) (in) (mm) (in)
FD49-1057-06-06 公頭 3/8 9/16 9/16-18 SAE O-形圈外螺紋 3 75.9 (2.99) - - 25.4 (1.00) - -
FD49-1014-06-06 母頭 3/8 9/16 9/16-18 SAE O-形圈外螺紋 4 81.8 (3.22) 30.5 (1.20) 25.4 (1.00) 26.9 (1.06)
FD49-1057-08-06 公頭 3/8 3/4 3/4-16 SAE O-形圈外螺紋 3 75.9 (2.99) - - 25.4 (1.00) - -
FD49-1014-08-06 母頭 3/8 3/4 3/4-16 SAE O-形圈外螺紋 4 83.3 (3.28) 30.5 (1.20) 25.4 (1.00) 26.9 (1.06)
防塵帽/塞，標準接頭
Aeroquip FD49 Series/ HTMA Flush Face, Hydraulic Tool

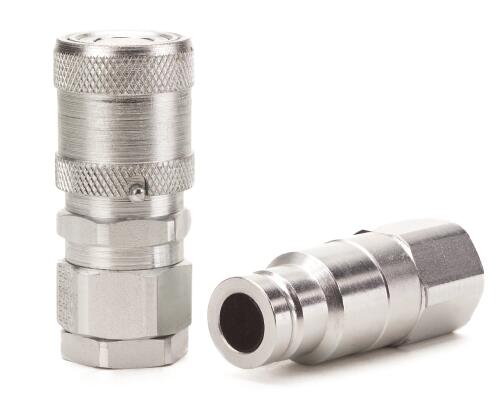

FD49 Series HTMA Flush Face Hydraulic Tool Quick Disconnect
FD49 Series meets NFPA standard T3.20.15, which was developed in conjunction with HTMA (Hydraulic Tool Manufacturer's Association).- Twin Guard sealing system prevents weepage and allows connection and disconnection against pressure up to 500 psi.
- Dual flush face valving for minimal fluid loss and air inclusion.
- Tubular valve and sleeve construction for high fluid flow with low pressure drop.
- Push-to-connect latching for one hand operation.
- Standard sealing material - Teflon channel seal and Buna-N O-ring backup.
- Standard body material - Zinc plated steel.
Item # |
Coupling Size |
Thread Size (P) |
Dim.- Hex(1) |
FD49-1002-06-06 |
-6 |
3/8-18 |
N/A Male Half - Female Pipe/Valved |
FD49-1002-08-06 |
-6 |
1/2-14 |
N/A Male Half - Female Pipe/Valved |
FD49-1004-06-06 |
-6 |
9/16-18 |
N/A Male Half - Female SAE O-ring/Valved |
FD49-1004-08-06 |
-6 |
3/4-16 |
N/A Male Half - Female SAE O-ring/Valved |
FD49-1057-06-06 |
-6 |
9/16-18 |
N/A Male Half - Male SAE O-Ring/Valved |
FD49-1057-08-06 |
-6 |
3/4-16 |
N/A Male Half - Male SAE O-Ring/Valved |
FD49-1001-06-06 |
-6 |
3/8-18 |
Female Half - Female Pipe/Valved |
FD49-1001-08-06 |
-6 |
1/2-14 |
Female Half - Female Pipe/Valved |
FD49-1005-08-06 |
-6 |
3/4-16 |
Female Half - Female SAE O-ring/Valved |
FD49-1014-06-06 |
-6 |
9/16-18 |
Female Half - Male SAE O-Ring/Valved |
FD49-1014-08-06 |
-6 |
3/4-16 |
Female Half - Male SAE O-Ring/Valved |
FD49-1200-06-06 |
-6 |
3/8-18 |
Female Half/Heavy Duty Sleeve - Female Pipe/Valved |
FD49-1200-08-06 |
-6 |
1/2-14 |
Female Half/Heavy Duty Sleeve - Female Pipe/Valved |
FD49-1042-06 |
-6 |
N/A N/A N/A N/A N/A Dust Cover For Standard Coupling |
|
FD49-1088-06 |
-6 |
N/A N/A N/A N/A N/A Dust Cover For Heavy Duty Coupling |
|
FD49-1002-06-06 Male 3/8 3/8 3/8-18 Female NPT 1 66.5 (2.62) - - 25.4 (1.00) - -
FD49-1001-06-06 Female 3/8 3/8 3/8-18 Female NPT 2 69.6 (2.74) 30.5 (1.20) 25.4 (1.00) 26.9 (1.06)
FD49-1002-08-06 Male 3/8 1/2 1/2-14 Female NPT 1 69.9 (2.75) - - 26.9 (1.06) - -
FD49-1001-08-06 Female 3/8 1/2 1/2-14 Female NPT 2 72.4 (2.85) 30.5 (1.20) - - 26.9 (1.06)
FD49-1004-08-06 Male 3/8 3/4 3/4-16 Female SAE O-ring 1 69.9 (2.75) - - 26.9 (1.06) - -
FD49-1005-08-06 Female 3/8 3/4 3/4-16 Female SAE O-ring 2 71.6 (2.82) 30.5 (1.20) - - 26.9 (1.06)
FD49-1057-06-06 Male 3/8 9/16 9/16-18 Male SAE O-ring 3 75.9 (2.99) - - 25.4 (1.00) - -
FD49-1014-06-06 Female 3/8 9/16 9/16-18 Male SAE O-ring 4 81.8 (3.22) 30.5 (1.20) 25.4 (1.00) 26.9 (1.06)
FD49-1057-08-06 Male 3/8 3/4 3/4-16 Male SAE O-ring 3 75.9 (2.99) - - 25.4 (1.00) - -
FD49-1014-08-06 Female 3/8 3/4 3/4-16 Male SAE O-ring 4 83.3 (3.28) 30.5 (1.20) 25.4 (1.00) 26.9 (1.06)
FD49-1042-06 3/8
|
