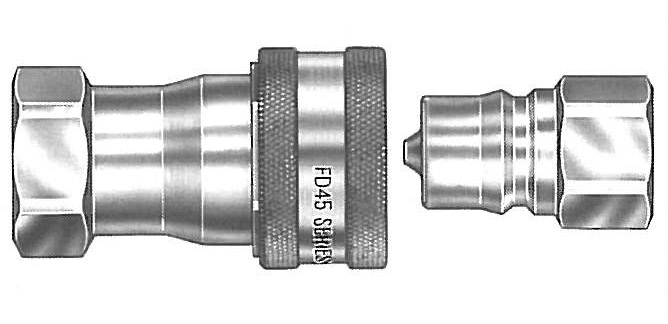

Aeroquip FD45 Series Industrial Interchange Series B (Stainless Steel)
Aeroquip Quick Disconnects FD45 Series Quick Disconnect (Steel)

DANFOSS Aeroquip快速斷開FD45系列快速接頭

DANFOSS FD45系列黃銅工業互換快速接頭在不可接受鋼制快速接頭的情況下提供耐腐蝕性。這種通用快速接頭使用推拉式閂鎖機構。-內半部的雙接口O型環在連接時提供冗余密封。The FD45 Series brass industrial interchange coupling offers corrosion resistance where steel couplings are unacceptable. This general purpose coupling uses a Push-Pull latch mechanism.- Dual interface O-Rings in the female half provide redundant sealing while connected.

- 黃銅結構搭配不銹鋼彈簧，具有更強的耐腐蝕性和流體兼容性。
- 尺寸符合ISO標準7241/1系列B的工業互換快速接頭。
- PUSH-PULL球形插銷設計可快速方便地連接和斷開軟管管路。自密封提升閥提供出色的高低壓密封。
- 標準密封材料-丁腈橡膠、EPR和氟橡膠。
- 標準閥體材料-黃銅，帶不銹鋼彈簧和球體。
- Brass construction with stainless steel springs for greater corrosion resistance and fluid compatibility.
- Industrial interchange coupling conforming dimensionally to ISO standard 7241/1 Series B.
- PUSH-PULL ball latch design allows quick and easy connection and disconnection of hose lines. Self-sealing poppet valves provide excellent high and low pressure sealing.
- Standard seal material - Buna-N, EPR and Viton.
- Standard body material - Brass with stainless steel springs and balls.

The FD45 stainless steel is a general purpose industrial interchange coupling available valved or non-valved. Offered in 303/304 grades of stainless steel for excellent corresion resistance in rugged applications.- Industrial interchange coupling conforming dimensionally to ISO standard 7241/1 Series B.
- Stainless steel construction for greater corrosion resistance and fluid compatibility.
- PUSH-PULL ball latch design allows quick and easy connection and disconnection of hose lines.
- Self-sealing poppet valves provide excellent high and low pressure sealing.
- Standard seal material - Buna-N, EPR and Viton.
- Standard body material - Stainless Steel.
