Aeroquip FD42 Series/ Pioneer 4000 Interchange

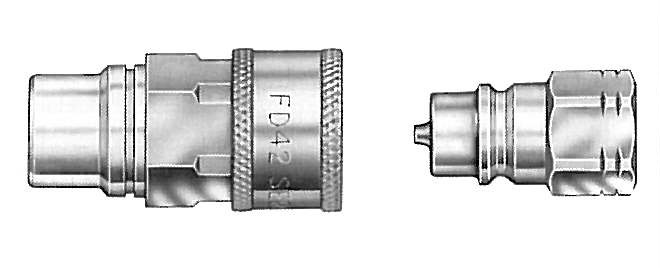

FD42 Series Pioneer Interchange Quick Disconnect

The FD42 Series coupling is designed as a Pioneer 4000 Interchange to accomodate high surge flows typically found in snow plow applications. The maximum operating pressure is 3,000 psi.- Teflon? back up ring in female half improves impulse life.
- Self-sealing poppet valve design provides excellent high and low pressure sealing.
- Push-Pull? ball latch design allows quick and easy connection and disconnection of hose lines.
- Interchanges with Pioneer 4000-2 and Safeway S20A.
- Retaining groove on female half for bulhead mounting.
- Male half can be bulkhead mounted with optional adapter.
- Standard seal material - Buna-N.
- Standard body material - Zinc plated steel with zinc poppet guides.

Item # Coupling Size Thread Size (P) Type


FD42-1002-04-04 -04 1/4-18 1.34 N/AN/AN/AN/A0.75 inches Male Half - Female Pipe/Valved

FD42-1001-04-04 -04 1/4-18 2.04 N/A0.87 .05 0.10 0.88 inches Female Half - Female Pipe/Valved

FD42-1000-04-04 -04 1/4-18 2.68 N/AN/AN/AN/AN/AComplete Coupling - Female Pipe/Valved

FD42-1010-06-04 -04 9/16-18 1.63 N/AN/AN/AN/A0.81 inches Male Half - Female SAE O-ring/Valved

FD42-1008-06-04 -04 9/16-18 2.13 1.06 0.87 0.05 0.10 0.88 inches Female Half - Female SAE O-ring/Valved

FD42-1006-06-04 -04 9/16-18 2.97 N/AN/AN/AN/AN/AComplete Coupling - Female SAE O-ring/Valved

FF1607-0404S -04 1/4-18 1.39 0.87 0.08 N/AN/A0.88 inches Bulkhead Adapter

FD48-1042-04 -04 N/AN/AN/AN/AN/AN/AN/ADust Cap/Plug (Fits Both Halves)
