Aeroquip FD35 Series/ Arc Latch for 10,000 psi High Pressure Applications

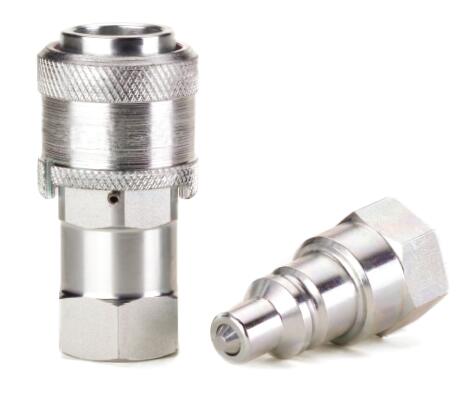

FD35 Series Arc Latch High Pressure Quick Disconnect
FD35系列 10,000 psi 球鎖 FD35 Series 10,000 psi Ball Latch

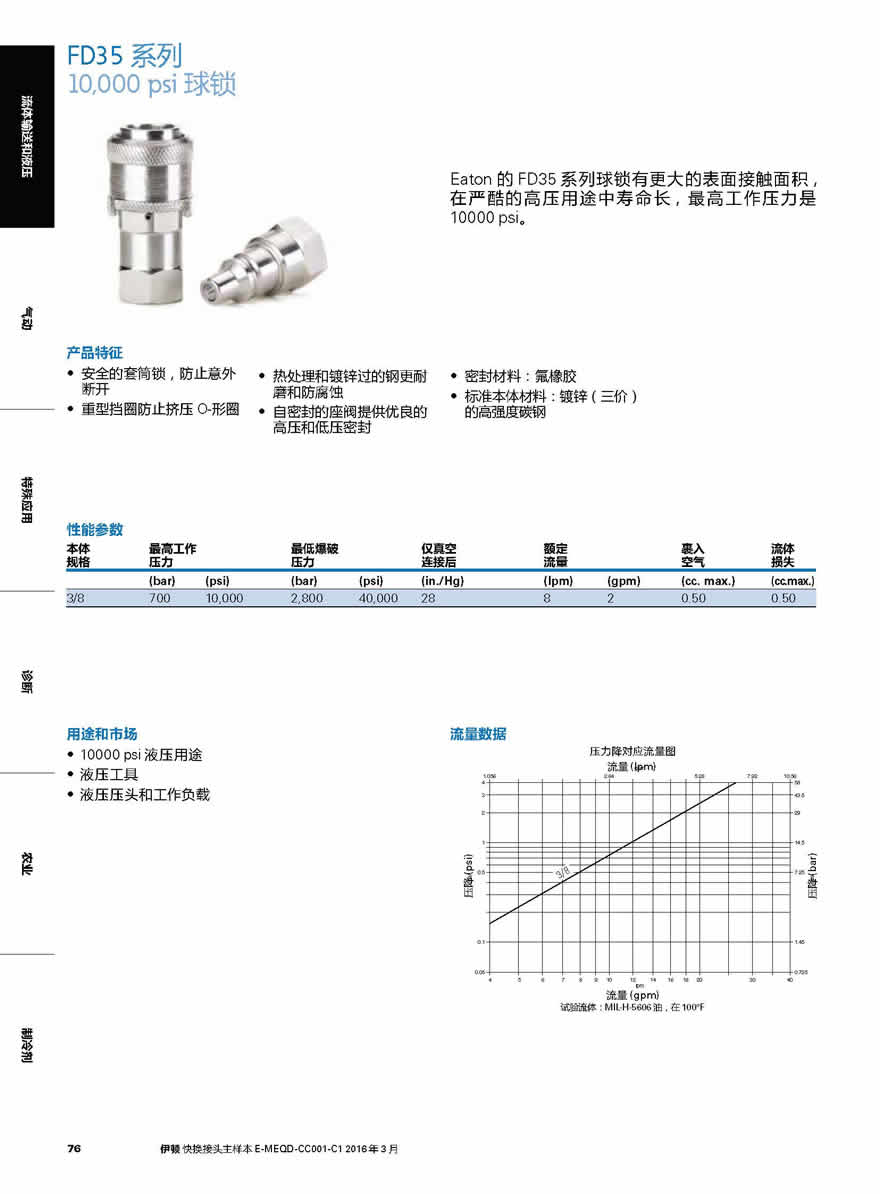

Eaton的 FD35系列球鎖有更大的表面接觸面積，在嚴酷的高壓用途中壽命長，最高工作壓力是 10000 psi。FD35 Series Arc Latch design has a greater surface contact area for long surface life in rugged high pressure applications. The maximum operating pressure is 10,000 psi.- Safety sleeve lock prevents accidental disconnection.
產品特征
- 安全的套筒鎖，防止意外斷開
- 重型擋圈防止擠壓 O-形圈
- 熱處理和鍍鋅過的鋼更耐磨和防腐蝕
- 自密封的座閥提供優良的高壓和低壓密封
- 密封材料：氟橡膠
- 標準本體材料：鍍鋅（三價）的高強度碳鋼
- Heavy duty back-up ring prevents O-ring extrusion.
- Heat treated and plated steel for greater wear and corrosion resistance.
- Self-sealing poppet valves provide excellent high and low pressure sealing.
- Standard seal material - Viton.
- Standard body material - Zinc plated steel.
FD35系列
10,000 psi
尺寸（NPT 內螺紋，有閥）

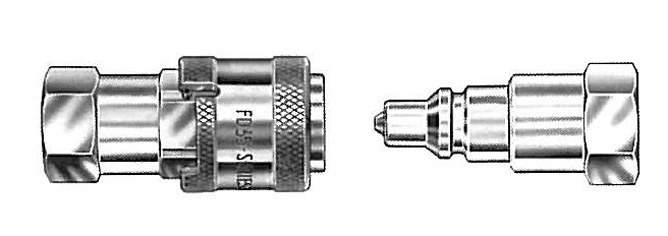

接頭本體端口尺寸件號類型規格規格螺紋類型圖 A B 六角
(mm) (in) (mm) (in) (mm) (in)
FD35-1002-06-06 公頭 3/8 3/8 3/8-18 NPT 內螺紋 1 53.8 (2.12) - - 23.9 (.94)
FD35-1001-06-06 母頭 3/8 3/8 3/8-18 NPT 內螺紋 2 65.0 (2.56) 32.3 (1.27) 23.9 (.94)
FD35-1000-06-06 一套 3/8 3/8 3/8-18 NPT 內螺紋 3 89.9 (3.54) - - - -
尺寸（SAE O-形圈內螺紋，有閥）
接頭本體 端口 尺寸
件號類型規格 規格 螺紋 類型 圖 A B 六角
(mm) (in) (mm) (in) (mm) (in)
FD35-1008-06-06 公頭 3/8 9/16 9/16-18 SAE O-形圈內螺紋 1 53.8 (2.12) - - 23.9 (.94)
FD35-1007-06-06 母頭 3/8 9/16 9/16-18 SAE O-形圈內螺紋 2 65.0 (2.56) 32.3 (1.27) 23.9 (.94)
FD35-1006-06-06 一套 3/8 9/16 9/16-18 SAE O-形圈內螺紋 3 89.9 (3.54) - - - -
尺寸（SAE O-形圈內螺紋， 125 PSI 放氣閥）
接頭本體端口 尺寸
件號類型規格規格螺紋 類型 圖 A 六角
(mm) (in) (mm) (in)
FD35-1052-06-06 公頭 3/8 9/16 9/16-18 SAE O-形圈內螺紋 1 53.8 (2.12) 23.9 (.94)
注：包括一臺專用的溢流閥，設定在 125 psi，防止建立斷開壓力。
防塵帽/防塵塞
件號本體規格
FD35-1042-06 3/8
注：公頭和母頭都適用。
防塵帽 /防塵塞
Item # Coupling Size Thread Size (P) Dim.- Hex(1) Seal Material Type
FD35-1002-06-06 -06 ;3/8-18 2.05 N/A0.94 inches BUNA-N Male Half - Female Pipe/Valved
FD35-1001-06-06 -06 ;3/8-18 2.56 1.27 0.94 inches BUNA-N Female Half - Female Pipe/Valved
FD35-1000-06-06 -06; 3/8-18 3.53 N/AN/ABUNA-N Complete Coupling - Female Pipe/Valved
FD35-1008-06-06 -06 ;9/16-18 2.05 N/A0.94 inches BUNA-N Male Half - Female SAE O-ring/Valved
FD35-1007-06-06 -06; 9/16-18 2.56 1.27 0.94 inches BUNA-N Female Half - Female SAE O-ring/Valved
FD35-1006-06-06 -06 ;9/16-18 3.53 N/AN/AViton? Complete Coupling - Female SAE O-ring/Valved
FD35-1043-06-06 -06 ;3/8-18 2.05 N/A0.94 inches Viton? Male Half - Female Pipe/45 psi Bleed Valve
FD35-1044-06-06 -06 ;9/16-18 2.12 N/A0.94 inches Viton? Male Half - Female SAE O-Ring/45 psi Bleed Valve
FD35-1042-06 -06 ;N/AN/AN/AN/AN/ADUST COVER
|
