DANFOSS HANSEN FD14 Series Oil Drain Coupling
丹佛斯漢森FD14 系列放油接頭 FD14 Drain coupling FLOCS (Fast Lube Oil Change System)
FD14 Series Oil Drain Coupling FLOCS application

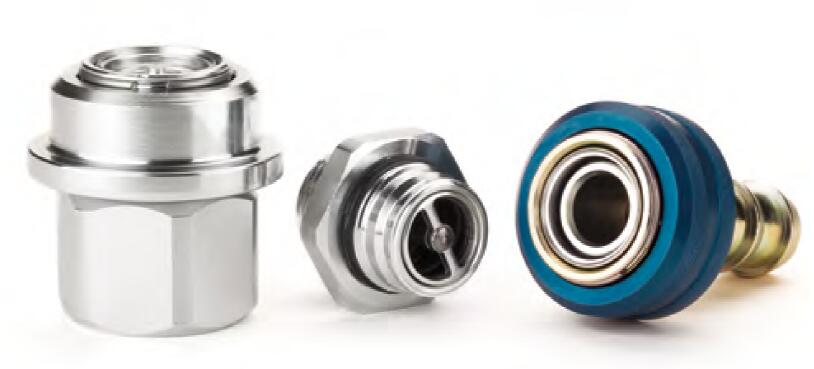

Danfoss FD14 Drain Coupling

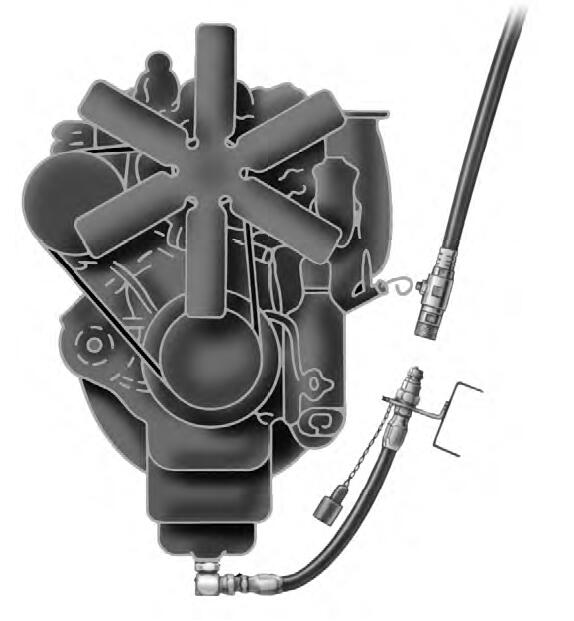

Eaton 的FD14 放油接頭設計作為一個排放口，用于Eaton 的FLOCS（快速潤滑油更換系統），以及提供一個清洗口，在預注油操作期間使用。FD14提供一種無泄漏推入連接操作，提高油液抽空系統的速度和效率。

丹佛斯FLOCS (Fast Lube Oil Change System) FD14 系列放油接頭
FD14 Series Oil Drain Coupling FLOCS application
Danfoss FD14 Drain Coupling

產品特征

- 精巧外形設計，有多種密封結構
- 推入連接母頭，易于單手操作
- 公頭的標準螺紋型式范圍廣
- 利用銅擠壓墊對著孔口固定
- 標準的公頭密封件：氟橡膠
- 標準的母頭密封件：丁腈橡膠
- 標準本體材料：鍍鋅（三價）的高強度碳鋼，鍍鋅壓鑄閥

用途和市場

- 自動油液抽空系統
- 重力放油抽空系統

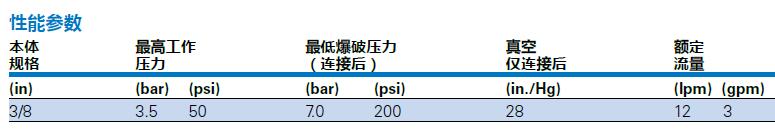

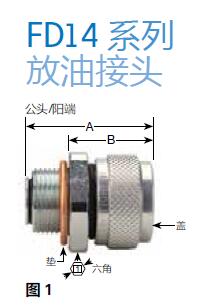

FD14 系列放油接頭
尺寸 件號
本體 螺紋 尺寸 最小 組件 墊 蓋
規格 規格 圖 A B 六角 1 裝配扭矩 （包括墊和蓋） （銅擠壓） （黃銅）
P (mm) (in) (mm) (in) (mm) (in) (N-m) (lbs-ft)
3/8 1 1/16-12 UN-2A 1 39.1 (1.54) 24.4 (.96) 38.1 (1 1/2) 41-81 (30-60)* FD14-4002-20-06 FD14-1206-08 FD14-1210-06
3/8 1 1/4-18 UNEF-2A 1 39.1 (1.54) 24.4 (.96) 38.1 (1 1/2) 41-81 (30-60)* FD14-4002-05-06 FD14-1206-11 FD14-1210-06
3/8 1 1/8-12 UNF-2A 1 39.1 (1.54) 24.4 (.96) 38.1 (1 1/2) 41-81 (30-60)* FD14-4002-14-06 FD14-1206-09 FD14-1210-06
3/8 1/2-14 DRYSEAL NPTF 1 40.6 (1.60) 24.4 (.96) 27.0 (1 1/16) - - FD14-4002-27-06* - FD14-1210-06
3/8 1/2-14 UNS-2A 1 38.6 (1.52) 24.4 (.96) 27.0 (1 1/16) 27-33 (20-24)* FD14-4002-22-06* FD14-1206-01 FD14-1210-06
3/8 1/2-20 UNF-2A 1 38.6 (1.52) 24.4 (.96) 27.0 (1 1/16) 27-33 (20-24)* FD14-4002-01-06* FD14-1206-01 FD14-1210-06
3/8 1-18 UNS-2A 1 39.1 (1.54) 24.4 (.96) 31.8 (1 1/4) 41-81 (30-60)* FD14-4002-06-06 FD14-1206-07 FD14-1210-06
3/8 3/4-14 DRYSEAL NPTF 1 43.8 (1.72) 24.4 (.96) 31.8 (1 1/4) - - FD14-4002-26-06 - FD14-1210-06
3/8 3/4-16 UNF-2A 1 39.1 (1.54) 24.4 (.96) 31.8 (1 1/4) 41-68 (30-50)* FD14-4002-09-06 FD14-1206-04 FD14-1210-06
3/8 5/8-18 UNF-2A 1 38.6 (1.52) 24.4 (.96) 27.0 (1 1/16) 27-54 (20-40)* FD14-4002-08-06* FD14-1206-03 FD14-1210-06
3/8 7/8-14 UNF-2A 1 39.1 (1.54) 24.4 (.96) 31.8 (1 1/4) 41-81 (30-60)* FD14-4002-10-06 FD14-1206-06 FD14-1210-06
3/8 7/8-18 UNS-2A 1 39.1 (1.54) 24.4 (.96) 31.8 (1 1/4) 41-81 (30-60)* FD14-4002-07-06 FD14-1206-06 FD14-1210-06
3/8 9/16-18 UNF-2A 1 38.6 (1.52) 24.4 (.96) 27.0 (1 1/16) 27-54 (20-40)* FD14-4002-12-06* FD14-1206-02 FD14-1210-06
* 注意：未滿足最小裝配扭矩要求，會導致漏油。

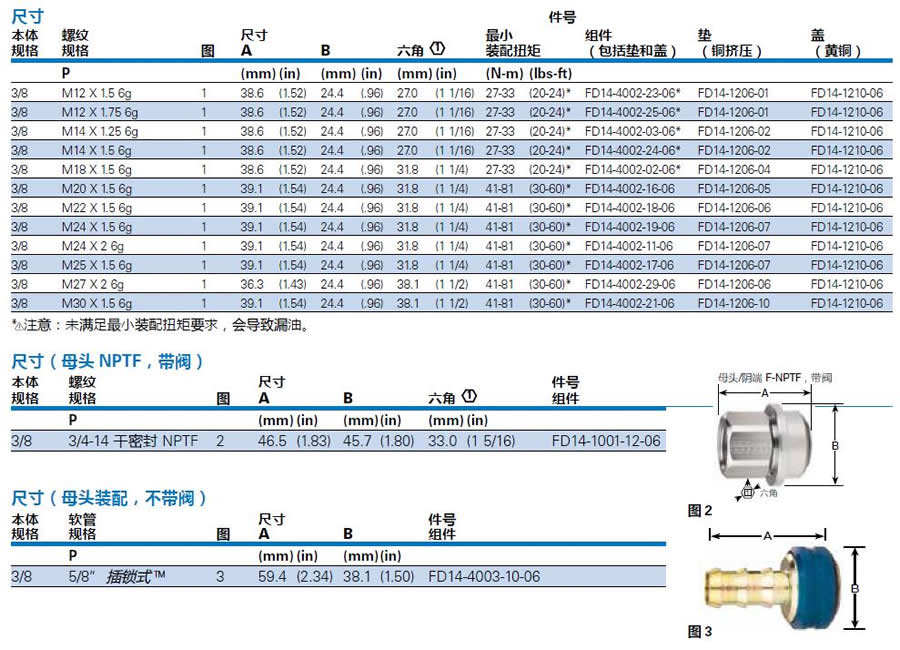

尺寸 件號
本體 螺紋 尺寸 最小 組件 墊 蓋
規格 規格 圖 A B 六角 1 裝配扭矩 （包括墊和蓋） （銅擠壓） （黃銅）
P (mm) (in) (mm) (in) (mm) (in) (N-m) (lbs-ft)
3/8 M12 X 1.5 6g 1 38.6 (1.52) 24.4 (.96) 27.0 (1 1/16) 27-33 (20-24)* FD14-4002-23-06* FD14-1206-01 FD14-1210-06
3/8 M12 X 1.75 6g 1 38.6 (1.52) 24.4 (.96) 27.0 (1 1/16) 27-33 (20-24)* FD14-4002-25-06* FD14-1206-01 FD14-1210-06
3/8 M14 X 1.25 6g 1 38.6 (1.52) 24.4 (.96) 27.0 (1 1/16) 27-33 (20-24)* FD14-4002-03-06* FD14-1206-02 FD14-1210-06
3/8 M14 X 1.5 6g 1 38.6 (1.52) 24.4 (.96) 27.0 (1 1/16) 27-33 (20-24)* FD14-4002-24-06* FD14-1206-02 FD14-1210-06
3/8 M18 X 1.5 6g 1 38.6 (1.52) 24.4 (.96) 31.8 (1 1/4) 27-33 (20-24)* FD14-4002-02-06* FD14-1206-04 FD14-1210-06
3/8 M20 X 1.5 6g 1 39.1 (1.54) 24.4 (.96) 31.8 (1 1/4) 41-81 (30-60)* FD14-4002-16-06 FD14-1206-05 FD14-1210-06
3/8 M22 X 1.5 6g 1 39.1 (1.54) 24.4 (.96) 31.8 (1 1/4) 41-81 (30-60)* FD14-4002-18-06 FD14-1206-06 FD14-1210-06
3/8 M24 X 1.5 6g 1 39.1 (1.54) 24.4 (.96) 31.8 (1 1/4) 41-81 (30-60)* FD14-4002-19-06 FD14-1206-07 FD14-1210-06
3/8 M24 X 2 6g 1 39.1 (1.54) 24.4 (.96) 31.8 (1 1/4) 41-81 (30-60)* FD14-4002-11-06 FD14-1206-07 FD14-1210-06
3/8 M25 X 1.5 6g 1 39.1 (1.54) 24.4 (.96) 31.8 (1 1/4) 41-81 (30-60)* FD14-4002-17-06 FD14-1206-07 FD14-1210-06
3/8 M27 X 2 6g 1 36.3 (1.43) 24.4 (.96) 38.1 (1 1/2) 41-81 (30-60)* FD14-4002-29-06 FD14-1206-06 FD14-1210-06
3/8 M30 X 1.5 6g 1 39.1 (1.54) 24.4 (.96) 38.1 (1 1/2) 41-81 (30-60)* FD14-4002-21-06 FD14-1206-10 FD14-1210-06
* 注意：未滿足最小裝配扭矩要求，會導致漏油。

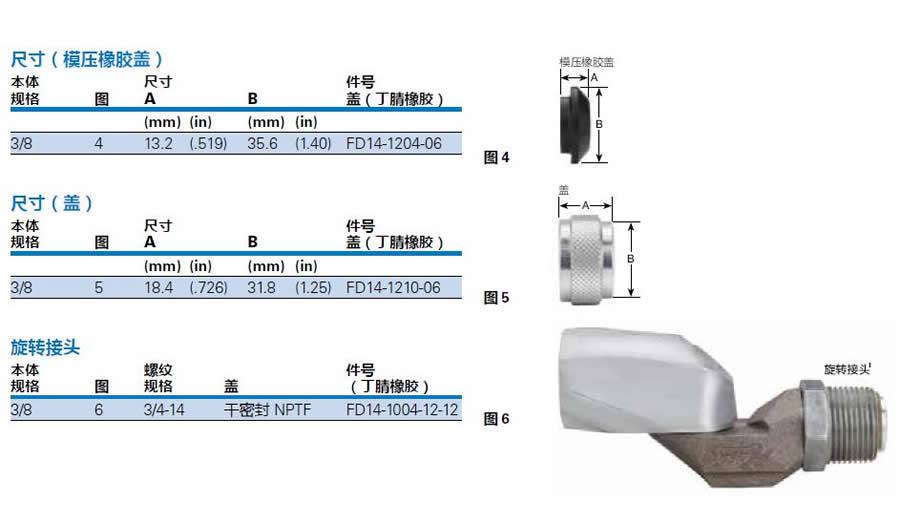

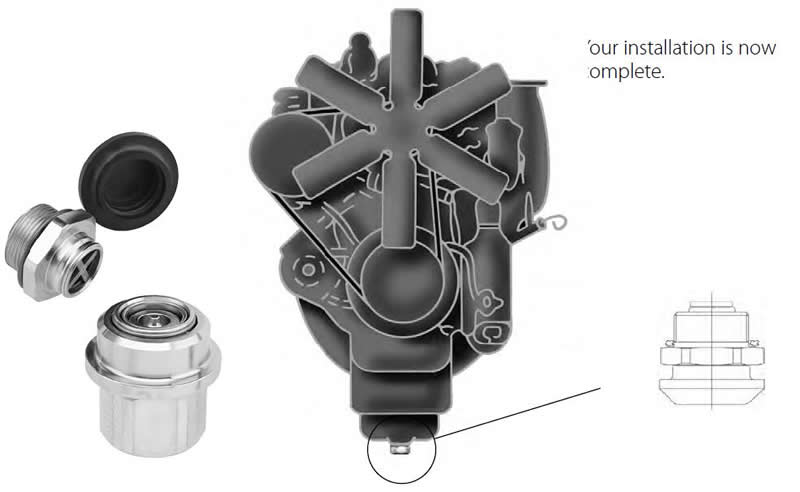

The FD14 Drain coupling is designed to serve as a drain port for use with Eaton's FLOCS (Fast Lube Oil Change System) as well as providing a purging port for use during pre-fill operations. The FD14 provides a leak free push to connect operation for improving speed and efficiency for oil evacuation systems.

- O-ring - primary seal
- Metal-to-metal - Secondary seal
- Protective cap - Secondary seal
Push-To-Connect female half for easy one-hand operationBroad range of standard thread styles for male half- Utilizes a Copper-Crush gasket to seat against the port face
Standard male half seal material - VitonStandard female half seal material - Buna-N.Standard body material - Zinc plated steel with zinc die-cast valveRubber molded cap- Standard material - Buna-N.

FD14 Series Oil Drain Coupling
Male Half Assy
Cap
Dimensions (English Thread)
Part Number
AssemblyBody Thread Dimensions
Min. Assy. (includes Gasket Cap Size Size Fig. A B Hex 1 Torque Gasket & Cap) (Copper-Crush) (Brass)

3/8 1 1/4-18 UNEF-2A 1 39.1 (1.54) 24.4 (.96) 38.1 (1 1/2) 41-81 (30-60)* FD14-4002-05-06 FD14-1206-11 FD14-1210-06
3/8 1/2-14 DRYSEAL NPTF 1 40.6 (1.60) 24.4 (.96) 27.0 (1 1/16) --FD14-4002-27-06* None Needed FD14-1210-06
3/8 1/2-20 UNF-2A 1 38.6 (1.52) 24.4 (.96) 27.0 (1 1/16) 27-33 (20-24)* FD14-4002-01-06* FD14-1206-01 FD14-1210-06
3/8 3/4-14 DRYSEAL NPTF 1 43.8 (1.72) 24.4 (.96) 31.8 (1 1/4) --FD14-4002-26-06 None Needed FD14-1210-06
3/8 5/8-18 UNF-2A 1 38.6 (1.52) 24.4 (.96) 27.0 (1 1/16) 27-54 (20-40)* FD14-4002-08-06* FD14-1206-03 FD14-1210-06
3/8 7/8-18 UNS-2A 1 39.1 (1.54) 24.4 (.96) 31.8 (1 1/4) 41-81 (30-60)* FD14-4002-07-06 FD14-1206-06 FD14-1210-06
3/8 M12 X 1.75 6g 1 38.6 (1.52) 24.4 (.96) 27.0 (1 1/16) 27-33 (20-24)* FD14-4002-25-06* FD14-1206-01 FD14-1210-06
3/8 M14 X 1.5 6g 1 38.6 (1.52) 24.4 (.96) 27.0 (1 1/16) 27-33 (20-24)* FD14-4002-24-06* FD14-1206-02 FD14-1210-06
3/8 M20 X 1.5 6g 1 39.1 (1.54) 24.4 (.96) 31.8 (1 1/4) 41-81 (30-60)* FD14-4002-16-06 FD14-1206-05 FD14-1210-06
3/8 M24 X 1.5 6g 1 39.1 (1.54) 24.4 (.96) 31.8 (1 1/4) 41-81 (30-60)* FD14-4002-19-06 FD14-1206-07 FD14-1210-06
3/8 M25 X 1.5 6g 1 39.1 (1.54) 24.4 (.96) 31.8 (1 1/4) 41-81 (30-60)* FD14-4002-17-06 FD14-1206-07 FD14-1210-06
3/8 M30 X 1.5 6g 1 39.1 (1.54) 24.4 (.96) 38.1 (1 1/2) 41-81 (30-60)* FD14-4002-21-06 FD14-1206-10
FD14-1210-06

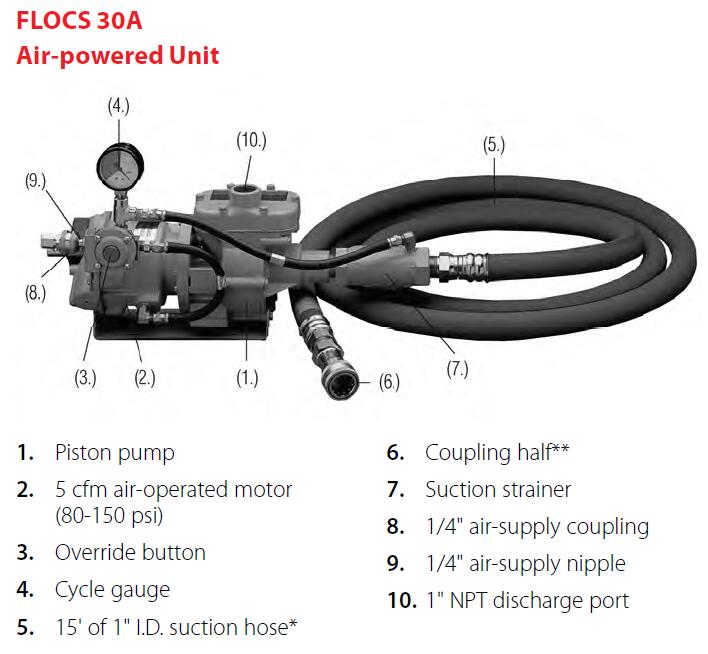

Description Part No. Basic Material
1 1 Pump FF9330A-02 Cast Aluminum
2 1 Coupling Half FD40-1000-04-04 Steel
3 1 Shut-off Valve FF9330A-03 Aluminum
4 1 Coupling Body FD40-1014-04-04 Steel
5 1 Bracket FF9330A-14 Steel
6 1 Bracket FF9330A-13 Steel
7 1 Cycle Gauge FF9330A-11 Steel
8 1 Service Tee 2092-4-4S Steel
9 1 Adapter 2021-4-4B Brass
10 2 Hose Assembly 255603-4B-8 Brass Fittings
11 1 Hose Assembly 255603-4B-13 Brass Fittings
12 2 Adapter 2024-4-4B Brass
13 1 Strainer FF9330A-12 Steel
14 1 Hose Assembly FA1552KMM1800 Steel Fittings
15 1 Coupling Half 5501-12-12S Steel
16 1 Pipe Plug 2082-12S Steel
17 1 Adapter 2084-16S-11/2 Steel

Shut-Off Valve Parts List
Item No. Quality Required Description Part No. Basic Material
1 4 Screw FF9144-0110-12 Steel
2 1 O-ring 22550-008 Buna-N
3 1 Button FF9330A-09 Aluminum
4 1 Cover FF9330A-10 Aluminum
5 1 Diaphragm FF9330A-08 Steel and Rubber
6 1 Valve Body FF9330A-04 Cast Aluminum
7 1 Valve FF9330A-05 Brass & Rubber
8 1 Spring FF9330A-06 Spring Steel
9 1 O-ring 22550-018 Buna-N
10 1 Cap FF9330A-07 Plastic

Item Number Quantity Required Description Part Number Basic Material
1 1 Pump Motor FF9315-02 Steel
2 1 Adapter 2085-16-12S Steel
3 1 Adapter 2089-16-16S Steel
4 1 Hose Assembly FA1552KMM1800 Steel
5 1 Coupling Half 5601-12-12S Steel
6 1 Strainer FF9315-03 Steel
7 1 Pipe Plug 2082-12S Steel
8 1 Adapter 2085-16-16S Steel
9 1 Flow Switch FF9300-13 Steel
10 1 Timing Relay FF9300-19 Steel
11 1 Running Light FF9310-20 Steel
12 1 Cover FF9315-20 Steel
13 1 Control Box FF9315-05 Steel
14 1 Decal FF9315-10 -
15 1 Conduit Nipple FF9315-18 Steel
16 2 Lock Nut FF9315-19 Steel
17 1 Check Valve FF9315-24 Brass
18 1 Adapter 2085-12-12S Steel
19 1 Conduit FF9315-23 Steel & PVC
20 2 90o Angle Connector FF9315-22 Steel
21 3 Reducing Washer FF9315-21 Steel
22 4 Screw 210002-1-8-7S Steel
23 1 Legend Plate FF9315-07 Steel
24 1 Legend Plate FF9315-06 Steel
25 1 Decal FF9315-09 -
26 1 Bracket FF9315-08 Steel
27 2 Bolt FF9309-0110-04S Steel
28 2 Lock Washer 210104-1-10S Steel
29 2 Nut FF9236-0110S Steel
30 1 Wire Assembly FF9315-11 Copper & Vinyl
31 1 Wire Assembly FF9315-17 Copper & Vinyl
32 1 Wire Assembly FF9300-30 Copper & Vinyl
33 1 Wire Assembly FF9315-16 Copper & Vinyl
34 1 Wire Assembly FF9315-13 Copper & Vinyl
35 1 Wire Assembly FF9315-12 Copper & Vinyl
36 1 Wire Assembly FF9315-25 Copper & Vinyl
37 1 Wire Assembly FF9315-15 Copper & Vinyl
38 2 Wire Connector FF9310-38 Steel & Plastic

These components are common to each kit regardless
of the part number.
Item # Part # Description
Item # 2 069 Hose Clamp
Item # 3 900729-8 Hose
Item # 4 H56912 Hose
Item # 5 069 Hose Fitting
Item # 6 2089-12-12S Connection At
Mounting Flange
Item # 7 FF9363-01S/
FF9270-01S
Bracket
Item # 8 5657-12 Dust Cap
Item # 9 5602-12-12S Coupling Half
Kit Part Numbers are selected by choosing the appropriate
drain port thread size.
Thread Size
#1 Oil Pan
Adapter &
Gasket
Hardware Kits
(Includes Items)
1, 3, 6, 7, 8, & 9)
3/4 - 14 NPT (Pipe) 2047-8-12S FF943
3/8 - 18 NPT (Pipe) 2047-8-6S FF945
7/8 - 18 FF1187-0807S FF944
7/8 - 14 FF1187-0810S FF946
1 - 18 FF1187-0806S FF947
1 - 11 1/2 NPT (Pipe) 2047-8-16S FF948
1/2 - 14 NPT (Pipe) 2047-8-8S FF949

Kit Numbers are selected by matching the drain port thread size with the oil pan adapter of the
same thread.
Thread Size
#1 Oil Pan Adapter
& Gasket
Hardware Kit
(Includes Items
1, 3, 6, 7, 8, & 9)
1/2 - 20 FF1187-0801S FF428
m 18 x 1.5 FF1187-0802S FF429
m 14 x 1.25 FF1187-0803S FF430
m 10 x 1 FF1187-0804S FF431
1 1/4 - 18 FF1187-0805S FF432
1 - 18 FF1187-0806S FF433
7/8 - 18 FF1187-0807S FF434
5/8 - 18 FF1187-0808S FF435
3/4 - 16 FF1187-0809S FF436
7/8 - 14 FF1187-08010S FF437
9/16 - 18UNF - 2A FF1187-08012S FF11042
1 1/8 - 12UNF - 2A FF1187-08014S FF11301
1 1/8 - 12UNF - 2A **FF1187-08015S FF11303
m 20 x 1.5 FF1187-0816S FF11499
m 25 x 1.5 FF1187-0817S FF11826
3/8 - 18 NPT (Pipe) 2047-8-6S FF439
1/2 - 14 NPT (Pipe) 2047-8-8S FF440
3/4 - 14 NPT (Pipe) 2047-8-12S FF441

Kit Numbers are selected by matching the drain port thread size with the oil pan adapter of the
same thread.
Thread Size
#1 Oil Pan Adapter
& Gasket
Hardware Kit
(Includes Items
1, 3, 6, 7, 8, & 9)
1/2 - 20 FF1187-0801S FF428
m 18 x 1.5 FF1187-0802S FF429
m 14 x 1.25 FF1187-0803S FF430
m 10 x 1 FF1187-0804S FF431
1 1/4 - 18 FF1187-0805S FF432
1 - 18 FF1187-0806S FF433
7/8 - 18 FF1187-0807S FF434
5/8 - 18 FF1187-0808S FF435
3/4 - 16 FF1187-0809S FF436
7/8 - 14 FF1187-08010S FF437
9/16 - 18UNF - 2A FF1187-08012S FF11042
1 1/8 - 12UNF - 2A FF1187-08014S FF11301
1 1/8 - 12UNF - 2A **FF1187-08015S FF11303
m 20 x 1.5 FF1187-0816S FF11499
m 25 x 1.5 FF1187-0817S FF11826
3/8 - 18 NPT (Pipe) 2047-8-6S FF439
1/2 - 14 NPT (Pipe) 2047-8-8S FF440
3/4 - 14 NPT (Pipe) 2047-8-12S FF441

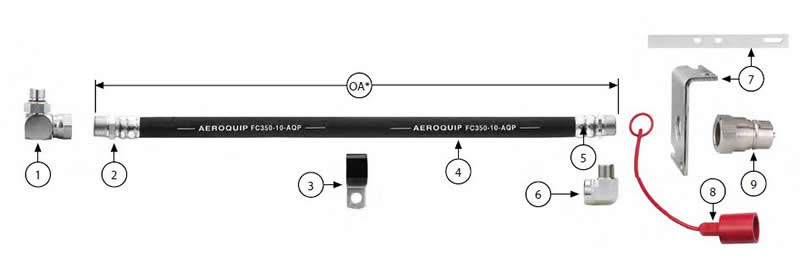

tem # Part # Description
Item # 2 4412-8-12S
FJ3152-08125
(Reusable)
(Crimp)
Item # 3 900729-8 Hose Clamp
Item # 4 FC350-10 Hose
Item # 5 4412-12-12S Hose Fitting
Item # 5 FJ3152-1212S (Crimp)
Item # 6 2089-12-12S Connection At
Mounting Flange
Item # 7 FF9363-01S/
FF9270-01S
Bracket
Item # 8 5657-12 Dust Cap
Item # 9 5602-12-12S Coupling Half
Kit Part Numbers are selected by choosing the appropriate drain port thread size.
Items
Thread Size
#1 Oil Pan
Adapter &
Gasket
#2 Hose
Fitting
Hardware Kit
(Includes Items
1, 3, 6, 7, 8, & 9)
Assembled Kit*
(Includes Items
1 through 9)
3/4 - 14 NPT (Pipe) 2047-8-12S 4412-8-12S FF943 FF293-OA
3/8 - 18 NPT (Pipe) 2047-8-6S 44112-8-12S FF945 FF322-OA
7/8 - 18 FF1187-0807S 4412-8-12S FF944 FF317-OA
7/8 - 14 FF1187-0810S 4412-8-12S FF946 FF380-OA
1 - 18 FF1187-0806S 4412-8-12S FF947 FF395-OA
1 - 11 1/2 NPT (Pipe) 2024-16-12S 4411-8-12S FF948 FF833-OA
1/2 - 14 NPT (Pipe) 2024-8-12S 4411-8-12S FF949 FF834-OA
* OA indicates overall length of hose assembly in inches. (Available to Aeroquip only.)
