EATON Aeroquip 5100 Series/ Low Spill - Connect Under Pressure

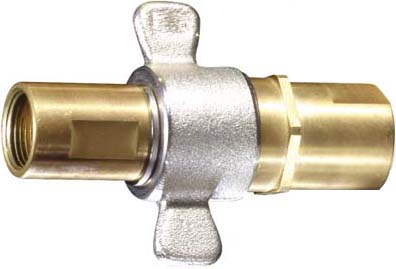

Aeroquip 5100 Series Quick Disconnect Couplings快速接頭

Aeroquip 5100 Series Quick Disconnect Couplings

Aeroquip 5100系列銅和鋼材質快速接頭具有小的空氣包裹體和流體損失。螺紋連接帶壓力操作提供壓力能力和抗振動。Aeroquip 5100系列可以額定連續液壓脈沖的應用。液壓脈沖的應用，參閱fd86和fd96系列螺紋連接產品線。Aeroquip 5100 Series brass coupling with steel tubular valve offers minimum air inclusion and fluid loss.Thread together latch provides connect under pressure capability and vibration resistance. The 5100 Series is not rated for continuous hydraulic impulse applications. For hydraulic impulse applications, refer to the FD86 and FD96 Series thread to connect product lines

Aeroquip 5100 Series Quick Disconnect Couplings PDF

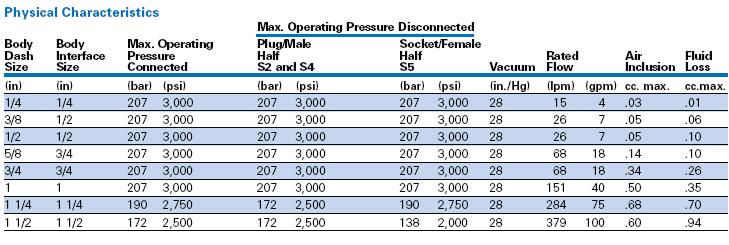

規格參數：
Available with wing or hex nut configurations.
Connect against pressure capability allows connecting of halves even when pressurized up to 500 psi.
Steel flange available for accessible bulkhead mounting.
Standard seal mterial - Buna-N.
Standard body material - Brass with steel valving components, hex and wing nuts.

Part NO	Coupling Size	Thread Size (P)	Seal Material	Type
5100-S2-4B	-4	1/8-27	BUNA-N	Male Half/Less Flange - Female Pipe
5100-S2-6B	-6	1/4-18	BUNA-N	Male Half/Less Flange - Female Pipe
5100-S2-8B	-8	3/8-18	BUNA-N	Male Half/Less Flange - Female Pipe
5100-S2-10B	-10	1/2-14	BUNA-N	Male Half/Less Flange - Female Pipe
5100-S2-12B	-12	3/4-14	BUNA-N	Male Half/Less Flange - Female Pipe
5100-S2-16B	-16	1-11-1/2	BUNA-N	Male Half/Less Flange - Female Pipe
5100-S2-20B	-20	1-1/4 to 11-1/2	BUNA-N	Male Half/Less Flange - Female Pipe
5100-S2-24B	-24	1-1/2 to 11-1/2	BUNA-N	Male Half/Less Flange - Female Pipe
5100-S4-4B	-4	1/8-27	BUNA-N	Male Half/With Flange - Female Pipe
5100-S4-6B	-6	1/4-18	BUNA-N	Male Half/With Flange - Female Pipe
5100-S4-8B	-8	3/8-18	BUNA-N	Male Half/With Flange - Female Pipe
5100-S4-10B	-10	1/2-14	BUNA-N	Male Half/With Flange - Female Pipe
5100-S4-12B	-12	3/4-14	BUNA-N	Male Half/With Flange - Female Pipe
5100-S4-16B	-16	1-11-1/2	BUNA-N	Male Half/With Flange - Female Pipe
5100-S4-20B	-20	1-1/4 to 11-1/2	BUNA-N	Male Half/With Flange - Female Pipe
5100-S4-24B	-24	1-1/2 to 11-1/2	BUNA-N	Male Half/With Flange - Female Pipe
5100-S5-4B	-4	1/8-27	BUNA-N	Female Half/Wing Nut - Female Pipe
5100-S5-6B	-6	1/4-18	BUNA-N	Female Half/Wing Nut - Female Pipe
5100-S5-8B	-8	3/8-18	BUNA-N	Female Half/Wing Nut - Female Pipe
5100-S5-10B	-10	1/2-14	BUNA-N	Female Half/Wing Nut - Female Pipe
5100-S5-12B	-12	3/4-14	BUNA-N	Female Half/Wing Nut - Female Pipe
5100-S5-16B	-16	1-11-1/2	BUNA-N	Female Half/Wing Nut - Female Pipe
5100-S5-20B	-20	1-1/4 to 11-1/2	BUNA-N	Female Half/Wing Nut - Female Pipe
5100-S5-24B	-24	1-1/2 to 11-1/2	BUNA-N	Female Half/Wing Nut - Female Pipe
5110-S5-4B	-4	1/8-27	BUNA-N	Female Half/Hex Nut - Female Pipe

5110-S5-6B	-6	1/4-18	BUNA-N	Female Half/Hex Nut - Female Pipe
5110-S5-8B	-8	3/8-18	BUNA-N	Female Half/Hex Nut - Female Pipe
5110-S5-10B	-10	1/2-14	BUNA-N	Female Half/Hex Nut - Female Pipe
5110-S5-12B	-12	3/4-14	BUNA-N	Female Half/Hex Nut - Female Pipe
5110-S5-16B	-16	1-11-1/2	BUNA-N	Female Half/Hex Nut - Female Pipe
5110-S5-20B	-20	1-1/4 to 11-1/2	BUNA-N	Female Half/Hex Nut - Female Pipe
5110-S5-24B	-24	1-1/2 to 11-1/2	BUNA-N	Female Half/Hex Nut - Female Pipe
5101-4B	-4	1/8-27	BUNA-N	Complete Coupling Less Flange/With Wing Nut/Female Pipe
5101-6B	-6	1/4-18	BUNA-N	Complete Coupling Less Flange/With Wing Nut/Female Pipe

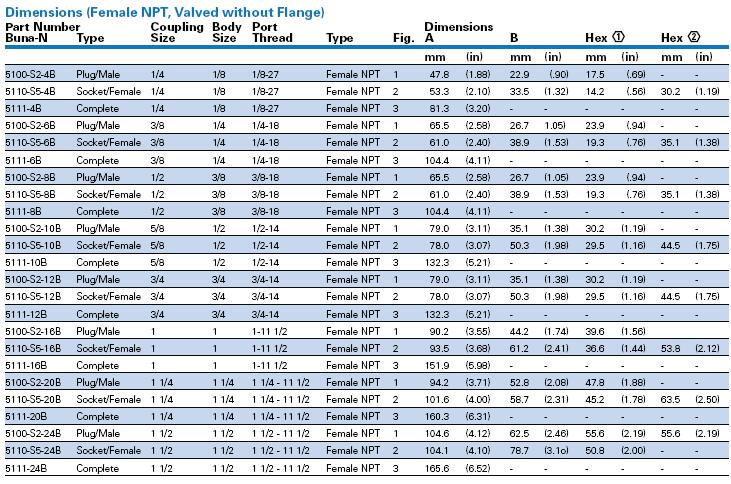

Part no	Coupling Size	Thread Size (P)	A	B	Dim.- Hex(1)	Seal Material	Type
5100-S2-4B	-4	1/8-27	1.88	0.9	0.69 inches	N/ABUNA-N	Male Half/Less Flange - Female Pipe
5100-S2-6B	-6	1/4-18	2.58	1.07	0.94 inches	N/ABUNA-N	Male Half/Less Flange - Female Pipe
5100-S2-8B	-8	3/8-18	2.58	1.07	0.94 inches	N/ABUNA-N	Male Half/Less Flange - Female Pipe
5100-S2-10B	-10	1/2-14	3.11	1.38	1.19 inches	N/ABUNA-N	Male Half/Less Flange - Female Pipe
5100-S2-12B	-12	3/4-14	3.11	1.38	1.19 inches	N/ABUNA-N	Male Half/Less Flange - Female Pipe
5100-S2-16B	-16	1-11-1/2	3.55	1.76	1.56 inches	N/ABUNA-N	Male Half/Less Flange - Female Pipe
5100-S2-20B	-20	1-1/4 to 11-1/2	3.71	2.1	1.88 inches	N/ABUNA-N	Male Half/Less Flange - Female Pipe
5100-S2-24B	-24	1-1/2 to 11-1/2	4.12	2.48	2.19 inches	N/ABUNA-N	Male Half/Less Flange - Female Pipe

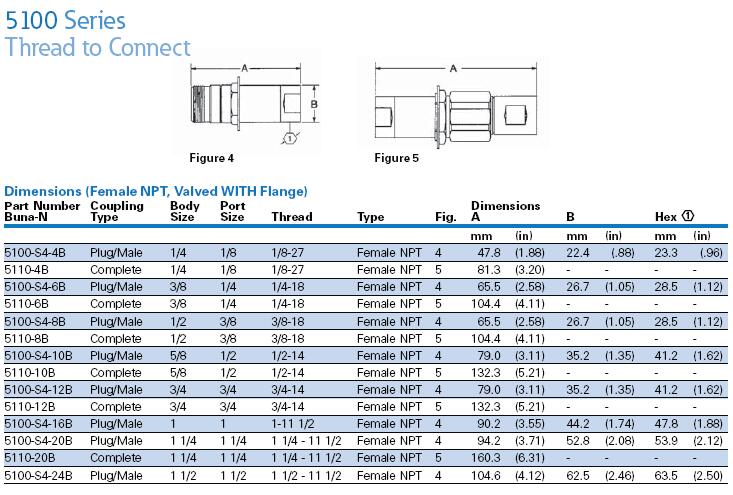

5100-S4-4B	-4	1/8-27	1.88	0.9	.94 inches	N/ABUNA-N	Male Half/With Flange - Female Pipe
5100-S4-6B	-6	1/4-18	2.58	1.07	1.12 inches	N/ABUNA-N	Male Half/With Flange - Female Pipe
5100-S4-8B	-8	3/8-18	2.58	1.07	1.12 inches	N/ABUNA-N	Male Half/With Flange - Female Pipe
5100-S4-10B	-10	1/2-14	3.11	1.38	1.62 inches	N/ABUNA-N	Male Half/With Flange - Female Pipe
5100-S4-12B	-12	3/4-14	3.11	1.38	1.62 inches	N/ABUNA-N	Male Half/With Flange - Female Pipe
5100-S4-16B	-16	1-11-1/2	3.55	1.76	1.88 inches	N/ABUNA-N	Male Half/With Flange - Female Pipe
5100-S4-20B	-20	1-1/4 to 11-1/2	3.71	2.1	2.12 inches	N/ABUNA-N	Male Half/With Flange - Female Pipe
5100-S4-24B	-24	1-1/2 to 11-1/2	4.12	2.48	2.50 inches	N/ABUNA-N	Male Half/With Flange - Female Pipe

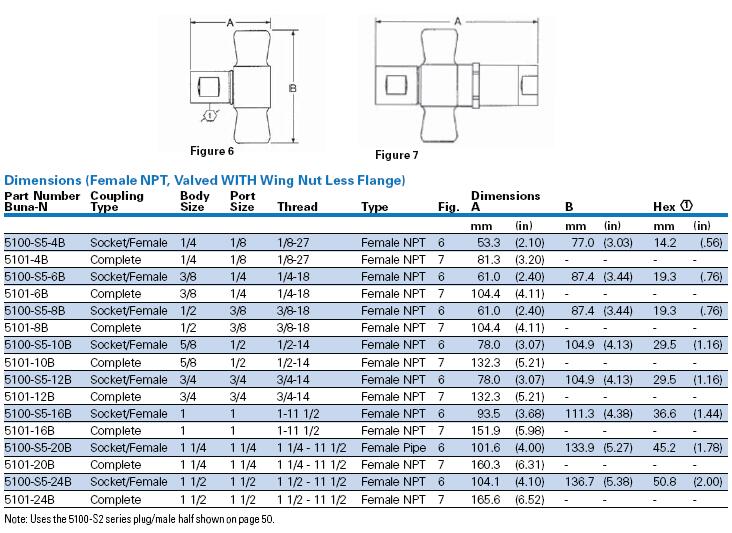

5100-S5-4B	-4	1/8-27	1.97	3.03	.56 inches	N/ABUNA-N	Female Half/Wing Nut - Female Pipe
5100-S5-6B	-6	1/4-18	2.37	3.44	.76 inches	N/ABUNA-N	Female Half/Wing Nut - Female Pipe
5100-S5-8B	-8	3/8-18	2.37	3.44	.76 inches	N/ABUNA-N	Female Half/Wing Nut - Female Pipe
5100-S5-10B	-10	1/2-14	3.09	4.06	1.16 inches	N/ABUNA-N	Female Half/Wing Nut - Female Pipe
5100-S5-12B	-12	3/4-14	3.09	4.06	1.16 inches	N/ABUNA-N	Female Half/Wing Nut - Female Pipe
5100-S5-16B	-16	1-11-1/2	3.67	4.38	1.44 inches	N/ABUNA-N	Female Half/Wing Nut - Female Pipe
5100-S5-20B	-20	1-1/4 to 11-1/2	3.98	5.19	1.78 inches	N/ABUNA-N	Female Half/Wing Nut - Female Pipe
5100-S5-24B	-24	1-1/2 to 11-1/2	4.02	5.31	2.00 inches	N/ABUNA-N	Female Half/Wing Nut - Female Pipe
5110-S5-4B	-4	1/8-27	2.1	1.32	.56 inches	1.19 inches	BUNA-N
5110-S5-6B	-6	1/4-18	2.4	1.53	.76 inches	1.38 inches	BUNA-N
5110-S5-8B	-8	3/8-18	2.4	1.53	.76 inches	1.38 inches	BUNA-N
5110-S5-10B	-10	1/2-14	3.07	1.98	1.16 inches	1.75 inches	BUNA-N
5110-S5-12B	-12	3/4-14	3.07	1.98	1.16 inches	1.75 inches	BUNA-N
5110-S5-16B	-16	1-11-1/2	3.68	2.41	1.44 inches	2.12 inches	BUNA-N
5110-S5-20B	-20	1-1/4 to 11-1/2	4	2.81	1.78 inches	2.50 inches	BUNA-N
5110-S5-24B	-24	1-1/2 to 11-1/2	4.1	3.1	2.00 inches	2.75 inches	BUNA-N

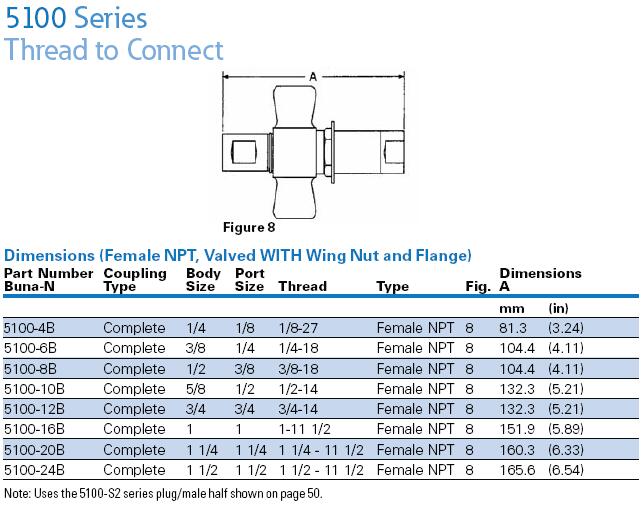

5101-4B	-4	1/8-27	3.2	N/AN/AN/ABUNA-N	Complete Coupling Less Flange/With Wing Nut/Female Pipe
5101-6B	-6	1/4-18	4.11	N/AN/AN/ABUNA-N	Complete Coupling Less Flange/With Wing Nut/Female Pipe

FD89-1001-04-04 COUPLER - FLAT FACE - ISO 16028 2FFI-14-NPT-F
FD89-1002-04-04 NIPPLE - FLAT FACE - ISO 16028 2FFI-14-NPT-M
FD89-1001-06-06 COUPLER - FLAT FACE - ISO 16028 / HTMA 2FFN-38-NPT-F
FD89-1002-06-06 NIPPLE - FLAT FACE - ISO 16028 / HTMA FFN-38-NPT-M-U
FD89-1001-08-06 COUPLER - FLAT FACE - ISO 16028 / HTMA 2FFN38-12NPT-F
FD89-1002-08-06 NIPPLE - FLAT FACE - ISO 16028 / HTMA FFN38-12NPT-MU
FD89-1001-08-08 COUPLER - FLAT FACE - ISO 16028 2FFI-12-NPT-F
FD89-1002-08-08 NIPPLE - FLAT FACE - ISO 16028 FFI-12-NPT-M
FD89-1001-12-08 COUPLER - FLAT FACE - ISO 16028 2FFI12-34NPT-F
FD89-1002-12-08 NIPPLE - FLAT FACE - ISO 16028 FFI12-34NPT-M
FD89-1001-12-12 COUPLER - FLAT FACE - ISO 16028 2FFI-34-NPT-F
FD89-1002-12-12 NIPPLE - FLAT FACE - ISO 16028 FFI-34-NPT-M
FD89-1001-16-16 COUPLER - FLAT FACE - ISO 16028 2FFI-1-NPT-F
FD89-1002-16-16 NIPPLE - FLAT FACE - ISO 16028 FFI-1-NPT-M
5100-S5-12B COUPLER - WING NUT - BRASS FB-12/34-NPT-F5
5100-S2-12B NIPPLE - WING NUT - BRASS FB-12/34-NPT-M5
5100-S5-16B COUPLER - WING NUT - BRASS FB-16/1-NPT-F5
5100-S2-16B NIPPLE - WING NUT - BRASS FB-16/1-NPT-M5
5100-S5-20B COUPLER - WING NUT - BRASS FB-20/114-NPT-F5
5100-S2-20B NIPPLE - WING NUT - BRASS FB-20/114-NPT-M5
150-22-16 MONUTING FLANGE FB-16-FL
150-22-20 MOUNTING FLANGE FB-20-FL
FD42-1001-04-04 COUPLER - AG INTERCHANGE - STEEL NV-14-NPT-F
FD42-1002-04-04 NIPPLE - AG INTERCHANGE - STEEL NV-14-NPT-M
FD71-1001-08-10 COUPLER - PUSH PULL - STEEL PV-12-NPT-F
FD76-1002-08-10 NIPPLE - AG INTRCHANGE - STEEL 2NV-12-NPT-M
FD76-1010-08-10 NIPPLE - AG INTERCHANGE - STEEL 2NV12-12SAE-M
5601-4-4S COUPLER - ISO A - STEEL ANV-14-NPT-F
5602-4-4S NIPPLE - ISO A - STEEL ANV-14-NPT-M
5601-6-6S COUPLER - ISO A - STEEL ANV-38-NPT-F
5602-6-6S NIPPLE - ISO A - STEEL ANV-38-NPT-M
5601-8-10S COUPLER - ISO A - STEEL NV-12-NPT-F
5602-8-10S NIPPLE - ISO A - STEEL NV-12-NPT-M
5601-12-10S COUPLER - ISO A - STEEL MV-34-NPT-F
5602-12-10S NIPPLE - ISO A - STEEL 2MV-34-NPT-M
5601-12-12S COUPLER - ISO A - STEEL ANV-34-NPT-F
5602-12-12S NIPPLE - ISO A - STEEL ANV-34-NPT-M
5601-16-16S COUPLER - ISO A - STEEL ANV-1-NPT-F
5602-16-16S NIPPLE - ISO A - STEEL ANV-1-NPT-M
5608-6-6S COUPLER - ISO A - STEEL ANV38-38SAE-F
5610-6-6S NIPPLE - ISO A - STEEL ANV38-38SAE-M
5608-8-10S COUPLER - ISO A - STEEL NV12-12SAE-F
5610-8-10S NIPPLE - ISO A - STEEL NV12-12SAE-M
5608-10-10S COUPLER - ISO A - STEEL NV12-58SAE-F
5610-10-10S NIPPLE - ISO A - STEEL NV12-58SAE-M
5608-12-12S COUPLER - ISO A - STEEL ANV34-34SAE-F
5610-12-12S NIPPLE - ISO A - STEEL ANV34-34SAE-M
5608-16-16S COUPLER - ISO A - STEEL ANV1-1SAE-F
5610-16-16S NIPPLE - ISO A - STEEL ANV1-1SAE-M
FD49-1001-06-06 COUPLER - FLAT FACE - ISO 16028 / HTMA 2FFN-38-NPT-F
FD49-1002-06-06 NIPPLE - FLAT FACE - ISO 16028 / HTMA FFN-38-NPT-M-U
FD49-1001-08-06 COUPLER - FLAT FACE - ISO 16028 / HTMA 2FFN38-12NPT-F
FD49-1002-08-06 NIPPLE - FLAT FACE - ISO 16028 / HTMA FFN38-12NPT-MU
FD49-1005-08-06 COUPLER - FLAT FACE - ISO 16028 / HTMA 2FFN38-12SAE-F
FD49-1004-08-06 NIPPLE - FLAT FACE - ISO 16028 / HTMA 2FFN38-12SAE-M
FD90-1021-02-04 COUPLER DIAGNOSTIC DF-04-18NPT-F
FD90-1034-02-04 NIPPLE DIAGNOSTIC DF-04-18NPT-M
FD90-1021-04-04 COUPLER DIAGNOSTIC DF-04-14NPT-F
FD90-1034-04-04 NIPPLE DIAGNOSTIC DF-04-14NPT-M
FD90-1012-04-04 NIPPLE DIAGNOSTIC DF-04-1/14NPT-M
FD90-1044-04-04 NIPPLE DIAGNOSTIC DF-04-1/14SAE-M
FD90-1044-05-04 NIPPLE DIAGNOSTIC DF-04-1/516SAE-M
FD90-1044-06-04 NIPPLE DIAGNOSTIC DF-04-1/38SAE-M
FD90-1046-06-04 NIPPLE DIAGNOSTIC DF-04-1/1415-M
5400-S5-4 COUPLER - REFIGERATION RF-04-FN
5400-S2-4 NIPPLE - REFIGERATION RF-04-MN
5400-S5-8 COUPLER - REFIGERATION RF-08-FN
5400-S2-8 NIPPLE - REFIGERATION RF-08-MN
5400-S5-12 COUPLER - REFIGERATION RF-12-FN
5400-S2-12 NIPPLE - REFIGERATION RF-12-MN
