伊頓 EATON WQF Series ISO 16028 Flat face Quick Coupling
平面快換接頭代理
伊頓EATON WQF快換接頭：無滴漏，防沙塵污染，防碰撞變形，單手操作，連接力小，帶安全自鎖，連接時可防空
氣進入液壓系統中。廣泛應用在農業，工廠及工業等領域。EATON WQF Couplings are designed for minimal spillage during connection and disconnection- They achieve the
best results in all fields where the care of environment is required- Flat faced couplings are particularly
suitable for agricultural, factory and industrial applications.
WQF Series ISO 16028 Flat face Quick Coupling
平面快換接頭pdf資料下載
Product Features
產品特征
- Materials: zinc-plated carbon steel body
材質：碳鋼，表面鍍環保鋅
- Seals: standard in nitrile NBR- On request
FKM,EPDM and VMQ seals
密封件：以NBR為標準
- Back-up ring: in pure Teflon
擋圈：鐵氟龍
- Working temperature: with standard seals -25°C
+ 125°C
工作溫度：在標準NBR范圍內，承受-25°C +
125°C的溫度

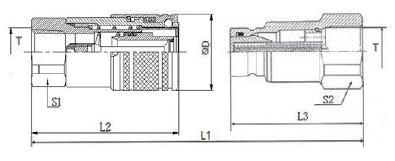

Nominal size
公稱通徑 |
L1 |
L2 |
L3 |
D |
S1 |
S2 |
T |
COD.(F)
母接頭編號 |
COD.(M)
公接頭編號 |
6.3 |
100 |
58.5 |
53.3 |
28 |
22 |
22 |
1/4"BSP |
WQF-04F-B04F |
WQF-04M-B04F |
1/4"NPT |
WQF-04F-N04F |
WQF-04M-N04F |
24 |
24 |
3/8"BSP |
WQF-04F-B06F |
WQF-04M-B06F |
3/8"NPT |
WQF-04F-N06F |
WQF-04M-N06F |
10 |
121 |
73.5 |
61.2 |
32 |
27 |
27 |
3/8"BSP |
WQF-06F-B06F |
WQF-06M-B06F |
3/8"NPT |
WQF-06F-N06F |
WQF-06M-N06F |
1/2"BSP |
WQF-06F-B08F |
WQF-06M-B08F |
1/2"NPT |
WQF-06F-N08F |
WQF-06M-N08F |
12.5 |
143.5 |
73.4 |
74 |
38 |
32 |
32 |
1/2"BSP |
WQF-08F-B08F |
WQF-08M-B08F |
1/2"NPT |
WQF-08F-N08F |
WQF-08M-N08F |
36 |
36 |
3/4"BSP |
WQF-08F-B12F |
WQF-08M-B12F |
3/4"NPT |
WQF-08F-N12F |
WQF-08M-N12F |
20 |
154 |
95 |
87 |
48 |
41 |
41 |
3/4"BSP |
WQF-12F-B12F |
WQF-12M-B12F |
3/4"NPT |
WQF-12F-N12F |
WQF-12M-N12F |
160 |
95 |
87 |
1"BSP |
WQF-12F-B16F |
WQF-12M-B16F |
1"NPT |
WQF-12F-N16F |
WQF-12M-N16F |
25 |
177 |
109.5 |
92 |
55 |
50 |
50 |
1"BSP |
WQF-16F-B16F |
WQF-16M-B16F |
1"NPT |
WQF-16F-N16F |
WQF-16M-N16F |
1-1/4"BSP |
WQF-16F-B20F |
WQF-16M-B20F |
1-1/4"NPT |
WQF-16F-N20F |
WQF-16M-N20F |
Technical Data
技術參數
Nominal size
公稱通徑 |
Max.working pressure
最大工作壓力 |
Rated flow
額定流量 |
Min burst pressure
最小爆破壓力 |
Fluid spillage
泄漏量 |
Male
公接頭 |
Female
母接頭 |
Coupled
連接 |
ISO |
(bar) |
(l/m) |
(bar) |
(bar) |
(bar) |
(cc) |
6.3 |
315 |
12 |
1260 |
1260 |
1260 |
0.02 |
10 |
250 |
23 |
1000 |
1000 |
1000 |
0.035 |
12.5 |
250 |
45 |
1000 |
1000 |
1000 |
0.07 |
20 |
250 |
100 |
1000 |
1100 |
1400 |
0.15 |
25 |
200 |
189 |
800 |
800 |
800 |
0.25 |
Accessories
附件
Nominal size
公稱通徑 |
Female dust plug
母接頭保護塞 |
Male dust cap
公接頭保護帽 |
Colour
顏色 |
Material
材質 |
6.3 |
WQF-04F-PVC |
WQF-04M-PVC |
Red/紅 |
Plastic塑料 |
10 |
WQF-06F-PVC |
WQF-06M-PVC |
Red/紅 |
Plastic塑料 |
12.5 |
WQF-08F-PVC |
WQF-08M-PVC |
Red/紅 |
Plastic塑料 |
20 |
WQF-12F-PVC |
WQF-12M-PVC |
Red/紅 |
Plastic塑料 |
25 |
WQF-16F-PVC |
WQF-16M-PVC |
Red/紅 |
Plastic塑料 |
|
