伊頓EATON WQF1 Series ISO 16028 Flat face Quick Coupling
平面快換接頭代理
伊頓EATON WQF1快換接頭：無滴漏，防沙塵污染，防碰撞變形，單手操作，連接力小，帶安全自鎖，連接時可防空氣進入液壓系統中。廣泛應用在農業，工廠及工業等領域。EATON WQF1 Couplings represent the first genuine revolution in the field of applications for flat face quick release couplings. Where previous models performed well at low operating pressures and with limited fluctuations in pressure, these new couplings can be used in applications typified by high operating pressures, high flow rates and low pressure drops, offering the same guarantees as components of conventional design.
EATON WQF1 Series ISO 16028 Flat face Quick Coupling
平面快換接頭pdf資料下載
Product Features
產品特征
- Materials: zinc-plated carbon steel body
材質：碳鋼，表面鍍環保鋅
- Seals: standard in nitrile NBR. On request FKM,EPDM and VMQ seals
密封件：以NBR為標準
- Back-up ring: in pure Teflon
擋圈：鐵氟龍
- Working temperature: with standard seals -25°C + 125°C
工作溫度：在標準NBR范圍內，承受-25°C + 125°C的溫度
Technical Data
技術參數
Nominal size
公稱通徑 |
Max.working pressure
最大工作壓力 |
Rated flow
額定流量 |
Min burst pressure
最小爆破壓力 |
Fluid spillage
泄漏量 |
Male
公接頭 |
Female
母接頭 |
Coupled
連接 |
ISO |
(bar) |
(l/m) |
(bar) |
(bar) |
(bar) |
(cc) |
6.3 |
400 |
12 |
1900 |
1900 |
1900 |
0.008 |
10 |
350 |
23 |
1560 |
1780 |
1600 |
0.01 |
12.5 |
350 |
45 |
1700 |
1590 |
1770 |
0.012 |
16 |
350 |
74 |
1660 |
1420 |
1580 |
0.015 |
20 |
350 |
100 |
1600 |
1470 |
1840 |
0.02 |
25 |
350 |
189 |
1470 |
1400 |
1530 |
0.03 |

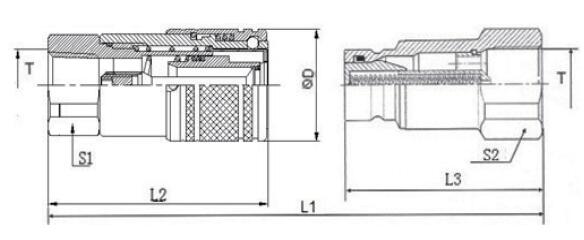

產品訂貨型號及規格尺寸
Nominal size
公稱通徑 |
L1 |
L2 |
L3 |
?D |
S1 |
S2 |
T |
COD.(F)
母接頭編號 |
COD.(M)
公接頭編號 |
6.3 |
100 |
58.5 |
53.3 |
28 |
22 |
22 |
1/4"BSP |
WQF1-04F-B04F |
WQF1-04M-B04F |
1/4"NPT |
WQF1-04F-N04F |
WQF1-04M-N04F |
3/8"BSP |
WQF1-04F-B06F |
WQF1-04M-B06F |
3/8"NPT |
WQF1-04F-N06F |
WQF1-04M-N06F |
9/16 UNF |
WQF1-04F-O06F |
WQF1-04M-O06F |
M16*1.5 |
WQF1-04F-M16F |
WQF1-04M-M16F |
10 |
121 |
73.5 |
61.2 |
32 |
30 |
30 |
3/8"BSP |
WQF1-06F-B06F |
WQF1-06M-B06F |
3/8"NPT |
WQF1-06F-N06F |
WQF1-06M-N06F |
1/2"BSP |
WQF1-06F-B08F |
WQF1-06M-B08F |
1/2"NPT |
WQF1-06F-N08F |
WQF1-06M-N08F |
9/16 UNF |
WQF1-06F-O06F |
WQF1-06M-O06F |
M16*1.5 |
WQF1-06F-M16F |
WQF1-06M-M16F |
M18*1.5 |
WQF1-06F-M18F |
WQF1-06M-M18F |
3/4 UNF |
WQF1-06F-O08F |
WQF1-06M-O08F |
M22*1.5 |
WQF1-06F-M22F |
WQF1-06M-M22F |
7/8 UNF |
WQF1-06F-O10F |
WQF1-06M-O10F |
12.5 |
143.5 |
73.4 |
74 |
38 |
36 |
36 |
1/2"BSP |
WQF1-08F-B08F |
WQF1-08M-B08F |
1/2"NPT |
WQF1-08F-N08F |
WQF1-08M-N08F |
3/4"UNF |
WQF1-08F-O08F |
WQF1-08M-O08F |
3/4"BSP |
WQF1-08F-B12F |
WQF1-08M-B12F |
3/4"NPT |
WQF1-08F-N12F |
WQF1-08M-N12F |
M22*1.5 |
WQF1-08F-M22F |
WQF1-08M-M22F |
7/8"UNF |
WQF1-08F-O10F |
WQF1-08M-O10F |
M26*1.5 |
WQF1-08F-M26F |
WQF1-08M-M26F |
1-1/16"UNF |
WQF1-08F-O12F |
WQF1-08M-O12F |
16 |
143 |
86 |
74 |
42 |
36 |
36 |
1/2"BSP |
WQF1-10F-B08F |
WQF1-10M-B08F |
1/2"NPT |
WQF1-10F-N08F |
WQF1-10M-N08F |
3/4"BSP |
WQF1-10F-B12F |
WQF1-10M-B12F |
3/4"NPT |
WQF1-10F-N12F |
WQF1-10M-N12F |
M22*1.5 |
WQF1-10F-M22F |
WQF1-10M-M22F |
7/8"UNF |
WQF1-10F-O10F |
WQF1-10M-O10F |
M26*1.5 |
WQF1-10F-M26F |
WQF1-10M-M26F |
1-1/16"UNF |
WQF1-10F-O12F |
WQF1-10M-O12F |
20 |
154 |
95 |
87 |
48 |
41 |
41 |
3/4"BSP |
WQF1-12F-B12F |
WQF1-12M-B12F |
3/4"NPT |
WQF1-12F-N12F |
WQF1-12M-N12F |
160 |
95 |
87 |
1"BSP |
WQF1-12F-B16F |
WQF1-12M-B16F |
1"NPT |
WQF1-12F-N16F |
WQF1-12M-N16F |
160 |
95 |
87 |
1-1/16"UNF |
WQF1-12F-O12F |
WQF1-12M-O12F |
1-5/16"UNF |
WQF1-12F-O16F |
WQF1-12M-O16F |
25 |
177 |
109.5 |
92 |
55 |
50 |
50 |
1"BSP |
WQF1-16F-B16F |
WQF1-16M-B16F |
1"NPT |
WQF1-16F-N16F |
WQF1-16M-N16F |
1-1/4"BSP |
WQF1-16F-B20F |
WQF1-16M-B20F |
1-1/4"NPT |
WQF1-16F-N20F |
WQF1-16M-N20F |
Accessories
附件
Nominal size
公稱通徑 |
Female dust plug
母接頭保護塞 |
Male dust cap
公接頭保護帽 |
Colour
顏色 |
Material
材質 |
6.3 |
WQF-04F-PVC |
WQF-04M-PVC |
Red/紅 |
Plastic塑料 |
10 |
WQF-06F-PVC |
WQF-06M-PVC |
Red/紅 |
Plastic塑料 |
12.5 |
WQF-08F-PVC |
WQF-08M-PVC |
Red/紅 |
Plastic塑料 |
20 |
WQF-12F-PVC |
WQF-12M-PVC |
Red/紅 |
Plastic塑料 |
25 |
WQF-16F-PVC |
WQF-16M-PVC |
Red/紅 |
Plastic塑料 |
|
