伊頓EATON WQB Series ISO 7241-1B快換接頭
伊頓EATON WQB 系列快速接頭廣泛應用于所有行業中的液壓氣動系統。不同的材質可以滿足醫療，化工、食品等行業的特殊要求。伊頓EATON WQB Series are used across the spectrum of hydraulic applications. Their general solidity permits the strenuous applications in aeronautics, electronic and automotive industry
伊頓EATON WQB Series ISO 7241-1B快換接頭
PDF Catalog資料下載
Product Features
產品特征
- Materials: zinc-plated carbon steel body
材質：碳鋼，表面鍍環保鋅
- Valve: Poppet Type
閥芯：針閥
- Back-up ring: in pure Teflon
擋圈：鐵氟龍
- Seals: standard in nitrile NBR
密封件：以NBR為標準
- Working temperature: with standard seals -25°C + 125°C
工作溫度：在標準NBR范圍內，承受-25°C + 125°C的溫度
Technical Data
技術參數
Nominal size
公稱通徑 |
Max.working pressure
最大工作壓力 |
Rated flow
額定流量 |
Min burst pressure
最小爆破壓力 |
Fluid spillage
泄漏量 |
Male
公接頭 |
Female
母接頭 |
Coupled
連接 |
6.3 |
250 |
12 |
1000 |
1000 |
1000 |
2 |
10 |
250 |
23 |
1000 |
1000 |
1000 |
2.5 |
12.5 |
250 |
45 |
1000 |
1000 |
1000 |
5 |
20 |
160 |
106 |
640 |
640 |
640 |
10 |
25 |
100 |
189 |
400 |
400 |
400 |
25 |

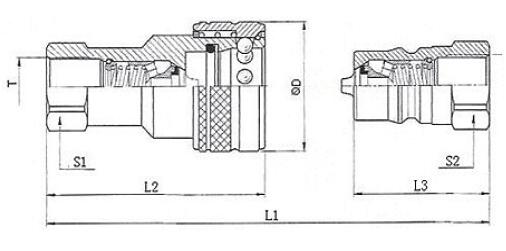

產品訂貨型號及規格尺寸
ISO |
L1 |
L2 |
L3 |
?D |
S1 |
S2 |
T |
COD.(F) |
COD.(M) |
6.3 |
72.5 |
57 |
36 |
27.5 |
19 |
19 |
1/4"NPT |
WQB-04F-N04F |
WQB-04M-N04F |
10 |
80 |
65 |
40 |
35 |
22 |
22 |
3/8"NPT |
WQB-06F-N06F |
WQB-06M-N06F |
12.5 |
94.5 |
74 |
46.5 |
44 |
27 |
27 |
1/2"NPT |
WQB-08F-N08F |
WQB-08M-N08F |
20 |
112.5 |
89 |
57.5 |
52 |
34 |
34 |
3/4"NPT |
WQB-12F-N12F |
WQB-12M-N12F |
25 |
132.5 |
106 |
65.5 |
60 |
41 |
41 |
1"NPT |
WQB-16F-N16F |
WQB-16M-N16F |
Accessories
附件
Nominal size
公稱通徑 |
Female dust plug
母接頭保護塞 |
Male dust cap
公接頭保護帽 |
Colour
顏色 |
Material
材質 |
6.3 |
WQB-04F-PVC |
WQB-04M-PVC |
Blue/蘭 |
Plastic塑料 |
10 |
WQB-06F-PVC |
WQB-06M-PVC |
Blue/蘭 |
Plastic塑料 |
12.5 |
WQB-08F-PVC |
WQB-08M-PVC |
Blue/蘭 |
Plastic塑料 |
20 |
WQB-12F-PVC |
WQB-12M-PVC |
Blue/蘭 |
Plastic塑料 |
25 |
WQB-16F-PVC |
WQB-16M-PVC |
Blue/蘭 |
Plastic塑料 |
Nominal size
公稱通徑 |
Female dust plug
母接頭保護塞 |
Male dust cap
公接頭保護帽 |
Material
材質 |
6.3 |
WQB-04F-Al |
WQB-04M-Al |
Aluminium鋁 |
10 |
WQB-06F-Al |
WQB-06M-Al |
Aluminium鋁 |
12.5 |
WQB-08F-Al |
WQB-08M-Al |
Aluminium鋁 |
20 |
WQB-12F-Al |
WQB-12M-Al |
Aluminium鋁 |
25 |
WQB-16F-Al |
WQB-16M-Al |
Aluminium鋁 |
|
