伊頓EATON WQA Series ISO 7241-1A 快換接頭代理
伊頓EATON WQA 系列快速接頭，廣泛應用于液壓系流。這種帶雙單向閥機構的快速接頭，用于為了設備的運行，維修而需要連接或拆卸，并且無泄露，無污染，防止污物進入管路內，保護環境。伊頓EATON WQA series couplings are used in a wide range of hydraulic applications including construction equipment, manufacturing machinery, and in-plant systems. They can be found anyplace where the fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment.
伊頓EATON WQA Series ISO 7241-1A 快換接頭
PDF Catalog資料下載
Product Features
產品特征
- Materials: zinc-plated carbon steel body
材質：碳鋼，表面鍍環保鋅
- Valve: Poppet Type
閥芯：針閥
- Back-up ring: in pure Teflon
擋圈：鐵氟龍
- Seals: standard in nitrile NBR
密封件：以NBR為標準
- Working temperature: with standard seals -25°C + 125°C
工作溫度：在標準NBR范圍內，承受-25°C + 125°C的溫度
Technical Data
技術參數
Nominal size
公稱通徑 |
Max.working pressure
最大工作壓力 |
Rated flow
額定流量 |
Min burst pressure
最小爆破壓力 |
Fluid spillage
泄漏量 |
Male
公接頭 |
Female
母接頭 |
Coupled
連接 |
|
(bar) |
(l/m) |
(bar) |
(bar) |
(bar) |
(cc) |
6.3 |
315 |
12 |
1260 |
1260 |
1260 |
1 |
10 |
315 |
23 |
1260 |
1260 |
1260 |
2 |
12.5 |
250 |
45 |
1000 |
1000 |
1000 |
2.5 |
20 |
250 |
106 |
1000 |
1000 |
1000 |
9 |
25 |
200 |
189 |
800 |
800 |
800 |
25 |
31.5 |
200 |
288 |
800 |
800 |
800 |
60 |
40 |
160 |
379 |
640 |
640 |
640 |
90 |
50 |
100 |
757 |
400 |
400 |
400 |
150 |

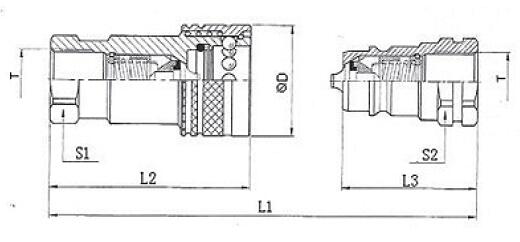

產品訂貨型號及規格尺寸
Nominal size
公稱通徑 |
L1 |
L2 |
L3 |
?D |
S1 |
S2 |
T |
P/N.(F)
母接頭型號 |
P/N.(M)
公接頭型號 |
6.3 |
70 |
49 |
35 |
26.2 |
19 |
19 |
1/4" BSP |
WQA-04F-B04F |
WQA-04M-B04F |
1/4" NPT |
WQA-04F-N04F |
WQA-04M-N04F |
10 |
85 |
60.5 |
42.5 |
31 |
22 |
22 |
3/8" BSP |
WQA-06F-B06F |
WQA-06M-B06F |
3/8" NPT |
WQA-06F-N06F |
WQA-06M-N06F |
12.5 |
94 |
68.5 |
46.5 |
38 |
27 |
27 |
1/2" BSP |
WQA-08F-B08F |
WQA-08M-B08F |
1/2" NPT |
WQA-08F-N08F |
WQA-08M-N08F |
3/4" UNF |
WQA-08F-O08F |
WQA-08M-O08F |
M22*1.5 |
WQA-08F-M22F |
WQA-08M-M22F |
20 |
115 |
85 |
57.5 |
46 |
34 |
34 |
3/4" BSP |
WQA-12F-B12F |
WQA-12M-B12F |
3/4" NPT |
WQA-12F-N12F |
WQA-12M-N12F |
25 |
131.5 |
99.5 |
65.5 |
52 |
41 |
41 |
1" BSP |
WQA-16F-B16F |
WQA-16M-B16F |
1" NPT |
WQA-16F-N16F |
WQA-16M-N16F |
31.5 |
148 |
116 |
74 |
70 |
50 |
50 |
1-1/4" BSP |
WQA-20F-B20F |
WQA-20M-B20F |
1-1/4" NPT |
WQA-20F-N20F |
WQA-20M-N20F |
40 |
168 |
136.5 |
85 |
83 |
60 |
60 |
1-1/2" BSP |
WQA-24F-B24F |
WQA-24M-B24F |
1-1/2" NPT |
WQA-24F-N24F |
WQA-24M-N24F |
50 |
200.7 |
160 |
100 |
99 |
75 |
75 |
2" BSP |
WQA-32F-B32F |
WQA-32M-B32F |
2" NPT |
WQA-32F-N32F |
WQA-32M-N32F |
Accessories
附件
Nominal size
公稱通徑 |
Female dust plug
母接頭保護塞 |
Male dust cap
公接頭保護帽 |
Material
材質 |
6.3 |
WQA-04F-PVC |
WQA-04M-PVC |
Plastic塑料+橡膠 |
10 |
WQA-06F-PVC |
WQA-06M-PVC |
Plastic塑料+橡膠 |
12.5 |
WQA-08F-PVC |
WQA-08M-PVC |
Plastic塑料+橡膠 |
20 |
WQA-12F-PVC |
WQA-12M-PVC |
Plastic塑料+橡膠 |
25 |
WQA-16F-PVC |
WQA-16M-PVC |
Plastic塑料+橡膠 |
31.5 |
WQA-20F-Al |
WQA-20M-Al |
Aluminium鋁 |
40 |
WQA-24F-Al |
WQA-24M-Al |
Aluminium鋁 |
50 |
WQA-32F-Al |
WQA-32M-Al |
Aluminium鋁 |
|
