T1100 Series ISO 6150 B Interchange T1100 系列 ISO 6150 B 互換單關斷壓縮空氣快速接頭

伊頓 Gromelle-T1100 系列是單關斷壓縮空氣快速接頭，可與 ISO 6150 B 和美國 A-A-59439 標準要求互換-該快速接頭提供出色的流量，用于許多壓縮空氣應用。Eaton Gromelle- T1100 Series is a single shut-off compressed air coupling that interchanges with ISO 6150 B and US A-A-59439 Standards requirements- This coupling offers excellent flow capacity and is used in many compressed air applications。

T1100 Series ISO 6150 B Interchange
T1100 系列 ISO 6150 B 互換單關斷壓縮空氣快速接頭

產品特點

- 自動套筒，用于單手推動連接操作，帶球鎖機構
- 優秀的流通能力
- 標準主體材料（插頭）：鍍鋅三價鋼
- 易于連接
- 標準密封材料：NBR
- 標準主體材料（插座）：鍍鎳黃銅
- 單截止閥

應用與市場

- 壓縮的空氣
- 氣動工具

Product Features
- Automatic sleeve for one-hand push-to-connect operation with ball-locking mechanism
- Excellent flow capacity
- Standard body material (Plug): Zinc trivalent plated steel
- Easy to connect
- Standard seal material: NBR
- Standard body material (Socket): Nickel-plated brass
- Single shut-off valving

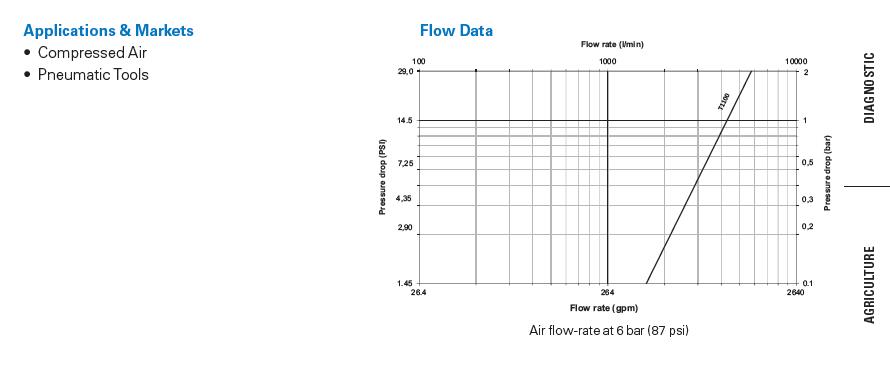

Applications & Markets

- Compressed Air
- Pneumatic Tools

T1100 Series ISO 6150 B Interchange

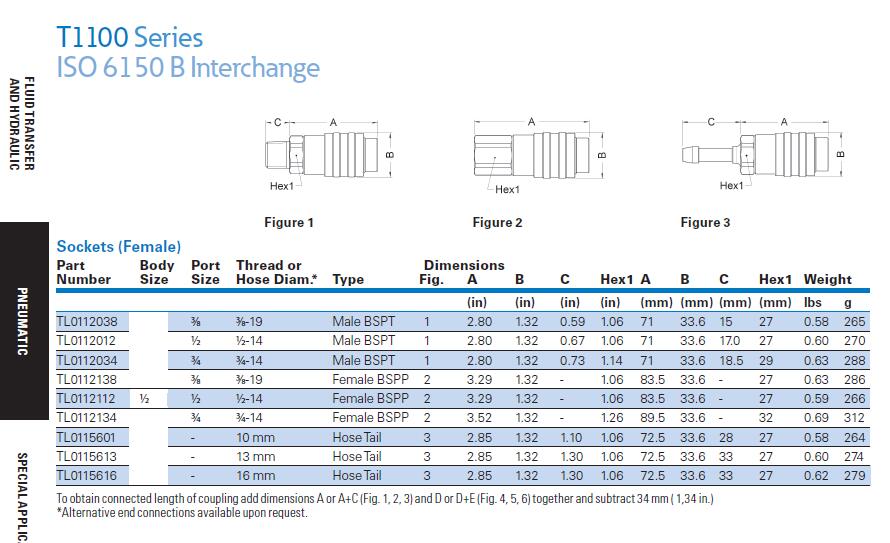

Sockets (Female)
Part Body Port Thread or Dimensions
Number Size Size Hose Diam.* Type Fig. A B C Hex1 A B C Hex1 Weight
(in) (in) (in) (in) (mm) (mm) (mm) (mm) lbs g
TL0112038 3/8 3/8-19 Male BSPT 1 2.80 1.32 0.59 1.06 71 33.6 15 27 0.58 265
TL0112012 1/2 1/2-14 Male BSPT 1 2.80 1.32 0.67 1.06 71 33.6 17.0 27 0.60 270
TL0112034 ? ?-14 Male BSPT 1 2.80 1.32 0.73 1.14 71 33.6 18.5 29 0.63 288
TL0112138 3/8 3/8-19 Female BSPP 2 3.29 1.32 - 1.06 83.5 33.6 - 27 0.63 286
TL0112112 1/2 1/2 1/2-14 Female BSPP 2 3.29 1.32 - 1.06 83.5 33.6 - 27 0.59 266
TL0112134 ? ?-14 Female BSPP 2 3.52 1.32 - 1.26 89.5 33.6 - 32 0.69 312
TL0115601 - 10 mm Hose Tail 3 2.85 1.32 1.10 1.06 72.5 33.6 28 27 0.58 264
TL0115613 - 13 mm Hose Tail 3 2.85 1.32 1.30 1.06 72.5 33.6 33 27 0.60 274
TL0115616 - 16 mm Hose Tail 3 2.85 1.32 1.30 1.06 72.5 33.6 33 27 0.62 279
To obtain connected length of coupling add dimensions A or A+C (Fig. 1, 2, 3) and D or D+E (Fig. 4, 5, 6) together and subtract 34 mm ( 1,34 in.)
*Alternative end connections available upon request.

Plugs (Male)
Part Body Port Thread or Dimensions
Number Size Size Hose Diam.* Type Fig. D E F Hex1 D E F Hex1 Weight
Figure 4 Figure 5 Figure 6
(in) (in) (in) (in) (mm) (mm) (mm) (mm) lbs g
TA0111538 3/8 3/8-19 Male BSPT 4 1.71 0.57 - 0.67 43.5 14.5 - 17 0.11 51
TA0111512 1/2 1/2-14 Male BSPT 4 1.81 0.67 - 0.87 46 17 - 22 0.15 70
TA0111638 3/8 3/8-19 Female BSPP 5 2.09 - - 0.83 53 - - 21 0.12 55
TA0111612 1/2 1/2 1/2-14 Female BSPP 5 2.28 - - 1.06 58 - - 27 0.19 88
TA0111813 - 13 mm Hose Tail 6 1.54 1.02 0.75 - 39 26 19 - 0.09 43
TA0111816 - 16 mm Hose Tail 6 1.54 1.02 0.87 - 39 26 22 - 0.10 47
TA0111819 - 19 mm Hose Tail 6 1.54 1.02 0.98 - 39 26 25 - 0.11 51
To obtain connected length of coupling add dimensions A or A+C (Fig. 1, 2, 3) and D or D+E (Fig. 4, 5, 6) together and subtract 34 mm ( 1,34 in.)
*Alternative end connections available upon request.
