Rynglok - Production High Pressure Fittings

Rynglok Production High Pressure Fittings have been designed and extensively qualified for hydraulic systems up to 5,000 psi. Current programs which have selected these fittings as standard equipment include the F/A-18 E/F, F22, and V-22 military aircraft. Through design, development, pre-production, and into production, the Rynglok High Pressure Fitting System has performed flawlessly to enable these programs to meet cost, schedule and performance goals. Available with our patented ArcSeal dynamic beam separable fitting, or in standard flareless and permanent end configurations, Rynglok fittings provide hydraulic distribution system designers with design alternatives that maximize system performance and minimize system weight. Fittings are available in a variety of straight, elbow, tee, and cross shapes, as well as custom configurations if needed. Rynglok's unique Active Swage Technology provides for unparalleled fitting to tube retention , seal integrity, and torsion capability. In addition, Rynglok's unique, all metal exterior and patented Lightening Strike feature provides added safety and confidence for the aircraft's critical hydraulic system. The Rynglok High Pressure Fitting Family is available under the L5000/R50000 Series classification.

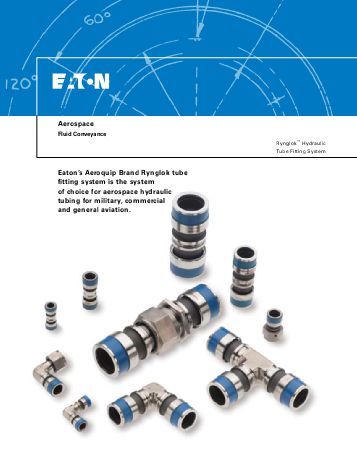

Rynglok Hydraulic Tube Fitting System
Rynglok - Production High Pressure Fittings

Rynglok Production High Pressure Fitting Family: L50000 and R50000 Series

FEATURES AND BENEFITS

Active Swage Technology
All titanium metal construction (no elastomeric seals )
Small fitting envelope
Lightweight
Over 8,000 fittings tested by Aeroquip, major OEM's and various branches of the US military
Fitting design and method of attachment provides superior mechanical strength for tension and torsion capabilities
Qualified to MIL-F-18280, MIL-F-85421, MIL-f-85720, ISO 7169 and many other OEM specific requirements
Approved by Boeing, Lockheed Martin, Bell Helicopter
Available in metric tube sizes; contact Aeroquip for details

Rynglok Tube Repair Systems

Herber Aircraft offers Rynglok? hydraulic tube repair systems, which facilitate permanent repairs while tubing is still on the aircraft. The hydraulic tube repair system is available for all tubing materials and wall thicknesses. Tooling is available for O.D. from 3/16 inch to 2 inches. In addition, repair kits can be custom designed.
