伊頓 Gromelle I900 系列單關斷壓縮空氣接頭
Eaton Gromelle I900 Series air coupling

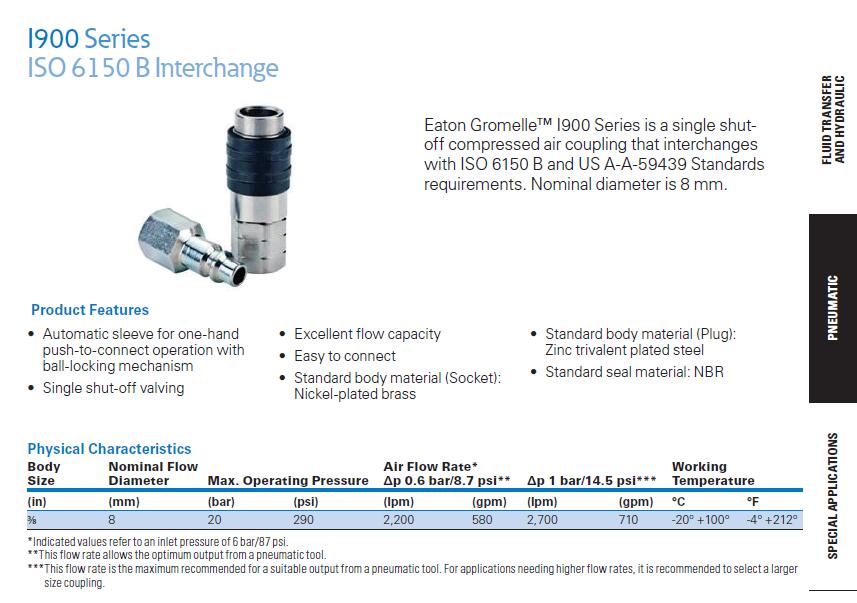

伊頓 Gromelle I900 系列是單關斷壓縮空氣接頭，可與 ISO 6150 B 和美國 A-A-59439 標準要求互換。 標稱直徑為 8 毫米。Eaton Gromelle I900 Series is a single shut-off compressed air coupling that interchanges with ISO 6150 B and US A-A-59439 Standards requirements- Nominal diameter is 8 mm.
伊頓 Gromelle I900 系列單關斷壓縮空氣接頭
Eaton Gromelle I900 Series air coupling
產品特點
- 單關斷壓縮空氣接頭
- 優良的流通能力。 標準主體材料（插頭）：采用三價鍍鋅鋼的推入式連接操作
- 易于連接的球鎖機構
- 標準密封材料：NBR
- 標準主體材料（插座）：
- 單截止閥 鍍鎳黃銅
應用與市場
- 壓縮的空氣
- 氣動工具
- Automatic sleeve for one-hand
- Excellent flow capacity - Standard body material (Plug): push-to-connect operation with Zinc trivalent plated steel
- Easy to connect ball-locking mechanism
- Standard seal material: NBR
- Standard body material (Socket):
- Single shut-off valving Nickel-plated brass
Applications & Markets
- Compressed Air
- Pneumatic Tools

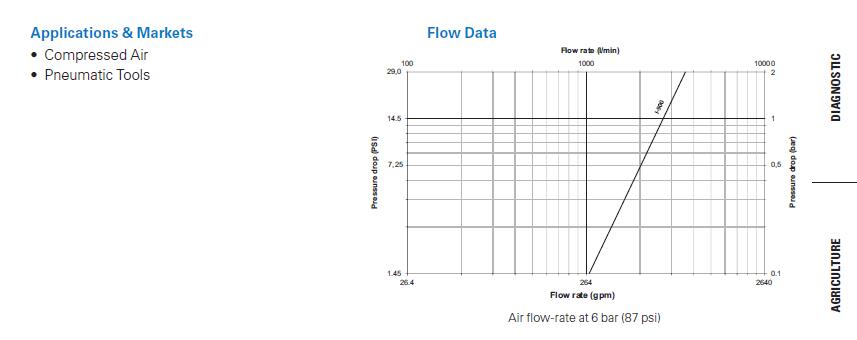

Physical Characteristics
Body Nominal Flow Air Flow Rate* Working Size Diameter Max- Operating Pressure .p 0.6 bar/8.7 psi** .p 1 bar/14.5 psi*** Temperature
(in) (mm) (bar) (psi) (lpm) (gpm) (lpm) (gpm) °C °F
3/8 8 20 290 2,200 580 2,700 710 -20° +100° -4° +212°
*Indicated values refer to an inlet pressure of 6 bar/87 psi-
**This flow rate allows the optimum output from a pneumatic tool-
***This flow rate is the maximum recommended for a suitable output from a pneumatic tool- For applications needing higher flow rates, it is recommended to select a larger size coupling-
I900 Series ISO 6150 B Interchange
Sockets (Female)
Part Body Port Thread or Dimensions
Number Size Size Hose Diam.* Type Fig. A B C Hex1 A B C Hex1 Weight
(in) (in) (in) (in) (mm) (mm) (mm) (mm) lbs g
IL0096014 1/4 1/4-19 Male BSPT 1 2.16 1.09 0.51 0.87 55 27.7 13 22 0.30 135
IL0096038 3/8 3/8-19 Male BSPT 1 2.16 1.09 0.59 0.87 55 27.7 15 22 0.31 139
IL0096012 1/2 1/2-14 Male BSPT 1 2.16 1.09 0.67 0.87 55 27.7 17 22 0.34 152
IL0097014 1/4 1/4-19 Female BSPP 2 2.64 1.09 - 0.87 67 27.7 - 22 0.34 153
IL0097038 3/8 3/8 3/8-19 Female BSPP 2 2.76 1.09 - 0.87 70 27.7 - 22 0.35 157
IL0097012 1/2 1/2-14 Female BSPP 2 2.87 1.09 - 1.06 73 27.7 - 27 0.41 187
IL0095689 - 8 mm Hose Tail 3 2.20 1.09 1.10 0.87 56 27.7 28 22 0.30 135
IL0095690 - 9 mm Hose Tail 3 2.20 1.09 1.10 0.87 56 27.7 28 22 0.30 138
IL0095601 - 10 mm Hose Tail 3 2.20 1.09 1.10 0.87 56 27.7 28 22 0.31 139
To obtain connected length of coupling add dimensions A or A+C (Fig. 1, 2, 3) and D or D+E (Fig. 4, 5, 6) together and subtract 25,6 mm (1 in.)

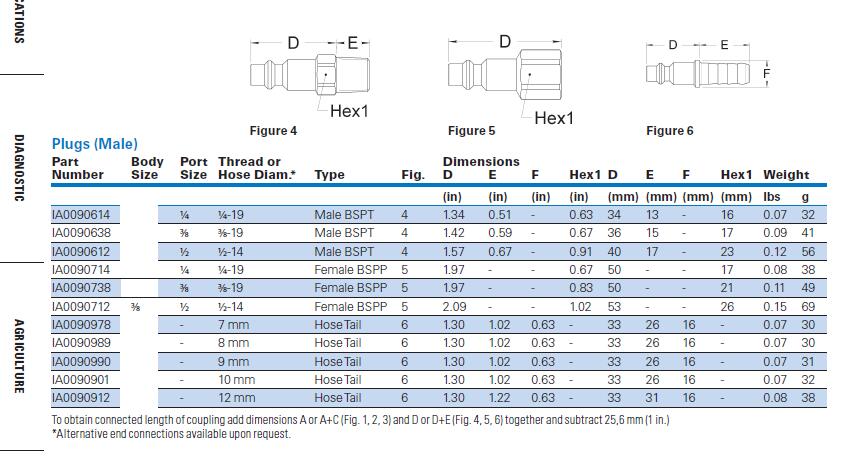

Plugs (Male)
Part Body Port Thread or Dimensions
Number Size Size Hose Diam.* Type Fig. D E F Hex1 D E F Hex1 Weight
Figure 4 Figure 5 Figure 6
(in) (in) (in) (in) (mm) (mm) (mm) (mm) lbs g
IA0090614 1/4 1/4-19 Male BSPT 4 1.34 0.51 - 0.63 34 13 - 16 0.07 32
IA0090638 3/8 3/8-19 Male BSPT 4 1.42 0.59 - 0.67 36 15 - 17 0.09 41
IA0090612 1/2 1/2-14 Male BSPT 4 1.57 0.67 - 0.91 40 17 - 23 0.12 56
IA0090714 1/4 1/4-19 Female BSPP 5 1.97 - - 0.67 50 - - 17 0.08 38
IA0090738 3/8 3/8-19 Female BSPP 5 1.97 - - 0.83 50 - - 21 0.11 49
IA0090712 3/8 1/2 1/2-14 Female BSPP 5 2.09 - - 1.02 53 - - 26 0.15 69
IA0090978 - 7 mm Hose Tail 6 1.30 1.02 0.63 - 33 26 16 - 0.07 30
IA0090989 - 8 mm Hose Tail 6 1.30 1.02 0.63 - 33 26 16 - 0.07 30
IA0090990 - 9 mm Hose Tail 6 1.30 1.02 0.63 - 33 26 16 - 0.07 31
IA0090901 - 10 mm Hose Tail 6 1.30 1.02 0.63 - 33 26 16 - 0.07 32
IA0090912 - 12 mm Hose Tail 6 1.30 1.22 0.63 - 33 31 16 - 0.08 38
To obtain connected length of coupling add dimensions A or A+C (Fig. 1, 2, 3) and D or D+E (Fig. 4, 5, 6) together and subtract 25,6 mm (1 in.)
*Alternative end connections available upon request.
*Alternative end connections available upon request.
