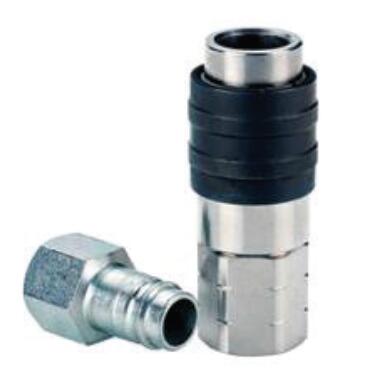

I1000 Series European Profile I1000 系列歐規單關斷壓縮空氣快速接頭
Eaton Gromelle-I1000 系列是具有歐洲外形的單關斷壓縮空氣快速接頭-該快速接頭具有出色的流動能力，可用于許多壓縮空氣應用.Eaton Gromelle- I1000 Series is a single shut-off compressed air coupling with a European profile- This coupling offers excellent flow capacity and is used in many compressed air applications.
I1000 Series European Profile I1000 系列歐規單關斷壓縮空氣快速接頭
單關斷壓縮空氣快速接頭
產品特點
- 優秀的流通能力
- 標準主體材料（插頭）：采用三價鍍鋅鋼的推入式連接操作
- 易于連接的球鎖機構
- 標準密封材料：NBR
- 標準主體材料（插座）：
- 單截止閥鍍鎳黃銅
應用與市場
- 壓縮的空氣
- 氣動工具
- Automatic sleeve for one-hand
- Excellent flow capacity
- Standard body material (Plug): push-to-connect operation with Zinc trivalent plated steel
- Easy to connect ball-locking mechanism
- Standard seal material: NBR
- Standard body material (Socket):
- Single shut-off valving Nickel-plated brass
Applications & Markets
- Compressed Air
- Pneumatic Tools

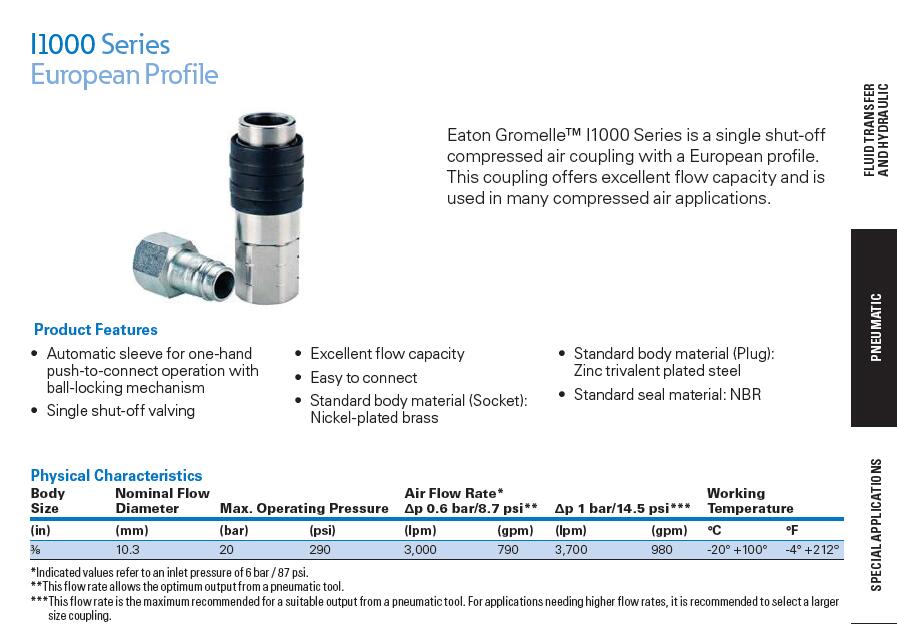

Physical Characteristics
Body Nominal Flow Air Flow Rate* Working Size Diameter Max- Operating Pressure .p 0.6 bar/8.7 psi** .p 1 bar/14.5 psi*** Temperature
(in) (mm) (bar) (psi) (lpm) (gpm) (lpm) (gpm) °C °F
3/8 10.3 20 290 3,000 790 3,700 980 -20° +100° -4° +212°
*Indicated values refer to an inlet pressure of 6 bar / 87 psi-
**This flow rate allows the optimum output from a pneumatic tool-
***This flow rate is the maximum recommended for a suitable output from a pneumatic tool- For applications needing higher flow rates, it is recommended to select a larger size coupling-
Pressure drop (PSI)
Pressure drop (bar)
0,5
7,25
1.45
0.1
Air flow-rate at 6 bar (87 psi)
I1000 Series
European Profile
Sockets (Female)
Part Body Port Thread or Dimensions
Number Size Size Hose Diam.* Type Fig- A B C Hex1 A B C Hex1 Weight
IL0106014
IL0106038
IL0106012
IL0107014
1/4 1/4-19 Female BSPP 2 2.64 1.09 -0.87 65 27.7 -22 0.33 148
3/8 3/8 3/8-19 Female BSPP 2 2.76 1.09 -0.87 68 27.7 -22 0.32 145
IL0107012
1/2 1/2-14 Female BSPP 2 2.87 1.09 -1.06 71 27.7 -27 0.40 182
IL0105689
-8 mm Hose Tail 3 2.20 1.09 1.10 0.87 54 27.7 28 22 0.29 130
IL0105690
-9 mm Hose Tail 3 2.20 1.09 1.10 0.87 54 27.7 28 22 0.29 133
IL0105601 -10 mm Hose Tail 3 2.20 1.09 1.10 0.87 54 27.7 28 22 0.30 134
To obtain connected length of coupling add dimensions A or A+C (Fig- 1, 2, 3) and D or D+E (Fig- 4, 5, 6) together and subtract 19,8 mm (0,78 in.)
*Alternative end connections available upon request-
Plugs (Male)
Part Body Port Thread or Dimensions
Number Size Size Hose Diam.* Type Fig- D E F Hex1 D E F Hex1 Weight
(in) (in) (in) (in) (mm) (mm) (mm) (mm) lbs g
3/8 3/8-19 Male BSPT 4 1.16 0.57 -0.67 29.5 14.5 -17 0.08 38
1/2 1/2-14 Male BSPT 4 1.30 0.67 -0.87 33 17 -22 0.12 56
3/8 3/8-19 Female BSPP 5 1.57 --0.83 40 --21 0.09 41
-9 mm Hose Tail 6 0.85 1.02 0.59 -21.5 26 15 -0.04 20
IA0100901
-10 mm Hose Tail 6 0.85 1.02 0.59 -21.5 26 15 -0.05 21
IA0100912
-12 mm Hose Tail 6 0.98 1.02 0.71 -25 26 18 -0.06 26
To obtain connected length of coupling add dimensions A or A+C (Fig- 1, 2, 3) and D or D+E (Fig- 4, 5, 6) together and subtract 19,8 mm (0,78 in.) *Alternative end connections available upon request-

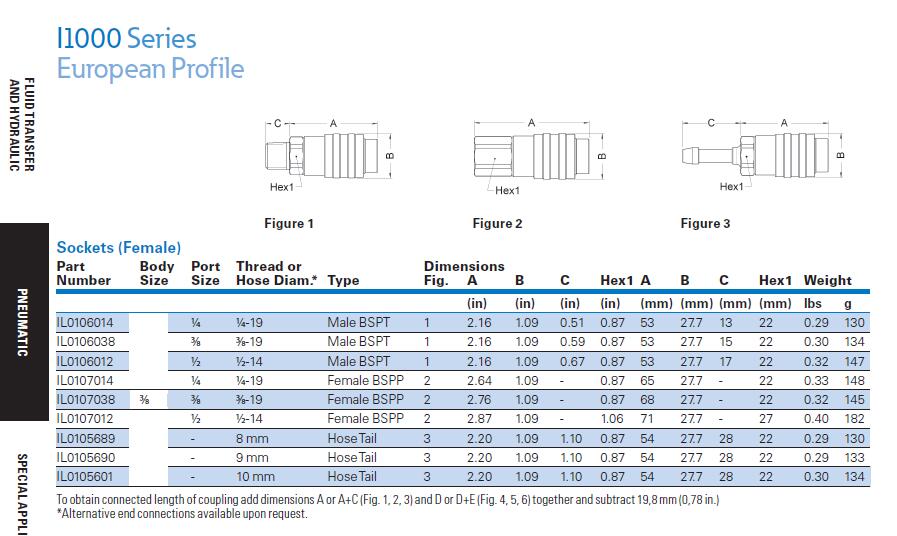

Sockets (Female)
Part Body Port Thread or Dimensions
Number Size Size Hose Diam.* Type Fig. A B C Hex1 A B C Hex1 Weight
(in) (in) (in) (in) (mm) (mm) (mm) (mm) lbs g
IL0106014 1/4 1/4-19 Male BSPT 1 2.16 1.09 0.51 0.87 53 27.7 13 22 0.29 130
IL0106038 3/8 3/8-19 Male BSPT 1 2.16 1.09 0.59 0.87 53 27.7 15 22 0.30 134
IL0106012 1/2 1/2-14 Male BSPT 1 2.16 1.09 0.67 0.87 53 27.7 17 22 0.32 147
IL0107014 1/4 1/4-19 Female BSPP 2 2.64 1.09 - 0.87 65 27.7 - 22 0.33 148
IL0107038 3/8 3/8 3/8-19 Female BSPP 2 2.76 1.09 - 0.87 68 27.7 - 22 0.32 145
IL0107012 1/2 1/2-14 Female BSPP 2 2.87 1.09 - 1.06 71 27.7 - 27 0.40 182
IL0105689 - 8 mm Hose Tail 3 2.20 1.09 1.10 0.87 54 27.7 28 22 0.29 130
IL0105690 - 9 mm Hose Tail 3 2.20 1.09 1.10 0.87 54 27.7 28 22 0.29 133
IL0105601 - 10 mm Hose Tail 3 2.20 1.09 1.10 0.87 54 27.7 28 22 0.30 134
To obtain connected length of coupling add dimensions A or A+C (Fig. 1, 2, 3) and D or D+E (Fig. 4, 5, 6) together and subtract 19,8 mm (0,78 in.)
*Alternative end connections available upon request.
Plugs (Male)
Part Body Port Thread or Dimensions
Number Size Size Hose Diam.* Type Fig. D E F Hex1 D E F Hex1 Weight
Figure 4 Figure 5 Figure 6
(in) (in) (in) (in) (mm) (mm) (mm) (mm) lbs g
IA0100638 3/8 3/8-19 Male BSPT 4 1.16 0.57 - 0.67 29.5 14.5 - 17 0.08 38
IA0100612 1/2 1/2-14 Male BSPT 4 1.30 0.67 - 0.87 33 17 - 22 0.12 56
IA0100738 3/8 3/8-19 Female BSPP 5 1.57 - - 0.83 40 - - 21 0.09 41
IA0100712 3/8 1/2 1/2-14 Female BSPP 5 1.77 - - 1.06 45 - - 27 0.16 74
IA0100990 - 9 mm Hose Tail 6 0.85 1.02 0.59 - 21.5 26 15 - 0.04 20
IA0100901 - 10 mm Hose Tail 6 0.85 1.02 0.59 - 21.5 26 15 - 0.05 21
IA0100912 - 12 mm Hose Tail 6 0.98 1.02 0.71 - 25 26 18 - 0.06 26
To obtain connected length of coupling add dimensions A or A+C (Fig. 1, 2, 3) and D or D+E (Fig. 4, 5, 6) together and subtract 19,8 mm (0,78 in.)
*Alternative end connections available upon request.
|
