Hansen Flo-Temp冷卻或加熱模具和壓鑄模具快速接頭

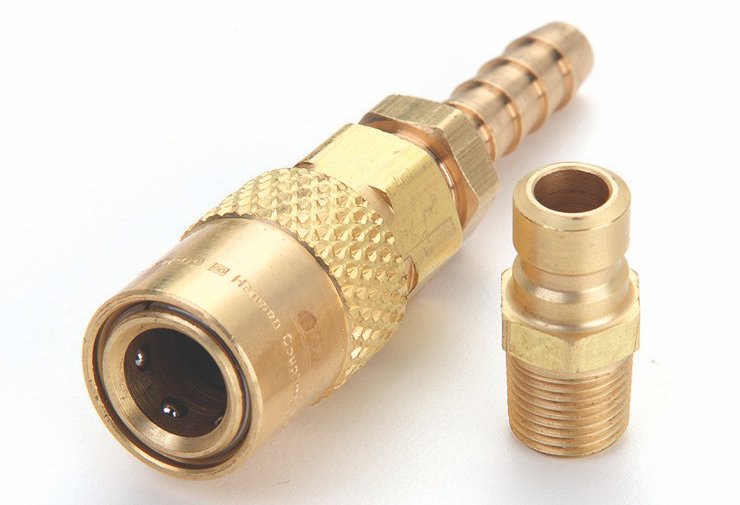

Hansen Flo-Temp quick disconnect couplings
Hansen Flo-Temp快速斷開接頭提供冷卻或加熱模具和壓鑄模具所需的流量。 插座可提供無閥門的最大流量和閥門以防止斷開時流體損失。 Flo-Temp 接頭可用于水-乙二醇、熱水和熱油。The Hansen Flo-Temp quick disconnect couplings provide the flow needed to cool or heat molds and die casting dies. Sockets are available non-valved for maximum flow and valved to prevent fluid loss when disconnected. Flo-Temp couplings can be used with water-glycol, hot water and hot oil.
Hansen Flo-Temp冷卻或加熱模具和壓鑄模具快速接頭
Hansen Flo-Temp quick disconnect couplings
描述：
- 插座中的所有金屬部件均為黃銅或不銹鋼。密封件是氟橡膠。
- 帶閥版本的插座可在斷開連接時自動關閉冷卻液軟管。
- 插座和插頭均提供各種端接尺寸。
- 可與 DME 型聯軸器互換
- 現貨供應
Flo-Temp應用包括：注塑模具水冷、一般水冷等。
Body Size Part Number Non-Valved Part Number Valved Material NPT Female Thread BSP Female Thread NPT Male Thread BSP Male Thread Straight Hose Stem 90° Hose Stem 45° Hose Stem Coupling Type
| 尺寸 |
零件編號 無閥 |
帶閥的零件號 |
材料 |
NPT 內螺紋 |
BSP 內螺紋 |
NPT 外螺紋 |
BSP 外螺紋 |
Straight Hose Stem |
90° 軟管 |
45° 軟管 |
類型 |
| 1/4 |
LNFT-200 |
- |
Brass |
1/8-27 |
- |
- |
- |
- |
- |
- |
Socket |
| 3/8 |
LNFT-300 |
- |
Brass |
1/4-18 |
- |
- |
- |
- |
- |
- |
Socket |
| 1/2 |
LNFT-500 |
- |
Brass |
1/2-14 |
- |
- |
- |
- |
- |
- |
Socket |
| 1/4 |
FTS-204 |
FTS-204V |
Brass |
- |
- |
- |
- |
1/4 |
- |
- |
Socket |
| 1/4 |
FTS-204HP |
FTS-204VHP |
Brass |
- |
- |
- |
- |
1/4 |
- |
- |
Socket |
| 1/4 |
FTS-205 |
FTS-205V |
Brass |
- |
- |
- |
- |
5/16 |
- |
- |
Socket |
| 1/4 |
FTS-206 |
FTS-206V |
Brass |
- |
- |
- |
- |
3/8 |
- |
- |
Socket |
| 1/4 |
FTS-206HP |
- |
Brass |
- |
- |
- |
- |
3/8 |
- |
- |
Socket |
| 3/8 |
FTS-306 |
FTS-306V |
Brass |
- |
- |
- |
- |
3/8 |
- |
- |
Socket |
| 3/8 |
FTS-306HP |
FTS-306VHP |
Brass |
- |
- |
- |
- |
3/8 |
- |
- |
Socket |
| 3/8 |
FTS-308 |
FTS-308V |
Brass |
- |
- |
- |
- |
1/2 |
- |
- |
Socket |
| 3/8 |
FTS-308HP |
FTS-308VHP |
Brass |
- |
- |
- |
- |
1/2 |
- |
- |
Socket |
| 1/2 |
FTS-504 |
FTS-504V |
Brass |
- |
- |
- |
- |
1/2 |
- |
- |
Socket |
| 1/2 |
FTS-504HP |
FTS-504VHP |
Brass |
- |
- |
- |
- |
1/2 |
- |
- |
Socket |
| 1/2 |
FTS-506 |
FTS-506V |
Brass |
- |
- |
- |
- |
3/4 |
- |
- |
Socket |
| 1/2 |
FTS-506HP |
FTS-506VHP |
Brass |
- |
- |
- |
- |
3/4 |
- |
- |
Socket |
| 1/4 |
FTS-214 |
FTS-214V |
Brass |
- |
- |
- |
- |
- |
1/4 |
- |
Socket |
| 1/4 |
FTS-214HP |
FTS-214VHP |
Brass |
- |
- |
- |
- |
- |
1/4 |
- |
Socket |
| 1/4 |
FTS-215 |
FTS-215V |
Brass |
- |
- |
- |
- |
- |
5/16 |
- |
Socket |
| 1/4 |
FTS-216 |
FTS-216V |
Brass |
- |
- |
- |
- |
- |
3/8 |
- |
Socket |
| 1/4 |
FTS-216HP |
FTS-216V |
Brass |
- |
- |
- |
- |
- |
3/8 |
- |
Socket |
| 3/8 |
FTS-316 |
FTS-316V |
Brass |
- |
- |
- |
- |
- |
3/8 |
- |
Socket |
| 3/8 |
FTS-316HP |
FTS-316VHP |
Brass |
- |
- |
- |
- |
- |
3/8 |
- |
Socket |
| 3/8 |
FTS-318 |
FTS-318V |
Brass |
- |
- |
- |
- |
- |
1/2 |
- |
Socket |
| 3/8 |
FTS-318HP |
FTS-318VP |
Brass |
- |
- |
- |
- |
- |
1/2 |
- |
Socket |
| 1/4 |
FTS-224 |
FTS-224V |
Brass |
- |
- |
- |
- |
- |
- |
1/4 |
Socket |
| 1/4 |
FTS-224HP |
FTS-224VHP |
Brass |
- |
- |
- |
- |
- |
- |
1/4 |
Socket |
| 1/4 |
FTS-225 |
FTS-225V |
Brass |
- |
- |
- |
- |
- |
- |
5/16 |
Socket |
| 1/4 |
FTS-226 |
FTS-226 |
Brass |
- |
- |
- |
- |
- |
- |
3/8 |
Socket |
| 1/4 |
FTS-226HP |
FTS-226VHP |
Brass |
- |
- |
- |
- |
- |
- |
3/8 |
Socket |
| 3/8 |
FTS-326 |
FTS-326V |
Brass |
- |
- |
- |
- |
- |
- |
3/8 |
Socket |
| 3/8 |
FTS-326HP |
FTS-326VHP |
Brass |
- |
- |
- |
- |
- |
- |
3/8 |
Socket |
| 3/8 |
FTS-328 |
FTS-328V |
Brass |
- |
- |
- |
- |
- |
- |
1/2 |
Socket |
| 3/8 |
FTS328HP |
FTS-328VHP |
Brass |
- |
- |
- |
- |
- |
- |
1/2 |
Socket |
| 1/4 |
FTP-251 |
- |
Brass |
- |
- |
1/8-27 |
- |
- |
- |
- |
Plug |
| 1/4 |
FTP-251BST |
- |
Brass |
- |
- |
- |
1/8-28 |
- |
- |
- |
Plug |
| 1/4 |
FTP-252 |
- |
Brass |
- |
- |
1/4-18 |
- |
- |
- |
- |
Plug |
| 1/4 |
FTP-252BST |
- |
Brass |
- |
- |
- |
1/4-19 |
- |
- |
- |
Plug |
| 1/4 |
FTP-253 |
- |
Brass |
- |
- |
3/8-18 |
- |
- |
- |
- |
Plug |
| 3/8 |
FTP-352 |
- |
Brass |
- |
- |
1/4-18 |
- |
- |
- |
- |
Plug |
| 3/8 |
FTP-352BST |
- |
Brass |
- |
- |
- |
1/4-19 |
- |
- |
- |
Plug |
| 3/8 |
FTP-353 |
- |
Brass |
- |
- |
3/8-18 |
- |
- |
- |
- |
Plug |
| 3/8 |
FTP-353BST |
- |
Brass |
- |
- |
- |
3/8-19 |
- |
- |
- |
Plug |
| 3/8 |
FTP-354 |
- |
Brass |
- |
- |
1/2-14 |
- |
- |
- |
- |
Plug |
| 1/2 |
FTP-554 |
- |
Brass |
- |
- |
1/2-14 |
- |
- |
- |
- |
Plug |
| 1/2 |
FTP-556 |
- |
Brass |
- |
- |
3/4-14 |
- |
- |
- |
- |
Plug |
| 1/4 |
FTP-251F |
- |
Brass |
1/8-27 |
- |
- |
- |
- |
- |
- |
Plug |
| 1/4 |
FTP-251FBS |
- |
Brass |
- |
1/8-28 |
- |
- |
- |
- |
- |
Plug |
| 1/4 |
FTP-252F |
- |
Brass |
1/4-18 |
- |
- |
- |
- |
- |
- |
Plug |
| 1/4 |
FTP-252FBS |
- |
Brass |
- |
1/4-19 |
- |
- |
- |
- |
- |
Plug |
| 1/4 |
FTP-253F |
- |
Brass |
3/8-18 |
- |
- |
- |
- |
- |
- |
Plug |
| 3/8 |
FTP-352F |
- |
Brass |
1/4-18 |
- |
- |
- |
- |
- |
- |
Plug |
| 3/8 |
FTP-352FBS |
- |
Brass |
- |
1/4-19 |
- |
- |
- |
- |
- |
Plug |
| 3/8 |
FTP-353F |
- |
Brass |
3/8-18 |
- |
- |
- |
- |
- |
- |
Plug |
| 3/8 |
FTP-354F |
- |
Brass |
1/2-14 |
- |
- |
- |
- |
- |
- |
Plug |
| 1/2 |
FTP-554F |
- |
Brass |
1/2-14 |
- |
- |
- |
- |
- |
- |
Plug |
| 1/2 |
FTP-556F |
- |
Brass |
3/4-14 |
- |
- |
- |
- |
- |
- |
Plug |
|
