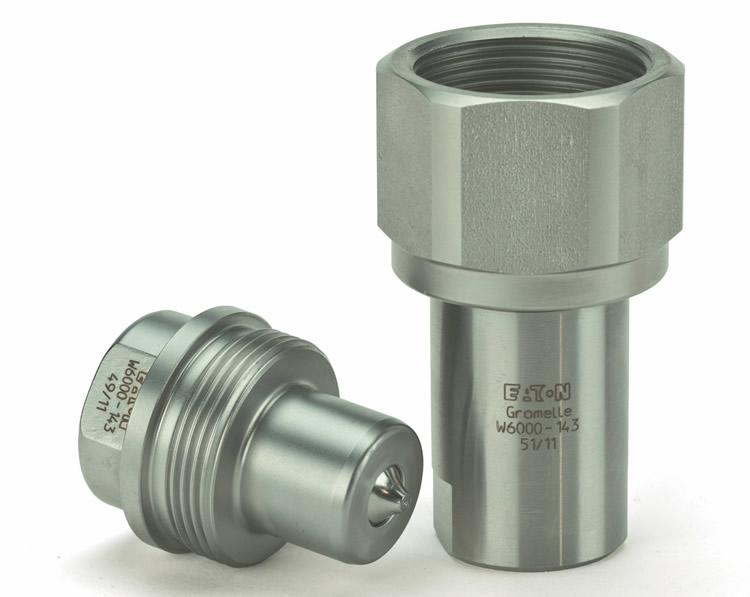

Gromelle W6000 系列螺紋連接快速接頭 Eaton W6000 Series stainless steel quick disconnect coupling
Gromelle W6000 series screw-to-connect self-sealing couplings
Gromelle W6000 系列螺紋連接快速接頭對嚴重的液壓負載具有出色的抵抗力。它們有鍍鋼和不銹鋼兩種。Gromelle W6000 series screw-to-connect couplings give exceptional resistance to severe hydraulic loads. They are available in plated steel and in stainless steel.
性能特點
- 堅固的一體式機身
- 斷開時兩半自動關閉
- 壓力等級高達 1100 bar
- 可連接殘余壓力*
- 尺寸范圍 1/4" 至 2"
應用包括：高壓液壓——離岸、一般高壓液壓、一般工業液體。
有關此系列聯軸器的技術手冊和安全信息聲明可在上面顯示的下載（選項卡）部分中找到。在使用前，所有負責使用和/或選擇該系列接頭的個人都應分發和閱讀這些文件的副本。
Gromelle W6000 接頭也可以作為即用型軟管組件的一部分提供 。
* 最大連接/斷開壓力：30 bar 所有尺寸。
Rugged, one-piece body
Automatic shut-off in both halves on disconnection
Pressure ratings up to 1100 bar
Can be connected against residual pressure*
Size range 1/4" to 2"
Applications include: high pressure hydraulics – off shore, general high pressure hydraulics, general industrial liquids.
Gromelle W6000 series screw-to-connect self-sealing couplings
Gromelle W6000 系列螺紋連接快速接頭
| Body Size |
Part Number (NBR Seal) |
Part Number (FKM Seal) |
Part Number (EPDM Seal) |
Material |
NPT female thread |
BSP female thread |
Metric female thread |
Coupling Type |
| 1/4 |
WA0601700 |
WA06017V0 |
WA06017E0 |
Steel |
- |
1/4-19 |
- |
Socket |
| 1/4 |
WA0621700 |
WA06217V0 |
WA06217E0 |
Steel |
1/4-18 |
- |
- |
Socket |
| 3/8 |
WA0602700 |
WA06027V0 |
WA06027E0 |
Steel |
- |
3/8-19 |
- |
Socket |
| 3/8 |
WA0622700 |
WA06227V0 |
WA06227E0 |
Steel |
3/8-19 |
- |
- |
Socket |
| 1/2 |
WA0603700 |
WA06037V0 |
WA06037E0 |
Steel |
- |
1/2-14 |
- |
Socket |
| 1/2 |
WA0623700 |
WA06237V0 |
WA06237E0 |
Steel |
1/2-14 |
- |
- |
Socket |
| 1/2 |
WA0633700 |
WA06337V0 |
WA06337E0 |
Steel |
- |
- |
M22x1.5 |
Socket |
| 3/4 |
WA0604700 |
WA06047V0 |
WA06047E0 |
Steel |
- |
3/4-14 |
- |
Socket |
| 3/4 |
WA0624700 |
WA06247V0 |
WA06247E0 |
Steel |
3/4-14 |
- |
- |
Socket |
| 1 |
WA0605700 |
WA06057V0 |
WA06057E0 |
Steel |
- |
1-11 |
- |
Socket |
| 1 |
WA0625700 |
WA06257V0 |
WA06257E0 |
Steel |
1-11.1/2 |
- |
- |
Socket |
| 1 |
WA0635700 |
WA06357V0 |
WA06357E0 |
Steel |
- |
- |
M33x1.5 |
Socket |
| 1.1/4 |
WA0606700 |
WA06067V0 |
WA06067E0 |
Steel |
- |
1.1/4-11 |
- |
Socket |
| 1.1/4 |
WA0626700 |
WA06267V0 |
WA06267E0 |
Steel |
1.1/4-11.1/2 |
- |
- |
Socket |
| 1.1/2 |
WA0607700 |
WA06077V0 |
WA06077E0 |
Steel |
- |
1.1/2-11 |
- |
Socket |
| 1.1/2 |
WA0627700 |
WA06277V0 |
WA06277E0 |
Steel |
1.1/2-11.1/2 |
-- |
- |
Socket |
| 2 |
WA0609700 |
WA06097V0 |
WA06097E0 |
Steel |
- |
2-11 |
- |
Socket |
| 2 |
WA0629700 |
WA06297V0 |
WA06297E0 |
Steel |
2-11.1/2 |
- |
- |
Socket |
| 1/4 |
WA0601400 |
WA06014V0 |
WA06014E0 |
Steel |
- |
1/4-19 |
- |
Plug |
| 1/4 |
WA0621400 |
WA06214V0 |
WA06214E0 |
Steel |
1/4-18 |
- |
- |
Plug |
| 3/8 |
WA0602400 |
WA06024V0 |
WA06024E0 |
Steel |
- |
3/8-19 |
- |
Plug |
| 3/8 |
WA0602400 |
WA06024V0 |
WA06024E |
Steel |
3/8-18 |
- |
- |
Plug |
| 1/2 |
WA0603400 |
WA06034V0 |
WA06034E0 |
Steel |
- |
1/2-14 |
- |
Plug |
| 1/2 |
WA0623400 |
WA06234V0 |
WA06234E0 |
Steel |
1/2-14 |
- |
- |
Plug |
| 1/2 |
WA0633400 |
WA06334V0 |
WA06334E0 |
Steel |
- |
- |
M22x1.5 |
Plug |
| 3/4 |
WA0604400 |
WA06044V0 |
WA06044E0 |
Steel |
- |
3/4-14 |
- |
Plug |
| 3/4 |
WA0624400 |
WA06244V0 |
WA06244E0 |
Steel |
3/4-14 |
- |
- |
Plug |
| 1 |
WA0605400 |
WA06054V0 |
WA06054E0 |
Steel |
- |
1-11 |
- |
Plug |
| 1 |
WA0625400 |
WA06254V0 |
WA06254E0 |
Steel |
1-11.1/2 |
- |
- |
Plug |
| 1 |
WA0635400 |
WA06354V0 |
WA06354E0 |
Steel |
- |
- |
M33x1.5 |
Plug |
| 1.1/4 |
WA0606400 |
WA06064V0 |
WA06064E0 |
Steel |
- |
1.1/4-11 |
- |
Plug |
| 1.1/4 |
WA0626400 |
WA06264V0 |
WA06264E0 |
Steel |
1.1/4-11.1/2 |
- |
- |
Plug |
| 1.1/2 |
WA0607400 |
WA06074V0 |
WA06074V0 |
Steel |
- |
1.1/2-11 |
- |
Plug |
| 1.1/2 |
WA0627400 |
WA06274V0 |
WA06274E0 |
Steel |
1.1/2-11.1/2 |
- |
- |
Plug |
| 2 |
WA0609400 |
WA06094V0 |
WA06094E0 |
Steel |
- |
2-11 |
- |
Plug |
| 2 |
WA0629400 |
WA06294V0 |
WA06294E0 |
Steel |
2-11.1/2 |
- |
- |
Plug |
| 1/4 |
- |
WV06017V0 |
WV06017E0 |
Stainless Steel |
- |
1/4-19 |
- |
Socket |
| 1/4 |
- |
WV06217V0 |
WV06217E0 |
Stainless Steel |
1/4-18 |
- |
- |
Socket |
| 3/8 |
- |
WV06027V0 |
WV06027E0 |
Stainless Steel |
- |
3/8-19 |
- |
Socket |
| 3/8 |
- |
WV06227V0 |
WV06227E0 |
Stainless Steel |
3/8-18 |
- |
- |
Socket |
| 1/2 |
- |
WV06037V0 |
WV06037E0 |
Stainless Steel |
- |
1/2-14 |
- |
Socket |
| 1/2 |
- |
WV06237V0 |
WV06237E0 |
Stainless Steel |
1/2-14 |
- |
- |
Socket |
| 3/4 |
- |
WV06047V0 |
WV06047E0 |
Stainless Steel |
- |
3/4-14 |
- |
Socket |
| 3/4 |
- |
WV06247V0 |
WV06247E0 |
Stainless Steel |
3/4-14 |
- |
- |
Socket |
| 1 |
- |
WV06057V0 |
WV06057E0 |
Stainless Steel |
- |
1-11 |
- |
Socket |
| 1 |
- |
WV06257V0 |
WV06257E0 |
Stainless Steel |
1-11.1/2 |
- |
- |
Socket |
| 1.1/4 |
- |
WV06067V0 |
WV06067E0 |
Stainless Steel |
- |
1.1/4-11 |
- |
Socket |
| 1.1/4 |
- |
WV06267V0 |
WV06267E0 |
Stainless Steel |
1.1/4-11.1/2 |
- |
- |
Socket |
| 1.1/2 |
- |
WV06077V0 |
WV06077E0 |
Stainless Steel |
- |
1.1/2-11 |
- |
Socket |
| 1.1/2 |
- |
WV06277V0 |
WV06277E0 |
Stainless Steel |
1.1/2-11.1/2 |
- |
- |
Socket |
| 2 |
- |
WV06097V0 |
WV06097E0 |
Stainless Steel |
- |
2-11 |
- |
Socket |
| 2 |
- |
WV06297V0 |
WV06297E0 |
Stainless Steel |
2-11.1/2 |
- |
- |
Socket |
| 1/4 |
- |
WV06014V0 |
WV06014E0 |
Stainless Steel |
- |
1/4-19 |
- |
Plug |
| 1/4 |
- |
WV06214V0 |
WV06214E0 |
Stainless Steel |
1/4-18 |
- |
- |
Plug |
| 3/8 |
- |
WV06024V0 |
WV06024E0 |
Stainless Steel |
- |
3/8-19 |
- |
Plug |
| 3/8 |
- |
WV06224V0 |
WV06224E0 |
Stainless Steel |
3/8-18 |
- |
- |
Plug |
| 1/2 |
- |
WV06034V0 |
WV06034E0 |
Stainless Steel |
- |
1/2-14 |
- |
Plug |
| 1/2 |
- |
WV06234V0 |
WV06234E0 |
Stainless Steel |
1/2-14 |
- |
- |
Plug |
| 3/4 |
- |
WV06044V0 |
WV06044E0 |
Stainless Steel |
- |
3/4-14 |
- |
Plug |
| 3/4 |
- |
WV06244V0 |
WV06244E0 |
Stainless Steel |
3/4-14 |
- |
- |
Plug |
| 1 |
- |
WV06054V0 |
WV06054E0 |
Stainless Steel |
- |
1-11 |
- |
Plug |
| 1 |
- |
WV06254V0 |
WV06254E0 |
Stainless Steel |
1-11.1/2 |
- |
- |
Plug |
| 1.1/4 |
- |
WV06064V0 |
WV06064E0 |
Stainless Steel |
- |
1.1/4-11 |
- |
Plug |
| 1.1/4 |
- |
WV06264V0 |
WV06264E0 |
Stainless Steel |
1.1/4-11.1/2 |
- |
- |
Plug |
| 1.1/2 |
- |
WV06074V0 |
WV06074E0 |
Stainless Steel |
- |
1.1/2-11 |
- |
Plug |
| 1.1/2 |
- |
WV06274V0 |
WV06274E0 |
Stainless Steel |
1.1/2-11.1/2 |
- |
- |
Plug |
| 2 |
- |
WV06094V0 |
WV06094E0 |
Stainless Steel |
- |
2-11 |
- |
Plug |
| 2 |
- |
WV06294V0 |
WV06294E0 |
Stainless Steel |
2-11.1/2 |
- |
- |
Plug |
|
