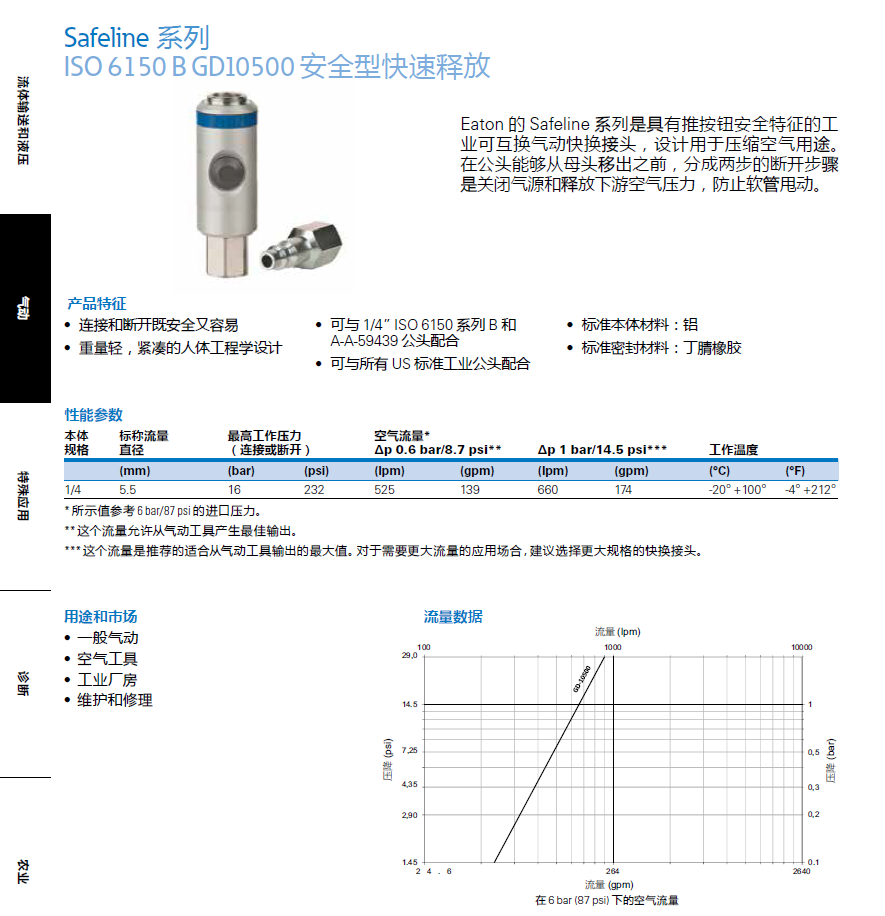

Safeline 系列 ISO 6150 B GD10500 安全型快速釋放氣動快換接頭
Safeline Series ISO 6150 B GD10500 Safety-Type Quick-Release

Eaton的 Safeline系列是具有推按鈕安全特征的工業可互換氣動快換接頭，設計用于壓縮空氣用途。在公頭能夠從母頭移出之前，分成兩步的斷開步驟是關閉氣源和釋放下游空氣壓力，防止軟管甩動。Eaton’s Safeline Series is an Industrial Interchange pneumatic coupling with push button safety feature designed for use with compressed air- Two-step disconnect procedure shuts off air supply and releases downstream air pressure before plug can be removed from socket/female, which prevents hose whip.

產品特征

- 連接和斷開既安全又容易
- 可與 1/4” ISO 6150 系列 B 和 - 標準本體材料：鋁
- 重量輕，緊湊的人體工程學設計 A-A-59439 公頭配合 - 標準密封材料：丁腈橡膠
- 可與所有 US 標準工業公頭配合

用途和市場

- 一般氣動
- 空氣工具
- 工業廠房
- 維護和修理

性能參數
本體標稱流量最高工作壓力空氣流量*
規格直徑（連接或斷開） Δp 0.6 bar/8.7 psi** Δp 1 bar/14.5 psi*** 工作溫度

1/4 5.5 16 232 525 139 660 174 -20° +100° -4° +212°
* 所示值參考 6 bar/87 psi 的進口壓力。

** 這個流量允許從氣動工具產生最佳輸出。

* **這個流量是推薦的適合從氣動工具輸出的最大值。對于需要更大流量的應用場合，建議選擇更大規格的快換接頭。

流量數據
.. (lpm)

.. (psi)
7,25
0,5
4,35
0,3
0,2
2,90
1.45
0.1
.. (bar)
2 4.6 264 2640 .. (gpm)
在 6 bar (87 psi) 下的空氣流量

Safeline 系列 ISO 6150 B GD10500 安全型快速釋放

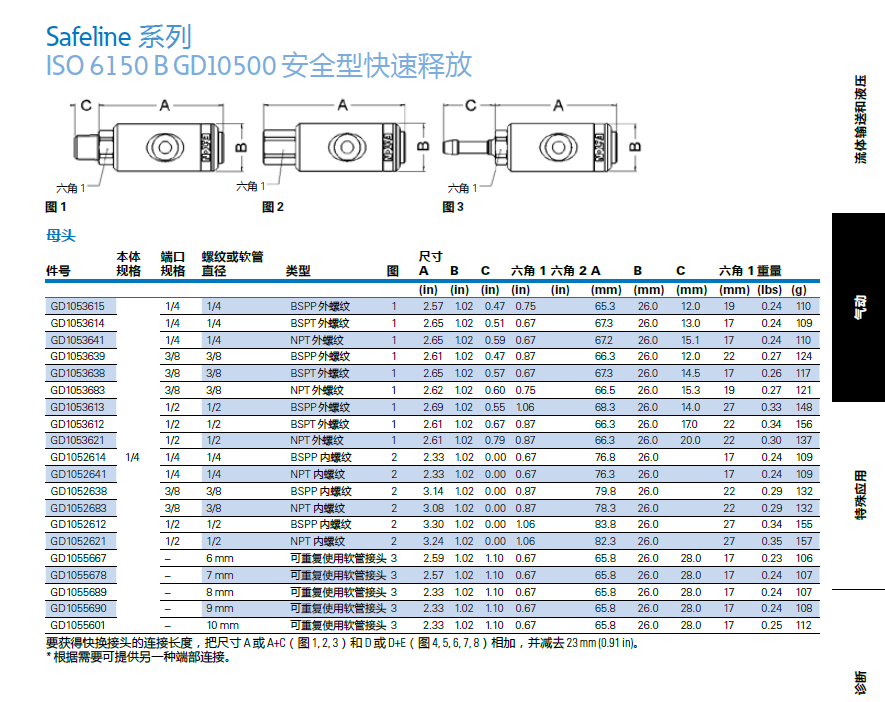

圖 1 圖 2 圖 3
母頭
本體 端口 螺紋或軟管 尺寸
件號 規格 規格 直徑 類型 圖 A B C 六角 1六角 2 A B C 六角 1重量

(in) (in) (in) (in) (in) (mm) (mm) (mm) (mm) (lbs) (g)

GD1053614 1/4 1/4 BSPT 外螺紋 1 2.65 1.02 0.51 0.67 67.3 26.0 13.0 17 0.24 109

GD1053683 3/8 3/8 NPT 外螺紋 1 2.62 1.02 0.60 0.75 66.5 26.0 15.3 19 0.27 121

GD1052614 1/4 1/4 1/4 BSPP 內螺紋 2 2.33 1.02 0.00 0.67 76.8 26.0 17 0.24 109

GD1052612 1/2 1/2 BSPP 內螺紋 2 3.30 1.02 0.00 1.06 83.8 26.0 27 0.34 155

GD1055689 – 8 mm可重復使用軟管接頭 3 2.33 1.02 1.10 0.67 65.8 26.0 28.0 17 0.24 107

GD1055601 – 10 mm可重復使用軟管接頭 3 2.33 1.02 1.10 0.67 65.8 26.0 28.0 17 0.25 112
要獲得快換接頭的連接長度，把尺寸 A 或 A+C（圖 1, 2, 3）和 D 或 D+E（圖 4, 5, 6, 7, 8）相加，并減去 23 mm (0.91 in)。
* 根據需要可提供另一種端部連接。
Safeline 系列
ISO 6150 B GD10500 安全型快速釋放

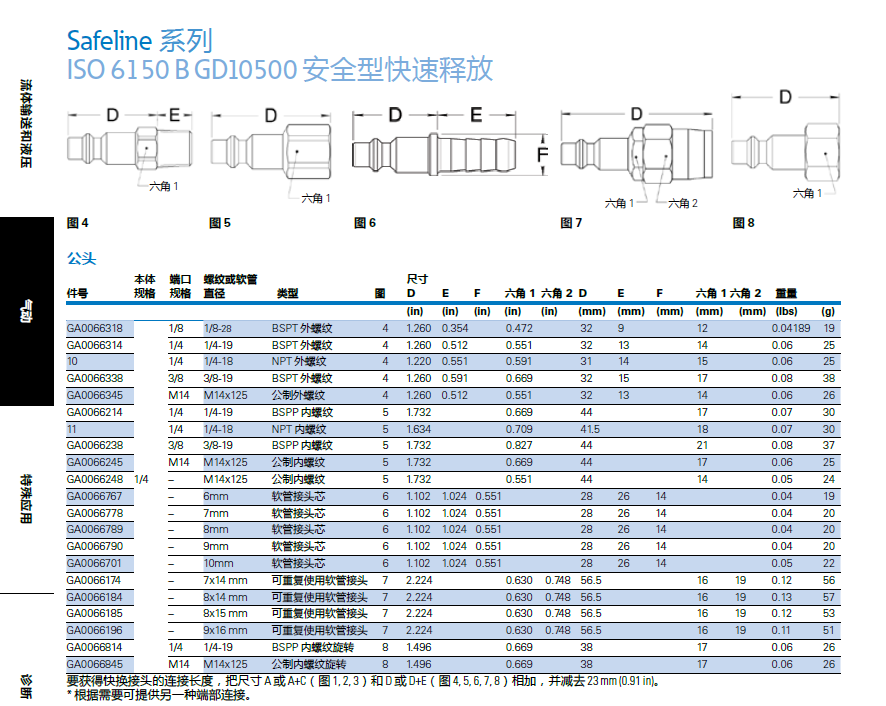

圖 5圖 6圖 8
公頭
本體端口螺紋或軟管尺寸件號規格規格直徑類型圖 D EF六角 1六角 2D E F六角 1六角 2重量
圖 4
(in) (in) (in) (in) (in) (mm) (mm) (mm) (mm) (mm) (lbs) (g)

GA0066314 1/4 1/4-19 BSPT 外螺紋 4 1.260 0.512 0.551 32 13 14 0.06

GA0066238 3/8 3/8-19 BSPP 內螺紋 5 1.732 0.827 44 21 0.08

GA0066790 – 9mm軟管接頭芯 6 1.102 1.024 0.551 28 26 14 0.04

GA0066814 1/4 1/4-19 BSPP 內螺紋旋轉 8 1.496 0.669 38 17 0.06

要獲得快換接頭的連接長度，把尺寸 A 或 A+C（圖 1, 2, 3）和 D 或 D+E（圖 4, 5, 6, 7, 8）相加，并減去 23 mm (0.91 in)。
* 根據需要可提供另一種端部連接。

Safeline Series ISO 6150 B GD10500 Safety-Type Quick-Release

Eaton’s Safeline Series is an Industrial Interchange pneumatic coupling with push button safety feature designed for use with compressed air- Two-step disconnect procedure shuts off air supply and releases downstream air pressure before plug can be removed from socket/female, which prevents hose whip.

Product Features
- Safe and easy to connect and disconnect
- Accepts 1/4” ISO 6150 Series B and A-A-59439 plugs/males - Standard body material: Aluminum
- Light weight, compact ergonomic design
- Accepts all US industrial plugs/ males - Standard seal material: Buna-N
Physical Characteristics Body Nominal Flow Max- Operating Pressure Size Diameter Connected or Disconnected Air Flow Rate* .p 0.6 bar/8.7 psi** Working .p 1 bar/14.5 psi*** Temperature
- 5.5 16 232 525 139 660 174 -20° +100° -4° +212°

(mm) (bar) (psi) (lpm) (gpm) (lpm) (gpm) °C °F
*Indicated values refer to an inlet pressure of 6 bar / 87 psi-
**This flow rate allows the optimum output from a pneumatic tool-
** This flow rate is the maximum recommended for a suitable output from a pneumatic tool- For applications needing higher flow rates, it is recommended to select a larger size coupling-
Applications & Markets Flow Data
Flow rate (l/min)

- General
100 1000 10000
29,0
Pneumatics
-
Air Tools

-
Industrial Plants 14.5

-
Maintenance and Repair

Pressure drop (PSI)

7,25
4,35
2,90
1.45
Flow rate (gpm)

Air flow-rate at 6 bar (87 psi)
Safeline Series
ISO 6150 B GD10500 Safety-Type Quick-Release

Figure 1 Figure 2 Figure 3
Sockets (Female)
Part Body Port Thread or Dimensions
Number Size Size Hose Diam- Type Fig- A B C Hex1 Hex2 A B C Hex1 Weight

Sockets (Female)
Part Body Port Thread or Dimensions
Number Size Size Hose Diam. Type Fig. A B C Hex1 Hex2 A B C Hex1 Weight
(in) (in) (in) (in) (in) (mm) (mm) (mm) (mm) (lbs) (g)
GD1053615 Male BSPP 1 2.57 1.02 0.47 0.75 65.3 26.0 12.0 19 0.24 110
GD1053614 Male BSPT 1 2.65 1.02 0.51 0.67 67.3 26.0 13.0 17 0.24 109
GD1053641 Male NPT 1 2.65 1.02 0.59 0.67 67.2 26.0 15.1 17 0.24 110
GD1053639 Male BSPP 1 2.61 1.02 0.47 0.87 66.3 26.0 12.0 22 0.27 124
GD1053638 Male BSPT 1 2.65 1.02 0.57 0.67 67.3 26.0 14.5 17 0.26 117
GD1053683 Male NPT 1 2.62 1.02 0.60 0.75 66.5 26.0 15.3 19 0.27 121
GD1053613 Male BSPP 1 2.69 1.02 0.55 1.06 68.3 26.0 14.0 27 0.33 148
GD1053612 Male BSPT 1 2.61 1.02 0.67 0.87 66.3 26.0 17.0 22 0.34 156
GD1053621 Male NPT 1 2.61 1.02 0.79 0.87 66.3 26.0 20.0 22 0.30 137
GD1052614 Female BSPP 2 2.33 1.02 0.00 0.67 76.8 26.0 17 0.24 109
GD1052641 Female NPT 2 2.33 1.02 0.00 0.67 76.3 26.0 17 0.24 109
GD1052638 Female BSPP 2 3.14 1.02 0.00 0.87 79.8 26.0 22 0.29 132
GD1052683 Female NPT 2 3.08 1.02 0.00 0.87 78.3 26.0 22 0.29 132
GD1052612 Female BSPP 2 3.30 1.02 0.00 1.06 83.8 26.0 27 0.34 155
GD1052621 Female NPT 2 3.24 1.02 0.00 1.06 82.3 26.0 27 0.35 157
GD1055667 – 6 mm Reusable Hose Fit. 3 2.59 1.02 1.10 0.67 65.8 26.0 28.0 17 0.23 106
GD1055678 – 7 mm Reusable Hose Fit. 3 2.57 1.02 1.10 0.67 65.8 26.0 28.0 17 0.24 107
GD1055689 – 8 mm Reusable Hose Fit. 3 2.33 1.02 1.10 0.67 65.8 26.0 28.0 17 0.24 107
GD1055690 – 9 mm Reusable Hose Fit. 3 2.33 1.02 1.10 0.67 65.8 26.0 28.0 17 0.24 108
GD1055601 – 10 mm Reusable Hose Fit. 3 2.33 1.02 1.10 0.67 65.8 26.0 28.0 17 0.25 112
To obtain connected length of coupling add Dimensions A or A+C (Fig. 1, 2, 3) and D or D+E (Fig. 4, 5, 6, 7, 8) together and substract 23 mm (0,91 in).
*Alternative end connections available upon request.

Safeline Series
ISO 6150 B GD10500 Safety-Type Quick-Release
Figure 4 Figure 5 Figure 6 Figure 8
Plugs (Male)
Part Body Port Thread or Dimensions
Number Size Size Hose Diam. Type Fig. D E F Hex1 Hex2 D E F Hex1 Hex2 Weight
(in) (in) (in) (in) (in) (mm) (mm) (mm) (mm) (mm) (lbs) (g)
GA0066318 -28 Male BSPT 4 1.260 0.354 0.472 32 9 12 0.04189 19
GA0066314 -19 Male BSPT 4 1.260 0.512 0.551 32 13 14 0.06 25
10 -18 Male NPT 4 1.220 0.551 0.591 31 14 15 0.06 25
GA0066338 -19 Male BSPT 4 1.260 0.591 0.669 32 15 17 0.08 38
GA0066345 M14 M14x125 Male Metric 4 1.260 0.512 0.551 32 13 14 0.06 26
GA0066214 -19 Female BSPP 5 1.732 0.669 44 17 0.07 30
11 -18 Female NPT 5 1.634 0.709 41.5 18 0.07 30
GA0066238 -19 Female BSPP 5 1.732 0.827 44 21 0.08 37
GA0066245 M14 M14x125 Female Metric 5 1.732 0.669 44 17 0.06 25
GA0066248 – M14x125 Female Metric 5 1.732 0.551 44 14 0.05 24
GA0066767 – 6mm Hose Tail 6 1.102 1.024 0.551 28 26 14 0.04 19
GA0066778 – 7mm Hose Tail 6 1.102 1.024 0.551 28 26 14 0.04 20
GA0066789 – 8mm Hose Tail 6 1.102 1.024 0.551 28 26 14 0.04 20
GA0066790 – 9mm Hose Tail 6 1.102 1.024 0.551 28 26 14 0.04
GA0066701 – 10mm Hose Tail 6 1.102 1.024 0.551 28 26 14 0.05 22
GA0066174 – 7x14 mm Reusable Hose Fit. 7 2.224 0.630 0.748 56.5 16 19 0.12 56
GA0066184 – 8x14 mm Reusable Hose Fit. 7 2.224 0.630 0.748 56.5 16 19 0.13 57
GA0066185 – 8x15 mm Reusable Hose Fit. 7 2.224 0.630 0.748 56.5 16 19 0.12 53
GA0066196 – 9x16 mm Reusable Hose Fit. 7 2.224 0.630 0.748 56.5 16 19 0.11 51
GA0066814 -19 Female BSPP Swivel 8 1.496 0.669 38 17 0.06 26
GA0066845 M14 M14x125 Female Metric Swivel 8 1.496 0.669 38 17 0.06 26
To obtain connected length of coupling add Dimensions A or A+C (Fig. 1, 2, 3) and D or D+E (Fig. 4, 5, 6, 7, 8) together and substract 23 mm (0,91 in).
*Alternative end connections available upon request.
GD1053614 - - Male BSPT 1 2.65 1.02 0.51 0.67 67.3 26.0 13.0 17 0.24 109

GD1053683

Male NPT 1 2.62 1.02 0.60 0.75 66.5 26.0 15.3 19 0.27 121

GD1052614 - - - Female BSPP 2 2.33 1.02 0.00 0.67 76.8 26.0 17 0.24 109

GD1052612 - - Female BSPP 2 3.30 1.02 0.00 1.06 83.8 26.0 27 0.34 155

GD1055601 – 10 mm Reusable Hose Fit- 3 2.33 1.02 1.10 0.67 65.8 26.0 28.0 17 0.25 112
To obtain connected length of coupling add Dimensions A or A+C (Fig- 1, 2, 3) and D or D+E (Fig- 4, 5, 6, 7, 8) together and substract 23 mm (0,91 in)- *Alternative end connections available upon request-

Safeline Series
ISO 6150 B GD10500 Safety-Type Quick-Release

Figure 4 Figure 5 Figure 6 Figure 8

Plugs (Male)
Part Body Port Thread or Dimensions Number Size Size Hose Diam- Type Fig- D E F Hex1 Hex2 D E F Hex1 Hex2 Weight
(in) (in) (in) (in) (in) (mm) (mm) (mm) (mm) (mm) (lbs) (g)

GA0066314 - .-19 Male BSPT 4 1.260 0.512 0.551 32 13 14 0.06 25

GA0066238

-19 Female BSPP 5 1.732 0.827 44 21 0.08 37

GA0066790 – 9mm Hose Tail 6 1.102 1.024 0.551 28 26 14 0.04

GA0066814 - .-19 Female BSPP Swivel 8 1.496 0.669 38 17 0.06 26

To obtain connected length of coupling add Dimensions A or A+C (Fig- 1, 2, 3) and D or D+E (Fig- 4, 5, 6, 7, 8) together and substract 23 mm (0,91 in)- *Alternative end connections available upon request-
