EATON FFCUP系列ISO 16028帶壓操作平面快速接頭
FFCUP Series ISO 16028 Connect Under Pressure Flat Face Plug/Male Quick Disconnect Couplings
EATON Quick Disconnect Couplings

試驗流體：40°C/104°F下的油粘度為30 Cst，伊頓的FFCUP系列插頭/公接頭為ISO 16028標準互換。沖洗面設計防止斷開時液體損失和連接時空氣夾雜，確保良好的流動性能。集成系統允許FFCUP系列插頭在350巴（5075磅/平方英寸）的殘余壓力下連接到插座/內半快速接頭。Test Fluid: Oil viscosity 30 Cst at 40°C/104°F Eaton’s FFCUP Series plug/male coupling is an ISO 16028 standard interchange. The flush face design prevents fluid loss on disconnection and air inclusion on connection guaranteeing excellent flow capability. An integrated patented system allows the FFCUP Series plug to be connected to a socket/female half coupling under 350 bar (5075 psi) residual pressure.

FFCUP Series ISO 16028 Connect Under Pressure Flat Face Plug/Male
產品技術選型資料下載

產品特點
Product Features

- 插頭可以在350巴/5075磅/平方英寸的剩余壓力下連接到符合ISO 16028標準要求的插座/母插座。
- 插頭連接時僅承受壓力
- 在連接階段，插座不得承受壓力
- 嚴禁帶壓斷開
- 壓力連接可能需要幾秒鐘：在此期間必須保持連接力壓力連接操作指南
- The plug can be connected against 350 bar/5075 psi residual pressure to sockets/females meeting ISO 16028 standard requirements.
- Plug only is under pressure while connected
- During the connection phase, the socket must not be under pressure
- Disconnection under pressure is strictly forbidden
- Connection under pressure may require a few seconds: the force to connect must be maintained during this lapse of time Connect Under Pressure Operating Guidelines

市場應用領域
Applications & Markets

- 連接到液壓泵、千斤頂、分配器和附件
Connection to Hydraulic pumps, jacks, distributors and accessories
- 液壓回路 Hydraulic Circuits
- 物料搬運 Material Handling
- 建筑 Construction
- 農業 Agriculture
- 鋼鐵工業Iron and Steel Industry
- 鐵路 Railway
- 工業廠房 Industrial Plants

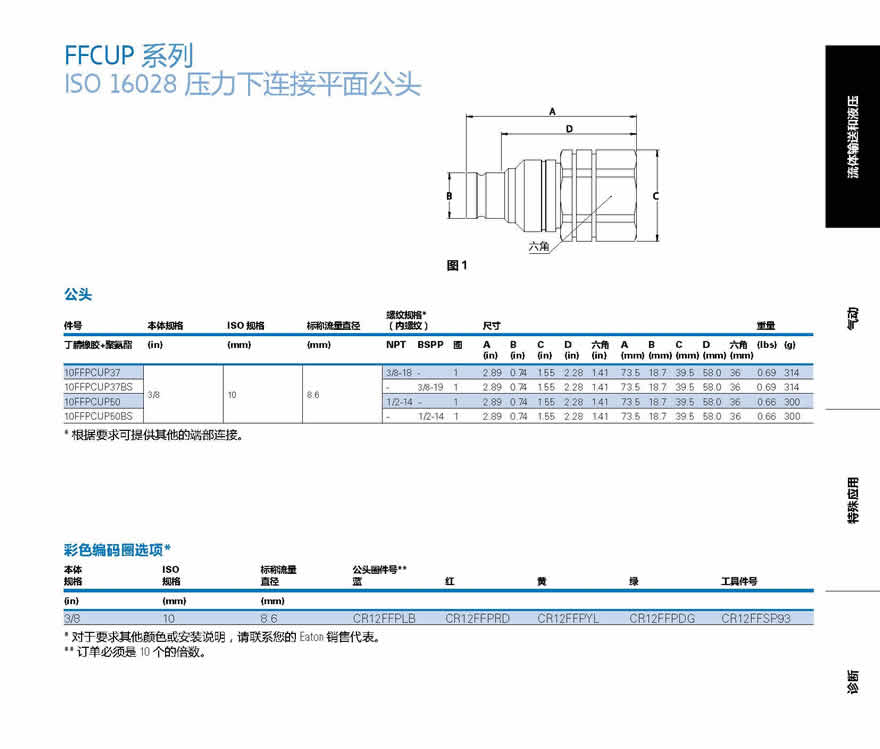

FFCUP Series ISO 16028 Connect Under Pressure Flat Face Plug/Male
Plugs (Male)
Part Number

10FFPCUP37
3/8 10 8.6
-18 - 1 2.89 0.74 1.55 2.28 1.41 73.5 18.7 39.5 58.0 36 0.69 314
10FFPCUP37BS - -19 1 2.89 0.74 1.55 2.28 1.41 73.5 18.7 39.5 58.0 36 0.69 314
10FFPCUP50 ?-14 - 1 2.89 0.74 1.55 2.28 1.41 73.5 18.7 39.5 58.0 36 0.66 300
10FFPCUP50BS - ?-14 1 2.89 0.74 1.55 2.28 1.41 73.5 18.7 39.5 58.0 36 0.66 300
12FFPCUP50
1/2 12,5 11
?-14 1 3,03 0,96 1,55 2,36 1.41 77 24,52 39,5 60 36 0,77 350
12FFPCUP50BS ?-14 1 3,03 0,96 1,55 2,36 1.41 77 24,52 39,5 60 36 0,76 346
12FFPCUP56UN 9/16 18f UNF 1 2,87 0,96 1,55 2,2 1.41 73 24,52 39,5 56 36 0,74 336
12FFPCUP75UN 3/4 16f UNF 1 3,03 0,96 1,55 2,36 1.41 77 24,52 39,5 60 36 0,77 351
* Alternative end connections available upon request.

EATON Quick Disconnect Couplings EMEA E-MEQD-CC002-E4 December 2018
Color Coding Ring Option*

彩色編碼環快速接頭

Plug/Male Ring Part Number**
Blue Red Yellow Green Tool Part Number
10 8.6 CR12FFPLB CR12FFPRD CR12FFPYL CR12FFPDG CR12FFSP93
? 12,5 11 CR16FFPLB CR16FFPRD CR16FFPYL CR16FFPDG CR16FFSP93
For color coded rings TPE material is used that offers excellent flexibility which allows a very good shock resistance in demanding applications.
Good thermal, chemical and weather resistance provides a great fit on the coupling and a extended life time in toughest conditions.
The color coded rings are easy to install by using the referenced tools. Please refer to the user guide on “eaton.com”
* For requests on alternative colors or installation instructions, please contact your Eaton sales representative.
** Orders must be in multiples of 10 pcs.
*** The kit consists of a tool plus 10 socket rings and 10 plug rings of each color.
