      丹佛斯漢森 FD83系列全流量雙聯鎖電子液冷快速接頭 Quick-Disconnect Coupling 快速斷開快速接頭
      FD83 series full flow dual interlocking coupling FD83系列全流量雙聯鎖快速接頭
      EATON FD83快速接頭 數據中心機房 機柜冷卻管路 主管路 冷卻液水流體輸送


      丹佛斯漢森FD83快速接頭設計用于數據中心機房冷卻管路及電子冷卻應用,在這些應用中,全流量,流體兼容性和安全性至關重要。丹佛斯漢森FD83具有專有的互鎖功能,可防止泄漏并確保在關鍵環境中的大安全性。不銹鋼,可根據要求提供其他材料類型。1英寸或更大尺寸的理想選擇。Golden Mousetrap 2009 Winner優勝者Eaton Corp.的FD83快速接頭適用于需要安全,簡單,可靠,干式斷開連接的高流量應用。這種類型的快速接頭的典型應用包括計算機冷卻和大量流體輸送,但是它可以用多種基礎材料制造,并帶有可替換的密封件和端部端口,適用于各種流體和應用。FD83數據中心機房 機柜冷卻管路 主管路Source lines冷卻液水流體輸送應用。




      丹佛斯漢森 FD83 快速接頭專為全流量、流體兼容性和安全性至關重要的電子冷卻應用而設計。 FD83 具有專有的聯鎖功能,可防止溢出并確保關鍵環境中的最大安全性。 不銹鋼,可根據要求提供其他材料類型。 適用于 1 英寸或更大的供應線。伊頓公司的 FD83 快速接頭針對需要安全、簡單、可靠、干式斷開連接的高流量應用。 這種類型的快速接頭的典型應用包括計算機冷卻和大容量流體傳輸,但它可以用各種基礎材料制造,具有用于各種流體和應用的交替密封和端部端口。Eaton's FD83 coupling is designed for electronics cooling applications where full flow, fluid compatibility and safety are essential. The FD83 features a proprietary interlock feature that prevents spills and ensure maximum safety in critical environments. Stainless steel, other material types available upon request. Ideal for 1 inch or greater supply lines.The FD83 coupling from Eaton Corp. targets high flow rate applications where a safe, simple, reliable, dry break connection is required. Typical applications for this type of coupling include computer cooling and bulk fluid transfer, but it can be manufactured in a variety of base materials with alternate seals and end ports for a wide range of fluids and applications.

      美國伊頓EATON FD83快速接頭,數據中心、服務器、液冷快換接頭
      Eaton FD83 Coupling fluid transfer and electronics cooling



      與具有相同尺寸的典型干式快斷快速接頭相比,FD83快速接頭提供了改進的流量特性,因為在流路中沒有任何閥門組件會阻塞流量。它還消除了因將閥門卡在標準快速斷開接頭中而導致的嚴重泄漏的可能性。The FD83 coupling provides improved flow characteristics when compared to typical dry break quick disconnect couplings of equivalent size because there are no valve components in the flow path to obstruct flow. It also eliminates the potential for serious spills that can be caused by sticking valves in standard quick disconnect couplings.

      丹佛斯漢森FD83干式斷續快速接頭的獨特之處在于具有Unisex設計。兩半相同,因此無需擔心系統組件的公/母連接關系,從而簡化了操作和庫存要求。閥門設計提供了直通,通暢的流路,以實現最大流量和最小壓降。快速接頭的兩個互鎖功能有助于消除溢出并確保最大的安全性。在兩個半快速接頭配對之前,無法打開閥門;在兩個閥都關閉之前,也不能斷開半快速接頭。360度旋轉的能力允許閥門手柄定位并減少軟管扭曲。The FD83 dry break couplings are unique in that they feature a Unisex design. The halves are identical so there is no concern for male/female connection relationship of system components, which simplifies operation and inventory requirements. The valve design provides a straight through, unobstructed, flow path for maximum flow and minimum pressure drop. The coupling's two interlock features help eliminate spills and ensure maximum safety. Valves can't be opened until two coupling halves are mated, and coupling halves can't be disconnected until both valves are closed. The ability to swivel 360 degree permits positioning of valve handles and reduces hose twist.

      快速接頭的其他主要特征包括:斷開時的溢漏最少,特殊的鎖定銷和杠桿手柄可以防止意外斷開,而彩色保險杠則可以避免交叉連接。這個一英寸的快速接頭還具有303不銹鋼結構和EPDM O形圈密封,分別具有150和300 PSI的工作壓力和爆破壓力。Additional key features of the coupling include minimal spillage on disconnect, and a special locking pin and lever handle to prevent accidental disconnects, and color coded bumpers to avoid cross connections. The one-inch coupling also features 303 stainless steel construction and EPDM O-ring seals with 150 and 300 PSI operating and burst pressures respectively.



      FD83系列全流量雙互鎖產品特征

      - 使用專利鎖銷設計和杠桿手柄斷開時,雙互鎖安全特征,可防止接頭意外打開
      - 在維修或保養過程中,該設計提供可靠的性能且無任何泄漏
      - 標準密封材料:
      - 三元乙丙橡膠,可根據要求提供其他材料
      - 標準本體材料:不銹鋼
      - 全流量接頭
      - 可提供不同顏色的緩沖器密封件
      - 接頭兩半完全相同
      - 維修和維護便捷
      - 不銹鋼材料具有廣泛的流體相容性
      - 有多種端口連接型式可以選擇


      應用與市場

      - 數據中心
      - 移動電池冷卻
      - 熱管理系統
      - 工業流體輸送


      - Danfoss Hansen FD83 Series Coupling Thermal Management
      Danfoss Hansen FD83 coupling





      Part No.
      件號
      本體
      規格
      端口
      規格
      螺紋
      類型
      尺寸
      A
      B
      Hex 六角
      mm
      (in)
      mm
      (in)
      mm
      FD83-2052-16-16
      1
      1
      1-11- 1/2
      NPTF 內螺紋
      1
      95.5
      -3.76
      71.6
      (1.63)
      41
      FD83-2052-12-16
      1
      3/4
      3/4-14
      NPTF 內螺紋
      1
      70.1
      -2.76
      71.6
      (1.63)
      41
      FD83-2046-16-16
      1
      1
      NA
      1" 寶塔式
      2
      84.2
      -3.31
      71.6
      -
      -
      FD83-2092-16-16
      1
      1
      NA
      1" 寶塔式 90°
      4
      125
      -4.92
      71.6
      -
      -
      FD83-2096-16-16
      1
      1
      1 5/16-12
      ORB 外螺紋
      1
      95.5
      -3.76
      71.6
      (1.63)
      41
      FD83-2140-16-16
      1
      1
      G1-11
      BSPP 外螺紋
      5
      95.5
      -3.76
      71.6
      (1.63)
      41
      FD83-2126-16-16
      1
      1
      G1-11
      BSPP 內螺紋
      1
      84.3
      -3.32
      71.6
      (1.63)
      41
      FD83-2128-16-16
      1
      1
      NA
      衛生法蘭 1''
      4
      79.6
      -3.13
      71.6
      -
      -
      FD83-2126-32-32
      2
      2
      G2-11
      BSPP 內螺紋
      1
      122.4
      -4.82
      105.3 (4.15)
      (2.76)
      70
      FD83-2127-32-32
      2
      2
      NA
      2'' 寶塔式
      2
      166.9
      -6.57
      105.3 (4.15)
      -
      -
      FD83-2128-32-32
      2
      2
      NA
      衛生法蘭 2'
      4
      102.4
      -4.03
      105.3 (4.15)
      -
      -
      FD83-2052-32-32
      2
      2
      2-11- ?
      NPT 內螺紋
      1
      122.4
      -4.82
      105.3 (4.15)
      (2.76)
      70

      其他端接可應要求提供Other end connections available upon request







      訂貨型號

      FD83-2052-16-16; 1 1 1-11-1/2 Female NPT
      FD83-2052-12-16; 1 3/4 3/4-14 Female NPT
      FD83-2046-16-16; 1 1 NA 1” Hose Barb 寶塔連接
      WQF8-16-N16FSR
      WQF8-12-N16FSR
      WQF8-16-016FSR
      FD83-2046-16-16
      FD83-2052-16-16
      FD83-2092-16-16
      FD83-2046-16-16
      FD83-2052-16-16; 1 1 1-11-1/2 Female NPT
      FD83-2052-12-16; 1 3/4 3/4-14 Female NPT
      FD83-2046-16-16; 1 1 NA 1” Hose Barb
      WQF8-12-N16FSR
      WQF8-16-016FSR



      特性

      - 雙互鎖設計可確保在流體流動時不會斷開
      - 多種端接配置,包括90都彎寶塔式連接
      - 球閥實現最大流量和最小壓降
      - 手動插銷可鎖定閥門,令其保持開啟或關閉狀態,防止意外自開和關閉
      - 安全功能可防止球閥在未連接狀態下意外打開


      優勢

      - 帶有一個選擇連接頭,方便連接/斷開,無需扭曲軟管
      - 耐腐蝕不銹鋼結構
      - 兩半相同 —— 在系統設置過程中無需擔心陰陽接頭的連接關系
      - 外圍黑色橡膠提供緩沖保護,防止意外掉落是接頭損壞



      EATON FD83快速接頭 數據中心機房 機柜冷卻管路 主管路 冷卻液水流體輸送



      Eaton FD83 Coupling Integral to Liquid Cooling System on New IBM Supercomputer



      Eaton’s FD83 is designed for fluid transfer and electronics cooling applications where full flow,fluid compatibility and safety are essential. The FD83 identical halves include two interlock features to eliminate spills and ensure maximum safety. Valves cannot be opened until the coupling halves are mated and coupling halves cannot be disconnected until both halves are closed. The FD83 coupling system can be used in a wide variety of low pressure industrial applications.







      FD83作為丹佛斯在數據中心液冷行業的專利產品,市場應用二十幾年。作為數據中心液冷主線的有效連接和高效傳輸的解決方案,憑借過硬的產品性能和可靠的產品質量,收獲客戶信賴,與全球頂尖數據中心企業建立合作關系。FD83在多年前被證明是IBM POWER575的正確解決方案,幫助IBM實現高效的液體冷卻。



      FD83是丹佛斯為流體輸送和電子冷卻用途設計的,這些用途要求全流量,且流體相容性和安全性至關重要,特點是左右兩半接頭完全相同,互鎖功能消除意外泄漏風險,確保最大安全性。左右接頭耦合前,手柄不能開啟;手柄閉合前,左右接頭無法斷開,適用于多種低壓應用。



      Product Features

      - Dual interlock safety feature eliminates accidental opening of coupling when disconnected with the use of a patented locking pin design and lever handle
      - Design provides reliable performance and minimal spillage during maintenance or service
      - Standard seal material: EPDM, additional material available on request
      - Standard body material: 303 stainless steel, additional material available on request
      - Full-flow capability
      - Available colour coded bumper seals available
      - Identical coupling halves
      - Maintenance and service friendly
      - 303 stainless steel material provides broad fluid compatibility
      - 3/4” and 1” Female NPT port threads or hose barb

      WQF8-16-N16FSR
      WQF8-12-N16FSR
      WQF8-16-016FSR
      WQF8-16-B16FSR G螺紋
      WQF8-16-016FSR 寶塔

      FD83-2046-16-16
      FD83-2052-16-16
      FD83-2092-16-16
      FD83-2046-16-16

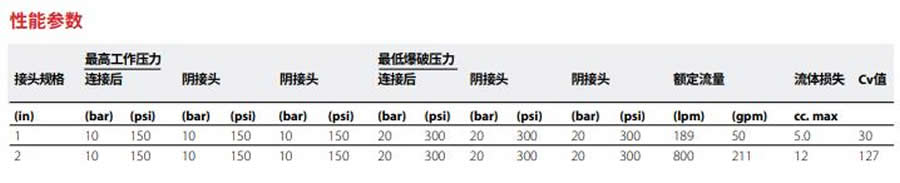

      Physical Characteristics

      Coupling Size Max. Operating Pressure Min. Burst Pressure
      Connected Socket/Female
      Half
      Socket/Female
      Half
      Connected Socket/Female
      Half
      Socket/Female
      Half
      Rated flow   Fluid loss
      (in)
      (bar)
      (psi)
      (bar)
      (psi)
      (bar)
      (psi)
      (bar)
      (psi)
      (bar)
      (psi)
      (bar)
      (psi)
      (lpm)
      (gpm)
      cc. max
      1
      10
      150
      10
      150
      10
      150
      20
      300
      20
      300
      20
      300
      189
      50
      5.0



      Dimensions

      Part Number Body Size Port Size Thread Type Fig. A B HEX
      FD83-2052-16-16 1 1 1-11- 1/2 Female NPT 1 95.5mm 71.6mm 41
      FD83-2052-12-16 1 3/4 3/4-14 Female NPT 1 70.1mm 71.6mm 41
      FD83-2046-16-16 1 1 NA 1” Hose Barb 2 84.2mm 71.6mm -

      Hose barb adapters available upon request.





      信德邁公司攜丹佛斯數據中心液冷連接解決方案亮點

      1、20多年數據中心液冷應用經驗,100多年快換和軟管生產經驗。
      2、采用全套丹佛斯液冷連接解決方案,可有效降低數據中心能源消耗,節能15-20%。
      3、FD83和UQD快換100%通過氦氣檢測,保障使用安全可靠,減少非必要停機。
      4、EHW194軟管符合UL94 V0防火等級,有效保障特殊情況下數據中心的安全運行。





      信德邁公司是丹佛斯Danfoss中國核心支持代理商
      主攻:中國地區液冷數據中心業務
      主供:液冷專利產品FD83/WQF8接頭和軟管,單個產品上千套百萬級庫存備貨
      與信德邁公司攜手合作,輕松獲得一站式解決方案!
      http://www.0591w.com/eaton/fc-solutions-for-data-centers.htm



      備注:其它尺寸和連接形式根據市場需求也可以制造。請聯系我們 13910962635 , 15801532751 or info@cnmec.biz 楊經理,李經理咨詢。從服務器機箱到冷卻分配單元,信德邁公司攜丹佛斯提供全方位的優質流體輸送產品組合,可滿足您所有的數據中心冷卻系統技術需求。 與信德邁公司攜手合作,輕松獲得一站式解決方案!

      從主供液端到各類機架,丹佛斯快速接頭可幫助優化冷卻回路。丹佛斯技術能確保您回路的最佳密封性。平面快速接頭令整個連接和斷開過程安全無滴漏,冷卻液和電子裝置之間的連接系統可以提高整體設備性能。如今,在數據中心領域,綠色、低碳已成為未來發展的關鍵詞,丹佛斯將持續以安全、高效的連接賦能液冷數據中心綠色降碳,促進雙向可持續發展。從服務器機箱到冷卻分配單元,信德邁公司攜丹佛斯提供全方位的優質流體輸送產品組合,可滿足您所有的冷卻系統技術需求。
