Eaton Swivel Joints旋轉接頭
EATON Hydraulics Swivel Joints Catalog E-MESW-MC001-E2

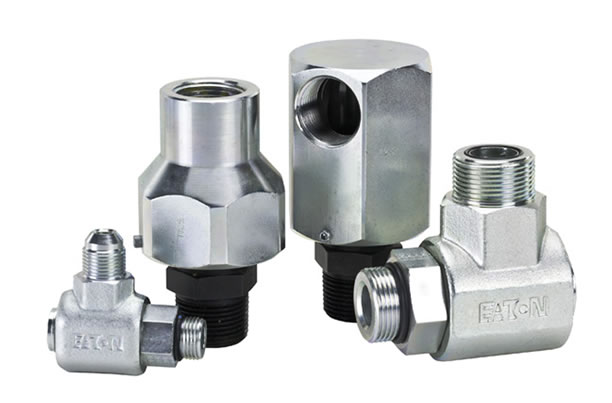

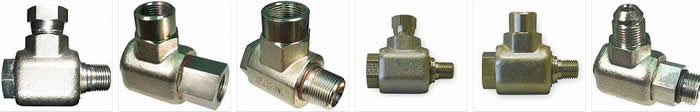

EATON Swivel Joints旋轉接頭
憑借其緊湊、堅固的設計，伊頓旋轉接頭幾乎可以在任何動態液壓系統中使用。可用寬范圍的端部配置，這些柔性接頭消除了在緊湊空間中的適配器和管道的需要，并且在旋轉和軟管扭曲的問題。With their compact, robust designs, Eaton swivel joints are ready to perform in virtually any dynamic hydraulic system. Available with a broad range of end configurations, these flexible joints eliminate the need for adapters and tubing in tight spaces and excel where rotation and hose twisting are a problem.
EATON Hydraulics Swivel Joints Catalog E-MESW-MC001-E2
Advantages of using Eaton Swivel Joints
Selection Criteria and Product Safety Considerations
FS6500
BD5500
Repair Kit
FS5900
Repair Kit
Swivel Joints Advantages of using Eaton Swivel Joints
1. Better System Plumbing:
- Less hose is needed when swivel joints are used, the system is more space efficient (Figure 1).
- Can eliminate the need for tubing configurations to accommodate 90° and other angles.
- Can be directly connected to hose lines frequently eliminating the need foradapters.
2. Prevent Hose Twisting and Kinking: The swivel action swivel joints prevent hose twisting and kinking (Figure 2 & 3).
3. Less Downtime: The problem of hose twisting and kinking is eliminated and hose line replacement becomes significantly less.
4. Absorb System Shock: Swivel joints are not rigid and therefore capable of absorbing some hose shortening when the system is pressurized.
5. Cost Savings: Less hose,fewer adapters and tubing configurations and less downtime add up to saving money when swivel joints are used.
Features:
- Balanced-pressure design
- Low-drop dimensions
- Contamination seals
- 360o rotation
-Standard O-ring design
Benefits:
- Show no significant increase in torque with introduction of pressure
- Fit in compact areas
- Prevent environmental contaminates from entering the swivel joints
- Prevent hose twisting, thus increasing hose life
- Allow quick and reliable field repairs
Figure 1 Figure 2 Figure 3
EATON Hydraulics Swivel Joints Catalog E-MESW-MC001-E2 April 2016 7
Male Pipe x Male SAE 37°
Male Pipe x
Male SAE O-Ring Boss
Male Pipe x Female Pipe Part Swivel Casing Sleeve
Number Size Thread Thread A B C D
FS65015-0404-01 1/4 1/4-18 NPTF 1/4-18 NPTF 2.49 1.59 1.66 2.35 24 mm 15/16
FS65015-0808-01 1/2 1/2-14 NPTF 1/2-14 NPTF 3.14 1.97 1.62 2.39 29 mm 1-1/16
FS65015-1616-01 1 1-11 1/2 NPTF 1-11 1/2 NPTF 3.84 2.53 2.60 3.68 43 mm 1-5/8
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C D
FS65019-1616-01 1 1-11 1/2 NPTF 1 5/16-12 UN-2A 3.86 2.23 2.60 3.68 43 mm 1-5/8
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C D
FS65022-1616-01 1 1-11 1/2 NPTF 1 5/16-12 UN-2A 3.67 2.35 2.60 3.68 43 mm 1-5/8
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C D
FS65000-0404-01 1/4 1/4-18 NPSM 1/4-18 NPTF 2.60 1.49 1.45 2.14 24 mm 15/16
FS65000-0606-01 3/8 3/8-18 NPSM 3/8-18 NPTF 2.53 1.48 1.45 2.14 24 mm 15/16
FS65000-0808-01 1/2 1/2-14 NPSM 1/2-14 NPTF 2.88 1.54 1.62 2.39 29 mm 1
FS65000-1212-01 3/4 3/4-14 NPSM 3/4-14 NPTF 3.21 1.89 2.14 3.09 34 mm 1-1/4
FS65000-1616-01 1 1-11 1/2 NPSM 1-11 1/2 NPTF 3.91 2.27 2.40 3.48 43 mm 1-5/8
Female Pipe Swivel (NPSM) x F G
8 EATON Hydraulics Swivel Joints Catalog E-MESW-MC001-E2 April 2016
Part Swivel Casing Sleeve
Number Size Thread Thread A B C D
FS65001-0404-01 1/4 1/4-18 NPSM 7/16-20 UNF-2A 2.58 1.46 1.45 2.14 24 mm 15/16
FS65001-0606-01 3/8 3/8-18 NPSM 9/16-18 UNF-2A 2.51 1.46 1.45 2.14 24 mm 15/16
FS65001-0608-01 3/8 3/8-18 NPSM 3/4-16 UNF-2A 2.61 1.56 1.45 2.14 24 mm 15/16
FS65001-0808-01 1/2 1/2-14 NPSM 3/4-16 UNF-2A 2.77 1.52 1.62 2.39 29 mm 1
FS65001-0810-01 1/2 1/2-14 NPSM 7/8-14 UNF-2A 2.88 1.62 1.62 2.39 29 mm 1
FS65001-1212-01 3/4 3/4-14 NPSM 1 1/16-12 UN-2A 3.31 1.99 2.14 3.09 34 mm 1-1/4
FS65001-1616-01 1 1-11 1/2 NPSM 1 5/16-12 UN-2A 3.86 2.23 2.40 3.48 43 mm 1-5/8
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C D
FS65002-0404-01 1/4 1/4-18 NPSM 7/16-20 UNF-2A 2.39 1.27 1.45 2.14 24 mm 15/16
FS65002-0405-01 1/4 1/4-18 NPSM 1/2-20UNF-2A 2.39 1.27 1.45 2.14 24 mm 15/16
FS65002-0606-01 3/8 3/8-18 NPSM 9/16-18UNF-2A 2.35 1.30 1.45 2.14 24 mm 15/16
FS65002-0608-01 3/8 3/8-18 NPSM 3/4-16UNF-2A 2.65 1.74 1.45 2.14 24 mm 15/16
FS65002-0808-01 1/2 1/2-14 NPSM 3/4-16UNF-2A 2.55 1.30 1.62 2.39 29 mm 1
FS65002-0810-01 1/2 1/2-14 NPSM 7/8-14UNF-2A 2.55 1.36 1.62 2.39 29 mm 1-1/16
FS65002-1212-01 3/4 3/4-14 NPSM 1 1/16-12 UN-2A 3.28 2.16 2.14 3.09 34 mm 1-1/4
FS65002-1616-01 1 1-11 1/2 NPSM 1 5/16-12 UN-2A 3.67 2.35 2.40 3.48 43 mm 1-5/8
Part Swivel Casing Sleeve
Number Size Thread Thread A B C D
FS65005-0404-01 1/4 1/4-18 NPSM 1/4-18 NPTF 2.49 1.59 1.45 2.14 24 mm 15/16
FS65005-0606-01 3/8 3/8-18 NPTF 3/8-18 NPTF 2.49 1.58 1.45 2.14 24 mm 15/16
FS65005-0808-01 1/2 1/2-14 NPTF 1/2-14 NPTF 3.14 1.97 1.62 2.39 29 mm 1-1/16
FS65005-1212-01 3/4 3/4-14 NPTF 3/4-14 NPTF 3.21 2.08 2.14 3.09 34 mm 1-5/16
FS65005-1616-01 1 1-11 1/2 NPTF 1-11 1/2 NPTF 3.84 2.53 2.40 3.48 43 mm 1-5/8
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C D
FS65007-0404-01 1/4 1/4-18 NPTF 1/4-18 NPTF 2.60 1.49 1.58 2.27 24 mm 15/16
FS65007-0606-01 3/8 3/8-18 NPTF 3/8-18 NPTF 2.53 1.48 1.59 2.28 24 mm 15/16
FS65007-0808-01 1/2 1/2-14 NPTF 1/2-14 NPTF 2.88 1.54 1.88 2.65 29 mm 1
FS65007-1212-01 3/4 3/4-14 NPTF 3/4-14 NPTF 3.21 1.89 2.30 3.25 34 mm 1-1/4
FS65007-1616-01 1 1-11 1/2 NPTF 1-11 1/2 NPTF 3.91 2.27 2.62 3.70 43 mm 1-5/8
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C D
FS65008-0404-01 1/4 1/4-18 NPTF 1/4-18 NPTF 2.49 1.59 1.58 2.27 24 mm 15/16
FS65008-0606-01 3/8 3/8-18 NPTF 3/8-18 NPTF 2.49 1.58 1.59 2.28 24 mm 15/16
FS65008-0808-01 1/2 1/2-14 NPTF 1/2-14 NPTF 3.14 1.97 1.88 2.65 29 mm 1-1/16
FS65008-1212-01 3/4 3/4-14 NPTF 3/4-14 NPTF 3.21 2.08 2.30 3.25 34 mm 1-5/16
FS65008-1616-01 1 1-11 1/2 NPTF 1-11 1/2 NPTF 3.84 2.53 2.62 3.70 43 mm 1-5/8
F G
Swivel Joints
FS6500
EATON Hydraulics Swivel Joints Catalog E-MESW-MC001-E2 April 2016 9
Part Swivel Casing Sleeve
Number Size Thread Thread A B C D
FS65010-0404-01 1/4 1/4-18 NPTF 7/16-20 UNF-2A 2.58 1.46 1.58 2.27 24 mm 15/16
FS65010-0808-01 1/2 1/2-14 NPTF 3/4-16 UNF-2A 2.77 1.52 1.88 2.65 29 mm 1
FS65010-1212-01 3/4 3/4-14 NPTF 1 1/16-12 UN-2A 3.31 1.99 2.30 3.25 34 mm 1-1/4
FS65010-1616-01 1 1-11 1/2 NPTF 1 5/16-12 UN-2A 3.86 2.23 2.62 3.70 43 mm 1-5/8
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C D
FS65011-0404-01 1/4 1/4-18 NPTF 7/16-20 UNF-2A 2.39 1.27 1.58 2.27 24 mm 15/16
FS65011-0606-01 3/8 3/8-18 NPTF 9/16-18 UNF-2A 2.35 1.30 1.59 2.28 24 mm 15/16
FS65011-0808-01 1/2 1/2-14 NPTF 3/4-16 UNF-2A 2.55 1.30 1.88 2.65 29 mm 1
FS65011-0810-01 1/2 1/2-14 NPTF 7/8-14 UNF-2A 2.88 1.36 1.88 2.65 29 mm 1-1/16
FS65011-1212-01 3/4 3/4-14 NPTF 1 1/16-12 UN-2A 3.28 2.16 2.30 3.25 34 mm 1-1/4
FS65011-1616-01 1 1-11 1/2 NPTF 1 5/16-12 UN-2A 3.67 2.35 2.62 3.70 43 mm 1-5/8
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C D
FS65003-0404-01 1/4 7/16-20 UNF-2A 1/4-18 NPTF 2.60 1.49 1.66 2.35 24 mm 15/16
FS65003-0504-01 1/4 1/2-20 UNF-2A 1/4-18 NPTF 2.60 1.49 1.66 2.35 24 mm 15/16
FS65003-0606-01 3/8 9/16-18 UNF-2A 3/8-18 NPTF 2.53 1.48 1.67 2.36 24 mm 15/16
FS65003-0806-01 3/8 3/4-16 UNF-2A 3/8-18 NPTF 2.53 1.58 1.77 2.46 24 mm 15/16
FS65003-0808-01 1/2 3/4-16 UNF-2A 1/2-14 NPTF 2.88 1.54 1.89 2.66 29 mm 1
FS65003-1008-01 1/2 7/8-14 UNF-2A 1/2-14 NPTF 2.88 1.54 2.00 2.77 29 mm 1
FS65003-1212-01 3/4 1 1/16-12 UN-2A 3/4-14 NPTF 3.21 1.89 2.36 3.31 34 mm 1-1/4
FS65003-1616-01 1 1 5/16-12 UN-2A 1-11 1/2 NPTF 3.91 2.27 2.60 3.68 43 mm 1-5/8
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C D
FS65004-0404-01 1/4 7/16-20 UNF-2A 7/16-20 UNF-2A 2.56 1.46 1.66 2.35 24 mm 15/16
FS65004-0505-01 1/4 1/2-20 UNF-2A 1/2-20 UNF-2A 2.56 1.46 1.66 2.35 24 mm 15/16
FS65004-0606-01 3/8 9/16-18 UNF-2A 9/16-18 UNF-2A 2.51 1.46 1.67 2.36 24 mm 15/16
FS65004-0808-01 3/8 3/4-16 UNF-2A 3/4-16 UNF-2A 2.61 1.56 1.77 2.46 24 mm 15/16
FS65004-1010-01 5/8 7/8-14 UNF-2A 7/8-14 UNF-2A 2.87 1.62 2.00 2.77 29 mm 1
FS65004-1212-01 3/4 1 1/16-12 UN-2A 1 1/16-12 UN-2A 3.31 1.99 2.36 3.31 34 mm 1-1/4
FS65004-1616-01 1 1 5/16-12 UN-2A 1 5/16-12 UN-2A 3.86 2.23 2.60 3.68 43 mm 1-5/8
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C D
FS65009-0404-01 1/4 7/16-20 UNF-2A 7/16-20 UNF-2A 2.39 1.27 1.66 2.35 24 mm 15/16
FS65009-0505-01 1/4 1/2-20 UNF-2A 1/2-20 UNF-2A 2.39 1.27 1.66 2.35 24 mm 15/16
FS65009-0606-01 3/8 9/16-18 UNF-2A 9/16-18 UNF-2A 2.35 1.30 1.67 2.36 24 mm 15/16
FS65009-0808-01 3/8 3/4-16 UNF-2A 3/4-16 UNF-2A 2.65 1.74 1.77 2.46 24 mm 15/16
FS65009-1010-01 5/8 7/8-14 UNF-2A 7/8-14 UNF-2A 2.87 1.36 2.00 2.77 29 mm 1-1/16
FS65009-1212-01 3/4 1 1/16-12 UN-2A 1 1/16-12 UN-2A 3.28 2.16 2.36 3.31 34 mm 1-1/4
FS65009-1616-01 1 1 5/16-12 UN-2A 1 5/16-12 UN-2A 3.67 2.35 2.60 3.68 43 mm 1-5/8
Swivel Joints
FS6500
10 EATON Hydraulics Swivel Joints Catalog E-MESW-MC001-E2 April 2016
Part Swivel Casing Sleeve
Number Size Thread Thread A B C D
FS65016-1616-01 1 1 5/16-12 UN-2A 1-11 1/2 NPTF 3.84 2.53 2.60 3.68 43 mm 1-5/8
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C D
FS65013-1616-01 1 1 5/16-12 UN-2A 1-11 1/2 NPTF 3.91 2.27 2.37 3.45 43 mm 1-5/8
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C D
FS65017-1616-01 1 1 5/16-12 UN-2A 1-11 1/2 NPTF 3.84 2.53 2.37 3.45 43 mm 1-5/8
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C D
FS65020-1616-01 1 1 5/16-12 UN-2A 1 5/16-12 UN-2A 3.86 2.23 2.37 3.45 43 mm 1-5/8
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C D
FS65023-1616-01 1 1 5/16-12 UN-2A 1 5/16-12 UN-2A 3.67 2.35 2.37 3.45 43 mm 1-5/8
F G
Male SAE 37°x Female Pipe
Male SAE O-Ring Boss x
Male Pipe
Male SAE O-Ring Boss x
Female Pipe
Male SAE O-Ring Boss x
Male SAE 37°
Male SAE O-Ring Boss x
Male SAE O-Ring Boss
Swivel Joints
FS6500
EATON Hydraulics Swivel Joints Catalog E-MESW-MC001-E2 April 2016 11
Part Swivel Casing Sleeve
Number Size Thread Thread A B C D
FS65014-1616-01 1 1 5/16-12 UN-2B 1-11 1/2 NPTF 3.91 2.27 2.32 3.40 43 mm 1-5/8
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C D
FS65018-1616-01 1 1 5/16-12 UN-2B 1-11 1/2 NPTF 3.84 2.53 2.32 3.40 43 mm 1-5/8
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C D
FS65021-1616-01 1 1 5/16-12 UN-2B 1 5/16-12 UN-2A 3.86 2.23 2.32 3.40 43 mm 1-5/8
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C D
FS65024-1616-01 1 1 5/16-12 UN-2B 1 5/16-12 UN-2A 3.67 2.35 2.32 3.40 43 mm 1-5/8
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C D
FS65025-1212-01 3/4 1 3/16-12 UN-2A 1 1/16-12 UN-2A 3.28 2.16 2.25 3.20 34 mm 1-1/4
FS65025-1616-01 1 1 7/16-12 UN-2A 1 5/16-12 UN-2A 3.67 2.35 2.55 3.63 43 mm 1-5/8
F G
Female SAE O-Ring Boss x
Male Pipe
Female SAE O-Ring Boss x
Female Pipe
Female SAE O-Ring Boss x
Male SAE 37°
Female SAE O-Ring Boss x
Male SAE O-Ring Boss
Male ORS x Male
O-Ring Boss
Swivel Joints
FS6500
EATON Hydraulics Swivel Joints Catalog E-MESW-MC001-E2 April 2016 13
Part Swivel Casing Sleeve
Number Size Thread Thread A B C
BD55000–2020–01 1-1/4” 1-1/4–11-1/2 NPSM 1-1/4–11 1/2 NPTF 4.88 3.16 2.00 1.75 2.50
BD55000–2424–01 1-1/2” 1-1/2–11-1/2 NPSM 1-1/2–11 1/2 NPTF 5.30 3.50 2.25 2.12 3.00
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C
BD55001–2020–01 1-1/4” 1-1/4–11-1/2 NPSM 1-5/8–12 UN-2A 4.88 3.16 2.00 1.75 2.50
BD55001–2424–01 1-1/2” 1-1/2–11-1/2 NPSM 1-7/8–12 UN-2A 5.30 3.50 2.25 2.12 3.00
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C
BD55004–2020–01 1-1/4” 1-1/4–11-1/2 NPSM 1-5/8–12 UN-2A 4.60 2.89 2.00 1.88 2.50
BD55004–2424–01 1-1/2” 1-1/2–11-1/2 NPSM 1-7/8–12 UN-2A 5.06 3.27 2.25 2.12 3.00
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C
BD55005–2020–01 1-1/4” 1-5/8–12 UN-2A 1-1/4–11-1/2 NPTF 4.88 3.16 2.20 1.75 2.50
BD55005–2424–01 1-1/2” 1-7/8–12 UN-2A 1-1/2–11-1/2 NPTF 5.30 3.50 2.57 2.12 3.00
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C
BD55009–2020–01 1-1/4” 1-5/8–12 UN-2A 1-5/8–12 UN-2A 4.88 3.16 2.20 1.75 2.50
BD55009–2424–01 1-1/2” 1-7/8–12 UN-2A 1-7/8–12 UN-2A 5.30 3.50 2.57 2.12 3.00
Swivel Joints
BD5500
14 EATON Hydraulics Swivel Joints Catalog E-MESW-MC001-E2 April 2016
Part Swivel Casing Sleeve
Number Size Thread Thread A B C
BD55011–2020–01 1-1/4” 1 1/4-11 1/2 NPSM 1 1/4–11–1/2 NPTF 4.50 2.78 2.00 2.00 2.50
BD55011–2424–01 1-1/2” 1 1/2-11 1/2 NPSM 1 1/2–11–1/2 NPTF 4.62 2.82 2.25 2.38 3.00
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C
BD55012–2020–01 1-1/4” 1-1/4–11-1/2 NPTF 1-1/4–11–1/2 NPTF 4.88 3.16 2.27 1.75 2.50
BD55012–2424–01 1-1/2” 1-1/2–11-1/2 NPTF 1-1/2–11–1/2 NPTF 5.30 3.50 2.54 2.12 3.00
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C
BD55014–2020–01 1-1/4” 1-1/4–11-1/2 NPTF 1-1/4–11–1/2 NPTF 4.88 3.16 2.77 1.75 2.50
BD55014–2424–01 1-1/2” 1-1/2–11-1/2 NPTF 1-1/2–11–1/2 NPTF 5.30 3.50 3.02 2.12 3.00
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C
BD55015–2020–01 1-1/4” 1-1/4–11-1/2 NPTF 1-1/4–11–1/2 NPTF 4.50 2.78 2.77 2.00 2.50
BD55015–2424–01 1-1/2” 1-1/2–11-1/2 NPTF 1-1/2–11–1/2 NPTF 4.62 2.82 3.02 2.38 3.00
F G
Part Swivel Casing Sleeve
Number Size Thread Thread A B C
BD55021–2020–01 1-1/4” 1-5/8–12 UN-2A 1-5/8–12 UN-2A 4.60 2.89 2.20 1.88 2.50
BD55021–2424–01 1-1/2” 1-7/8–12 UN-2A 1-7/8–12 UN-2A 5.06 3.27 2.57 2.12 3.00
F G
Female Pipe Swivel to
Female Pipe
Male Pipe to Male Pipe
Female Pipe Fixed to Male Pipe
Female Pipe Fixed to Female Pipe
Male SAE 37° to Male SAE
Swivel Joints
BD5500
EATON Hydraulics Swivel Joints Catalog E-MESW-MC001-E2 April 2016 15
Part Nom. Casing Sleeve
Number Size Thread Thread A B C
BD55029–2020–01 11/4” 11/4-11–1/2 NPTF 15/8-12 UN-2A 4.88 3.16 2.77 1.75 2.50
F G
Part Nom. Casing Sleeve
Number Size Thread Thread A B C
BD55031–2020–01 11/4” 11/4-11–1/2NPTF 15/8-12 UN-2A 4.60 2.89 2.77 1.88 2.50
F G
Seal Type Seal Kit Part Numbers
Nominal Size 1/4” 3/8” 1/2” 3/4” 1” 1 1/4” 1 1/2”
Buna-N (Code –01) 10–62017–01 10–62018–01 10–62019–01 10–62020–01 10–62021–01 10–62022–01 10–62023–01
EPR (Code –04) 10–62017–04 10–62018–04 10–62019–04 10–62020–04 10–62022–04 10–62023–04
Flourocarbon (Code –06) 10–62017–06 10–62018–06 10–62019–06 10–62020–06 10–62021–06 10–62022–06 10–62023–06
BD5500
Repair Kits
Replacement seal kit consists of (2) TRI-RING SEALTM assemblies, (2) dust seals, (1) washer and (1) snap ring.
Swivel Joints
BD5500
EATON Hydraulics Swivel Joints Catalog E-MESW-MC001-E2 April 2016 17
Part Nom. Thread Thread
Number Size P1 P2 A B
FS59001–1616–75 1” 1-11-1/2 NPTF 1-11-1/2 NPTF 4.31 2.50 1.62
Part Nom. Thread Thread
Number Size P1 P2 A B
FS59002-0404-01 1/4” 1/4-18 NPTF 1/4-18 NPTF 3.20 2.82 1.19 .56
FS59002-0606-75 3/8” 3/8-18 NPTF 3/8-18 NPTF 3.67 3.21 1.88 .94
FS59002-0808-75 1/2” 1/2-14 NPTF 1/2-14 NPTF 4.01 3.45 1.88 .94
FS59002-1212-75 3/4” 3/4-14 NPTF 3/4-14 NPTF 4.32 3.64 2.12 1.19
FS59002-1616-75 1” 1-11-1/2 NPTF 1-11-1/2 NPTF 4.88 4.08 2.50 1.44
Part Nom. Thread Thread
Number Size P1 P2 A B
FS59003-0405-01 1/4” 1/4-18 NPTF 1/2-20 UNF-2A 3.19 2.81 1.19 .56
FS59003-0608-75 3/8” 3/8-18 NPTF 3/4-16 UNF-2A 3.77 3.31 1.88 .94
FS59003-0810-75 1/2” 1/2-14 NPTF 7/8-14 UNF-2A 4.00 3.44 1.88 .94
FS59003-1212-75 3/4” 3/4-14 NPTF 11/16-12 UN-2A 4.43 3.75 2.12 1.19
FS59003-1616-75 1” 1-11-1/2 NPTF 15/16-12 UN-2A 4.85 4.05 2.50 1.44
Part Nom. Thread Thread
Number Size P1 P2 A B
FS59004-0404-01 1/4” 1/4-18 NPTF 1/4-18 NPTF 3.23 1.19 .56
FS59004-0606-75 3/8” 3/8-18 NPTF 3/8-18 NPTF 3.62 1.88 .94
FS59004-0808-75 1/2” 1/2-14 NPTF 1/2-14 NPTF 3.97 1.88 .94
FS59004-1212-75 3/4” 3/4-14 NPTF 3/4-14 NPTF 4.04 2.12 1.19
FS59004-1616-75 1” 1-11-1/2 NPTF 1-11-1/2 NPTF 4.57 2.50 1.44
(Straight) Female Pipe
to Female Pipe
Female Pipe to Male Pipe
Female Pipe to Male SAE 37°
Female Pipe to Male Pipe
Swivel Joints
FS5900
18 EATON Hydraulics Swivel Joints Catalog E-MESW-MC001-E2 April 2016
Part Nom. Thread Thread
Number Size P1 P2 A B
FS59005-0405-01 1/4” 1/4–18 NPTF 1/2–20 UNF-2A 3.22 1.19 .56
FS59005-0608-75 3/8” 3/8–18 NPTF 3/4–16 UNF-2A 3.72 1.88 .94
FS59005-0810-75 1/2” 1/2–14 NPTF 7/8–14 UNF-2A 3.96 1.88 .94
FS59005-1212-75 3/4” 3/4–14 NPTF 1-1/16–12 UN-2A 4.15 2.12 1.19
FS59005-1616-75 1” 1–11–1/2 NPTF 1-5/16–12 UN-2A 4.54 2.50 1.44
Part Nom. Thread Thread
Number Size P1 P2 A B
FS59006–0505–01 1/4” 1/2–20 UNF-2A 1/2–20 UNF-2B 2.98 1.19 .62
FS59006–0808–75 3/8” 3/4–16 UNF-2A 3/4–16 UNF-2B 3.48 1.88 .94
FS59006–1010–75 1/2” 7/8–14 UNF-2A 7/8–14 UNF-2B 3.74 1.88 1.00
FS59006–1212–75 3/4” 1-1/16–12 UN-2A 1-1/16–12 UN-2B 3.88 2.12 1.25
FS59006–1616–75 1” 1-5/16–12 UN-2A 1-5/16–12 UN-2B 4.03 2.50 1.50
Part Nom. Thread Thread
Number Size P1 P2 A B C
FS59011–0505–01 1/4” 1/2–20 UNF-2A 1/2–20 UNF-2B 2.69 2.41 1.16 1.19 .62
FS59011–0808–75 3/8” 3/4–16 UNF-2A 3/4–16 UNF-2B 3.08 2.73 1.59 1.88 .94
FS59011–1010–75 1/2” 7/8–14 UNF-2A 7/8–14 UNF-2B 3.46 3.06 1.70 1.88 1.00
FS59011–1212–75 3/4” 1-1/16–12 UN-2A 1-1/16–12 UN-2B 3.58 3.08 1.93 2.12 1.25
FS59011–1616–75 1” 1-5/16–12 UN-2A 1-5/16–12 UN-2B 3.91 3.29 2.16 2.50 1.50
Female Pipe to Male SAE 37°
Male SAE 37°to Female SAE 37°
Male SAE 37°to Female SAE 37°
FS5900
Repair Kits
The FS5900 Series Swivel Joints are easily field repaired. Two different
kits are available. The choice of which kit to use is dependent
upon the extent of repairs necessary.
FF974 Kits include: a replacement seal assembly, back-up rings and a
new dust seal.
FF975 Kits include: a replacement seal assembly, back-up rings, a
new dust seal and two sets of bearings and races.
(see Seal Options chart on page 16)
NOTE: Use swivel joint nominal size when ordering kits, not port size.
To order FF974 and FF975 Kits: FF974– 08– 75
Kit Base Number
Joint Size
(Swivel Joint Nominal size 1/2”)
Seal Material Code
Swivel Joints
FS5900
|
