丹佛斯?jié)h森3000系列氣動快速接頭 Industrial連接標準
Hansen 3000 series compressed air-line couplings

Pneumatic Couplings, Series 3000 & 4000 & 5000 & 6000
Pneumatic Couplings, Series 3000 & 4000 & 5000 & 6000

PDF資料下載

Industrial連接標準鍵鎖氣動快速接頭設計用于處理壓縮空氣、煤氣和流體。主體尺寸1/4''、3/8''、1/2‘’和3/4‘’。3000/4000/5000/6000。 Industrial接頭標準 該系列是Tuthill獨創的自動快速氣動接頭.這個系列的產品全部以黃銅制成,構造非常牢固.它也是Industrial接頭標準連接. 應用: 該系列通常應用于工業設備的維護和保養上,各類壓縮空氣,氣體,流體都能使用.1/4" and 1/2" also accept ISO6150 series B and A-A59439 (former MIL-C-4109) plugs 。

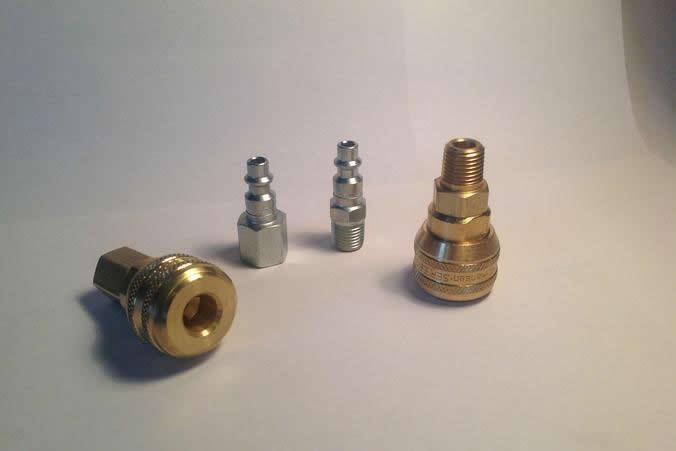

Hansen Series 3000系列氣體快速接頭 Industrial連接標準
Hansen 3000 series compressed air-line couplings

主體尺寸:
1/4’’ 3/8’’ 1/2’’ 3/4’’
材質:
黃銅
螺紋連接形式:
NPT BSP
工作壓力:
3000系列:2,000psi(138bar)
4000系列:1,000psi(70bar)
5000系列:500psi(35bar)
6000系列:220psi(15bar)

特點和優勢：
- HANSEN漢森原創設計的自動單向關斷接頭（已成為美國行業標準）
- 堅實耐用
- 簡便、自動，快插式連接的設計，使得管道能在瞬間接通和斷開，且母頭一端的管線能自動關斷
- 1/4''和1/2‘’母頭適用于MIL-C-4109公頭,1/4" and 1/2" also accept ISO6150 series B and A-A59439 (former MIL-C-4109) plugs 。
- 套筒鎖可備選，以防止意外斷開
- 多種密封圈和單向閥材質可供選擇

標準材質
母頭
- 主體為黃銅
- 鍍鋅鋼單向閥
- 丁晴橡膠密封圈 NBR
- 不銹鋼彈簧
- 不銹鋼鍵鎖

公頭
- 鍍鋅鋼、表層硬化
- 黃銅
- 不銹鋼 常規僅3000系列

配件
- 防塵帽和防塵塞

用途和市場

- 工業呼吸裝置
- 一般氣動
- 維護和修理
- 流體輸送

Industrial Interchange Pin Lock couplings designed for compressed air, gases, and liquids. Body sizes are 1/4", 3/8", 1/2" and 3/4".

Features:

The original automatic one-way shutoff coupling designed by Hansen - The Industry Standard Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket end of line All sizes accept US Industrial Interchange; 1/4" and 1/2" also accept ISO 1650 Series B and A-A-59439 (former MIL-C-4109) plugs ptional sleeve lock prevents accidental disconnection Optional seal and valve materials available

Eaton Hansen 3000 Brass 3000/4000/5000/6000 Series Industrial Interchange
Hansen 3000/4000/5000/6000 series air-line couplings

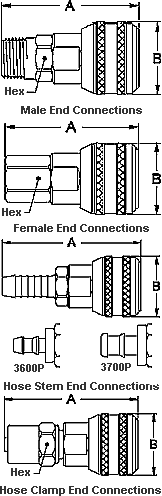

HANSEN Series 3000 - Sockets 母頭	Hansen
Coupling Category
One-Way Couplings

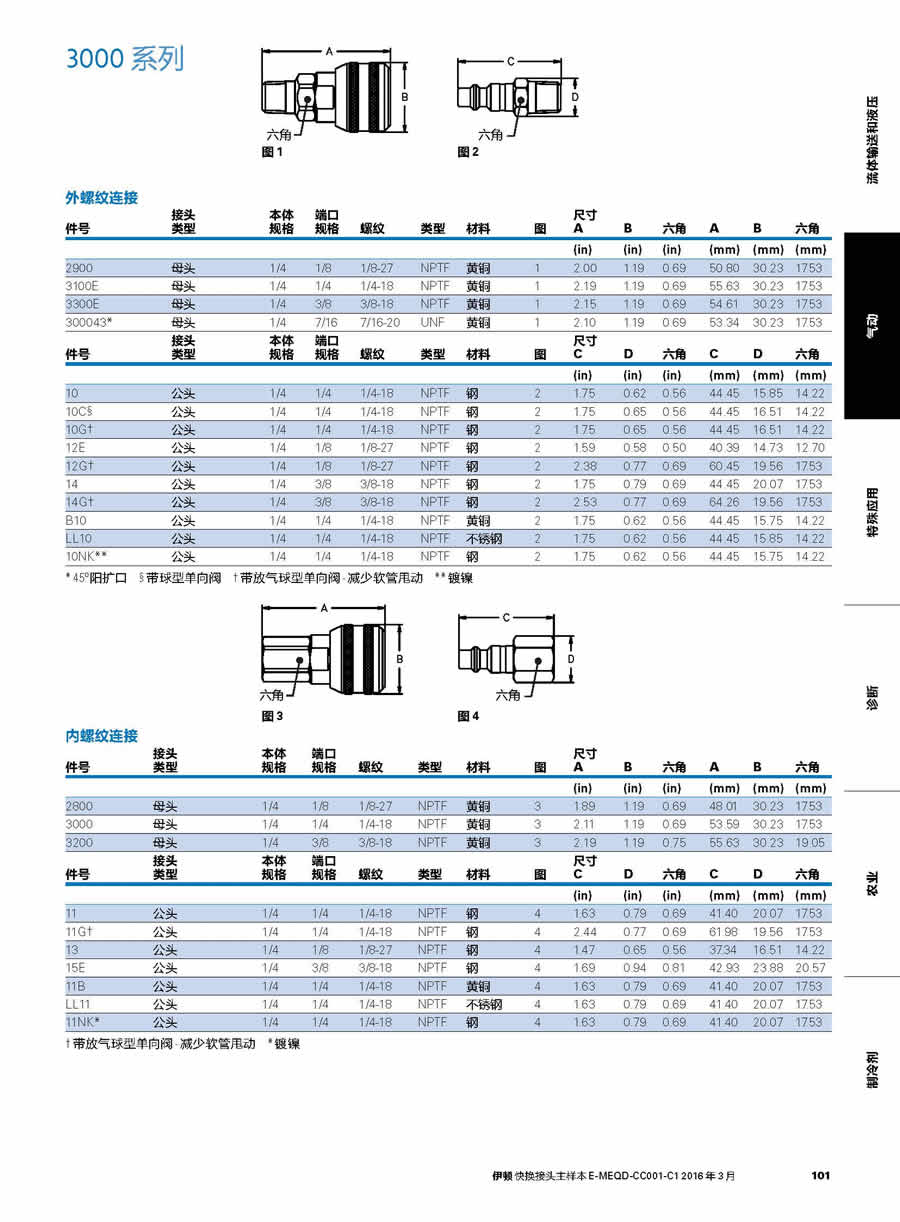

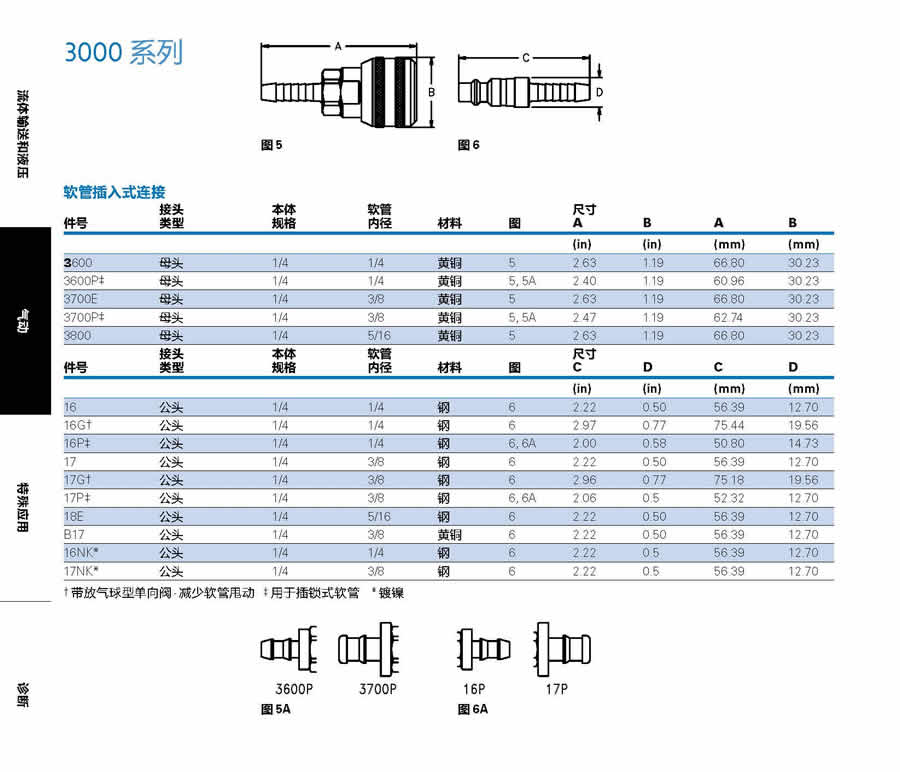

Male End Connections Female End Connections Part No. Thread Dimensions Part No. Thread Dimensions Brass Size A B HEX Brass Size A B HEX 2900 1/8-27 NPTF 2.11 1.19 0.69 2800 1/8-27 NPTF 1.95 1.19 0.69 3100 1/4-18 NPTF 2.26 1.19 0.69 3000 1/4-18 NPTF 2.17 1.19 0.69 3300 3/8-18 NPTF 2.26 1.19 0.69 3200 3/8-18 NPTF 2.23 1.19 0.75 3000-43 7/1620* 2.20 1.19 0.69           3000-63 5/818* 2.33 1.19 0.69           Hose Stem End Connections Hose Clamp End Connections Part No. Hose I.D. Dimensions Part No. Hose Dimensions Brass A B Brass I.D. O.D. A B HEX 3600 1/4" 2.70 1.19 3-SA0 3/16" 7/16" 2.73 1.19 0.56 3600P 1/4" 2.48 1.19 3-SA3 3/16" 1/2" 2.73 1.19 0.63 3700 3/8" 2.69 1.19 3-SB1 1/4" 15/32" 2.79 1.19 0.63 3700P 3/8" 2.58 1.19 3-SB3 1/4" 1/2" 2.79 1.19 0.63 3800 5/16" 2.70 1.19 3-SB5 1/4" 9/16" 2.79 1.19 0.69         3-SB7 1/4" 5/8" 2.79 1.19 0.75         3-SB9 1/4" 11/16" 2.79 1.19 0.81         3-SB11 1/4" 3/4" 2.79 1.19 0.88         3-SC5 5/16" 9/16" 2.86 1.19 0.69         3-SC7 5/16" 5/8" 2.86 1.19 0.75         3-SC9 5/16" 11/16" 2.86 1.19 0.81         3-SD5 3/8" 9/16" 2.92 1.19 0.69         3-SD7 3/8" 5/8" 2.92 1.19 0.75         3-SD9 3/8" 11/16" 2.92 1.19 0.81         3-SD11 3/8" 3/4" 2.92 1.19 0.88         3-SD13 3/8" 13/16" 2.92 1.19 0.94 *45 Male Flare For use with push-on style hose. All dimensions in inches.

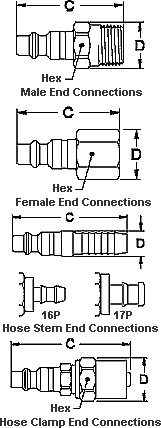

HANSEN Series 3000 - Plugs公頭	Hansen
Coupling Category
One-Way Couplings
Male End Connections Female End Connections Part No. Thread Dimensions Part No. Thread Dimensions Steel Size C D HEX Steel Size C D HEX 10 1/4-18 NPTF 1.75 0.65 0.56 11 1/4-18 NPTF 1.63 0.79 0.69 10C 1/4-18 NPTF 1.75 0.65 0.56 11G 1/4-18 NPTF 2.44 0.77 0.69 10G 1/4-18 NPTF 1.75 0.65 0.56 13 1/8-27 NPTF 1.47 0.65 0.56 12 1/8-27 NPTF 1.59 0.58 0.5 15 3/8-18 NPTF 1.69 0.94 0.81 12G 1/8-27 NPTF 2.38 0.77 0.69 Brass         14 3/8-18 NPTF 1.75 0.79 0.69 11B 1/4-18 NPTF 1.63 0.78 0.69 14G 3/8-18 NPTF 2.53 0.77 0.69 Stainless         10-43 7/16-20* 1.69 0.58 0.50 LL-11 1/4-18 NPTF 1.63 0.79 0.69 Brass                   B-10 1/4-18 NPTF 1.75 0.64 0.56           Stainless                   LL-10 1/4-18 NPTF 1.75 0.65 0.56           Hose Stem End Connections Hose Clamp End Connections Part.No. Hose I.D. Dimensions Part.No. Hose Dimensions Steel C D Steel I.D. O.D. C D HEX 16 1/4" 2.22 0.50 3-PA0 3/16" 7/16" 2.25 0.63 0.56 16G 1/4" 2.97 0.77 3-PA3 3/16" 1/2" 2.25 0.70 0.63 16P 1/4" 2.00 0.69 3-PB1 1/4" 15/32" 2.31 0.70 0.63 16PG 1/4" 2.75 0.77 3-PB3 1/4" 1/2" 2.31 0.70 0.63 17 3/8" 2.31 0.50 3-PB5 1/4" 9/16" 2.31 0.77 0.69 17G 3/8" 2.96 0.77 3-PB7 1/4" 5/8" 2.31 0.84 0.75 17P 3/8" 2.06 0.87 3-PB9 1/4" 11/16" 2.31 0.91 0.81 17PG 3/8" 2.85 0.87 3-PB11 1/4" 3/4" 2.31 0.98 0.88 18 5/16" 2.22 0.50 3-PC5 5/16" 9/16" 2.38 0.77 0.69 Brass       3-PC7 5/16" 5/8" 2.38 0.84 0.75 B-17 3/8" 2.31 0.50 3-PC9 5/16" 11/16" 2.38 0.91 0.81         3-PD5 3/8" 9/16" 2.44 0.77 0.69         3-PD7 3/8" 5/8" 2.44 0.84 0.75         3-PD9 3/8" 11/16" 2.44 0.91 0.81         3-PD11 3/8" 3/4" 2.44 0.98 0.88         3-PD13 3/8" 13/16" 2.44 1.05 0.94         3-PD15 3/8" 7/8" 2.44 1.12 1.00 * 45 Male Flare With Ball Check With Bleeder Ball Check Reduces hose whip when disconnecting. For use with push-on style hose. All dimensions in inches.
