丹佛斯動力系統FD83 —— 引領數據中心液冷未來趨勢
Danfoss Hansen FD83 quick-disconnect couplings increase efficiency of data center liquid cooling applications
Thursday, December 15, 2022
丹佛斯動力系統團隊快速開發的全新兩英寸 FD83 快換,成功幫助客戶滿足其對新數據中心機柜的液冷需求。
2021年,丹佛斯動力系統美國客戶聯系了丹佛斯團隊。該公司需要緊急的技術支持,以滿足在高性能計算、深度學習和數據分析等挑戰性應用的高端數據中心機柜的新液冷要求。

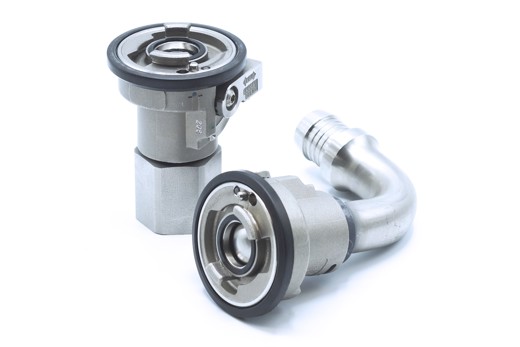

丹佛斯動力系統團隊快速開發的全新兩英寸 FD83快換接頭
挑戰:為強大的數據中心服務器,實現可靠高效的液冷。
熱管理的高效性對現代數據中心至關重要。組件溫度過高會導致運作效率變低、產品壽命縮短。如今,更緊湊、更耗電的系統趨勢正在無形中推動機柜內的溫度上升,這意味著傳統的空氣冷卻已不能滿足當今數據中心的需求。因此,客戶選擇了液冷——使用具有10倍冷卻效果的水/乙二醇混合物。
丹佛斯動力系統現有的FD83快換提供了電子冷卻應用所必需的全流量、流體兼容性和安全性。其特別之處在于,該快換接頭具備的低壓降性能,對于低工作壓力情況下的數據中心應用至關重要。而客戶新設計的機柜服務器和處理器需要更高的冷卻液流速以保持最佳溫度,這使得直徑為2英寸版本FD83快換成為市場的迫切需求。
快速樣件設計——全新的兩英寸快換解決方案
丹佛斯動力系統一直以來深耕于數據中心市場,出于對市場的前瞻性,在客戶提出需求之前,丹佛斯已經提前開發了兩英寸版本的原型圖紙,因此才能夠針對此次客戶提出的更大尺寸FD83快換需求做出快速反應。在客戶提出需求之時,丹佛斯動力系統首席工程師Sebastian Groh和工程組組長Joffrey Boutherin迅速召集大家一起審查和重新設計圖紙初稿。
在對此次設計概念評估之后,丹佛斯將一英寸FD83快換的一部分設計延用于新的兩英寸版本。例如,丹佛斯動力系統的專利安全鎖系統能夠被用于兩英寸版本。僅僅兩周時間,丹佛斯動力系統團隊就制作了一個3D打印的模型,滿足了客戶緊迫的交期要求。在整個過程中,團隊的工程師還在項目經理的指導下,通過每周的線上會議與客戶方保持密切的溝通。
首席工程師Sebastian Groh說:當今,高功率的服務器對解決氣候變化建模、疾病預防和深度學習等全球挑戰至關重要。雖然一英寸的FD83快換是一種行業標準,但我們開發的更大尺寸的版本可以為這些高功率的服務器提供zui佳液冷解決方案。

為您提供:持續的定制化服務,快速成功的解決方案
丹佛斯在異常緊迫的時間內成功地滿足了客戶對新快換的設計要求。丹佛斯動力系統團隊在2021年2月完成了首批快換,在測試了樣件并解決了技術問題后,客戶便開始批量采購快換的生產訂單,現在客戶計劃每年將持續選用FD83快換。除了滿足更高的冷卻需要,兩英寸版本的FD83快換提供的低壓降,能夠確保實現客戶新機柜要求的工作壓力。
此外,使用FD83快換,讓客戶能夠通過關閉閥門來減少系統停機時間,這使設備能夠在不排空整個液體冷卻系統的情況下斷開管路,進行維護。
此次合作之后,丹佛斯將與客戶深入合作,為其開發定制化的一英寸版本FD83快換,以及使用較小尺寸快換的閥組等應用。
來源:丹佛斯動力系統
Danfoss Hansen FD83 quick-disconnect couplings increase efficiency of data center liquid cooling applications
Thursday, December 15, 2022
NORDBORG, Denmark – Danfoss Power Solutions,?a leading global supplier of mobile and industrial hydraulics as well as electric powertrain systems, has launched a portfolio of quick-disconnect couplings for data center liquid cooling applications. Danfoss Hansen FD83 series quick-disconnect couplings, now available in a 2-inch size and additional configurations of the popular 1-inch size, are known globally for their performance, efficiency, and reliability.
With higher flow rates and a lower pressure drop, the new 2-inch coupling improves liquid cooling system efficiency, reducing power consumption and operating costs. In testing, the 2-inch FD83 series coupling reduced pressure drop by 98% compared to standard 2?-inch ball-locking couplings, according to ISO 7241-1 B.
“With more powerful chips, denser racks, and heavier workloads, today’s data centers are running hotter than ever, increasing the demand for larger, more efficient liquid cooling solutions,” said Christian Kuenstel, global product management leader, Connectors, Danfoss Power Solutions. “With our FD83 series and our new 2-inch coupling, in particular, we’ve engineered a full-flow design that enables more customers to benefit from greater liquid cooling performance, efficiency, and cost savings.”
The FD83 series’ turn-to-connect feature enables simpler, faster, and less costly coupling installation. The feature allows connections to be made without the risk of hose torsion or the need for additional adapters, which also prevents leaks due to incorrect assembly. Designed to ensure reliable, leak-free operation and easier maintenance, FD83 couplings feature a patented dual interlock safety mechanism that eliminates the risk of accidental disconnection or spills.
Stainless steel construction and an EPDM rubber seal offer broad fluid compatibility and high corrosion resistance, enabling long life and low maintenance costs in cooling applications using water glycol or other liquids. Alternative seal materials and color-coded bumper seals are also available. A portfolio of end connections enables use in a variety of space configurations. Options include a new sanitary flange terminal end, as well as threaded port and hose barb connectors in various sizes. These broad configuration options enable the coupling to be used in many other fluid transfer applications where safety and low pressure drop are critical.
Featuring identical halves, FD83 couplings require only one part number, enabling customers to simplify stocking and inventory management.
Danfoss Hansen FD83 series quick-disconnect couplings are compliant with PED 2014/68/EU §4.3. They offer 10 bar (150 psi) maximum working pressure and are suitable for operating temperatures between 3°C and 60°C (37°F and 140°F).
To learn more, visit the Danfoss Hansen quick-disconnect couplings webpage.
