丹佛斯HK特殊配置 丹佛斯LL2HK-MS流體輸送和液壓應用
Danfoss LL2HK-MS Fluid transfer & Hydraulic application
Danfoss HK special configuration

丹佛斯漢森LL2HK-MS系列是專為特定應用而設計的特殊HK系列。該快速接頭由303不銹鋼制成。鎖定機構為推/拉式。這種特殊的快速接頭是為測試航空航天應用的地面設備而制造的。它是基于HK系列（不銹鋼）創建的。它是一種獨特的外形，不能與2HK系列互換。

Danfoss LL2HK-MS Fluid transfer & Hydraulic application
Danfoss HK special configuration

產品特點

-不銹鋼結構
-尺寸?英寸
-專有配置文件

應用

-液壓應用
-航空航天工業
-具體應用

Danfoss HK special configuration
Danfoss LL2HK-MS Fluid transfer & Hydraulic application

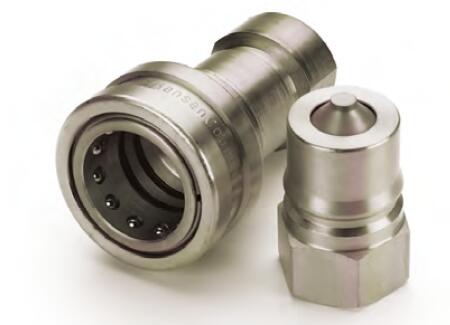

Danfoss Hansen LL2HK-MS series is a special HK series made for specific application. This coupling is made of 303 stainless steel. The locking mechanism is push/pull. This specific coupling has been made for testing ground equipment for aerospace application. It was created based on the HK series (stainless steel). It is a unique profile which is not interchangeable with the 2HK series.

Product features

- Stainless steel construction
- Size 1/4''
- Proprietary profile

Application

- Hydraulic application
- Aerospace industry
- Specific application

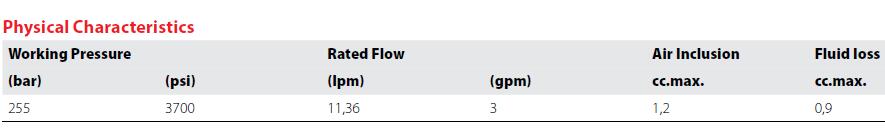

工作壓力：255bar, 3700 psi
接頭尺寸： 1/4''

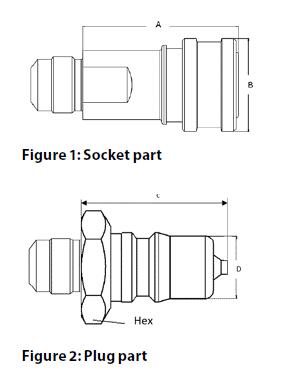

Socket part number LL2H8MS
Plug part number LL2K6/MS1
End connection (female) : 3/4 – 16 UNF
