Danfoss Hansen FD83 Series Coupling Thermal Management

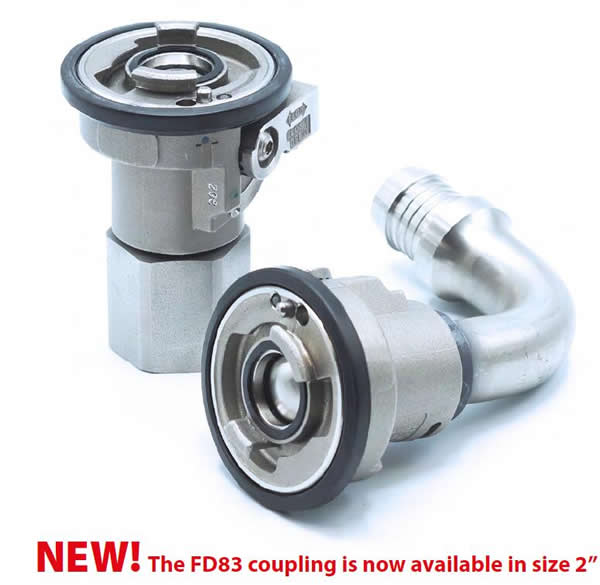

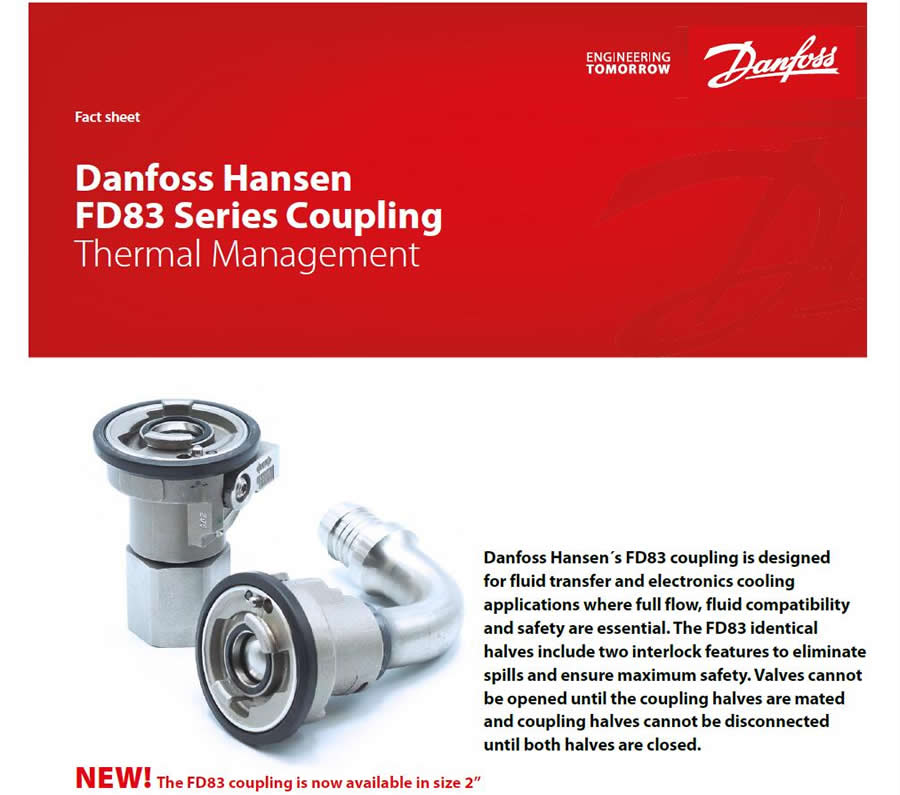

Danfoss Hansen′s FD83 coupling is designed for fluid transfer and electronics cooling applications where full flow, fluid compatibility and safety are essential. The FD83 identical halves include two interlock features to eliminate spills and ensure maximum safety. Valves cannot be opened until the coupling halves are mated and coupling halves cannot be disconnected until both halves are closed.
Danfoss Hansen FD83 quick-disconnect couplings
丹佛斯FD83互鎖自鎖球閥液冷快換接頭
產品特點
- Dual interlock safety feature eliminates accidental opening of coupling when disconnected with the use of a patented locking pin design and lever handle
- Design provides reliable performance and no spillage during maintenance or service
- Standard seal material: EPDM, additional material available on request
- Standard body material: 303 stainless steel
- Full flow coupling
- Color coded bumper seals are available
- Identical coupling halves
- Maintenance and service friendly
- 303 stainless steel material provides broad fluid compatibility
- Wide range of terminal end options

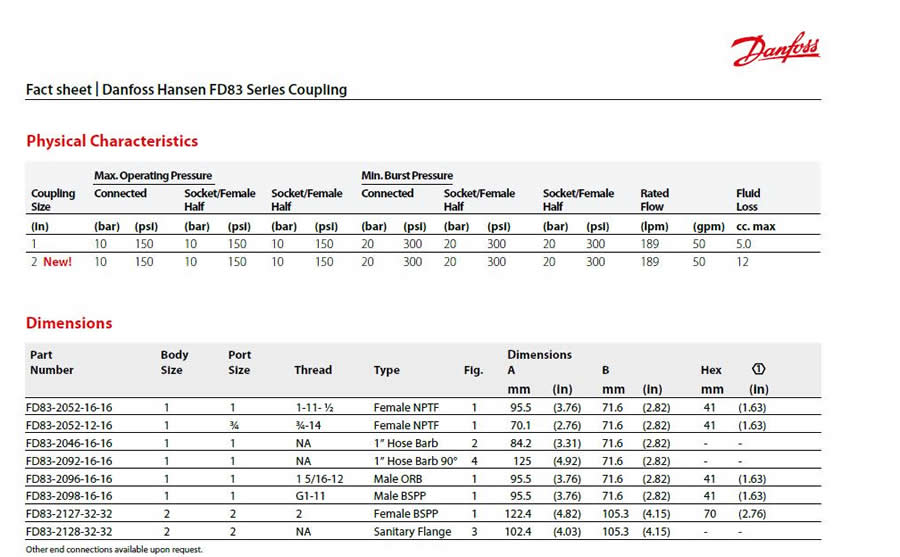

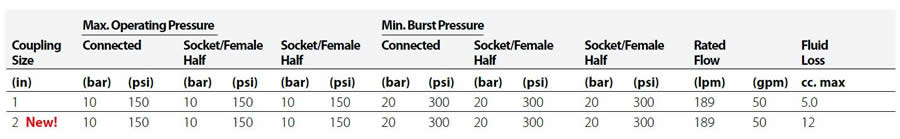

物理特性
- 尺寸、型號
Part No.
件號 |
本體
規(guī)格 |
端口
規(guī)格 |
螺紋 |
類型 |
圖 |
尺寸 |
|
|
|
A |
|
B |
|
Hex 六角 |
mm |
(in) |
mm |
(in) |
mm |
FD83-2052-16-16 |
1 |
1 |
1-11- 1/2 |
NPTF 內螺紋 |
1 |
95.5 |
-3.76 |
71.6 |
（1.63） |
41 |
FD83-2052-12-16 |
1 |
3/4 |
3/4-14 |
NPTF 內螺紋 |
1 |
70.1 |
-2.76 |
71.6 |
（1.63） |
41 |
FD83-2046-16-16 |
1 |
1 |
NA |
1" 寶塔式 |
2 |
84.2 |
-3.31 |
71.6 |
- |
- |
FD83-2092-16-16 |
1 |
1 |
NA |
1" 寶塔式 90° |
4 |
125 |
-4.92 |
71.6 |
- |
- |
FD83-2096-16-16 |
1 |
1 |
1 5/16-12 |
ORB 外螺紋 |
1 |
95.5 |
-3.76 |
71.6 |
（1.63） |
41 |
FD83-2140-16-16 |
1 |
1 |
G1-11 |
BSPP 外螺紋 |
5 |
95.5 |
-3.76 |
71.6 |
（1.63） |
41 |
FD83-2126-16-16 |
1 |
1 |
G1-11 |
BSPP 內螺紋 |
1 |
84.3 |
-3.32 |
71.6 |
（1.63） |
41 |
FD83-2128-16-16 |
1 |
1 |
NA |
衛(wèi)生法蘭 1'' |
4 |
79.6 |
-3.13 |
71.6 |
- |
- |
FD83-2126-32-32 |
2 |
2 |
G2-11 |
BSPP 內螺紋 |
1 |
122.4 |
-4.82 |
105.3 (4.15) |
（2.76） |
70 |
FD83-2127-32-32 |
2 |
2 |
NA |
2'' 寶塔式 |
2 |
166.9 |
-6.57 |
105.3 (4.15) |
- |
- |
FD83-2128-32-32 |
2 |
2 |
NA |
衛(wèi)生法蘭 2' |
4 |
102.4 |
-4.03 |
105.3 (4.15) |
- |
- |
FD83-2052-32-32 |
2 |
2 |
2-11- ? |
NPT 內螺紋 |
1 |
122.4 |
-4.82 |
105.3 (4.15) |
（2.76） |
70 |
其他端接可應要求提供Other end connections available upon request
Other end connections available upon request.
Danfoss Hansen FD83 Series Coupling Thermal Management
Danfoss Hansen FD83 coupling
Danfoss Hansen FD83 quick-disconnect couplings increase efficiency of data center liquid cooling applications
Thursday, December 15, 2022
NORDBORG, Denmark – Danfoss Power Solutions,?a leading global supplier of mobile and industrial hydraulics as well as electric powertrain systems, has launched a portfolio of quick-disconnect couplings for data center liquid cooling applications. Danfoss Hansen FD83 series quick-disconnect couplings, now available in a 2-inch size and additional configurations of the popular 1-inch size, are known globally for their performance, efficiency, and reliability.
With higher flow rates and a lower pressure drop, the new 2-inch coupling improves liquid cooling system efficiency, reducing power consumption and operating costs. In testing, the 2-inch FD83 series coupling reduced pressure drop by 98% compared to standard 2?-inch ball-locking couplings, according to ISO 7241-1 B.
“With more powerful chips, denser racks, and heavier workloads, today’s data centers are running hotter than ever, increasing the demand for larger, more efficient liquid cooling solutions,” said Christian Kuenstel, global product management leader, Connectors, Danfoss Power Solutions. “With our FD83 series and our new 2-inch coupling, in particular, we’ve engineered a full-flow design that enables more customers to benefit from greater liquid cooling performance, efficiency, and cost savings.”
The FD83 series’ turn-to-connect feature enables simpler, faster, and less costly coupling installation. The feature allows connections to be made without the risk of hose torsion or the need for additional adapters, which also prevents leaks due to incorrect assembly. Designed to ensure reliable, leak-free operation and easier maintenance, FD83 couplings feature a patented dual interlock safety mechanism that eliminates the risk of accidental disconnection or spills.
Stainless steel construction and an EPDM rubber seal offer broad fluid compatibility and high corrosion resistance, enabling long life and low maintenance costs in cooling applications using water glycol or other liquids. Alternative seal materials and color-coded bumper seals are also available. A portfolio of end connections enables use in a variety of space configurations. Options include a new sanitary flange terminal end, as well as threaded port and hose barb connectors in various sizes. These broad configuration options enable the coupling to be used in many other fluid transfer applications where safety and low pressure drop are critical.
Featuring identical halves, FD83 couplings require only one part number, enabling customers to simplify stocking and inventory management.
Danfoss Hansen FD83 series quick-disconnect couplings are compliant with PED 2014/68/EU §4.3. They offer 10 bar (150 psi) maximum working pressure and are suitable for operating temperatures between 3°C and 60°C (37°F and 140°F).
- Danfoss Hansen FD83系列接頭 熱管理
- Danfoss Hansen FD83 Series Coupling Thermal Management
|
