Parker HP 系列高壓液壓快速接頭
Parker TEMA HP series of quick couplings
Parker HP Series High Pressure quick couplings

Parker HP系列快換陽接頭 - 高壓，高流量，1” 和 1-1/2”，碳鋼材料，承壓（液壓）可達5000 PSI

Parker派克高壓液壓快換陽接頭以及陰接頭,為那些需要經常快速簡便地進行管路連接或者斷開的應用提供了理想方案。Parker HP系列陽接頭承壓（液壓）可達5000 psi，能與HP系列陰接頭進行配合連接。派克HP系列為雙截止類型，使用手動套筒，閥芯形式是錐閥。陰接頭的碳鋼套筒以及陽接頭的本體都經過熱處理，能夠承受壓力峰值的沖擊。接頭尾端連接形式，包括管內螺紋，ORB直螺紋形式。Parker HP 系列快換陰接頭 - 高壓，高流量，1” 到 1-1/2” ，碳鋼材料，承壓（液壓）可達 5000 PSI。Parker HP 系列陰接頭承壓（液壓）可達 5000 psi，能與 HP 系列陽接頭進行配合連接。Parker派克 HP 系列為雙截止類型，使用手動套筒，閥芯形式是錐閥。陰接頭的碳鋼套筒以及陽接頭的本體都經過熱處理，能夠承受壓力峰值的沖擊。接頭尾端連接形式，包括管內螺紋，ORB 直螺紋形式。

Parker's HP Series double shut-off quick couplings

Parker TEMA HP series of quick couplings provides high operating pressures and high flow with optimized sealing technology in a compact design. They are rated to working pressures of 1000 and 1500 bar, in nominal size of 2.5 mm in steel. Thread sizes include 14 and 38 in., with NPTF and G-end configurations. THP1000 interchanges with Cejn series 115, while THP1500 interchanges with Cejn series 116.Parker Hannifin Corp., Quick Coupling Div

Parker HP系列高壓快速接頭

溫度材料：-30℃～+100℃

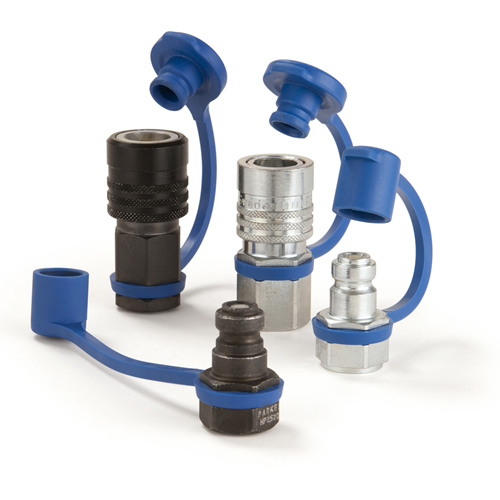

本體材料：HP1000系列：碳鋼鍍鋅，白色鈍化
HP1500系列：陰接頭碳鋼鍍鋅鎳合金，陽接頭碳鋼鍍鋅鈦合金，黑色鈍化
密封材料：丁晴橡膠
優勢與優點：高壓型快換
符合TEMA標準要求
標配防塵蓋
標配套筒鎖

Parker HP系列 – 陰接頭

Parker HP系列 – 陽接頭

Parker HP系列-防塵蓋

技術參數：
- 尺寸： 1” 和 1-1/2”
- 材料：碳鋼
- 油口尾端連接形式：NPSF內螺紋, ORB內螺紋, NPTF內螺紋
- 密封可選：丁腈橡膠，EPR，氟橡膠，氯丁橡膠

市場：
- 工業
- 建筑機械
- 工程機械

特點/優勢：
- 陰接頭的碳鋼套筒以及陽接頭的本體都經過熱處理，能夠承受壓力峰值的沖擊
- 高流量，低壓降

性能特點

最大工作壓力 (PSI) 5000
主體尺寸 (IN) 1 | 1 1/2
流速 (GPM) 至 100
密封材料 丁腈橡膠
媒介 液壓
半聯軸器 芯子
最低工作溫度 (F) -40
最高工作溫度 (F) 250
閥門樣式 錐閥
主體材料 碳鋼
螺紋樣式 內螺紋
連接類型 NPSF | ORB | NPTF
電鍍 鍍鋅，白色三價鉻鈍化
應用 液壓|一般用途

應用：
- 工業液壓管路
- 工程機械設備

LITERATURE AND REFERENCE MATERIALS
- HP Series Catalog

High pressure quick coupling with body size 1/4" for high pressure applications up to 1500 bar. Coupling system with Parker profile
Parker's HP Series double shut-off quick couplings | HIGH PRESSURE QUICK COUPLING WITH PARKER PROFILE, HP SERIES | HP Series Couplers (hydraulic) 5000 psi connect with HP Series Nipples | Parker's High Pressure Quick Coupling HP Series | couplings of HP1000 and HP1500Series HP is a dry break coupling system Parker HP 系列高壓液壓快速接頭 | Parker TEMA HP series of quick couplings | Parker HP Series High Pressure quick couplings Parker TEMA HP series of quick couplings

Parker's High Pressure Quick Coupling Series HP were specially developed for use in industrial machinery, test equipment, rescue equipment, bolt tensioning, torque wrenches etc. The couplings of HP1000 and HP1500 can be supplied either with or without additional safety lock. Series HP is a dry break coupling system - no oil loss during disconnection and no inclusion of air during connection.

Markets:
- Rescue
- Industrial

Features/Benefits:
- High flow as a result of optimised valve design
- Dry break – no oil loss during disconnection and no inclusion of air during connection
- Plug can withstand static pressure disconnected up to full working pressure
- Parker Tema high pressure couplings are supplied with dust caps inclusive

Applications:
- High pressure tools
- Rescue equipment
- Torque wrenches
- Hydraulic high pressure pumps
- Bolt tensioning devices

HP Series Couplers (hydraulic) 5000 psi connect with HP Series Nipples. Parker's HP Series are double shut-off quick couplings with manual sleeves and poppet valves. Steel coupler sleeves and nipple bodies are heat treated to withstand pressure surges. End fitting configurations include female pipe and straight thread ORB.

Technical Characteristics:
- Sizes: 1” and 1-1/2””
- Material: Steel
- Port Ends: Female NPSF, Female ORB, Female NPTF
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene

Markets:
- Industrial
- Construction
- Mobile Equipment

Features/Benefits:
- Steel coupler sleeves and nipple bodies are heat treated to withstand pressure surges
- High flow with minimal pressure drop

Applications:
- Industrial hydraulic lines
- Construction mobile equipment
