Parker 6600系列快換接頭
Parker 6600 Series ISO 7241, Series A Hydraulic Quick Couplings

Parker派克液壓快換陽接頭以及陰接頭,為那些需要經常快速簡便地進行管路連接或者斷開應用提供了理想的方案。Parker 6600系列陰接頭承壓（液壓）可達5000 psi，能與符合ISO 7241-A標準的6600陽接頭進行配合連接。Parker派克6600系列使用雙截止形式的錐閥閥芯，并且可與其他符合ISO 7241-A標準的快換進行互換。該系列快換陰接頭和陽接頭使用碳鋼材料，有一系列尺寸可供選擇，承壓可達5000psi。Parker 6600 系列快換陽接頭 - 可與符合ISO 7241-A標準的進行互換，碳鋼材料快換，承壓（液壓）可達5000 PSI。Parker6600 系列陽接頭承壓（液壓）可達5000 psi，能與符合ISO 7241-A 標準的6600陰接頭進行配合連接。Parker派克6600系列使用雙截止形式的錐閥閥芯，并且可與其他符合ISO 7241-A 標準的快換進行互換。該系列快換陰接頭和陽接頭使用碳鋼材料，有一系列尺寸可供選擇，承壓可達5000 psi。Parker 6600 Series couplings are very versatile and are used in a wide range of hydraulic applications including construction equipment, manufacturing machinery, and in-plant systems. They can be found anywhere the fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment.

Parker 6600 Series Hydraulic Quick Couplings ISO 7241 Series A

技術參數：
- 尺寸范圍：1/4” – 1”
- 本體材料：碳鋼
- 尾端連接形式：NPTF內螺紋，ORB內螺紋
- 密封可選：丁腈橡膠,EPR,氟橡膠，氯丁橡膠
- 其他快換可選項包括：套筒鎖

市場：
- 建筑機械
- 工程機械
- 農機設備

特點/優點：
- 可與全球范圍內其他制造商符合ISO 7241-A標準的快換進行互換
- 碳鋼快換陰接頭的套筒經過硬化處理，從而增加了其耐久性能
- 可選套筒安全鎖形式，能夠防止意外斷開情況

性能特點

大工作壓力 (PSI) 至 5000
主體尺寸 (IN) 1/4 至 1
流速 (GPM) 至 50
密封材料 丁腈橡膠
媒介 液壓
行業標準 ISO 7241-1 A型
半聯軸器 陰接頭
低工作溫度 (F) -40
高工作溫度 (F) 250
閥門樣式 錐閥
套管類型 手動套筒
鎖定機制 鎖止鋼球
主體材料 碳鋼
螺紋樣式 內螺紋
連接類型 NPTF | ORB
電鍍 鍍鋅，白色三價鉻鈍化
應用 液壓|一般用途

應用：
- 液壓流體輸送
- 卡車拖車連接
- 工程機械應用
- 屬具

LITERATURE AND REFERENCE MATERIALS
- 6600 Series Catalog

溫度范圍：-40℃～+120℃
本體材料：碳鋼
密封材料：丁晴橡膠
優勢與優點：符合ISO7241-1-A標準要求
壓緊式錐閥結構
陰接頭套筒和陽接頭本體均經過硬化處理，極耐磨損
碳鋼鍍鋅

Parker 6600 Series General Purpose Hydraulic Quick Couplers
ISO 7241 SERIES A INTERCHANGE, STEEL QUICK COUPLINGS (HYDRAULIC) UP TO 5000 PSI - 6600 SERIES NIPPLES
Parker 6600 Series Hydraulic Quick Couplings
Parker 6600 Series ISO 7241, Series A Hydraulic Quick Couplings

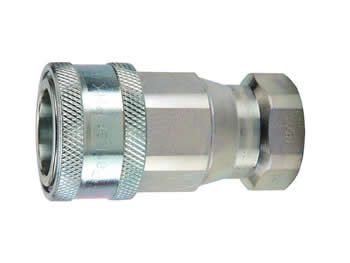

6600系列-陰接頭

6600系列-陽接頭

6600系列-防塵蓋

Parker 6600 Series Nipples (hydraulic) up to 5000 psi, connect with ISO 7241 series A, 6600 Series Couplers. Parker's 6600 Series have double shut-off poppet valves and are interchangeable with other quick disconnects complying with ISO 7241 series A. These steel couplers and nipples are available in a range of sizes for applications with pressure ranges up to 5000 psi.

Technical Characteristics:
- Sizes: 1/4” – 1”
- Material: Steel
- Port Ends: Female NPTF, Female ORB
- Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene

Markets:
- Construction
- Mobile equipment
- Agriculture

Features/Benefits:
- Globally interchangeable with other manufacturer's quick couplings complying to ISO 7241 series A
- Steel nipple body is hardened for durability

Applications:
- Hydraulic fluid transfer
- Truck trailer connections
- Mobile applications
- Attachments

In-plant machinery applications include hydraulic fluid, chemicals and gas lines for paper mills, steel production, and many varieties of plant maintenance and production equipment.
