Natural Gas Vehicle Products (NGV)

Safety is a prime concern to Snap-tite. Snap-tite has designed a patented feature into the nozzle that makes it one of the safest designs available. The nozzle cannot be manually disconnected from the receptacle while under internal pressure greater than 350psi (25bar). This feature exceeds the requirements of NGV 1 specification.

Natural Gas Vehicle Nozzles

CNG Fueling Nozzles

Meets interchangeability requirements of NGV1 specification ? Meet requirements of Type 2 & 3 Class A & B of NGV1 specification ? Available in pressures 3,000 & 3,600 psi (207 & 248 bar) ? Stainless steel or brass construction ? Various end fittings options

Natural Gas Vehicle Receptacles

NGV1 Fueling Receptacles

Utilizes the NGV1 profile for complete interchangeability ? Designed for permanent mounting in vehicle ? Available in pressures 3,000 & 3,600 psi (207 & 248 bar) ? Stainless steel or brass construction ? Superior valve design ? Various end fitting options ? Compact one piece design

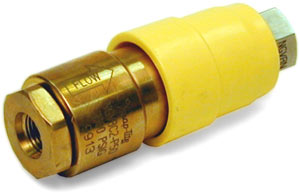

Compressed Natural Gas Breakaway

CNG Dispenser Breakaway

Specifically designed for CNG applications ? Balanced design assures positive connection ? Easy installation ? Engineered for use in both relieving and non-relieving systems ? For use with pressures to 3,600 psi (248 bar) ? Combination of stainless steel & brass construction

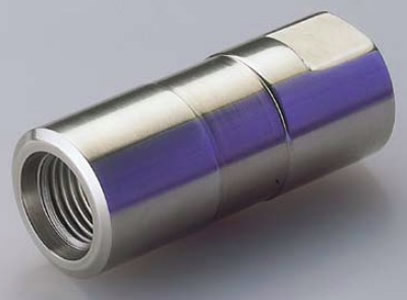

Compressed Natural Gas Check Valve

Vehicle Safety Check Valve

Used in conjunction with CNG receptacle as safety measure in vehicle as redundant check ? Working pressure to 3,600 psi (248 bar) ? Same internal design as CNG receptacle ? One piece stainless steel construction ? Various end fitting options
