Snap-Tite Marstan Valve 液壓閥 高壓電磁換向閥
Snap-Tite Direc-Trol Valve 手動換向閥
DIRECTIONAL CONTROL VALVES - Snap-tite’s directional control valves provide control of fluid direction with virtually zero leakage. These unique valves often eliminate the need for an additional check valve.
|
|
井口控制盤用手動換向閥Direc-Trol Valve
用于移動式液壓設備、機床夾具、船舶設備、油田設備、井口控制盤、測試臺等
手動操作
工作壓力：5000psi
工作流量：315升/分鐘
接口尺寸：1/4″-1″
材質：鋁、碳鋼、316不銹鋼
Snap-tite Check Valves |
高壓電磁換向閥Marstan Valve
應用：移動式液壓設備、機床夾具、船舶設備、油田設備、井口控制盤、測試臺等
驅動方式：手動、電動、氣動三種選擇
工作壓力：3500 psi、6000 psi、10000psi
工作流量：15升/分鐘
零泄露設計
類型：二位三通、二位四通、三位四通
材質：鍍鋼閥芯、鋁制閥體
安裝方式：NFPA 01型板式安裝，1/4″接口 |
|
|
| |
|
|
|
| |
|
 Snap-Tite FRIA流量調節閥 FRIA Series - Snap-tite's FRIA Series inline flow control valves
SNAP-TITE Check Valves |
|
Snap-tite's soft seat, zero-leak check valve line makes an excellent choice for a wide variety of applications where free flow in one direction and blocked flow in the reverse direction is required. These valves can be provided with various spring pressures and seal options compatible with many types of fluids. |
|
|

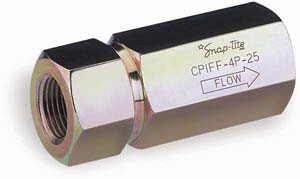

CPIFF Series
One Piece Inline Check Valves
Applications: Industrial, mobile and construction equipment.
Soft seat, zero leakage poppet check valve Various crack pressures available Sizes 1/4" thru 1" Working pressures to 5,000 psi (345 bar) Plated steel or brass construction Compact one piece design Flow rates to 30 gpm (115 l/min) |
|
6C & 3C Series
Two Piece Inline Check Valves
Applications: Industrial, mobile and construction equipment.
Soft Seat, zero leak poppet check valve Various crack pressures 6C sizes 1/4" thru 1" with working pressures to 6,000 psi (414 bar) 3C sizes 1-1/4" thru 2" with working pressures to 3,000 psi (207 bar) Two piece construction allows for various end fittings Steel, Stainless Steel or Brass |
|
|
CPC, CAC, CAV, & CAD Series - Cartridge, Pilot & Dual Pilot Check Valves
Applications: Industrial, mobile and construction load holding equipment.Soft seated design 4:1 pilot ratio on all styles Flow rates to 50 US GPM (189 l/min) 1/4" thru 1" block porting available Working pressures to 5,000 psi (345 bar) Various crack pressures available Plated steel cartridges, Anodized aluminum blocks Self dampening action |
Snap-tite Flow Control Valves
|
Flow Control Valves |
|
Snap-tite's heavy duty control valves provide an economical means of assuring accurate flow regulation to an actuator at a predetermined flow rate. |
|
|

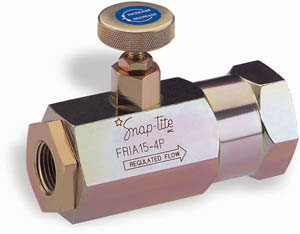

FRIA SeriesAdjustable Inline Flow Control Valve
Applications: Industrial and Mobile Actuator speed control.Pressure compensated design Free reverse flow Sizes 1/4" thru 1" Working pressures to 5,000 psi (345 bar) Adjustable flows to 30 US gpm (115 l/min) Fully adjustable under pressure Plated steel construction Fingertip adjustment Locking nut standard |
 |
FRI SeriesFixed Inline Flow Control Valve
Applications: Actuator speed control - industrial and mobile.Tamper proof settings maintain system integrity Pressure compensated design Free reverse flow Sizes 1/4" thru 1" Flow capability to 30 US gpm (115 l/min) Working pressure to 5,000 psi (345 bar) Wide range of standard flow settings available |
Snap-tite Directional Control Valves
|
Directional Control Valves |
|
Snap-tite's directional control valves provide control of fluid direction with virtually zero leakage. These unique valves often eliminate the need for an additional check valve. |
|
|

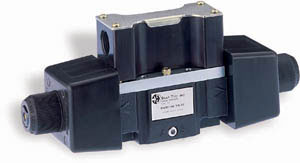

Marstan
Low Flow, High Pressure Directional Control Valve
Applications: Directional control for test stands, accumulator circuits, high pressure clamping, and valve operators.
Linear Style Valve Flow rates to 4 US gpm (15 l/min) Working pressures to 10,000 psi (690 bar) NFPA 01 size subplate mounting permits retrofit applications Solenoid, manual or pneumatic operators available Aluminum body, steel internals 1/4" connection subplates available |
|
Direc-Trol
High Flow, Rotary Style Directional Control Valve
Applications: Manual operation of actuators, lift gates, test stands, winches, steering circuits, offshore production controls and accumulator circuits.
Manually operated rotary style valve Flow rates to 83 US gpm (315 l/min) Working pressures to 5,000 psi (345 bar) Metal-to-metal shear seal design Aluminum, steel or 316 stainless steel housing, steel internals Porting sizes 1/4" thru 1" Non-interflow option available |
| Relief Valves |
| System pressure protection on fixed and variable pump systems, dynamic braking on fluid motor systems or swing circuits on hydraulic cranes. Snap-tite's relief valves provide fast operating protection against pressure surges. |
 |

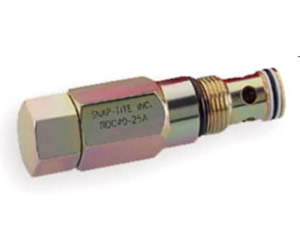

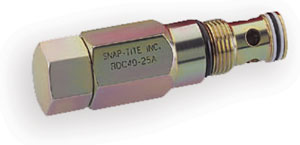

RDC CartridgeDifferential Relief ValveSystem pressure protection against surges Flow rates to 40 US gpm (155 l/min) Working pressures from 500 to 4,000 psi (35 to 276 bar) Plated steel cartridge Few moving parts enhance reliability Cavity details available for personal manufacture of manifold |
 |
RDV ValveSingle Differential Relief Valve Single relief cartridge (RDC) in block Porting sizes 3/8" thru 1" Female pipe thread or female SAE O-ring boss porting Flow rates to 40 US gpm (155 l/min) Working pressures from 500 to 4,000 psi (35 to 276 bar) Anodized aluminum block, plated steel cartridge |
 |

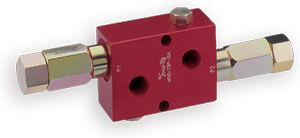

MDD ValveDual Differential Relief Valve Features two relief cartridges (RDC) in single housing Crossover design allows high pressure to relieve to low pressure side in one body Flows to 40 US gpm (155 l/min) Pressures of 500 to 4,000 psi (35 to 276 bar) NPSF or female SAE O-ring boss porting available. |
 |

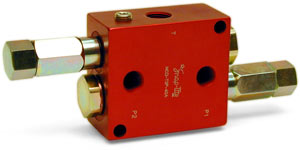

MCD ValveDual Relief Valve with Make-Up Checks Two relief cartridges & two soft seat, free reverse flow check valves in single body Integral make-up checks prevent pump cavitation Flows to 40 US gpm (155 l/min) Pressures of 500 to 4,000 psi (35 to 276 bar) NPSF or female SAE O-ring boss porting in 3/8" to 1" sizes |
|
