Tuthill容積泵技術的領導者 Tuthill齒輪泵 Pump Tuthill齒輪泵系統
Lubrication Pumps 、Magnetically Coupled Pumps、Powered By ORBIS Technology and Process Pumps

泰悉爾泵業集團是擁有80多年歷史的正位移齒輪泵產品開發及生產的行業領導者，位于美國芝加哥、舊金山和英國萊克斯頓工廠具有ISO9001認證，作為在工業化工、石油化工和潤滑油行業中用于介質輸送的首選工業供應商，泰悉爾泵業集團擁有一系列國際知名品牌，包括潤滑油泵、HD旋轉活塞泵、GG泵和微型磁力驅動齒輪泵。 泰悉爾泵可提供不同的材料選擇，例如鑄鐵、鑄鋼、不銹鋼、PPS工程塑料等。他們適合于在最惡劣的條件下長周期連續運行，包括含顆粒高黏度和高溫的工況。 TPG的產品通過世界范圍的代理商網絡銷售或作為原裝的設備組件銷售，所有泰悉爾泵業集團的客戶都可以享受到最高質量的售后服務。

Process pump 流程泵	Magnetically Coupled Pumps 磁力驅動齒輪泵	Lubrication Pumps 潤滑泵

Tuthill Gear pump齒輪泵產品介紹：

Global Gear齒輪泵
Concord系列微型磁力齒輪泵
MD系列磁力驅動內齒輪嚙合泵
HD系列旋轉活塞泵
L&C系列潤滑油泵
Tuthill耐腐蝕性金屬泵,進口泵,磁力泵
Tuthill磁力驅動泵,進口磁力驅動泵,磁力驅動泵
Tuthill工程塑料泵,進口塑料泵,磁力泵
Tuthill微型齒輪計量泵

GG齒輪泵、HD流程泵、磁力驅動齒輪泵、L&C驅動齒輪泵

Lubrication Pumps

1000 Series Lubrication Pumps 1000系列潤滑油泵 - 靈活的接口設計，可選擇采用機械密封或脣形密封。流量可達484 lpm 應用：潤滑油，燃油輸送，過濾 The 1000 Series is based on the proven internal gear principal and is enhanced in response from our OEM customers for a pump that offers advanced features which make installation easier. These side-ported pumps have the option to bolt SAE/DIN flanges onto them ensuring maximum flexibility on the porting arrangements. Our pump meets your technical requirements and is easily fitted into your system. Our manufacturing expertise and knowledge of applications enable us to provide you with an engineered solution and ensure satisfaction with post-sales service. We pride ourselves on properly servicing you with specification, installation, operation, and troubleshooting. The pump was originally designed to meet and exceed the exacting requirements of the refrigeration compressor market. The design has so many inherent features and benefits that our traditional customers are also seeing the advantages. The 1000 series with great performance is solving problems in many industries and applications.	4000 Series 4000 系列流程泵是基于L&C 系列泵發展的流程泵。具有L&C 系列泵相同的工作原理和結構、性能優點。它主要輸送非潤滑油、燃料油類的粘性，無腐蝕介質。例如油漆、油墨、涂料、樹脂、人造大理石漿液等……針對各種磨損性比較大的介質，4000 系列產品還可以提供耐磨損的結構配置。 最高溫度2700C 黏度范圍4100：1~10000cst；4200、4300：1~25000cst 當轉速超過1800rpm 或黏度超過25000cst 4000 Series PROCESS PUMPS run quiet and provide reliable performance with minimal downtime and maintenance, a positive displacement internal gear construction, and accurate repeatable flow. Special materials of construction permit handling applications in the chemical, food, and petroleum process industries and a wide variety of fluids without solids, as well as a wide variety of fluids including abrasive fluids. Some examples are- (adhesives, alcohol, asphalt, barium sulfate slurry, benzene, coatings, creosote, crude oil, diatomaceous earth, enamel, ethylene glycol, fats, fuel oils, fuller’s earth, gasoline, glue, iron oxide slurry, kerosene, lacquer, lard, linseed oil, liquid feed, molasses mineral oil, paint, paper coating, petrolatum, printing ink, soap liquors, solvents, tall oil, transformer oil, varnish, vegetable oils, and wax)

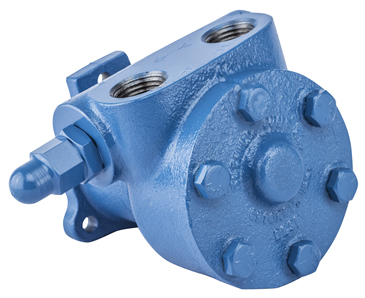

C Series Circulation Pumps C系列循環泵 -流量可達318 lpm。可以選擇采用唇封，機械或填料密封。應用：潤滑油，燃油輸送，液壓，高溫介質。The L & C Series cast iron positive displacement pumps have been the industry standard for Lubrication & Circulation for over 75 years. They were originally designed under James B. Tuthill, the company’s founder, in the 1920s. For eight decades, Tuthill has worked to improve these pumps to fit an ever-growing range of lubrication applications. The result is a family of reliable internal gear pumps that are ideal for custom OEM lubricating, lowpressure hydraulic, transfer, circulating, burner oil and many other industrial pump applications.	L Series Lubrication Pumps L系列潤滑油泵 - 結構緊湊的機械密封潤滑油泵，流量51.9 lpm，壓力34.5 bar 應用：潤滑油，燃油輸送，燃油灌注，過濾。The L Series is an internal gear pump design with compact and flexible drive options. This pump series is available with Tuthill's Reversing Feature, comes standard with a single mechanical seal and cast iron construction

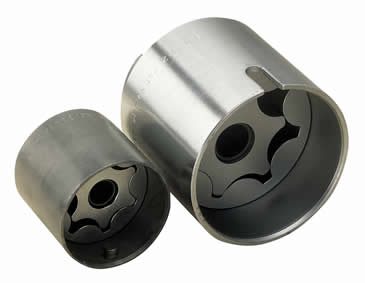

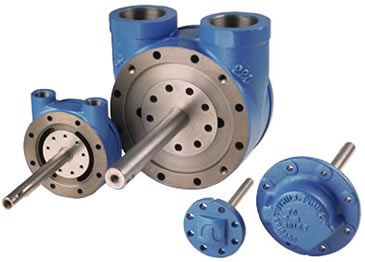

Stripped Lubrication Pumps Flow rates to 84 usgpm. (19.3 m3/hr) Pressures to 150 psi. (10.3 bar) Model #'s- 2C, 3C, 4C, 5C, 6C	TR Series Lubrication Pumps TR系列潤滑油泵 - 結構緊湊的機械密封潤滑油泵，流量51.9 lpm，壓力34.5 bar 應用：潤滑油 Strictly OEM applications. Directly mounted on rotating equipment where the pump is built onto the end of a shaft in the equipment. Pump consists of six parts which the customer assembles on his equipment. Lubrication duty only. Unique, compact, gerotor pump design. Pump is reversible and has inherent pressure relief capability.

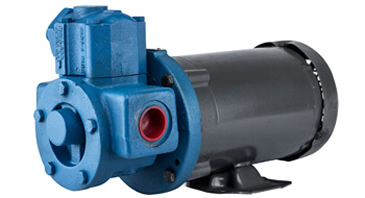

CC Series Close Coupled Pumps CC系列循環泵 - 采用機械密封的泵結構緊湊并直接連接在標準的NEMA 或 IEC電機上。 應用：潤滑油，燃油輸送，過濾 With lots of pump performance in a relatively small space, the CC Series is ideal for package pumping skids or applications where space is limited. By eliminating the need for adapters, reducers, couplings, bases and guards the CC Series saves on cost and eliminates the need for maintenance of these components down the road.

Magnetically Coupled

D Series Pumps D系列微型磁力驅動泵 - 316不銹鋼外加鎳合金或鈦合金外殼；流量可達458 L/hr，壓力差為17.2 bar，系統壓力34.5 bar，溫度可達176°C，黏度可達2000 cps以上 應用：實驗室，水凈化系統，加熱系統，潤滑油，燃油輸送，循環輸送系統，化學試劑計量，取樣，溫度控制，醫藥，輸送添加劑，超純水，激光技術，過濾，調色顏料混合以及各種常規用途	P Series Pumps P系列微型磁力驅動泵 - 工程塑料外殼；流量可達238 L/hr，壓力差為9 bar，系統壓力20 bar，溫度可達65°C，黏度可達1000 cps以上 應用：實驗室，水凈化系統，潤滑油，燃油輸送，循環輸送系統，化學試劑計量，取樣，溫度控制，醫藥，輸送添加劑，自動控制，過濾以及各種常規用途
T Series PumpsT系列微型磁力驅動泵 - 316不銹鋼外加鎳合金或鈦合金外殼；流量可達2460 L/hr，壓力差為17.2 bar，系統壓力34.5 bar，溫度可達176°C，黏度可達2000 cps以上 應用：實驗室，水凈化系統，潤滑油，燃油輸送，循環輸送系統，化學試劑計量，取樣，溫度控制，醫藥，輸送添加劑，激光技術，過濾以及各種常規用途 316 Stainless Steel or Hastelloy Flow rates to 650gph(2460L/hr) Differential Pressures to 250psi(17.2bar) System Pressures to 500psi(34.5bar) Temperatures to 350°F(176°C) Viscosities to 2000cps+.
W Series Pumps W系列微型磁力驅動泵 - 水處理及化學廢水計量泵；流量1 ml/min到38 LPM，壓力差為17.2 bar，精確度高于1% 應用：水處理及化學廢水計量：次氯酸鈉，氯化鐵，Hydrofluorosilicic Acid，甲醇，混合液 體，亞硫酸氫鈉，氫氧化鈉，硫磺酸，反轉特性 - 計量，定量和分配 應用：工業流程，實驗室，水處理，廢水處理，化學試劑計量，取樣，介質輸送 Tuthill's W-Series magnetically coupled external gear chemical metering pumps are designed specifically for the harsh environment associated with water

Process Pumps

Positive Displacement Pumps
Lubrication Pumps
Magnetically Coupled Pumps
Process Pumps
L Series Lubrication Pumps
Lubrication Pumps
TR Series Lubrication Pumps
1000 Series Lubrication Pumps
Cartridge Lubrication Pumps
C Series Circulation Pumps
CC Series Close Coupled Pumps
Stripped Lubrication Pumps
Magnetically Coupled Pumps
D Series Pumps
P Series Pumps
T Series Pumps
W Series Pumps
Variable Flow Drive
0V1V Analog Remote Pump Drive
2V3V Analog Remote Pump Drive
4V5V Analog Remote Pump Drive
8V9V Digital Remote Pump Drive
Process Pumps
Global Gear Process Pumps
Heavy Duty Process Pumps
Magnetically Coupled MagDrive Process Pumps
4000 Series Lubrication Pumps
Concord磁力驅動齒輪泵
L&C驅動齒輪泵
HD旋轉活塞泵
Global Gear齒輪泵
GlobalGear齒輪泵
Global Gear內嚙合齒輪泵
Global Gear PUMP
Tuthill lubrication pumps
Tuthill miniature magnetically coupled pumps
Tuthill Process Pumps
GlobalGear? internal gear pumps
Tuthill lubrication and circulation pumps
Magnetically Coupled Leak-free external-gear pumps
1000 Series Lubrication Pumps 4000 Series
C Series Circulation Pumps
CC Series Close Coupled Pumps
Cartridge Lubrication Pumps
L Series Lubrication Pumps
Stripped Lubrication Pumps
TR Series Lubrication Pumps
GlobalGear Process Pumps
Heavy Duty (HD) Process Pumps

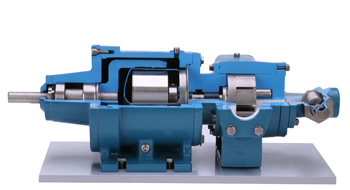

Magnetically Coupled MagDrive Process Pumps

tuthill泰悉爾泵業集團 : tuthill泰悉爾泵業集團生產的正位移齒輪泵廣泛應用于各行各業。

1892年，為了滿足城市規模擴張的需要芝加哥的建筑商們正在尋找大量的建筑材料。一個名叫詹姆斯Btuthill泰悉爾的年輕商人意識到這一切將會帶來巨大的商機，所以他購買了芝加哥的一家礦石廠和一座窯爐開始向當地建筑公司供應磚塊。 作為一個用心經營的企業家，tuthill泰悉爾先生很快找到了一種高效的粘土挖掘并把燒制完成的磚塊運到建筑工地的方法。在二十世紀二十年代初期，他的這種方法演變成一種全新的運輸工具－－蒸汽動力引擎。雖然說這項發明并沒有成功，但是tuthill泰悉爾先生依然把引擎中的一部分設計保留下來：一個小小的，內齒輪泵，依靠它我們可以把燃油直接灌注到卡車油罐中。 tuthill泰悉爾先生優化了泵的設計并把它出售給那些為生活和工業加熱生產燃油的企業。馬上tuthill泰悉爾內齒輪泵被廣泛的接受和使用，tuthill泰悉爾集團也隨即成立。 為了能更好的集中力量發展泵的事業，tuthill泰悉爾泵業集團于1927年成立了。現在對于tuthill泰悉爾銷售部門所售出的泵，仍然可以追訴到19世紀20年代的設計，而且我們可以在世界各個角落發現這種泵的蹤影。

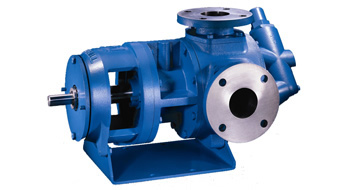

globalgear®是新一代強勁的內部齒輪泵，它的的設計，符合泵和密封的可靠性與低維護成本的要求。為了減少撓度和增加強度→依次增長軸承和密封的壽命，軸和軸承的直徑以及施工材料是早已選定的。推力軸承在自身結構上是沒有潤滑油維護的。其標準結構包括高強度的轉子和空轉輪材料，軸承的轉子頭部和空轉輪都是用不銹鋼材料做成的。

選擇無滲漏解決方案中的集裝和組件式機械密封－其中包括tuffseall? 集裝唇封技術是沒有問題的。API plan 13內通式吸入旁通管可作為一個標準型。API plan 13 旁通管降低了填料箱的壓力，并為密封冷卻提供了再循環，這有助于延長密封壽命。

GlobalGear® 泵高度的可定制性符合具體應用的要求。例如為API 676活塞式帶壓旋轉泵配置回拉切斷功能；對有腐蝕性的液體工作，配置硬化潮濕零部件材料；對溫度要求高達600 oF的，配置特殊的建筑材料；對吸氣壓力要求高達600 psig設計和高側面載荷構造，采用皮帶驅動配置。

Modular porting能夠快捷方便的把泵的接口和用戶相對應的管道系統（包括公制和高壓法蘭）連接起來。我們可以提供各種配件如熱外殼和救濟閥門的特征。潮濕零部件構造可以是鑄鐵、鑄鋼和不銹鋼。

潤滑油泵
	L&C驅動齒輪泵 CC 系列 4000 系列 1000 系列 Cartridge Pumps 軸頭泵 TR 系列
用于泵送潤滑油。通常提供給OEM客戶（原始設備生產商）安裝在回轉部件上潤滑齒輪，軸承或密封。也用來向加熱火爐泵送燃油。鑄鐵結構

流程泵
	GlobalGear系列齒輪泵 ST 系列 HD 系列 6000 系列 7000 系列
在工業流程中，正位移齒輪泵的應用相當廣泛。它們被用來輸送黏度高、溫度高、具有研磨性的介質，也或是具備以上多種特征的介質。這種介質往往是用于生產鑄鐵或是不銹鋼的。可以選擇采用填料密封或是機械密封，也可以選擇磁力驅動的。

Concord微型磁力驅動泵
	D 系列 P 系列 T 系列 W 系列 反轉特性
0泄漏的齒輪外嚙合設計可以精確的提供從1 ml/min 到 38 lpm的無脈動流量，壓力差為17.2 bar，系統壓力34.5 bar，溫度可達176°C，黏度可達2000 cps以上

應用

風力發電	原料輸送	石油化工	空調機組
