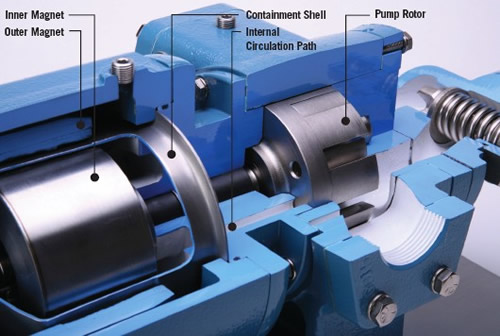

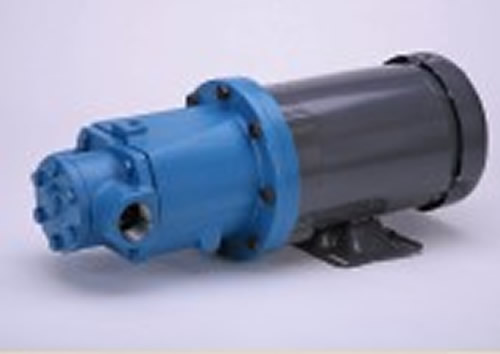

TUTHILL MD系列磁力驅動泵Magnetically coupled internal gear pumps designed to provide zero leakage.
MD系列磁力驅動齒輪泵是在GG系列內嚙合齒輪泵的基礎上發展起來的，適用于對密封泄露有極高要求場合的產品。由于采用了磁力驅動原理，MD泵不存在動密封，可以做到工程意義上的零泄露。在MDI/TDI及類似的遇空氣易結晶變質的工藝流程中，在用于輸送有毒有害介質的工藝流程中均有廣泛的應用。磁力驅動內嚙合齒輪泵.零泄漏 (無動密封)。避免泵送介質接觸空氣或蒸汽
流量范圍: 0.5 - 130 usgpm (0.11 - 30 m3/h).
轉速可達 1750 rpm
石油加工和相關工業.食品及相關產品
產品特點:
磁力驅動內嚙合齒輪泵.

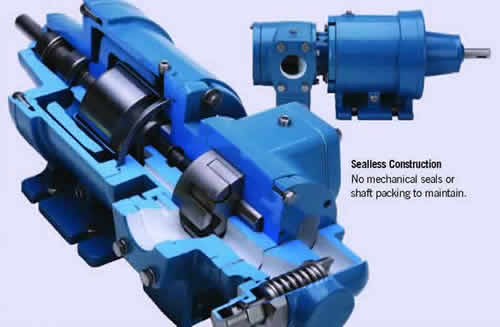

零泄漏 (無動密封)
避免泵送介質接觸空氣或蒸汽
專利設計的磁力冷卻通道
針對磨損或高壓應用，可以選用止推軸承
材質可選鑄鐵或不銹鋼
技術參數 流量范圍: 0.5 - 130 usgpm (0.11 - 30 m3/h).
轉速可達 1750 rpm.
最高壓力 500 psi (34.5 bar).
最大黏度 100,000 ssu (22,000 cst).
最高溫度 500°F (260°C).
|
Magnetically Coupled MagDrive Process Pumps |
|
Model |
Port Size |
USGPM |
Max Speed |
LPM |
Max Speed |
|
ML0I |
.5" NPT |
1.8 |
@ |
1800 |
RPM |
6 |
@ |
1800 |
RPM |
|
ML1I |
.5" NPT |
3.2 |
@ |
1800 |
RPM |
11 |
@ |
1800 |
RPM |
|
ML2I |
1" NPT |
6.2 |
@ |
1800 |
RPM |
21 |
@ |
1800 |
RPM |
|
MC2I |
1" NPT |
9 |
@ |
1800 |
RPM |
34 |
@ |
1800 |
RPM |
|
MC3I |
1.25" NPT |
18 |
@ |
1800 |
RPM |
68 |
@ |
1800 |
RPM |
|
MC4I |
1.5" NPT |
36 |
@ |
1800 |
RPM |
140 |
@ |
1800 |
RPM |
|
MC5I |
1.5" NPT |
62 |
@ |
1800 |
RPM |
235 |
@ |
1800 |
RPM |
|
MC6I |
2" NPT |
84 |
@ |
1800 |
RPM |
318 |
@ |
1800 |
RPM |
|
MG015I |
1.5" NPT |
15 |
@ |
1800 |
RPM |
56.7 |
@ |
1800 |
RPM |
|
MG030I |
1.5" NPT |
30 |
@ |
1800 |
RPM |
113.5 |
@ |
1800 |
RPM |
|
MG080I |
2" NPT |
80 |
@ |
1500 |
RPM |
302.8 |
@ |
1500 |
RPM |
|
MD015S |
1.5" NPT |
10 |
@ |
1200 |
RPM |
37.8 |
@ |
1200 |
RPM |
|
MD030S |
1.5" NPT |
20 |
@ |
1200 |
RPM |
75.7 |
@ |
1200 |
RPM |
|
MD080S |
2" NPT |
50 |
@ |
1000 |
RPM |
189.2 |
@ |
1000 |
RPM |
應用范圍:
石油加工和相關工業.
食品及相關產品
化學品和類似產品
造紙和相關產品
