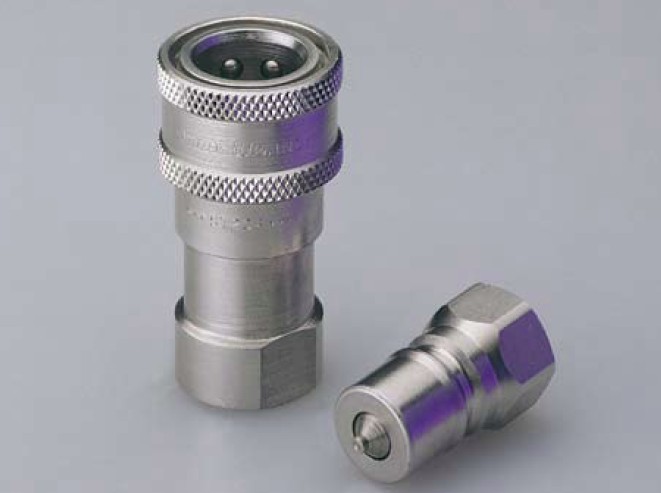

Snap-tite CNG High Flow Filling Coupling B Series
產品概述
該Snap-tite B 系列快換接頭是專門為CNG行業設計的， 采用專用密封材質。
Snap-tite’s 72 Series may be used in a breakaway harness for compressed natural gas (CNG) fueling systems due to the “superior poppet sealing”designed specifically for compressed natural gas. These couplings feature superior pressure and flow characteristics over other manufacturers while meeting or exceeding the ISO-7241-1 Series B specifications.
技術指標
規格型號： 3/4″、1″
工作壓力：4000psi(248bar)
工作溫度：-40℃-121℃
爆破壓力：16000psi（碳鋼）、12000psi（不銹鋼）
材 質：碳鋼表面鍍鋅，303、316不銹鋼
連接形式：NPT
Snap tite CNG專用高壓高流量快速接頭產品選型
型號 |
形式 |
連接尺寸 |
工作壓力 |
極限壓力 |
S72C4–4F UR |
COUPLER |
1/4 NPTF |
5500 PSI (379 BAR) |
22,000 PSI (1517 BAR) |
S72N4–4F UR |
NIPPLE |
1/4 NPTF |
5500 PSI (379 BAR) |
22,000 PSI (1517 BAR) |
S72C6–6F UR |
COUPLER |
3/8 NPTF |
3750 PSI (259 BAR) |
15,000 PSI (1035 BAR) |
S72N6–6F UR |
NIPPLE |
3/8 NPTF |
3750 PSI (259 BAR) |
15,000 PSI (1035 BAR) |
FLOW COEFFICINET |
SIZE |
Cv |
3/4 ″ |
7.0 |
1 ″ |
12.0 |
PRESSURE RATINGS |
SIZE |
STELL |
STAINLESS STEEL |
MAXIMUM WORKING |
MINIMUM BURST |
MAXIMUM WORKING |
MINIMUM BURST |
PSI |
BAR |
PSI |
BAR |
PSI |
BAR |
PSI |
BAR |
3/4 ″ |
4000 |
280 |
16000 |
1305 |
4000 |
280 |
12000 |
840 |
1 ″ |
4000 |
280 |
16000 |
1305 |
4000 |
280 |
12000 |
840 |
Snap tite CNG專用高壓高流量快速接頭訂貨號：
HOW TO ORDER |
SIZE |
SYEEL |
316SS |
COUPLER |
NIPPLE |
COUPLER |
NIPPLE |
3/4 ″ |
B272-2 |
B272-3 |
B272-22 |
B272-33 |
1 ″ |
B692-2 |
B692-3 |
B692-22 |
B692-33 |
ACCESSORIES |
|
DUST LUG |
DUST CAP |
3/4 ″ |
B272PDP-2 |
B272PDC-12 |
1 ″ |
B629PDP-6 |
B629PDC-16 |
|
