熱管理領域的高效冷卻解決方案！Parker thermal management solutions - Quick connect coupling system
Quick connect coupling system – efficient components for thermal management
基于超過60年的快換接頭生產經驗，派克熱管理解決方案可以根據客戶不同的應用需求提供一個卓有成效的方案。依仗著先進的內部設計和耐用性，具有著無滴漏設計的開啟閥保證了在連接和斷開的時候無滴漏。With more than 60 years of producing quick connect couplings, Parker’s thermal management solutions guarantee a reliable and efficient solution to meet any application requirements.Featuring an advanced internal design and robust functionality, these couplings incorporate non-spill valving, meaning no spills during connection and disconnection.
觀看視頻WATCH OUR VIDEO
Parker's Thermal Management solutions have been helping companies for 60 years.
基于 60 多年的研發和生產經驗，我們的產品適 用于各種熱管理應用。
熱管理領域的高效組件! 用于降溫和熱管理的快換接頭的要求非常高。無論是應用于可再生能源、計算機冷卻、運輸還是工業領域，派克的連接系統都能提供有效定制解決方案。 我們的系統因其與廣泛的液體（例如水或熱交換油）和應用環境的高度兼容性而脫穎而出。
Thermal Management - Liquid Cooling Solutions for Electronics, Data Centers, Servers and Super Computers

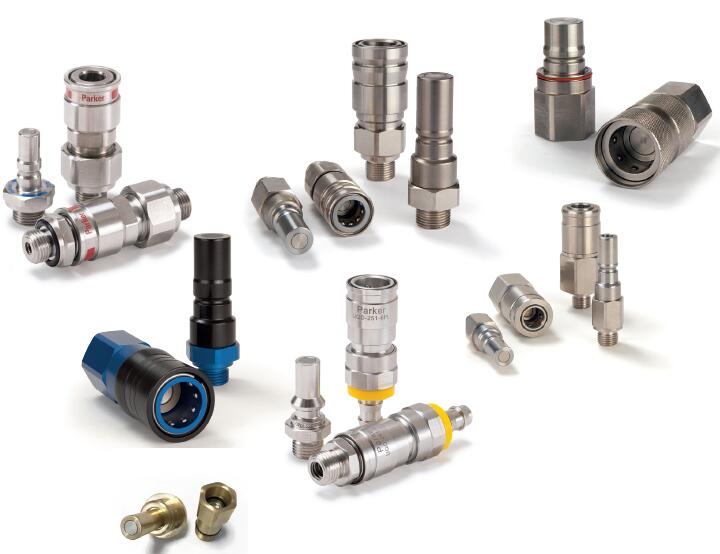

Quick connect coupling system – efficient components in the area of thermal management
派克熱管理解決方案
我們?cè)陂_(kāi)發和生產快換接頭方面擁有超過 60 年的經驗，可確保為您的應用提供可靠高效的解決方 案。
 |
 |
| NSG SERIES 系列平面無泄露快換接頭
NSG 系列是平齊端面閥的無泄露快換系列。緊湊的設計保證了進一步減少安裝空間。這一種雙手連接的快換，意味著在連接和斷開的時候需要雙手操作。The NSG are dry-break couplings with flat face valves. The compact design makes them suitable for reduced spaces. Coupling system with two hand operation, i.e. both hands are required when connect/disconnect. |

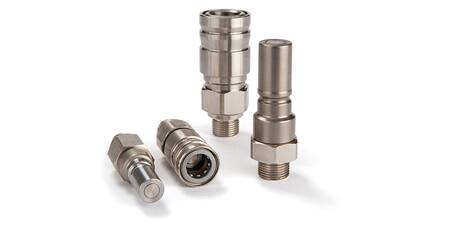

NSI SERIES 系列平面無泄露快換接頭
NSI 系列是平齊端面閥的無泄露快換系列。緊湊的設計保證了進一步減少安裝空間。這一種雙手連接的快換，意味著在連接和斷開的時候需要雙手操作。The NSI are dry-break couplings with flat face valves. The compact design makes them suitable for reduced spaces. Coupling system with two-hand operation, i.e. both hands are required when connect/disconnect.
|
 |
 |
| UQD SERIES 系列快速接頭 UQD系列通用快換接頭是基于Intel所需的開發技術要求。專門為了和Intel集團內部連接進行可互換而設計。Universal Quick Disconnect (UQD) based on an Intel inspired open specification. Developed in collaboration with Intel Corporation. |
NSA SERIES系列干式快速接頭
在斷開時，最小化介質流失。NSA快換可以具有最佳的壓降表現和在連接時，無空氣和雜質的侵入特點。Minimal fluid loss during disconnection. NSA couplings have minimal pressure drop and no inclusion of air or dust during connection.
|
 |
 |

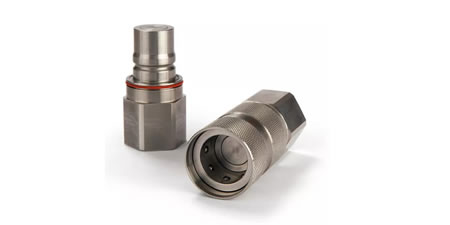

NSE系列無溢流型快換接頭
NSE Series Dry Break Quick Connect Coupling
無溢流型快換，平齊端面設計，緊湊型設計適用于安裝空間有限的高流量應用。
高流量，低壓降
連接/斷開期間沒有溢出
冷卻應用的具體設計
同等通流能力下，尺寸減小
|

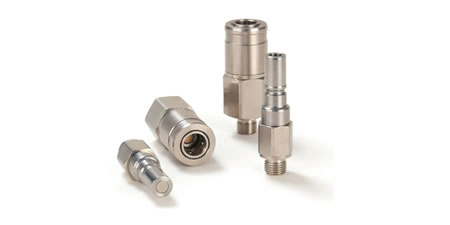

RNS 系列推拉式連接形式無溢流型快換
推拉式快換接頭，使用平齊端面閥芯，是一款堅固的接頭。可安裝在閥塊上或者與鋼管直接連接，能現連接或者斷開時無溢流。本體材料是黃銅以及不銹鋼。連接導向及補償系統能夠在支架連接時，進行一定程度的補償作用，保障對準連接。
無溢流連接/斷開
為冷卻應用而設計
具有拉斷功能的推拉式連接 |
 |
|

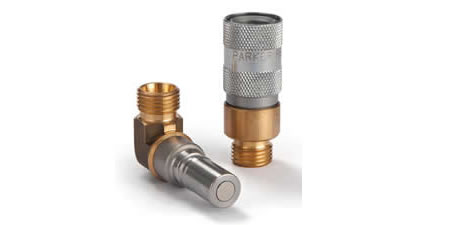

NSP系列無溢流型快換接頭
Parker NSP Series Dry Break Quick Connect Coupling 無溢流推動式連接型快換接頭，使用平齊端面設計，平齊端面設計，緊湊型設計適用于有限空間應用，可用于水或者熱傳導油。
低壓降
斷開/連接時無溢流
為冷卻應用設計/推動式連接功能
優異的抗振動和機械應力
|

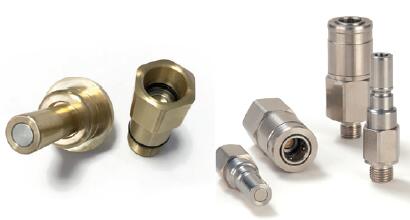

Customized Solution定制盲插快速接頭
Blindmate connection
up to 15 bar
-
Dry connection/disconnection
-
Suitable to blind mate connections due to the floating nipple body (self
alignement to the coupling)
-
Specific design to assure 100% dry disconnection at any time |
 我們的應用OUR APPLICATION:
針對于熱管理的連接要求是極其嚴苛的。我們的系統可以應用于各種高規格的，各種介質需求，以及復雜的應用環境。The requirements for thermal management connections are extremely high. Our systems stand out for their high level of compatibility with the broadest range of liquids and application environments.
 |

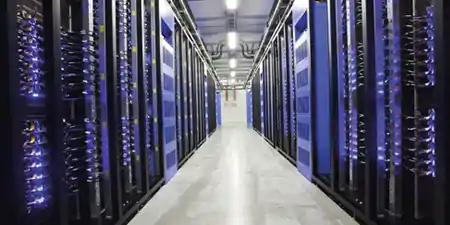

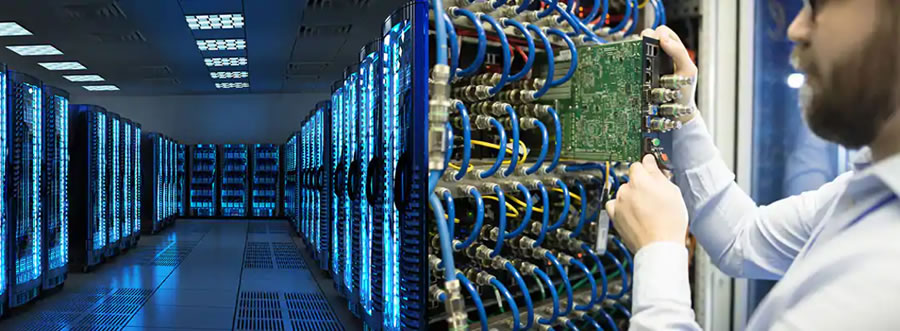

信息技術Information Technology
處理器（微處理器）在運行期間產 生廢熱。這會導致裝置過熱，甚至可能導致部件損壞。然后，冷卻系 統必須保證余熱快速消散。 較小的耗散區和高溫要求優化和高 效的解決方案。由于水的效率是空 氣的10 倍，我們?yōu)榭蛻籼峁┲С郑?為高性能計算機、數據中心、微電 子和遠程通信應用建立完整的水冷 卻系統。 Processors (microprocessors) generate waste heat during operation. This results in overheating of the unit, which can cause malfunction even to the point of destruction of components. A cooling system is, then, mandatory to guarantee the rapid dissipation of the waste heat. Small dissipation areas and high temperatures demand optimized and highly efficient solutions. As water is 10 times more efficient than air, we provide support to our customers to build complete systems for water cooling for High Performance Computers, Data centers, microelectronics and telecommunication applications.
|
 |

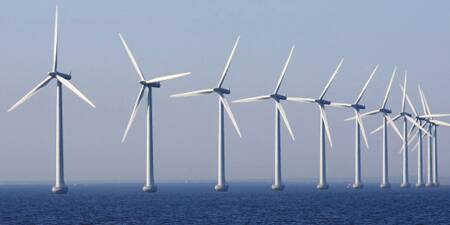

能源管理Energy Management
我們?cè)谔?yáng)能和風能領域使用快換 接頭的知識開發定制解決方案，以 滿足高效冷卻回路的所有要求。例如，智能解決方案至關重要，因?yàn)榛诟咝阅芤后w冷卻電路的新一代 能源生產設備的性能不斷提高。 在此，我們的系統最適合壓力、流 量和溫度參數。由于該系統通常用 于咸海空氣中，因此耐腐蝕材料必 不可少。 Our knowledge in the use of quick connect couplings in the area of solar and wind energy allows the development of bespoke solutions for everything to do with the subject of efficient cooling circuits. For example, intelligent solutions are vital because of the constantly improving performance of the new generation of energy production plants based on high-performance cooling circuits with liquid. Here, our systems are optimally geared to the parameters of pressure, flow and temperature. As the systems are often used in salty sea air, corrosion-resistant materials are essential.
|
 |
交通運輸Mobile Transportation
快速增加的貨物流量和進一步增加 的機動性需要極其可靠有效的車輛 概念。 柴油動力和電動軌道車輛在這個方 面的冷卻非常重要，我們提供輕便 的快換連接產品，以便用于這類應 用。
越來越嚴格的環保要求促使電動汽車和船 舶的使用情況增加，我們的產品是 構建電池包液體冷卻系統的一部 分。 Rapidly increasing flows of goods and further increases in mobility demand extremely reliable and efficient vehicle concepts. Here, the cooling of diesel-powered and electrically driven rail vehicles is highly important, and we provide light weight couplings and connection products adapted to this application. More recently the environmental care drives more and more to the usage of electrical vehicles and ships and our products are part of the systems built for the liquid cooling of the batteries.
|
 |
工業應用Insustrial Application
從單個設備到生產線和高性能激光 器，冷卻技術存在于各種行業中。 快換接頭用于液體冷卻系統，既可 用于生產工藝中的冷卻模具，也可 用于設備本身。
派克為半導體、激光投影儀、 塑料工業、電子產品（逆變器、轉 換器）等各類行業提供液體冷卻和降溫的解決方案。 From the individual machine to production lines and high-performance lasers, cooling is present in different industries. Quick connect couplings are used in liquid cooling systems both for cooling tools in the production process and for the machine itself. Therefore, Parker provides solutions for liquid cooling and tempering for all types of industries, as Semiconductors, Laser projectors, plastic industry, electronics (inverters, converters), etc.
|
 |
其它應用
基于 60 多年的經驗，我們的產品適用于各種熱管理應用。我們非常高 興能夠支持您的系統開發，無論您屬于哪個行業，我們有信心與您共同設計未來
|
下載樣本VIEW OUR BROCHURE
從標準化配件到定制化的解決方案，我們都能滿足您的需求。
From standard products to customized solutions, we will meet your requirements.
|
