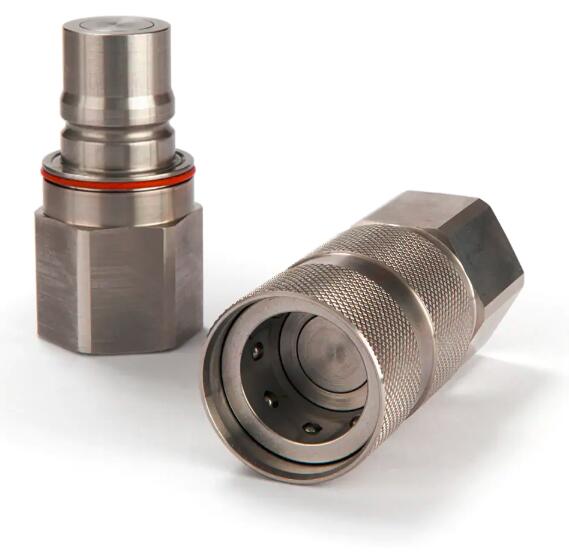

Parker NSE Series Dry Break Quick Connect Coupling
Parker 快速接頭和附件
Parker Quick Couplings and Accessories
Parker NSE系列干式快速連接接頭 Parker Quick Couplings
Parker NSE系列干式快速連接接頭是緊湊的設計使其適合在需要高流量時縮小空間。NSE系列是一個雙手操作的耦合系統，即連接/斷開時需要雙手操作。干斷式快速接頭系統，標稱直徑19，熱管理應用，最大15巴。可用不銹鋼制成。
Parker NSE SeriesQuick Connect Coupling are dry break couplings
服務器和電子冷卻液冷 熱管理應用干式快速接頭
Parker NSE SeriesQuick Connect Coupling are dry break couplings with flat face valves. The compact design makes it suitable for reduced spaces when high flow is needed. The series NSE is a coupling system with two-hand operation, i.e. both hands are required when connect/disconnect. Dry break quick coupling system with nominal diameter 19 for thermal management applications up to 15 bar. Available made of stainless steel.
Markets:
- Power generation and conversion
- Electronic cooling
Features/Benefits:
- High flow with low pressure drop
- No spillage during connection / disconnection
- Specific design for cooling applications
- Reduced dimensions compared to flow capacities
Applications:
- Cooling of electronic components
- Water and coolant lines
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
19 nom |
| Application: |
Thermal Management |
| Brand: |
Parker |
| Fitting Connection Type: |
Female Thread, Male Thread |
| Interchange Type: |
Parker Profile |
| Maximum Operating Pressure: |
210 psi, 15 bar |
| Maximum Operating Temperature: |
392 °F, 200 °C |
| Media: |
Chemical Fluids, Gases, Pneumatic Media, Steam, Water |
| Valve Type: |
Non-Spill / FlatFace |
| Valve Included: |
yes |
| Version: |
Flat-sealing |
| Connection Thread Size: |
3/4, 1 inch |
| Length: |
60,3 up to 96,6 mm |
| Hex Size: |
38 mm |
| Outside Diameter: |
42, na mm |
| Materials of Construction: |
Stainless Steel |
| Seal Material: |
FKM |
NSE Series Dry Break Quick Connect Coupling
