Parker NSI Series Dry Break Quick Connect Coupling干式快速接頭
Parker 快速接頭和附件
Parker Quick Couplings and Accessories
Parker Quick Couplings
服務器和電子冷卻液冷 熱管理應用干式快速接頭 液冷接頭
Parker干斷式快速接頭系統，標稱直徑3/6/9/12，用于熱管理應用，最大60巴。黃銅/不銹鋼制成。Parker的快接接頭系列NSI是帶平面閥的干斷接頭。緊湊的設計使它適合于縮小的空間。NSI系列是一個雙手操作的快速接頭，即連接/斷開時需要雙手操作。NSI系列可與水和導熱油一起使用。
Dry break quick coupling system with nominal diameter 3/6/9/12 for thermal management applications up to 60 bar. Available made of brass/stainless steel. Parker's Quick Connect Coupling Series NSI are dry break couplings with flat face valves. The compact design makes it suitable for reduced spaces. The series NSI is a coupling system with two-hand operation, i.e. both hands are required when connect/disconnect. Series NSI can be used either with water and heat transfer oils.

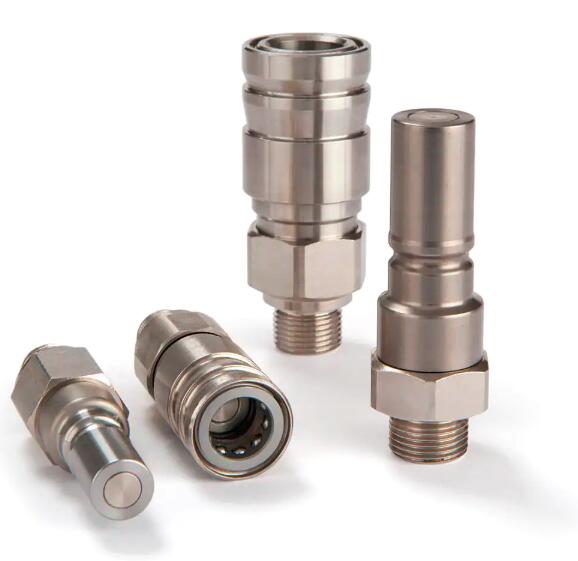

Parker NSI Series Dry Break Quick Connect Coupling
服務器和電子冷卻液冷 熱管理應用干式快速接頭 干式液冷接頭
Parker's Quick Connect Coupling Series NSI are dry break couplings with flat face valves. The compact design makes it suitable for reduced spaces. The series NSI is a coupling system with two-hand operation, i.e. both hands are required when connect/disconnect. Series NSI can be used either with water and heat transfer oils. 派克 Parker's Quick Connect Coupling Series NSI 系列是帶平面閥的干式斷開接頭。緊湊的設計使其適用于縮小的空間。NSI系列是具有兩只手操作的快速接頭，即連接/斷開時需要兩只手。NSI系列可與水和導熱油一起使用。
市場：
-工業模具機械
-電子冷卻
-功率轉換和存儲
特性/優點：
-低壓降
-連接/斷開時無泄漏
-冷卻應用的特殊設計
-出色的抗振動和機械應力性能
應用：
-電子元件冷卻
-水和冷卻液管線
市場：
- Industrial mold machinery
- Electronic cooling
- Power conversion and storage
性能參數：
- Low pressure drop
- No spillage during connection / disconnection
- Specific design for cooling applications
- Excellent resistance to vibrations and mechanical stresses
產品應用Applications:
- Cooling of electronic components
- Water and coolant lines
Technical Specifications
| Minimum Operating Temperature: |
-20 °C |
| Diameter: |
6, 9, 12 nom |
| Application: |
Thermal Management |
| Brand: |
Parker |
| Fitting Connection Type: |
Female Thread, Male Thread |
| Interchange Type: |
French Profile |
| Maximum Operating Pressure: |
870.24 psi, 60 bar |
| Maximum Operating Temperature: |
392 °F, 200 °C |
| Media: |
Gases, Pneumatic Media, Water |
| Valve Type: |
Non-Spill / FlatFace |
| Valve Included: |
Yes |
| Version: |
Flat-sealing |
| Length: |
55,0 up to 99,3 mm |
| Hex Size: |
19 up to 35 mm |
| Outside Diameter: |
22, 30, 42 mm |
| Materials of Construction: |
Brass/Stainless steel |
| Seal Material: |
FKM |
Dry Break Quick Connect Coupling, Series NSI 型號
部分 類型 連接類型 連接螺紋尺寸（英寸） 連接螺紋尺寸（mm）
NSI-251-16MCL-2 耦合 公螺紋-公制 吶 16
NSI-251-C16MCL-2 耦合 公螺紋-公制-90°彎頭 吶 16
NSI-252-4MBE-2 插頭 外螺紋-BSPP 1/4 吶
NSI-371-6FB 耦合 內螺紋-BSPP 3/8 吶
NSI-372-6MBO 插頭 外螺紋-BSPP 3/8 吶
NSI-501-8FB 耦合 內螺紋-BSPP 1/2 吶
NSI-502-8MBO 插頭 外螺紋-BSPP 1/2 吶
|
