Parker's PPA Series are low pressure, push-to-connect couplings
Parker派克PPA系列熱塑塑料快速接頭代理商
Parker PPA Series Thermoplastic Couplings
Parker PPA系列熱塑型快換接頭

Parker PPA系列快換陰接頭-獨特按鈕(塑料按鈕)設計，使用熱塑材料(乙縮醛及不銹鋼),承壓從真空至120PSI

派克熱塑型快換陰接頭以及陽接頭是用于一系列低壓應用的理想選擇， 使用它們能夠實現流體或者氣體管路經常快速簡單地連接或者斷開。Parker派克熱塑型快換陰接頭以及陽接頭是用于一系列低壓應用的理想選擇，使用它們能夠實現流體或者氣體管路經常快速簡單地連接或者斷開。Parker PPA系列陰接頭（熱塑型）可承受真空至120psi壓力，能與PPA系列陽接頭連接。派克PPA系列是低壓，快插型連接接頭，使用塑料按鈕來釋放連接。全塑料外表面能夠使他們不會損壞大多數的表面，并耐多種化學品。PPA系列能與其他類似的塑料按鈕快換接頭進行互換連接。該系列陰接頭與陽接頭目前可供帶閥或者不帶閥形式，并可以任意形式進行組合。目前該系列陰接頭以及陽接頭可供貨尺寸范圍：1/4" 。

Parker PPA Series Thermoplastic Couplings熱塑型快換陰接頭
PPA, PPM, PPL Series Couplings

Parker PPA 系列陽接頭（熱塑型）可承受真空至 120 psi 壓力，能與 PPA 系列陰接頭連接。派克PPA系列是低壓，快插型連接接頭，使用塑料按鈕來釋放連接。全塑料外表面能夠使他們不會損壞大多數的表面，并耐多種化學品。PPA系列能與其他類似的塑料按鈕快換接頭進行互換連接。該系列陰接頭與陽接頭目前可供帶閥或者不帶閥形式，并可以任意形式進行組合。目前該系列陰接頭以及陽接頭可供貨尺寸范圍：1/4"。

技術特點：
- 尺寸：1/4"
- 材料：本體：共聚甲醛，彈簧：不銹鋼
- 尾端連接：軟管寶塔接頭
- 密封材料：丁腈橡膠

市場：
- 醫療
- 測試
- 化學加工
- 食品和飲料
- 工業

特點/優點：
- 按鈕釋放保護裝置，防止意外斷開
- 乙縮醛主體材料和不銹鋼彈簧，可與多種化學品兼容
- 帶閥以及不帶閥形式的陰接頭以及陽接頭，可與任意形式進行組合，以提供混流及流量匹配功能。
- 快速，直觀的操作，可聽到的 “咔嚓” 一聲，和觸覺感受確認完全連接
- 比其他金屬快換接頭更加節約成本

性能特點

最大工作壓力 (PSI) 120
主體尺寸 (IN) 1/4
額定流量 (CV) 0.42 至 1.40 使用相同閥芯設計，在配合另一端連接時
密封材料 丁腈橡膠
媒介 空氣，流體以及化學介質
半聯軸器 陰接頭
最低工作溫度 (F) -40
最高工作溫度 (F) 180
閥門樣式 錐閥或者不帶閥
套管類型 推拉式連接
鎖定機制 塑料按鈕
主體材料 乙縮醛
連接類型 軟管寶塔接頭
彈簧材料 不銹鋼
應用 真空至低壓液體及氣體

應用：
- 醫療器械
- 實驗室設備
- 輸送流體
- 食品和飲料加工和包裝
- 工業
- 過程設備

產品技術資料下載 - LITERATURE AND REFERENCE MATERIALS
- Series PPA/PPM/PPL Series, Push-Button Thermoplastic Quick Couplings
- PPA Series Catalog

- SELECTOR GUIDES
- PPA-PPM-PPL Series Landing Page

Push Button (Plastic Latch) Thermoplastic (Acetal and Stainless) Quick Couplings, vacuum to 120 psi - PPA Series Couplers Parker's thermoplastic quick couplers and nipples are ideal for use across a broad range of low pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Parker's PPA Series are low pressure, push-to-connect couplings with a plastic latch push button release. The fully plastic exterior makes them non-marring to most surfaces and resistant to many chemicals. PPA Series will interconnect with other similar plastic latch push button couplings. The couplers and nipples are available with or without valves and can be used in any combination. Couplers and nipples are available in 1/4"" size. PPA-251-4HB PPA-251-6HB PPA-253-4HBSB PPA-253-6HBSB PPA-252-4HB PPA-252-6HB PPA-254-4HBSB PPA-254-6HBSB

Parker PPA Series Couplers (thermoplastic) vacuum to 120 psi connect with PPA Series Nipples

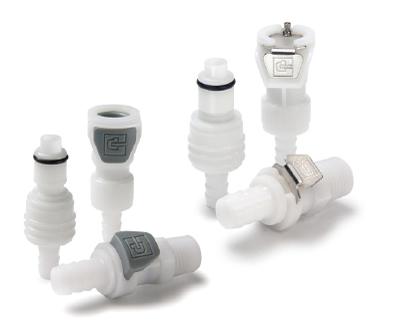

PPA Couplings PPA couplings- General-purpose, push-to-connect couplings - 1/4" flow, valved or unvalved, acetal body - Plastic latch for push-button release - Non-marring plastic exterior and smooth face - Connectable with other similar, plastic latch, push-button couplings	PPM and PPL Couplings PPM, PPL couplings- General-purpose, push-to-connect couplings - Metal latch - PPM 1/8" and PPL 1/4" flow, valved or unvalved, acetal body - Push-button release - Couplers and nipples available with or without valves; usable in any combination - Lightweight, thermoplastic material resists dust - Interchangeable with other similar, metal latch, push-button couplings	Download the Bulletin with complete specifications to learn more. PPA, PPM, PPL Series Bulletin download Learn more here.

Parker PPA Series Push Button Couplings
Push Button Thermoplastic Couplings
PPA Series Couplings are general purpose, thermoplastic couplings.
Parker Hannifin’s PPA, PPM & PPL push-button couplings
PPA Series Couplings
Parker Quick Coupling Coupler, PPA Series, 1/4" Body, 1/4" Hose Barb, Acetal Copolymer
Thermoplastic Quick Couplings | Parker PPM, PPL, PPA, Spectrum & PF Series
Parker PPM & PPL Series Coupling
Parker PPA Series Coupling
Parker Spectrum Series Coupling
Parker PF Series Coupling

Parker PPA Series Coupling	Parker PPM & PPL Series Coupling	Parker PF Series Coupling	Parker Spectrum Series Coupling

Thermoplastic Coupling
- Parker PM - PPL Series (PDF)
- Parker PPA Series (PDF)
- Parker Spectrum Series (PDF)
- Parker PF Series (PDF)

Technical Characteristics
規格參數
- 尺寸: 1/4”
- 材質: Body: Acetal Copolymer, Spring: Stainless Steel
- Port Ends: Hose Barb
- 密封材料: Nitrile

市場領域：

- Medical
- Testing
- Chemical Processing
- Food and Beverage
- Industrial

Features/Benefits:
- Push button release guards against accidental disconnection
- Acetal body material and stainless springs are compatible with many chemicals
- Valved and unvalved couplers and nipples can be used together in any combination to provide the ability to mix and match flow functions
- Quick, intuitive operation with an audible ""click"" and tactile feedback to confirm a full connection
- More cost-effective than metal couplings

Applications:
- Medical devices
- Laboratory equipment
- Fluid conveyance
- Food and beverage processing and packaging
- Industrial
- Process equipment

性能特點

最大工作壓力 (psi)120
主體尺寸 (in)1/4”
額定流量 (CV)0.42 to 1.40 with same valve configuration in mating half
密封材料Nitrile
媒介Air, fluids and chemicals
半聯軸器Coupler
最低工作溫度 (F)-40
最高工作溫度 (F)180
閥門樣式Poppet or Unvalved
套管類型Push to connect
鎖定機制Plastic push button latch
主體材料Delrin Acetal
連接類型Hose barb
彈簧材料Stainless steel
應用Vacuum to low pressure fluids and gases

Thermoplastic Quick Couplings
Product Announcement from Parker Hannifin / Fluid Connectors / Quick Coupling Division

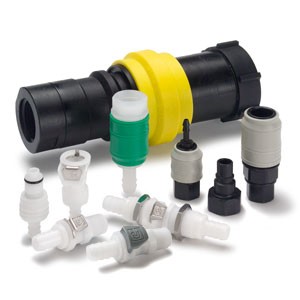

Thermoplastic Quick Couplings-Image

Thermoplastic Quick Couplings offer push-to-connect operation, high flow capability, light weight design, and excellent chemical compatibility to meet a broad range of applications.

Thermoplastic Quick Couplings

PF Series couplings are non-spill couplings designed to use in closed system transfer and dispensing of chemicals with minimal environmental contamination. Available in body sizes 1/2" through 2".

Spectrum Series couplings are available valved or un-valved and in an optional panel-mount configuration. Available in body sizes 1/8" and 3/8".

PPM and PPL Series couplings offer the ease of push-to-connect operation with push-button release. These push-button quick couplings have an intuitive stainless steel latch that produces an audible "click" when a proper connection has been made. Available in 1/8 and 1/4 inch body sizes with male thread or hose barb ends. Valved or unvalved couplers and nipples can be used in any combination.

PPA Series couplings are push-to-connect with plastic latch push-button release. Available in 1/4 inch body size only and not interchangeable PPL series.

PPM, PPL and PPA Series couplings offer interchangeability with many of the competitive latch type coupling products that are currently available.

Economical, quick connections with an audible “CLICK”
Push-Button Coupling cutaway

Users can know they've made a secure connection with the simple, push-button latch operation and audible “CLICK” of Parker's PPA, PPM and PPL Push-Button Couplings.

By combining the advantages of thermoplastic material with the traditional flow functions found in metal couplings, Parker’s PPA, PPM and PPL Series Couplings offer critical advantages for medical, laboratory, consumer, instrumentation, and industrial applications, including:

- Longer seal life
- No accidental disconnections
- Greater chemical compatibility
- Mix and match of flow functions
- Quick, intuitive operation with audible and tactile feedback of connection
- More cost-effective than metal couplings

Parker Thermoplastic Quick Coupling Applications
熱塑性塑料快速接頭應用

- Medical devices
- Laboratory equipment
- Chemical processing
- Food and beverage
- Industrial
- Process equipment
