Parker Spectrum Series熱塑型快換接頭
Parker Spectrum Series Thermoplastic Couplings
Parker SPECTRUM SERIES thermoplastic quick couplers

SPECTRUM系列陰接頭-熱塑型(乙縮醛&不銹鋼),多種連接形式NPT/軟管寶塔式/平板安裝,承壓可達145PSI
SPECTRUM 系列陽接頭 - 熱塑型(乙縮醛&不銹鋼),多種連接形式NPT/軟管寶塔式/平板安裝,承壓可達145 PSI

派克熱塑型快換陰接頭以及陽接頭是用于一系列低壓應用的理想選擇，能夠用于流體或者氣體管路快速簡單地連接以及斷開。Spectrum系列快換陰接頭（熱塑型）承壓可達145 psi，能與Spectrum 系列陽接頭配合連接。Spectrum 系列快換陽接頭（熱塑型）承壓可達 145 psi ，能與 Spectrum 系列陰接頭配合連接。派克Spectrum 系列是一款低壓，推動式連接熱塑快換。該系列快換陰接頭帶閥，陽接頭可供帶閥以及不帶閥形式。快換陰接頭以及陽接頭重量輕，結構緊湊，流量高，并且化學兼容性好。

Parker's Spectrum Series couplings

技術特點：

- 尺寸范圍：1/8" & 3/8"
- 材料：本體，乙縮醛，彈簧，316不銹鋼
- 尾端連接：管內螺紋，管外螺紋，軟管寶塔接頭，軟管寶塔隔板接頭
- 密封可選：丁腈橡膠，氟橡膠
- 其他陰接頭可選包括：平板安裝，顏色（套筒）, PVDF, PEEK材料（需聯系派克快換事業部進行咨詢）

市場：

- 化工過程
- 食品及飲料
- 工業
- 半導體工業

特點/優點：

- 乙縮醛本體材料以及不銹鋼彈簧，能與多種化學介質兼容
- 帶閥形式快換陰接頭以及帶閥或者不帶閥陽接頭配合連接，組成單截止或者雙截止形式
- 重量輕，結構緊湊，多種尾端連接可供選擇，包括隔板形式，平板安裝選項
- 較之于金屬快換接頭更加經濟

性能特點

最大工作壓力 (PSI) 145
流速 (GPM) 1.5 至 4.5
密封材料丁腈橡膠
媒介空氣，流體以及化學介質
半聯軸器陰接頭
最低工作溫度 (F) 0
最高工作溫度 (F) 180
套管類型推拉式連接
鎖定機制四點手緊鎖住
主體材料乙縮醛
彈簧材料不銹鋼
應用低壓流體及氣體

應用：
- 流體輸送
- 食品及飲料過程及包裝
- 過程設備
- 自動化設備
- 冷卻回路

LITERATURE AND REFERENCE MATERIALS
- Spectrum Series Catalog

Parker Spectrum Series couplings

Parker's Spectrum Series couplings are ideal for chemical processing, automation equipment, semi-conductor industry, and food processing applications.

Parker's thermoplastic quick couplers and nipples are versatile for use across a broad range of low pressure applications where fluid lines require fast and easy connection and disconnection.The Spectrum Series couplings are ideal for chemical processing, automation equipment, semi-conductor industry, and food processing applications.

Spectrum Series Couplers (thermoplastic) up to 145 psi connect with Spectrum Series Nipples. Parker's Spectrum Series are low pressure, push-to-connect thermoplastic couplings. Couplers are valved. Couplers and nipples combine compact size, high flow and lightweight along with chemical compatibility.

Spectrum Series Features:

- PVDF (Kynar) available w/ Fluorocarbon seals
- Hose barb, male and female NPT
- Coupler comes in bulkhead (flush-mount) style
- Push/pull rather than sleeve actuation
- Color coding options available
- Red
- Yellow
- Blue
- Green
- Sizes: 1/8” and 3/8”
- Materials:
- Body: Acetal
- Spring: 316 stainless steel

Acetal/SS(black with grey sleeve)		PVDF/SS(translucent with green sleeve)		PVDF/PEEK TM(translucent)
Body Size	1/8	3/8	1/8	3/8	3/8
Pressure Range	0-145 psi (0-10 bar)	0-145 psi (0-10 bar)	0-115 psi (0-8 bar)	0-115 psi (0-8 bar)	15-115 psi (1-8 bar)
Temperature Range	0° F to 180° F (-20° C to +80° C)	0° F to 180° F (-20° C to +80° C)	0° F to 250° F (-20° C to +120° C)	0° F to 250° F (-20° C to +120° C)	0° F to 250° F (-20° C to +120° C)
Rated Flow	1.5 GPM (5.6 lpm)	4.5 GPM (17 lpm)	1.5 GPM (5.6 lpm)	4.5 GPM (17 lpm)	4.5 GPM (17 lpm)
Body Material	Acetal	Acetal	PVDF	PVDF	PVDF
Spring Material	316 SS	316 SS	316 SS	316 SS	PEEKTM
Seal Material	Nitrile	Nitrile	Fluorocarbon	Fluorocarbon	Fluorocarbon

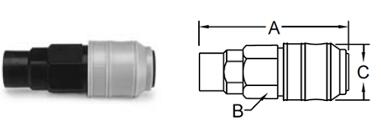

Specifications for Parker Spectrum Series - Female Pipe Coupler

COUPLERS
Sizes 1/8" - 3/8"

Body Size (in.)	Acetal* Part No.	PVDF* Part No.	PVDF/PEEKTM* Part No.	Port NPT	Dimensions (in.)
Body Size (in.)	Acetal* Part No.	PVDF* Part No.	PVDF/PEEKTM* Part No.	Port NPT	Overall Length A	Hex Size B	Largest Diameter C
1/8	S2-ACV-02-FP	S2-PCV-02-FP	—	1/5-27	2.15	0.67	0.82
1/8	S2-ACV-04-FP	S2-PCV-04-FP	—	1/4-18	2.34	0.67	0.82
3/8	S6-ACV-04-FP	S6-PCV-04-FP	S6-KCV-04-FP	1/4-18	2.63	0.82	1.02
3/8	S6-ACV-06-FP	S6-PCV-06-FP	S6-KCV-06-FP	3/8-18	2.63	0.82	1.02
3/8	S6-ACV-08-FP	S6-PCV-08-FP	S6-KCV-08-FP	1/2-14	3.10	0.82	1.02

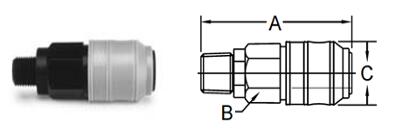

Specifications for Parker Spectrum Series - Male Pipe Coupler

COUPLERS
Sizes 1/8" - 3/8"

Body Size (in.)	Acetal* Part No.	PVDF* Part No.	PVDF/PEEKTM* Part No.	Port NPT	Dimensions (in.)
Body Size (in.)	Acetal* Part No.	PVDF* Part No.	PVDF/PEEKTM* Part No.	Port NPT	Overall Length A	Hex Size B	Largest Diameter C
1/8	S2-ACV-02-MP	S2-PCV-02-MP	—	1/8-27	2.04	0.67	0.82
1/8	S2-ACV-04-MP	S2-PCV-04-MP	—	1/4-18	2.15	0.67	0.82
3/8	S6-ACV-04-MP	S6-PCV-04-MP	S6-KCV-04-MP	1/4-18	2.90	0.82	1.02
3/8	S6-ACV-06-MP	S6-PCV-06-MP	S6-KCV-06-MP	3/8-18	2.77	0.82	1.02
3/8	S6-ACV-08-MP	S6-PCV-08-MP	S6-KCV-08-MP	1/2-14	3.10	0.82	1.02

Body Size (in.)	Acetal* Part No.	PVDF* Part No.	PVDF/PEEKTM* Part No.	Hose I.D.	Dimensions (in.)
Body Size (in.)	Acetal* Part No.	PVDF* Part No.	PVDF/PEEKTM* Part No.	Hose I.D.	Overall Length A	Hex Size B	Largest Diameter C
1/8	S2-ACV-03-HB	S2-PCV-03-HB	—	3/16 (4 mm)	2.34	0.67	0.82
1/8	S2-ACV-04-HB	S2-PCV-04-HB	—	1/4 (6 mm)	2.34	0.67	0.82
3/8	S6-ACV-04-HB	S6-PCV-04-HB	S6-KCV-04-HB	1/4 (6 mm)	3.19	0.82	1.02
3/8	S6-ACV-06-HB	S6-PCV-06-HB	S6-KCV-06-HB	3/8 (9 mm)	3.19	0.82	1.02
3/8	S6-ACV-08-HB	S6-PCV-08-HB	S6-KCV-08-HB	1/2 (13 mm)	3.31	0.82	1.02

Body Size (in.)?	Acetal* Part No.	PVDF*? Part No.?	PVDF/PEEK TM Part No.	Hose I.D.	Dimensions (in.)
Body Size (in.)?	Acetal* Part No.	PVDF*? Part No.?	PVDF/PEEK TM Part No.	Hose I.D.	Overall Length A	Hex Szie B	Largest Diameter C	Bulkhead Hex D
1/8	S2-ACV-03-BHB	S2-PCV-03-BHB	-	3/16 (4 mm)	2.89	0.67	0.82	0.67
1/8	S2-ACV-04-BHB	S2-PCV-04-BHB	-	1/4 (6 mm)	2.89	0.67	0.82	0.67

Body Size (in.)	Acetal* Part No.	PVDF* Part No.	PVDF/PEEK TM Part No.	Hose I.D.	Dimensions (in.)
Body Size (in.)	Acetal* Part No.	PVDF* Part No.	PVDF/PEEK TM Part No.	Hose I.D.	Overall Length A	Hex Size B	Largest Diameter C	Bulkhead Hex D
1/8	S2-APV-02-FP	S2-PPV-02-FP	-	1/8-27	2.04	0.67	1.10	1.06
1/8	S2-APV-04-FP	S2-PPV-04-FP	-	1/4-18	2.16	0.67	1.10	1.06

Body Size (in.)	Acetal* Part No.	PVDF* Part No.	PVDF/PEEK TM Part No.	Hose I.D.	Dimensions (in.)
Body Size (in.)	Acetal* Part No.	PVDF* Part No.	PVDF/PEEK TM Part No.	Hose I.D.	Overall Length A	Hex Size B	Largest Diameter C	Bulkhead Hex D
1/8	S2-APV-03-HB	S2-PPV-03-HB	-	3/16 (4mm)	2.34	0.67	1.10	1.06
1/8	S2-APV-04-HB	S2-PPV-04-HB	-	1/4 (6mm)	2.34	0.67	1.10	1.06

Push-to-Connect Thermoplastic Series | Parker Spectrum Nipple Series

Body Size (in.)	Acetal Part No.	PVDF Part No.	PVDF/PEEK TM Part No.	Port NPT	Dimensions (in.)
Body Size (in.)	Acetal Part No.	PVDF Part No.	PVDF/PEEK TM Part No.	Port NPT	Overall Length A	Hex Size B	Largest Diameter C
1/8	S2-ANS-02-FP	S2-PNS-02-FP	-	1/8-27	1.02	0.55	0.62
1/8	S2-ANS-04-FP	S2-PNS-04-FP	-	1/4-18	1.18	0.67	0.76
3/8	S6-ANS-04-FP	S6-PNS-04-FP	-	1/4-18	1.52	0.67	0.73
3/8	S6-ANS-06-FP	S6-PNS-06-FP	-	3/8-18	1.52	0.83	0.91
3/8	S6-ANS-08-FP	S6-PNS-08-FP	-	1/2-14	1.68	0.98	1.09

Body Size (in.)	Acetal Part No.	PVDF Part No.	PVDF/PEEK TM Part No.	Port NPT	Dimensions (in.)
Body Size (in.)	Acetal Part No.	PVDF Part No.	PVDF/PEEK TM Part No.	Port NPT	Overall Length A	Hex Size B	Largest Diameter C
1/8	S2-ANS-02-MP	S2-PNS-02-MP	-	1/8-27	1.08	0.55	0.62
1/8	S2-ANS-04-MP	S2-PNS-04-MP	-	1/4-18	1.24	0.67	0.76
3/8	S6-ANS-04-MP	S6-PNS-04-MP	-	1/4-18	1.64	0.67	0.73
3/8	S6-ANS-06-MP	S6-PNS-06-MP	-	3/8-18	1.64	0.83	0.91
3/8	S6-ANS-08-MP	S6-PNS-08-MP	-	1/2-14	1.83	0.94	1.04

Body Size (in.)	Acetal Part No.	PVDF Part No.	PVDF/PEEK TM Part No.	Hose I.D.	Dimensions (in.)
Body Size (in.)	Acetal Part No.	PVDF Part No.	PVDF/PEEK TM Part No.	Hose I.D.	Overall Length A	Largest Diameter B
1/8	S2-ANS-03-HB	S2-PNS-03-HB	-	3/16 (4mm)	1.26	0.34
1/8	S2-ANS-04-HB	S2-PNS-04-HB	-	1/4 (6mm)	1.26	0.34
3/8	S6-ANS-04-HB	S6-PNS-04-HB	-	1/4 (6mm)	1.86	0.71
3/8	S6-ANS-06-HB	S6-PNS-06-HB	-	3/8 (9mm)	1.87	0.71
3/8	S6-ANS-08-HB	S6-PNS-08-HB	-	1/2 (13mm)	1.99	0.71

Body Size (in.)	Acetal Part No.	PVDF Part No.	PVDF/PEEK TM Part No.	Hose I.D.	Dimensions (in.)
Body Size (in.)	Acetal Part No.	PVDF Part No.	PVDF/PEEK TM Part No.	Hose I.D.	Overall Length A	Hex Size B	Largest Diameter C	Bulkhead hex D
1/8	S2-ANS-03-BHB	S2-PNS-03-BHB	-	3/16 (4mm)	1.97	0.55	0.64	0.55
1/8	S2-ANS-04-BHB	S2-PNS-04-BHB	-	1/4 (6mm)	1.97	0.55	0.77	0.67

Body Size (in.)	Acetal Part No.	PVDF Part No.	PVDF/PEEK TM Part No.	Port NPT	Dimensions (in.)
Body Size (in.)	Acetal Part No.	PVDF Part No.	PVDF/PEEK TM Part No.	Port NPT	Overall Length A	Hex Size B	Largest Diameter C
1/8	S2-ANV-02-FP	S2-PNV-02-FP	—	1/8-27	1.61	0.67	0.76
1/8	S2-ANV-04-FP	S2-PNV-04-FP	—	1/4-18	1.80	0.67	0.76
3/8	S6-ANV-04-FP	S6-PNV-04-FP	S6-KNV-04-FP	1/4-18	2.02	0.83	0.91
3/8	S6-ANV-06-FP	S6-PNV-06-FP	S6-KNV-06-FP	3/8-18	2.02	0.83	0.91
3/8	S6-ANV-08-FP	S6-PNV-08-FP	S6-KNV-08-FP	1/2-14	2.49	0.83	0.91

Body Size (in.)	Acetal Part No.	PVDF Part No.	PVDF/PEEK TM Part No.	Port NPT	Dimensions (in.)
Body Size (in.)	Acetal Part No.	PVDF Part No.	PVDF/PEEK TM Part No.	Port NPT	Overall Length A	Hex Size B	Largest Diameter C
1/8	S2-ANV-02-MP	S2-PNV-02-MP	—	1/8-27	1.49	0.67	0.76
1/8	S2-ANV-04-MP	S2-PNV-04-MP	—	1/4-18	1.80	0.67	0.76
3/8	S6-ANV-04-MP	S6-PNV-04-MP	S6-KNV-04-MP	1/4-18	2.24	0.83	0.91
3/8	S6-ANV-06-MP	S6-PNV-06-MP	S6-KNV-06-MP	3/8-18	2.16	0.83	0.91
3/8	S6-ANV-08-MP	S6-PNV-08-MP	S6-KNV-08-MP	1/2-14	2.49	0.83	0.91

Body Size (in.)	Acetal Part No.	PVDF Part No.	PVDF/PEEK TM Part No.	Hose I.D.	Dimensions (in.)
Body Size (in.)	Acetal Part No.	PVDF Part No.	PVDF/PEEK TM Part No.	Hose I.D.	Overall Length A	Hex Size B	Largest Diameter C
1/8	S2-ANV-03-HB	S2-PNV-03-HB	—	3/16 (4 mm)	1.80	0.67	0.76
1/8	S2-ANV-04-HB	S2-PNV-04-HB	—	1/4 (6 mm)	1.80	0.67	0.76
3/8	S6-ANV-04-HB	S6-PNV-04-HB	S6-KNV-04-HB	1/4 (6 mm)	2.59	0.82	0.91
3/8	S6-ANV-06-HB	S6-PNV-06-HB	S6-KNV-06-HB	3/8 (9 mm)	2.59	0.82	0.91
3/8	S6-ANV-08-HB	S6-PNV-08-HB	S6-KNV-08-HB	1/2 (13 mm)	2.71	0.82	0.91

Body Size (in.)	Acetal Part No.	PVDF Part No.	PVDF/PEEK TM Part No.	Hose I.D.	Dimensions (in.)
Body Size (in.)	Acetal Part No.	PVDF Part No.	PVDF/PEEK TM Part No.	Hose I.D.	Overall Length A	Hex Szie B	Largest Diameter C	Bulkhead Hex D
1/8	S2-ANV-03-BHB	S2-PNV-03-BHB	-	3/16 (4 mm)	2.35	0.67	0.76	0.55
1/8	S2-ANV-04-BHB	S2-PNV-04-BHB	-	1/4 (6 mm)	2.35	0.67	0.76	0.55
