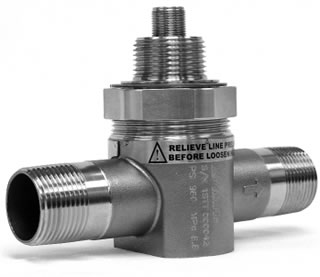

NUFLO 1000 Series TIM Liquid Turbine Meter
NUFLO Cameron Liquid Threaded Turbine Flow Meter

螺紋 NPT連接 ?

螺紋連接的流量計尺寸為 3/8” 到 2” ? ，3/8 ” 到 1” 管線的流量計均有 1” NPT 過程連接以簡化流量計尺寸的變化 ? ，除 2” 流量計之外，其他尺寸流量計使用母螺紋 。The unique replaceable rotor kit design of the NUFLO? Series 1000 Top Insertion Meter makes this flowmeter one of the most user-friendly solutions on the market for liquid measurement. Replaceable rotor insert kits allow users to perform routine maintenance quickly and easily 1000 TIM is durable and well-suited to a wide range of applications, including measurement of contaminated liquids.



The meter features 1 inch NPT threaded end connections and is designed for low pressure drop and a broad viscosity range. The Series 1000 TIM is an electromechanical volumetric measurement instrument. Flow causes the muliti-blade rotor to spin at an angular velocity directly proportional to the rotor's angular velocity and the cross-sectional area of the meter is fixed, the frequency is directly proportional to flow rate. The sinusoidal signal generated is easily transmitted to a NUFLO MC?-series totalizer or other electronic instrumentation.

NUFLO? turbine flowmeters indicate flow rate and measure total throughput of a liquid line. As liquid flows through the meter and over the rotor, the rotor turns at a speed that is directly proportional to the flow rate. The meter offers all stainless steel precision machined components with CD4MCu and/or 416 stainless steel rotors in line sizes from 3/8" through 10.0". End connection is NPT threaded standard, however other ends like victaulic, flanged, or sanitary are available on special request.

Magnetic pickup sold separately.

NUFLO Cameron Liquid Threaded Turbine Flow Meter

NUFLO Turbine Meter P/N	Rotor and Vane Kit P/N	End Connection	Bore	GPM	BPD	Pressure Rating in PSI
9A-100003519	9A-100003521	1" x 1" Male NPT	3/8"	0.3 - 3.0	10 - 100	7,500
9A-100003532	9A-100003531	1" x 1" Male NPT	1/2"	0.75 - 7.50	25 - 250	7,500
9A-100003522	9A-100003449	1" x 1" Male NPT	3/4"	2.0- 15.0	68 - 514	7,500
9A-100003589	9A-100005124	1" X 1" Male NPT	7/8"	3.0 - 30.0	100 - 1,000	5,000
9A-100003526	9A-100003527	1" X 1" Male NPT	1"	5.0 - 50.0	170 - 1,700	5,000
9A-100003536	9A-100003469	1 1/2" X 1 1/2" Male NPT	1-1/2"	15.0 - 180.0	515 - 6,000	5,000
9A-10101183	9A-100003469	2" X 2" Low Flow Male NPT	1-1/2"	15.0 - 180.0	515 - 6,000	5,000
9A-100003535	9A-100003474	2" X 2" Female NPT	2"	40.0 - 400.0	1,300 - 13,000	5,000
